BEFORE DRIVING YOUR VEHICLE

SAFETY REMINDERS

DAILY MAINTENANCE

objects embedded in tread

For your safety and that of others,

Daily maintenance should be per-

grooves.

observe the following precautions:

formed by the driver before or after

Inspect disc wheels for damage.

Never drive while under the influ-

the day’s operation in order to

Check that wheel nuts are properly

ence of intoxicating beverages or

assure safe driving and prevent

installed and tightened.

drugs which may affect your ability

problems on the road.

Drain condensate from air reser-

For complete details, refer to the

to operate your vehicle safely.

voir.

“CHECK POINTS” (next page) and

Drive defensively. Expect the

Check if water has accumulated in

“VEHICLE SERVICE AND MAINTE-

unexpected! Properly use the seat

the primary fuel filter.

NANCE” section in this manual.

belts and head restraints provided

Check whether a red signal shows

If a problem with any part of the vehi-

with your vehicle.

on air cleaner service indicator for

cle is noticed during daily inspection,

Observe posted speed limits and

clogging of the air cleaner.

it should be repaired immediately.

other local laws. Never drive faster

Consult your authorized UD Trucks

Check that all light lenses are

than conditions allow.

dealer or qualified service facility for

undamaged and clean.

Know your vehicle and its operat-

repairs.

Check levels of engine oil and

ing characteristics.

power steering fluid.

Maintain your vehicle according to

WARNING

With the cab tilted

the schedules and instruction

described in this manual.

z Check drive belts for proper ten-

z Repair any malfunction before

See the “VEHICLE SERVICE AND

operating your vehicle. Failure

sion and for damage.

MAINTENANCE”.

to do so can increase the risk

z Examine all oil and fluid reservoirs

of serious injury, death or

for leaks.

property damage.

Inside the cab

Outside the vehicle

z Check that mirrors are intact,

z Check tire air pressure.

adjusted, and clean.

z Examine all tires for cracks, dam-

z Check that doors are securely

age, abnormal wear, and foreign

closed and locked.

3 - 6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

z Check that seat belts are intact,

z Check the horn for proper opera-

are sounding and no warning

undamaged and properly adjusted.

tion.

lights, warnings are on except for

z Check that head restraints are

z Check the operation of windshield

the PARKING BRAKE warning

intact and properly adjusted.

wipers and washer and the condi-

light.

tion of the wiper blades.

z Check that all lights and turn sig-

With engine started

z Check that each gauge on the

nals function properly.

Refer to

“INSTRUMENTS

AND

instrument panel is functioning

CONTROLS”.

properly. Be sure that no buzzers

Check points

Reference

Items

Check points

page

Check for belt tension, wear or cracks. If required, have the belt replaced

Drive belt

by your authorized UD Trucks dealer or qualified service facility.

11-46

Always replace the two belts as a set.

Engine oil leakage and

Check for oil leakage from engine. Also check for traces of oil on the road

11-33

engine oil level

directly under the engine. Check engine oil level and contamination.

Check for leakage from engine. Also check for traces of water on the road

Coolant leakage and

directly under the engine. If leakage is noticed, check the coolant level.

11-25

engine coolant level

Check that the ENGINE COOLANT LEVEL warning light remains off while

the engine is in operation.

Air cleaner service indica-

Check whether a red signal shows on the service indicator. When the red

11-44

tor

signal is shown, replace the air cleaner element.

Check all radiator and heater hose clamps for tightness. Inspect all hoses;

Water hoses and clamps

if they are swollen, cracked or otherwise worn, replace them.

Check for water accumulation. Drain water from the fuel filter before water

reaches the upper portion of the transparent case. When water has accu-

Primary fuel filter

11-41

mulated in the fuel filter, it has also accumulated in the fuel tank. Drain

water from fuel tank when the fuel filter is drained.

3 - 7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

(Cont’d)

Reference

Items

Check points

page

Check the amount of fuel using the fuel gauge. It is advisable to keep the

Fuel quantity

7-12

fuel tank full.

Check the amount of fuel using the DEF gauge. It is advisable to keep the

DEF quantity

7-10

DEF tank full.

Check engine for smooth starting. If engine operation is erratic or noisy,

Starting ability and noise

immediately stop and check the cause of the problem.

Check the transmission and differential, brake system, clutch system,

power steering system, fuel system and DEF dosing system for leakage of

oil, fluid, fuel, DEF, grease and/or air. Fuel and air leakage is sometimes

Oil, fluid, fuel, DEF, grease

hard to detect so careful checks are needed. Leakage may be present

and air leakage

only when the engine/vehicle is in operation. If leakage is noticed, check

the level of oil/fluid/coolant, repair the leaking point and correct the level

as necessary.

Check all wheel nuts for proper tightness. If any nut is missing or loose,

Wheel nut

11-86

check that all wheel nuts are tightened to the specified torque.

Disc wheel

Check for deformity, cracks or damage.

Check the air pressure using a tire gauge. Note that air pressure differs

Tire

between the allowable load capacities of tires.

11-83

Also check tread depth and for cracks or foreign matter caught in grooves.

Check for the specified air pressure of the air pressure gauge on the

instrument panel. With the vehicle stopped, depress the brake pedal.

7-8,

Service brake operation

Then, release the pedal to ensure the sound is accompanied by discharg-

10-33

ing air. Next, drive the vehicle at low speeds and check for braking perfor-

mance.

3 - 8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

(Cont’d)

Reference

Items

Check points

page

Open the drain cocks and drain condensation completely from air reser-

voir. Close the drain cocks completely.

Draining water condensa-

If a large quantity of water accumulates, the air dryer may be faulty and

11-63

tion from air reservoir

should be repaired. Drain the condensation before and after the day’s

operation.

Apply the parking brake on an upgrade. Ensure the PARKING BRAKE

Parking brake operation

warning light illuminates with the ignition key in the ON position and that

7-76

the brake firmly operates on the wheels.

Turn all switches of the lighting and signal system on and off to ensure

Lighting and signal system

7-57

headlights, turn signal lights, etc. operate properly. Clean dirty light lenses.

Horn

Operate the horn button to ensure the horn sounds.

7-68

Check cluster meters (such as the air pressure gauge and engine coolant

temperature gauge), to ensure they register the specified ranges. The

engine coolant temperature gauge should be checked after warming up

Meters, indicator light,

the engine sufficiently or while the vehicle is being driven.

7-1

warning and warning light

Also check the indicator light for proper operation in response to the oper-

ation of the corresponding control. Check that warnings and warning lights

remain off while the engine is in operation.

Operate the wiper and washer switches to ensure the windshield wiper

and washer operate. Check the level of washer fluid and add fluid as nec-

Windshield wiper and

essary.

7-55

washer

If the wiper does not wipe the windshield sufficiently or does not contact

the windshield well, the wiper blades need to be replaced.

3 - 9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

(Cont’d)

Reference

Items

Check points

page

Check mirrors for proper angle of view, damage and cleanliness; clean if

z Mirror and front windshield

dirty and replace if damaged. Check the windshield for cleanliness; clean

11-69

if dirty.

Operate the car heater to check the condition of hot-air discharge from the

z Heater defroster

defroster. This check should be carefully performed especially in rainy

9-8

weather.

Fasten the seat belt to check for proper operation of the buckle. Also

z Seat belt

6-5

check the belt for damage.

z Door lock

Check door locks for proper operation.

5-1

z Cab tilt lock mechanism

Check the condition and operation of the cab tilt lock mechanism.

11-21

3 - 10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

EGR SYSTEM OPERATION

UD TRUCKS, US2010

EMISSIONS SOLUTION

The exhaust aftertreatment system

WARNING

virtually eliminates exhaust smoke.

White exhaust vapor (water conden-

Do not carelessly touch the

sation) may be visible during a cold

EGR system components (EGR

start. If black exhaust smoke visible

valves, EGR adapter, EGR pip-

during engine operation, this indi-

ing, EGR cooler, coolant pip-

cates a problem with the exhaust

ing, etc.) when the engine is

aftertreatment system. Take the

hot, such as during operation

vehicle to an authorized UD Trucks

and immediately after driving.

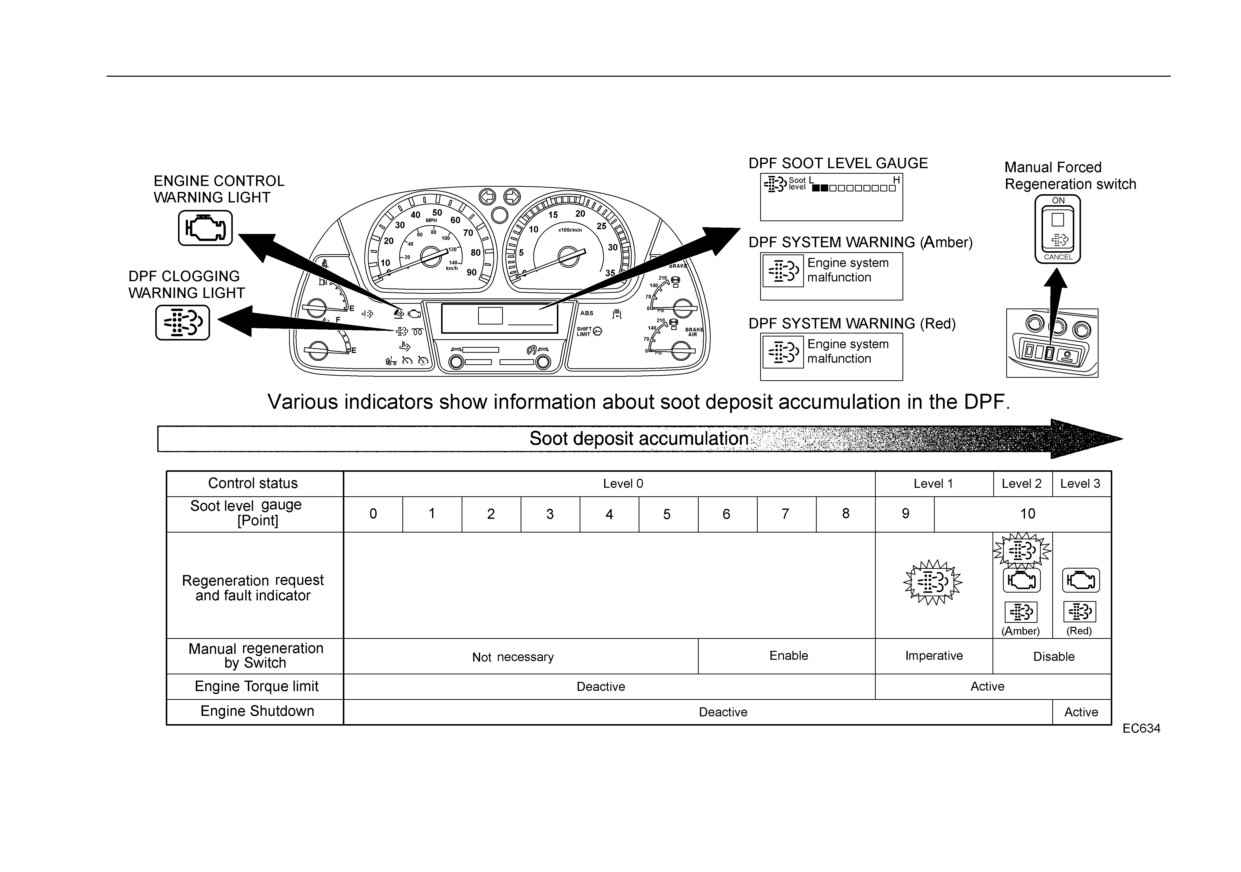

When a certain amount of soot accu-

dealer immediately.

These components are hot and

mulates in the aftertreatment DPF,

Vehicles equipped with a 2010 emis-

touching them could cause

the DPF automatically goes into the

sion compliant engine have an

burns, therefore touching them

regeneration mode to burn the col-

exhaust aftertreatment system which

is very dangerous.

lected soot. To obtain the expected

includes an aftertreatment Selective

DPF performance, please observe

Catalytic Reduction

(SCR) system

the following precautions. The fre-

and a Catalyzed aftertreatment Die-

quency of the occurrence of the

CAUTION

sel Particulate Filter

(DPF). The

aftertreatment DPF regeneration

Aftertreatment DPF takes the place

Do not rest your feet, etc., on

mode differs according to how you

of the standard muffler, and it

the EGR system components.

drive the vehicle.

reduces soot and particulate emis-

Doing so could damage the

sions into the atmosphere.

EGR system components.

Soot and other particulate matter are

collected by a filter where it is even-

z Overheating of the engine could

tually oxidized.

damage the EGR system compo-

Vehicles equipped with an aftertreat-

nents, so have them inspected and

ment DPF require the use of UDXtra

serviced by the nearest autho-

(or VDS-4) specification high perfor-

rized UD Trucks dealer.

3 - 11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

mance diesel engine oil and Ultra

HANDLING OF THE EXHAUST

The following must be observed to

Low Sulfur Diesel (ULSD) fuel.

prevent malfunctioning of this sys-

EMISSION CONTROL

tem.

SYSTEM

The exhaust emission control sys-

tem reduces PM (Particulate Mat-

ter) and NOx by collecting PM

through the filter that is installed in

the PM reduction device and by

dissolving NOx into water and

nitrogen using the aftertreatment

SCR system.

When a certain amount of soot

accumulates in the DPF, the DPF

system automatically switches into

the cleaning mode to burn (regen-

erate) the collected soot. The fre-

quency of the occurrence of the

aftertreatment DPF regeneration

differs according to the manner in

which the vehicle is driven.

The aftertreatment SCR system

reduces NOx by adding a mixture

of air and diesel exhaust fluid

(DEF) in the exhaust muffler to

make NOx that is included in

exhaust gas and is dissolved into

water and nitrogen.

3 - 12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

Precautions on handling the DPF

When a certain amount of soot that

is included in the exhaust gas accu-

mulates in the aftertreatment DPF,

the DPF automatically burns (regen-

erates) the collected soot.

This prevents the excessive accu-

mulation of soot and keeps the

cleaning function of the DPF in good

condition.

The DPF automatically burns

(regenerates) the collected soot.

WARNING

z Immediately after the vehicle is

stopped or while the system is

in the regeneration, the area

around the muffler and

exhaust gas are extremely hot.

Do not stop the vehicle in a

location where there are flam-

mable materials such as dried

grass or paper waste.

3 - 13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

period of time. (For example, the

z If there are flammable materi-

engine idles too long.)

WARNING

als around the vehicle, a fire

If a gear is engaged to drive the

may occur. This could cause

Do not perform manual clean-

vehicle, the operation of the

burns from the heated exhaust

ing in a location with poor ven-

device will stop. However, if the

gas.

tilation. Exhaust gas may

processing time is not sufficient

cause carbon monoxide poi-

to satisfy a specified duration,

soning especially in an

NOTE:

the operation of the device will

enclosed location, such as in a

Depending on the driving condi-

resume after stopping the vehi-

garage, indoors, etc.

tions, the burning (DPF regener-

cle.

Do not perform manual clean-

ation) of the soot collected in

・The

cleaning

mode

ing in a location where there

the DPF may not be completed.

automatically turns on while

are flammable materials such

When both the DPF clogging

driving.

as dried grass or paper waste.

warning light and the indicator

When the DPF clogging warning

The temperature of the exhaust

light that is built in the manual

light blinks, perform the DPF regen-

gas and the area around the

forced regeneration switch

eration manually.

exhaust pipe and muffler

blink, press the exhaust gas

When both the DPF clogging warn-

become high during cleaning.

cleaning device switch to manu-

ing light that is located in the combi-

Therefore, if there are flamma-

ally clean the soot.

nation meter and the indicator light

ble materials nearby, a fire may

While operating the aftertreat-

that is built in the manual forced

occur.

ment DPF, the engine speed at

regeneration switch blink, immedi-

In addition, never allow your

idle may increase under the fol-

ately perform manual cleaning of the

body to contact exhaust gas

lowing conditions. This is due to

aftertreatment DPF to burn (regener-

and the area around the

a temperature increase of the

ate) the soot that has collected.

exhaust pipe and muffler.

exhaust gas in order to burn

Doing so may cause burn inju-

(regenerate) the collected soot.

ries.

This does not indicate a mal-

If the vehicle is stopped over a

function.

road surface that is painted,

・The engine exhaust gas

the road surface may be dis-

temperature is low for a long

colored.

3 - 14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

Handling of the aftertreatment

contact your nearest authorized

diesel exhaust fluid (DEF) dosing

UD dealer.

CAUTION

system

For the muffler that is equipped

z If driving is continued, clog-

with the SCR catalyst system, no

The DEF dosing system

(DEF

ging in the DPF or a system

inspections and maintenance are

pump, DEF dosing valve) contin-

malfunction may occur.

basically required.

ues to operate for approximately

If they must be replaced by neces-

120 seconds after the ignition key

NOTE:

is turned to OFF position. There-

sity because they are damaged,

fore, wait for at least 120 seconds

use UD Trucks genuine parts.

The engine speed increases

while performing manual DPF

before disconnecting the battery

regeneration. This is due to a

cable or electrical system connec-

temperature increase of the

tors when servicing the vehicle,

exhaust gas in order to burn

etc.

(regenerate) the collected soot.

Handling of the muffler

This does not indicate a mal-

function.

z The muffler that is equipped with

While performing manual after-

the aftertreatment DPF for the PM

treatment DPF regeneration, the

reduction device needs to be

aftertreatment

hydrocarbon

cleaned regularly to maintain its

doser system supports the man-

performance (either 155,000 miles

ual DPF regeneration by inject-

ing fuel in the exhaust pipe.

[250,000 km] or

4,500 hours,

whichever comes first). This is

because unburnable ash that is

different from burnable soot will

accumulate in the DPF.

For details about cleaning of the

muffler equipped with the DPF,

3 - 15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

Do not touch the water that comes

The muffler has the following char-

Do not modify the tailpipe.

from the muffler.

acteristics.

NOTE:

CAUTION

The aftertreatment system

WARNING

cleans and discharges the

Changing the orientation or

z Do not touch the water that

exhaust gas, so the exhaust gas

length of the tailpipe could

comes from the muffler. The

smells differently than that of

degrade the exhaust gas

action of the oxidizing catalyst

conventional diesel vehicles.

cleaning effect, so do not mod-

contained in the catalyst inte-

Some white smoke might come

ify the tailpipe. When the con-

grated muffler makes the water

from the exhaust pipe when the

struction of the body requires

slightly acidic. If it gets on the

engine is started, but this is just

that the tailpipe be modified,

skin, etc., flush well with water

steam and is not a problem.

contact the nearest authorized

to wash it off.

White smoke may be emitted

UD Trucks dealer for advice.

from the area around the muffler

Do not kick or strike the muffler.

during the soot burning

(DPF

regeneration) process. This is

due to the emission of water

CAUTION

vapor from the area around the

muffler, and it does not indicate

z The muffler contains a cata-

a malfunction.

lyst, so do not kick or strike

When manual DPF regeneration

the muffler. Doing so could

is performed while driving in

damage the catalyst inside.

rain or after washing the vehicle,

water vapor may be observed

around the muffler. This does

not indicate a malfunction.

3 - 16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

Handling of the diesel exhaust

z Do not drive the vehicle when

fluid (DEF)

the DEF tank is empty. This will

not only worsen exhaust gas

Fill the tank with the specified

amount of DEF.

emissions but will prevent the

engine from being started

Only add DEF to the　DEF tank　

again. Always fill the tank

that is specified by UD Trucks and

ahead of time to leave plenty of

meets the ISO22241-1 specification.

leeway for driving.

NOTE:

13.2 gal (50 liter) tank

z Spilled DEF should been

cleaned up in accordance with

local regulation.

CAUTION

If something other than the

Only use DEF that satisfies the

specified substance

(diesel,

ISO22241-1 specification.

kerosene, etc.) is mistakenly

z Only use DEF specified by UD

5.3 gal (20 liter) tank

added to the DEF tank, it could

Trucks

that

satisfies

the

cause a fire, so have it

ISO22241-1 specification.

inspected and serviced by the

z The specified DEF is colorless and

nearest authorized UD Trucks

odorless

(urea

32.5%, water

dealer.

67.5%) and begins to freeze at

12.2°F (-11°C). When the ambi-

ent air temperature (AAT) is low

and the vehicle has been exposed

to cold temperatures for a long

time, the indicator in the cab might

not show the correct DEF level.

3 - 17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

Precautions for handling of the DEF

not lose water due to evaporation,

DEF is a very safe liquid, but it might

etc., so as long as the container is

cause a very slight irritation for some

sealed, there is no particular concern

Handle in accordance with good

people. If it is spilled on the body,

about an expiration date.

industrial hygiene and safety prac-

wash it off with water, and if it is

tices.

Fuel for the vehicle equipped with

drunk mistakenly, drink 1 or 2 cups

the aftertreatment DPF

Only use DEF specified by UD

of milk. if milk is not available, drink

Trucks

that

satisfies

the

Do not use any fuel other than the

water. In all case, consult physician.

ISO22241-1 specification.

specified fuel.

Use the UD Trucks genuine part

z DEF is nonflammable, but quickly

CAUTION

5.3 qt (5 liter) portable tank or a

move it to a safe location if there is

special container recommended by

Use ultra low sulfur diesel

a fire.

the DEF dealer to hold the DEF.

(ULSD) fuel only. Use of any

z If DEF is spilled, wash it away with

General containers, containers

other fuel may adversely affect

water. It can be disposed of with-

the engine, exhaust gas clean-

that have been used for other

out a problem by first diluting it

ing device, etc., resulting in

applications, and dirty containers

with a large amount of water and

aftertreatment DPF clogging

will not maintain the quality of the

then pouring it into the sewage

and so on.

DEF, so absolutely do not use

system. It must be treated as

Refer to "Fuel requirements"

them.

on page 11-38.

industrial waste in areas with nitro-

gen restrictions.

Seal the container and store it in a

covered area with good ventilation.

Even if it freezes, there will be no

change in its quality after it thaws, so

it can be used as is.

There are no problems with deterio-

ration, etc., of DEF as long as it does

3 - 18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

The status of DPF soot accumula-

tion: Level 0

tion: Level 1

WARNING

When the Level

0 indication is

When the DPF clogging warning

Make sure that there are no

shown, the manual DPF regenera-

light blinks, immediately perform the

flammable materials around or

tion is not required. However, the

manual DPF regeneration

(before

under the exhaust system

optional manual DPF regeneration is

the driving distance reaches

125

components.

available.

miles [200 km]).

Turn the power takeoff

(PTO)

switch off if the vehicle is

equipped with a PTO.

Keep the engine running.

Press the manual forced regener-

ation switch to activate the after-

treatment DPF regeneration.

DPF regenerating warning and

message are displayed.

Idling speed will increase and the

NOTE:

Operation procedure

exhaust brake will be activated.

z Press the mode select switch

1. Stop the vehicle at a safe place,

(located on the left side knob in

apply the parking brake firmly

the combination meter) to check

and put the shift lever in the N

the DPF soot accumulation level

(neutral) position. For automatic

that will be shown with the DPF

transmission with the P

(Park)

soot level gauge.

position, put the selector lever

z The DPF clogging warning light

into the P (Park) position.

may blink when soot does not

accumulate in the DPF. This may

occur in order to maintain the

performance of the muffler.

3 - 21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

NOTE:

z Place the manual forced regen-

eration switch to the “CANCEL”

side to deactivate the cleaning

operation.

z If the vehicle is driven before the

cleaning is completed, the DPF

clogging warning light will blink

again.

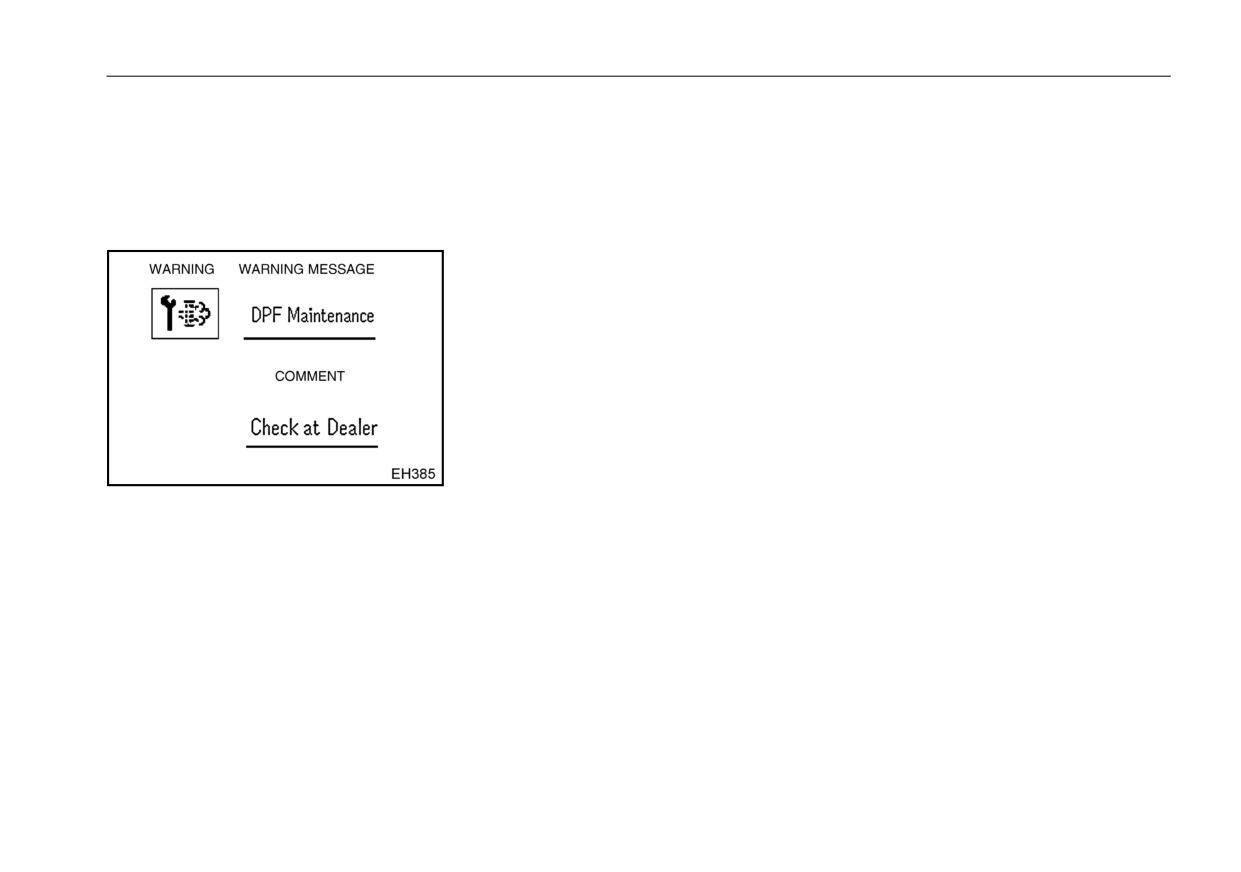

The status of DPF soot accumula-

tion: Level 2

Wait approximately 25 minutes.

When the engine control warning

CAUTION

(when it is operated after the

light and the DPF system warning

engine has already warmed up.)

(Amber) and message are indicated,

The DPF may be damaged if

When the DPF regenerating

the system restricts engine torque

the vehicle is continuously

warning is no longer displayed on

and reduces engine output.

driven while at level 2.

the multi-display monitor, regen-

Immediately contact your nearest

Immediately contact your near-

eration is completed.

UD Trucks dealer for inspection.

est UD Trucks dealer for

inspection.

CAUTION

The status of DPF soot accumula-

tion: Level 3

z Do not continue driving the

If the DPF system warning (Red) is

vehicle while at level

1. The

illuminated, the system will reduce

system restricts engine torque

torque to a specified value within

and reduces engine output,

approximately

10 seconds and a

depending on the amount of

buzzer will sound. In this case, the

soot accumulation.

acceleration pedal cannot be oper-

3 - 22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

ated and the engine is forced to run

Handling of the diesel particulate

z White smoke may be emitted from

at the idling speed.

filter (DPF)

the surface of the exhaust muffler

Vehicle

speed is

gradually

if the aftertreatment DPF regener-

The following phenomena does not

decreased to protect the engine,

ation is operated manually in the

indicate trouble.

which will be shut down (automati-

rain.

cally stopped) when the vehicle is

The idle speed varies and the

・This is due to the fact that water

stopping or completely stops.

exhaust brake operates the same

time.

adhering on the surface of the

Contact your nearest UD trucks

dealer immediately.

z When the vehicle is stopped for a

exhaust muffler evaporates.

traffic signal or other reason the

z If any fuels other than the specified

engine shifts to idle running. (Auto-

one are used, the emission of

CAUTION

white smoke may continue.

matic DPF regeneration is in prog-

ress.)

Always use ultra-low sulfur diesel

When the DPF system warning

z When the engine is idled continu-

(ULSD) fuel

(S15) because any

(red) appears, immediately

stop the vehicle in a safe loca-

ously for a long time.

(The idle

other fuel may adversely affect or

tion and contact your nearest

speed increases from time to time

damage the engine and the DPF.

UD trucks dealer.

to prevent the emission of white

The exhaust gas odor will not be

smoke.)

same as that of previous diesel

vehicles.

White smoke may sometimes be

z The odor is different because the

emitted.

exhaust gas is passed through a

z White smoke may be emitted from

catalytic converter and cleaned.

the end of the exhaust muffler.

・This is due to the emission of

Regularly clean the aftertreat-

water vapor.

ment diesel particulate filter (DPF)

・This will not occur when the

engine exhaust gas temperature

z The DPF should be cleaned every

increases to a sufficient level.

155,000 miles

(250,000 km) or

4,500 hours, which occurs first as

3 - 23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING YOUR VEHICLE

necessary to ensure proper perfor-

Always use genuine engine oil.

VEHICLE LABELS

mance.

z Always use the specified engine oil

Products safety labels are affixed to

z If the DPF Maintenance warning is

to maintain the performance of the

your UD Trucks vehicle at the fac-

illuminated, the vehicle should be

DPF.

tory.

taken to the nearest UD Trucks

Labels with DANGER, WARNING or

CAUTION are related to safety. You

dealer as soon as possible.

must follow the precautions in these

labels. In addition, you must replace

any labels that have been removed

or are damaged. Contact your autho-

rized UD Trucks dealer or UD Trucks

North America, Inc. for replacement

labels.

Use ultra-low sulfur diesel (ULSD)

fuel only

z Failure to use ultra-low sulfur die-

sel fuel in this vehicle may damage

the emission related parts, violate

the EPA and CARB regulations

and possibly void the UD Trucks

vehicle warranty as listed in the

Warranty & Service Booklet.

3 - 24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENTERING AND LEAVING THE CAB

Driver’s side

ENTERING AND

1. Open door and firmly grasp the

LEAVING THE

rear handle behind the door

CAB

opening with your right hand.

WARNING

Be careful when entering or

leaving cab so you don’t slip

or fall.

Always keep your shoe soles

Bring your right foot up to the 2nd

and hands clean. Keep the cab

step.

steps and handles clean and

free of ice, snow, oil, grease

and/or debris. Use extra care

in bad weather.

Firmly grasp either the lower or

Use 3 POINT CONTACT at all

upper handle on the front of the

times with at least 2 feet and 1

door opening with your left hand

hand or 2 hands and 1 foot

firmly placed during all phases

and place your left foot on the 1st

of entering or leaving the cab.

step.

4 - 1

UD Trucks. Owner’s Manual (2011-2013) - page 2
