The deck spring tension is critical. If the tension
is too high, premature failure of the deck belt
and blade spindles can occur. If the tension is
too low, the belt can ‘jump off’ or slip on the
pulleys. This results in reduced cut quality and
early belt failure.

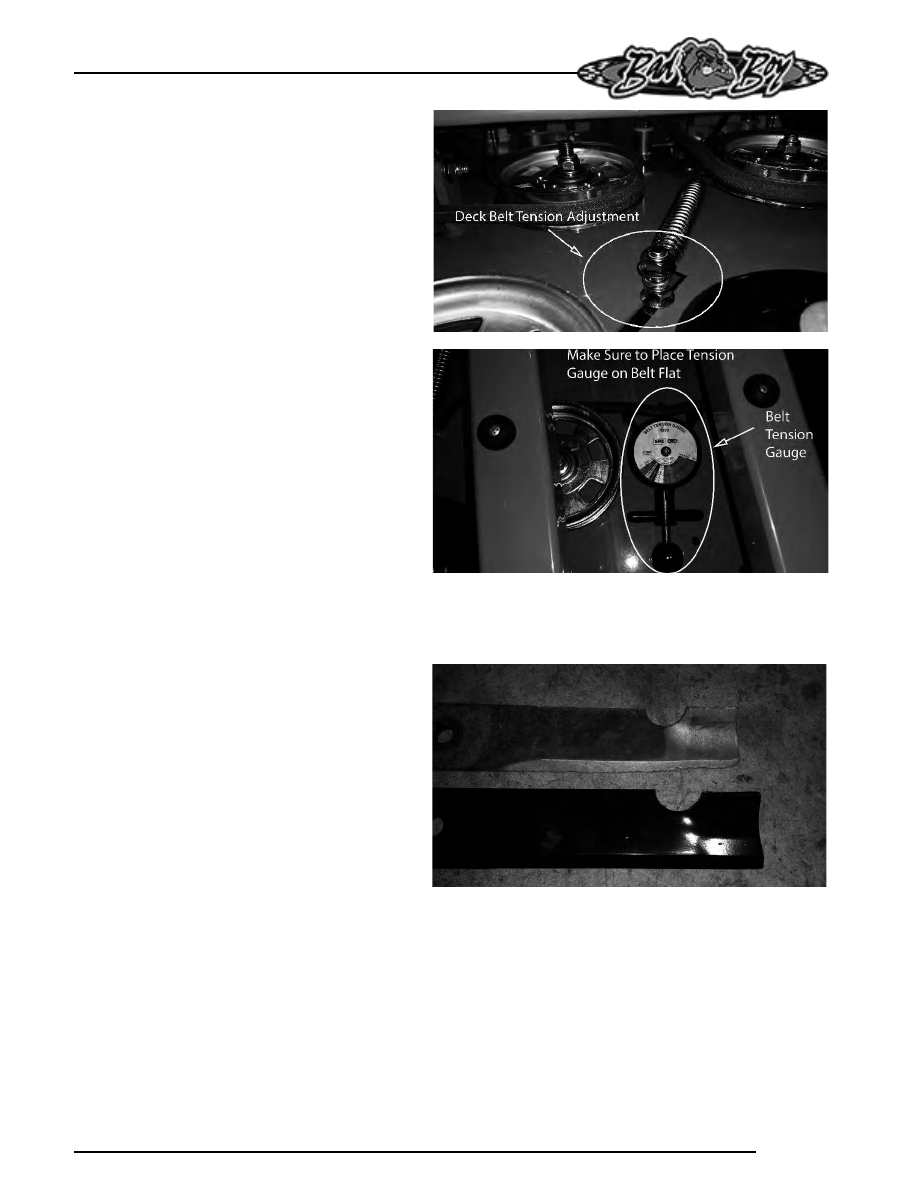

Spring tension adjustments can be made by
sliding the bolt shown above forward or
backward in the slot of the deck. Belt tension
should be 60-65 lbs for the 54" deck, 65-70 lbs
for the 6`" deck, and 70-75 lbs for the 72" deck
with the deck at its lowest setting.

Use a belt tension gauge to ensure the proper
tension. Your dealer or service center will have a
belt tension gauge or you can buy one (Part
Number 041-9999-00).

BLADE SHARPENING:
The blade on the top (see photo) was utilized
long after replacement was required. In addition
to a decline in cut quality, failure to replace a
worn or damaged blade creates a major safety
hazard. Bad Boy recommends that blade
sharpening be performed by a professional.

PAGE

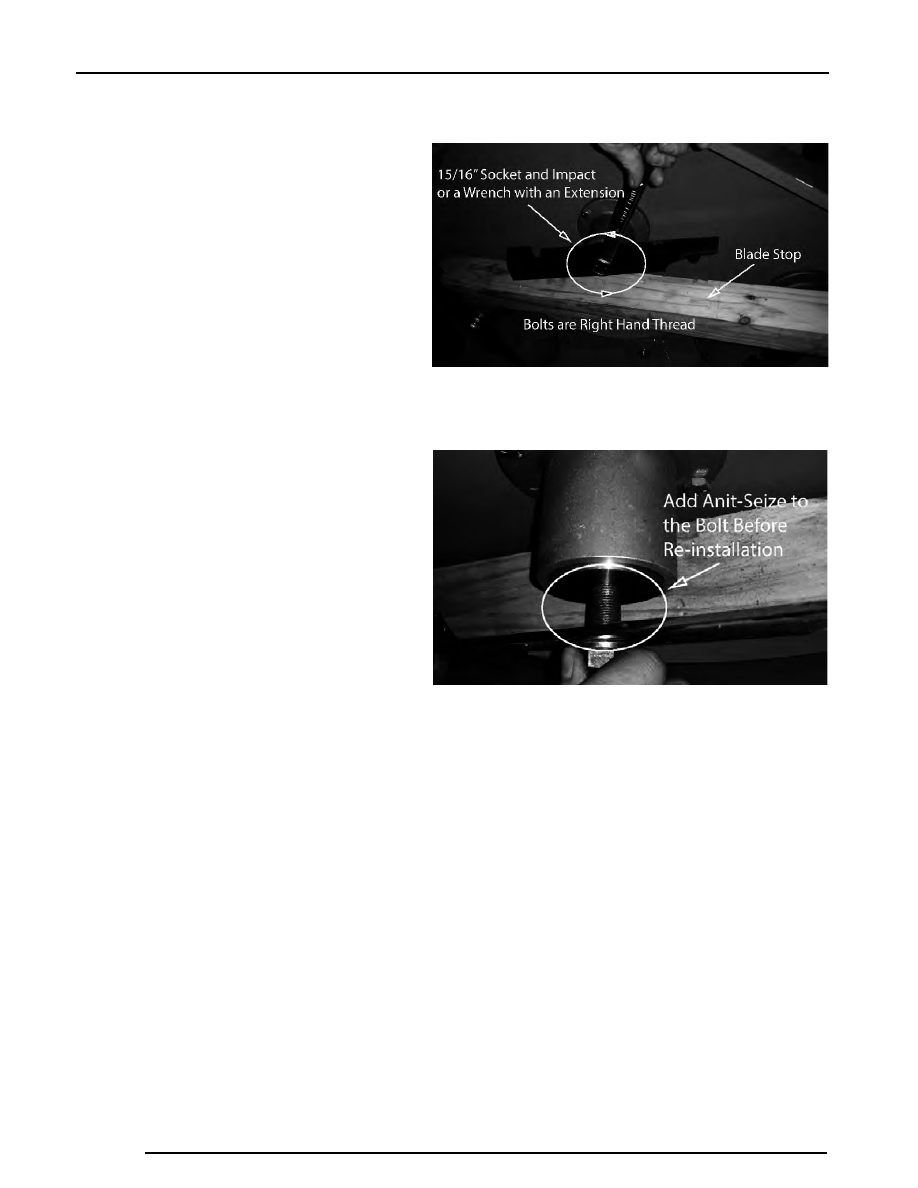

BLADE REMOVAL:

To change blades, it may be easier to use a piece
of wood to keep the blade from turning so that the
bolt can be loosened. Use a 15/16” socket and
impact Drill, or a wrench and an extension to gain
more leverage. You might need to put a ¾” wrench
on top of the pulley bolt to keep the blade from
spinning. Bolts used have right-handed threads.

Re-torque the blade bolts to 90-110 lbs.

The blade spindles contain a sealed ball bearing

inside the top and bottom of the spindle. The
bearings are replaceable for a more cost effective
repair.
