BBM OUTLAW XP MODELS ZERO-TURN MOWER. Manual - part 7

PAGE



25

The air cleaner is the engine’s only defense
against damaging foreign particles. It is very
important that the air cleaner element is
inspected prior to each use. Remove the
element and tap its sides in order to remove
debris. Do not blow the filter out using
compressed air. Doing so will greatly reduce the
air cleaner’s effectiveness. Replace yearly,
more often in dusty environments. Adhering to
these practices will help prevent loss of power
and premature engine failure.

3.3 Changing the air cleaner

1)

Locate the air filter and unbuckle the
air filter cover.

2)

Remove the cover and take out the
outer white element and the inner
blue element.

3)

Clean or replace elements.

4)

Reattach the cover making sure the

air intake is facing down.

PAGE



 26

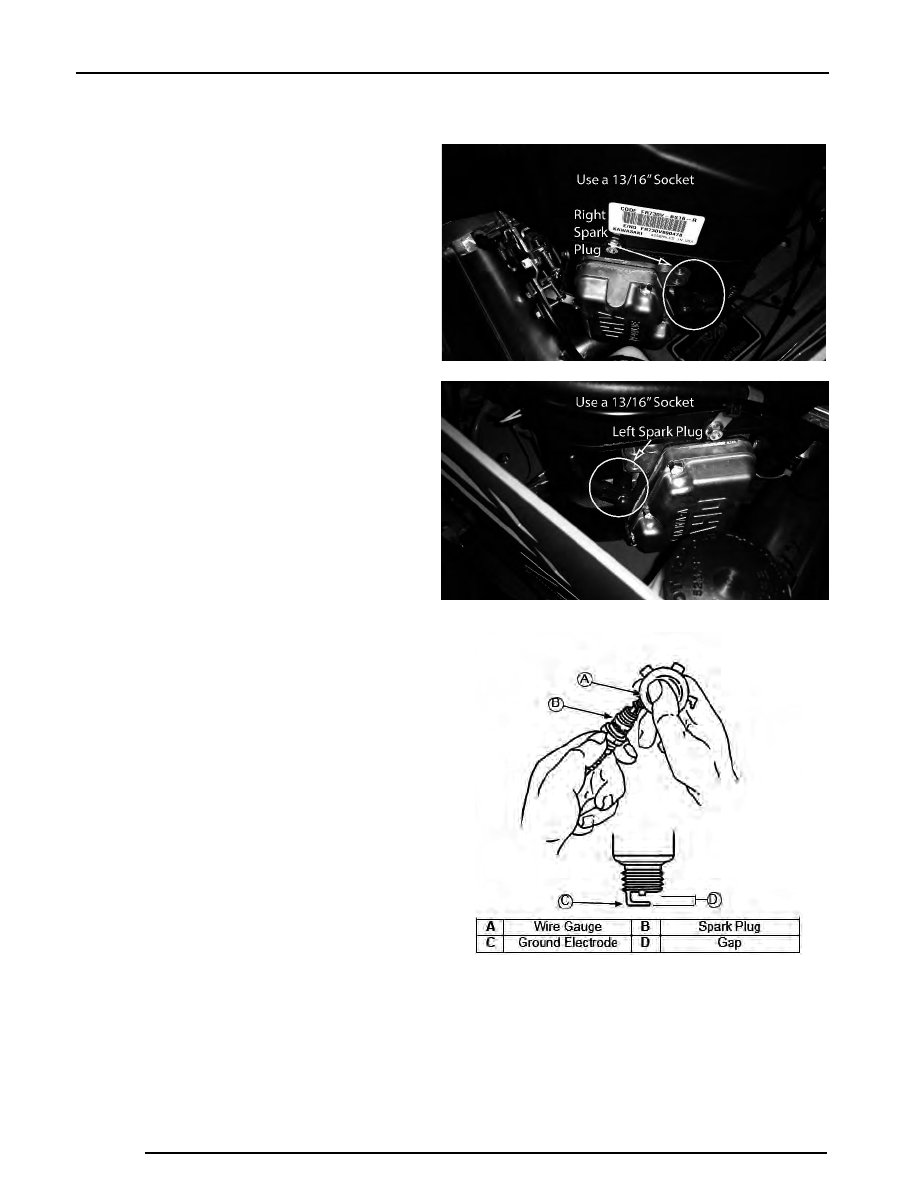

3.4 Changing the spark plugs and checking the spark plug gap:

1) Remove the wire on the spark plug

and use a 13/16" socket to remove

the spark plug.

2) Check the gap or the spark plug to

verify that it is 0.03 in using a feeler

gauge.

3) If the spark plug is worn, overheated,

wet, or carbon fouled replace the

spark plug.

4) Install the plug into cylinder head and

torque to 16ft-lbs. Be careful not to

overtighten the spark plug.

PAGE



27

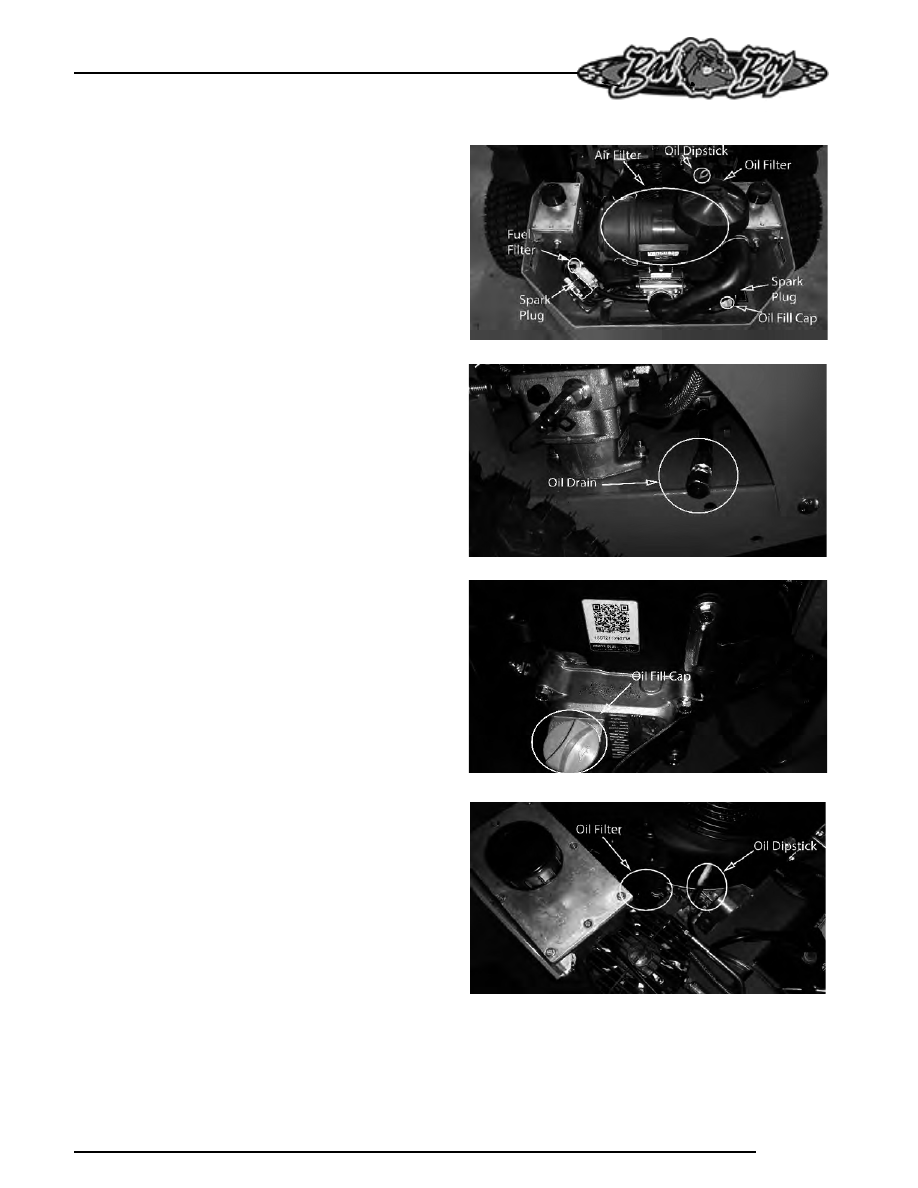

Vanguard 993cc

This machine has an oil drain hose installed on the
engine to allow for easier oil changes. Bad Boy
recommends that the oil and filter be changed after the
initial 8 hrs of use, and at intervals of 50 usage hours or
yearly, whichever occurs first after that. The oil capacity
is 2 quarts. Bad Boy 10W-30 synthetic blend engine oil
is recommended for maximum protection.

3.1 Changing your engine oil and oil filter:

1)

Remove oil fill cap and open

oil drain. Allow oil to completely drain.

(Make sure to have an oil pan ready to

capture old oil and properly dispose old

oil.)

2)

The oil filter is located on the right side of

the engine. Clean area around oil filter.

Place a container under the oil filter to

capture any oil and remove filter. Wipe off

mounting surface and reinstall drain plug.

Torque to 10 ft.-lb.

3)

Place new filter in shallow pan with open

end up. Fill with new oil until oil reaches

the bottom of the threads. Allow 2 minutes

for oil to be absorbed by filter material.

4)

Apply a thin film of clean oil to rubber

gasket on new filter

5)

Refer to instructions on oil filter for proper

installation.

6)

Fill crankcase with approximately 2 quarts

of new oil. Level should top of indicator on

dipstick.

7)

Reinstall oil fill/dipstick and tighten

securely.

8)

Start engine; check for oil leaks. Stop

Engine; correct oil leaks. Recheck oil level

9)

Dispose of used oil and filter in

accordance with local ordinances.

PAGE



 28

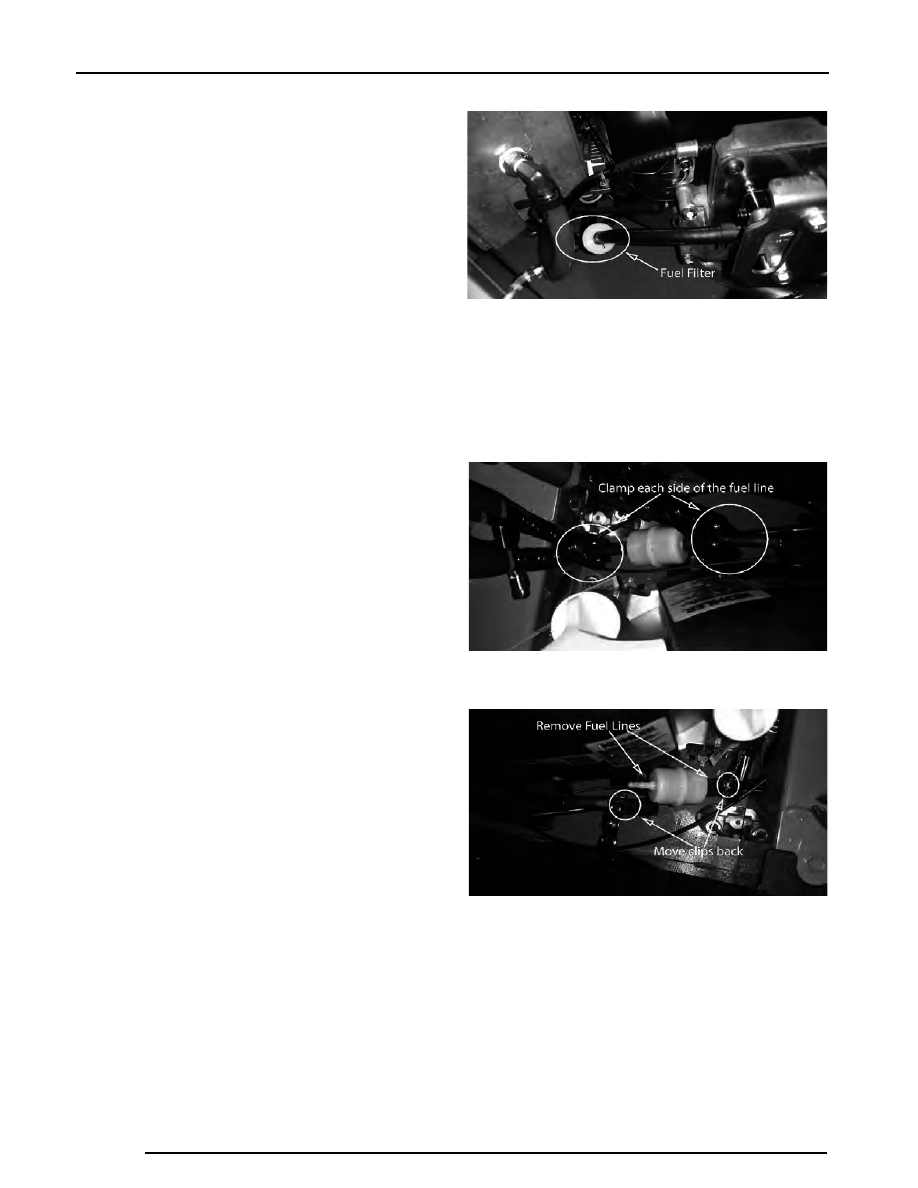

The fuel filter is located in the fuel line about 12" from
the carburetor on the side of the engine. Replace the
filter yearly. Prior to the removal of the old filter, note
the direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a well
ventilated area. Do not smoke or allow any open flames
in the vicinity of any maintenance activities.

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it is

facing.

2) Clamp each side of the fuel filter to minimize and

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as

the old.
