BBM OUTLAW XP MODELS ZERO-TURN MOWER. Manual - part 6

PAGE



21

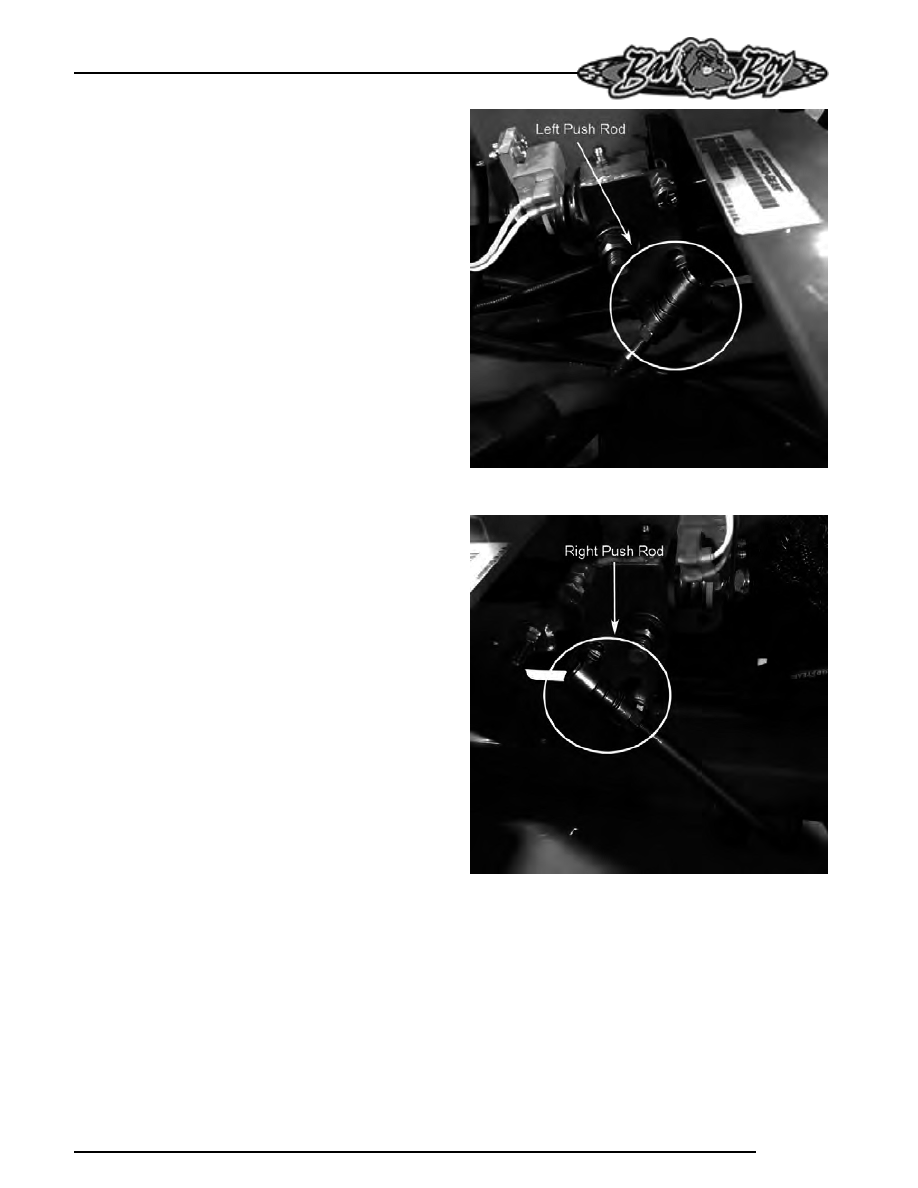

When adjusting the tracking on the mower,

the length of the pushrods can be changed by

screwing the pivot joint in or out on the ends

of the rods.  Shortening the overall length of

the rod slows the pump down.  Lengthening

the rod will increase the speed of the pump.

PAGE



 22

SECTION 2: DRIVE BELT

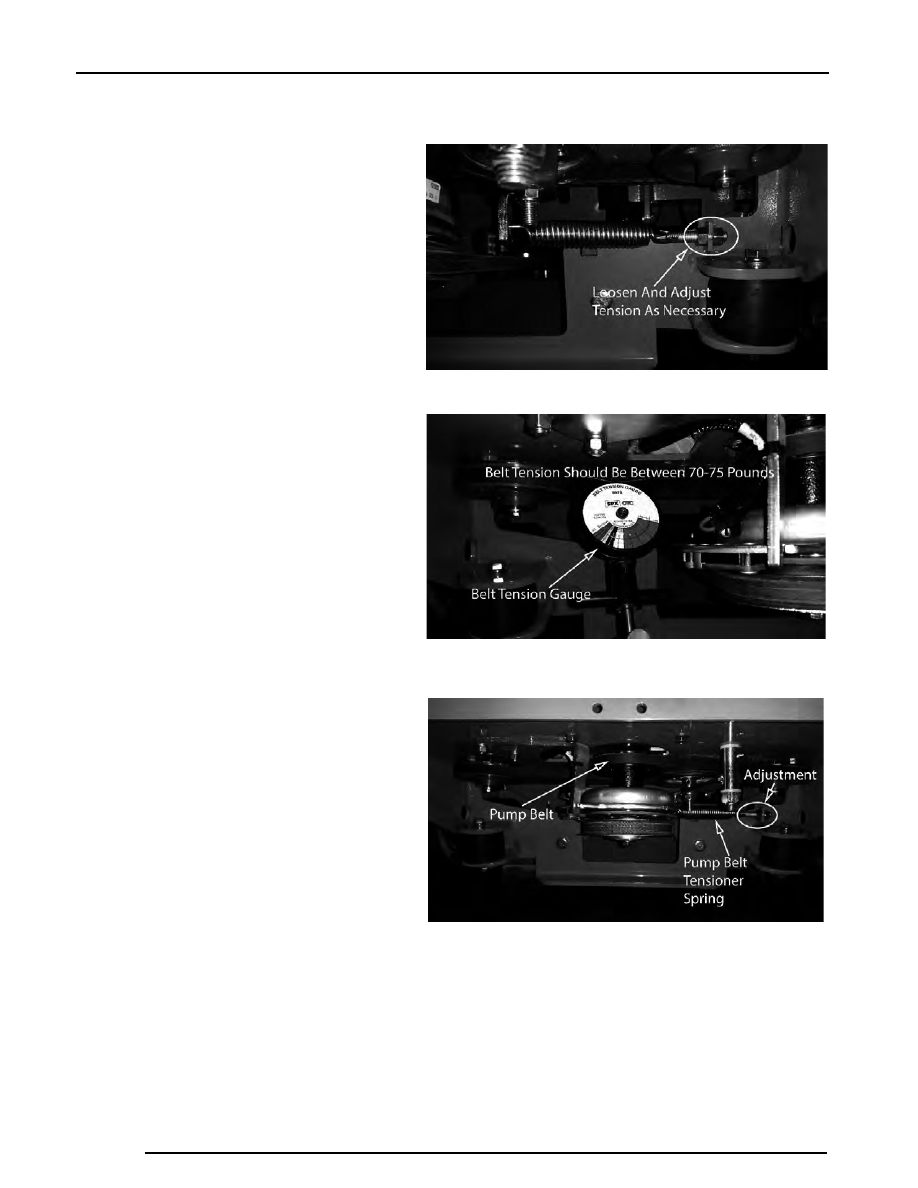

Shown on the right is the tensioner for your pump
belt. Adjusting this will either increase or decrease
tension on the belt. Use a 3/4" wrench to loosen the
jam nuts and either tighten for more belt tension or
loosen for less belt tension.

The belt tension should be set to 70-75 lbs.

Use a belt tension gauge to ensure the proper
tension. Your dealer or service center will have a
belt tension gauge or you can buy one (Part Number
041-9999-00).

PAGE



23

SECTION 3: ENGINE

Kawasaki FX850V



This machine has an oil drain hose installed on
the engine to allow for easier oil changes. Bad
Boy  recommends that the oil and filter be
changed after the initial 8 hrs of use, and at
intervals of 50 usage hours or yearly, whichever
occurs first after that. The oil capacity is 2
quarts. Bad Boy 10W-30 synthetic blend engine
oil is recommended for maximum protection.

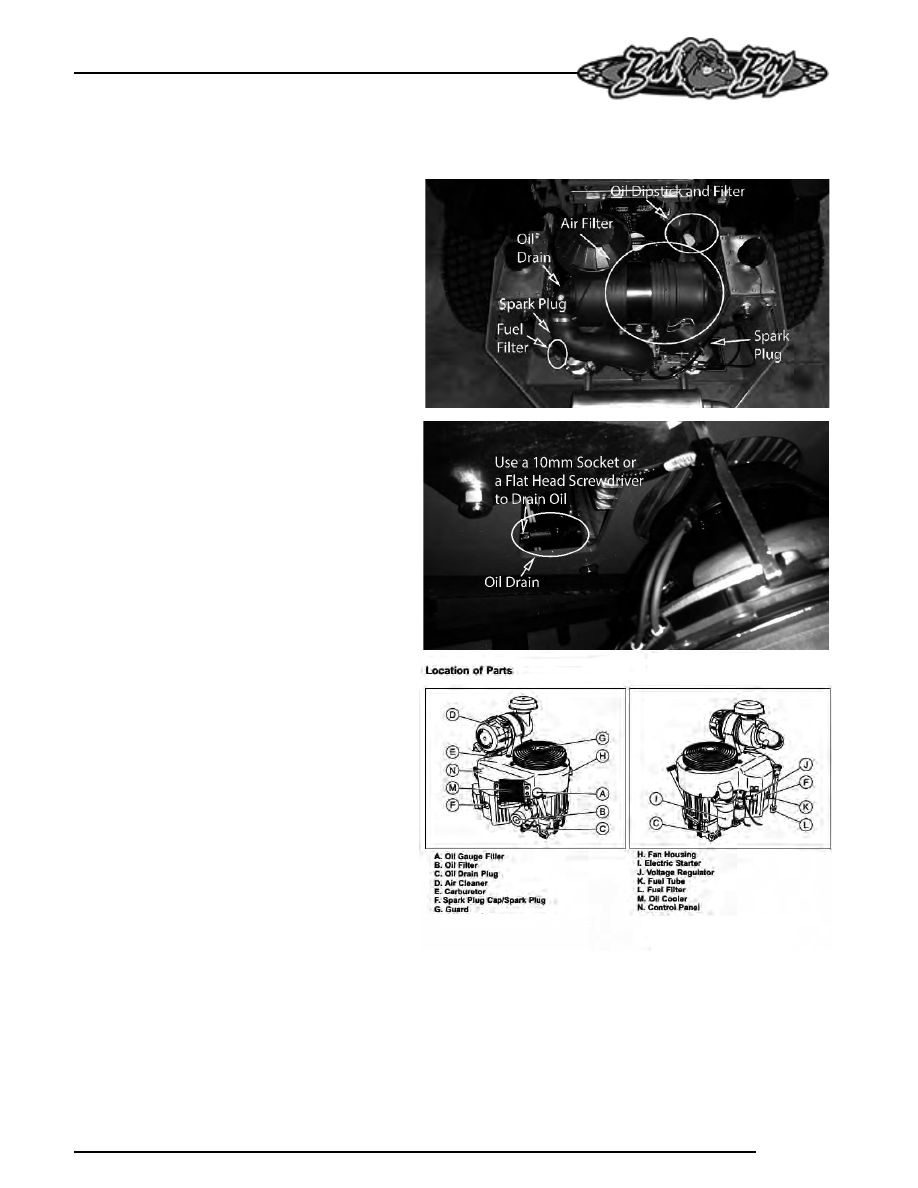

3.1 Changing your engine oil and oil filter:

1) Remove oil dipstick and open oil drain

using a 10 mm socket or a flat head
screwdriver until oil begins flowing.
Allow oil to completely drain. (Make
sure to have an oil pan ready to
capture old oil and properly dispose old
oil.)

2) The oil filter is located on the right side

of the engine. Clean area around oil
filter. Place a container under the oil
filter to capture any oil and remove
filter. Wipe off mounting surface and
reinstall drain plug. Torque to 10 ft-lb.

3) Place new filter in shallow pan with

open end up. Fill with new oil until oil
reaches the bottom of the threads.
Allow 2 minutes for oil to be absorbed
by filter material.

PAGE



 24

4) Apply a thin film of clean oil to rubber

gasket on new filter

5) Refer to instructions on oil filter for proper

installation.

6) Fill crankcase with approximately 2 quarts

of new oil. Level should top of indicator on

dipstick.

7) Reinstall oil fill/dipstick and tighten securely.
8) Start engine, check for oil leaks. Stop

Engine; correct oil leaks. Recheck oil level

9) Dispose of used oil and filter in accordance

with local ordinances.

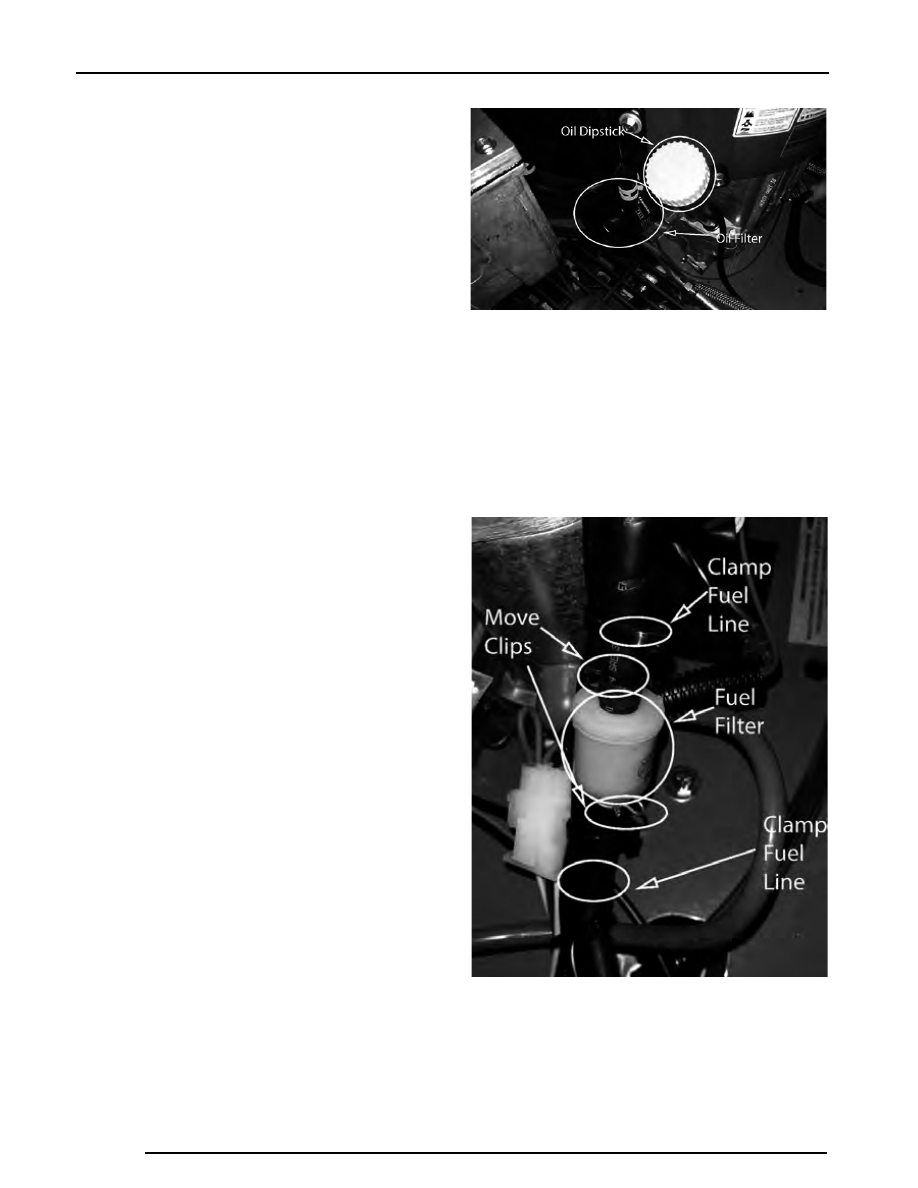

The fuel filter is located in the fuel line on the left side
of the engine by the starter motor. Replace the filter
yearly. Prior to the removal of the old filter, note the
direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a
well ventilated area. Do not smoke or allow any open
flames in the vicinity of any maintenance activities.

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it

is facing.

2) Clamp each side of the fuel filter to minimize and

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as

the old and place clips back into place and

remove clamps.
