TMS320C6000 Assembly Language Tools v 6.1. User's Guide

Source Statement Format

3.5.3

Unit Specifier Field

The unit specifier field is an optional field that follows the mnemonic field for machine-instruction

mnemonics. The unit specifier field begins with a period (.) followed by a functional unit specifier. In

general, one instruction can be assigned to each functional unit in a single instruction cycle. There are

eight functional units, two of each functional type:

.D1 and .D2

Data/addition/subtraction

.L1 and .L2

ALU/compares/long data arithmetic

.M1 and .M2

Multiply

.S1 and .S2

Shift/ALU/branch/bit field

ALU refers to an arithmetic logic unit.

There are several ways to use the unit specifier field:

• You can specify the particular functional unit (for example, .D1).

• You can specify only the functional type (for example, .M), and the assembler assigns the specific unit

(for example, .M2).

• If you do not specify the functional unit, the assembler assigns the functional unit based on the

mnemonic field and operand field.

For more information on functional units, including which assembly instructions require which functional

type, see the TMS320C6000 CPU and Instruction Set Reference Guide.

3.5.4

Operand Field

The operand field follows the mnemonic field and contains one or more operands. The operand field is not

required for all instructions or directives. An operand consists of the following items:

• Symbols (see Section 3.8)

• Constants (see Section 3.6)

• Expressions (combination of constants and symbols; see Section 3.9)

You must separate operands with commas.

3.5.5

Comment Field

A comment can begin in any column and extends to the end of the source line. A comment can contain

any ASCII character, including blanks. Comments are printed in the assembly source listing, but they do

not affect the assembly.

A source statement that contains only a comment is valid. If it begins in column 1, it can start with a

semicolon ( ; ) or an asterisk ( *). Comments that begin anywhere else on the line must begin with a

semicolon. The asterisk identifies a comment only if it appears in column 1.

Assembler Description

Constants

3.6

Constants

The assembler supports several types of constants:

• Binary integer

• Octal integer

• Decimal integer

• Hexadecimal integer

• Character

• Assembly time

The assembler maintains each constant internally as a 32-bit quantity. Constants are not sign extended.

For example, the constant 00FFh is equal to 00FF (base 16) or 255 (base 10); it does not equal -1.

However, when used with the .byte directive, -1 is equivalent to 00FFh.

3.6.1

Binary Integers

A binary integer constant is a string of up to 32 binary digits (0s and 1s) followed by the suffix B (or b). If

fewer than 32 digits are specified, the assembler right justifies the value and fills the unspecified bits with

zeros. These are examples of valid binary constants:

00000000B Constant equal to 0₁₀ or 0₁₆

0100000b

Constant equal to 32₁₀ or 20₁₆

01b

Constant equal to 1₁₀ or 1₁₆

11111000B Constant equal to 248₁₀ or 0F8₁₆

3.6.2

Octal Integers

An octal integer constant is a string of up to 11 octal digits (0 through 7) followed by the suffix Q (or q).

These are examples of valid octal constants:

10Q

Constant equal to 8₁₀ or 8₁₆

010

Constant equal to 8₁₀ or 8₁₆ format)

100000Q

Constant equal to 32 768₁₀ or 8000₁₆

226q

Constant equal to 150₁₀ or 96₁₆

3.6.3

Decimal Integers

A decimal integer constant is a string of decimal digits ranging from -2147 483 648 to 4 294 967 295.

These are examples of valid decimal constants:

1000

Constant equal to 1000₁₀ or 3E8₁₆

-32768

Constant equal to -32 768₁₀ or 8000₁₆

Constant equal to 25₁₀ or 19₁₆

Assembler Description

Constants

3.6.4

Hexadecimal Integers

A hexadecimal integer constant is a string of up to eight hexadecimal digits followed by the suffix H (or h)

or preceded by 0x. Hexadecimal digits include the decimal values 0-9 and the letters A-F or a-f. A

hexadecimal constant must begin with a decimal value (0-9). If fewer than eight hexadecimal digits are

specified, the assembler right justifies the bits. These are examples of valid hexadecimal constants:

78h

Constant equal to 120₁₀ or 0078₁₆

0x78

Constant equal to 120₁₀ or 0078₁₆ format)

0Fh

Constant equal to 15₁₀ or 000F₁₆

37ACh

Constant equal to 14 252₁₀ or 37AC₁₆

3.6.5

Character Constants

A character constant is a single character enclosed in single quotes. The characters are represented

internally as 8-bit ASCII characters. Two consecutive single quotes are required to represent each single

quote that is part of a character constant. A character constant consisting only of two single quotes is valid

and is assigned the value 0. These are examples of valid character constants:

'a'

Defines the character constant a and is represented internally as 61₁₆

'C'

Defines the character constant C and is represented internally as 43₁₆

''''

Defines the character constant ' and is represented internally as 27₁₆

Defines a null character and is represented internally as 00₁₆

Notice the difference between character constants and character strings (Section 3.7 discusses

character strings). A character constant represents a single integer value; a string is a sequence of

characters.

3.6.6

Assembly-Time Constants

If you use the .set directive to assign a value to a symbol (see Define Assembly-Time Constant ), the

symbol becomes a constant. To use this constant in expressions, the value that is assigned to it must be

absolute. For example:

sym

.set 3

MVK sym,B1

You can also use the .set directive to assign symbolic constants for register names. In this case, the

symbol becomes a synonym for the register:

sym

.set B1

MVK

10,sym

Assembler Description

Character Strings

3.7

Character Strings

A character string is a string of characters enclosed in double quotes. Double quotes that are part of

character strings are represented by two consecutive double quotes. The maximum length of a string

varies and is defined for each directive that requires a character string. Characters are represented

internally as 8-bit ASCII characters.

These are examples of valid character strings:

"sample program" defines the 14-character string sample program.

"PLAN ""C"""

defines the 8-character string PLAN "C".

Character strings are used for the following:

• Filenames, as in .copy "filename"

• Section names, as in .sect "section name"

• Data initialization directives, as in .byte "charstring"

• Operands of .string directives

3.8

Symbols

Symbols are used as labels, constants, and substitution symbols. A symbol name is a string of up to 200

alphanumeric characters (A-Z, a-z, 0-9, $, and _). The first character in a symbol cannot be a number, and

symbols cannot contain embedded blanks. The symbols you define are case sensitive; for example, the

assembler recognizes ABC, Abc, and abc as three unique symbols. You can override case sensitivity with

the --syms_ignore_case assembler option (see Section 3.3). A symbol is valid only during the assembly in

which it is defined, unless you use the .global directive or the .def directive to declare it as an external

symbol (see Identify Global Symbols ).

3.8.1

Labels

Symbols used as labels become symbolic addresses that are associated with locations in the program.

Labels used locally within a file must be unique. Mnemonic opcodes and assembler directive names

without the . prefix are valid label names.

Labels can also be used as the operands of .global, .ref, .def, or .bss directives; for example:

.global label1

label2: MVKL

label2, B3

MVKH

label2, B3

label1

NOP

3.8.2

Local Labels

Local labels are special labels whose scope and effect are temporary. A local label can be defined in two

ways:

•

$n, where n is a decimal digit in the range 0-9. For example, $4 and $1 are valid local labels. See

Example 3-1.

• name?, where name is any legal symbol name as described above. The assembler replaces the

question mark with a period followed by a unique number. When the source code is expanded, you will

not see the unique number in the listing file. Your label appears with the question mark as it did in the

source definition. You cannot declare this label as global. See Example 3-2.

Normal labels must be unique (they can be declared only once), and they can be used as constants in the

operand field. Local labels, however, can be undefined and defined again. Local labels cannot be defined

by directives.

Assembler Description

Symbols

A local label can be undefined or reset in one of these ways:

• By using the .newblock directive

• By changing sections (using a .sect, .text, or .data directive)

• By entering an include file (specified by the .include or .copy directive)

• By leaving an include file (specified by the .include or .copy directive)

Example 3-1. Local Labels of the Form $n

This is an example of code that declares and uses a local label legally:

$1:

SUB

A1,1,A1

[A1] B

SUBC A3,A0,A3

NOP

.newblock

; undefine $1 to use it again

SUB

A2,1,A2

[A2] B

MPY

A3,A3,A3

NOP

The following code uses a local label illegally:

$1:

SUB

A1,1,A1

[A1] B

SUBC A3,A0,A3

NOP

SUB

A2,1,A2

; WRONG - $1 is multiply defined

[A2] B

MPY

A3,A3,A3

NOP

The $1 label is not undefined before being reused by the second branch instruction. Therefore, $1 is

redefined, which is illegal.

Local labels are especially useful in macros. If a macro contains a normal label and is called more than

once, the assembler issues a multiple-definition error. If you use a local label and .newblock within a

macro, however, the local label is used and reset each time the macro is expanded.

Up to ten local labels of the $n form can be in effect at one time. Local labels of the form name? are not

limited. After you undefine a local label, you can define it and use it again. Local labels do not appear in

the object code symbol table.

Because local labels are intended to be used only locally, branches to local labels are not expanded in

case the branch's offset is out of range.

Example 3-2. Local Labels of the Form name?

****************************************************************

** First definition of local label mylab

****************************************************************

nop

mylab? nop

B mylab?

nop 5

****************************************************************

** Include file has second definition of mylab

****************************************************************

.copy "a.inc"

****************************************************************

** Third definition of mylab, reset upon exit from .include

****************************************************************

Assembler Description

Symbols

Example 3-2. Local Labels of the Form name? (continued)

mylab? nop

B mylab?

nop 5

****************************************************************

** Fourth definition of mylab in macro, macros use different

** namespace to avoid conflicts

****************************************************************

mymac

.macro

mylab? nop

B mylab?

nop 5

.endm

****************************************************************

** Macro invocation

****************************************************************

mymac

****************************************************************

** Reference to third definition of mylab. Definition is not

** reset by macro invocation.

****************************************************************

B mylab?

nop 5

****************************************************************

** Changing section, allowing fifth definition of mylab

****************************************************************

.sect "Sect_One"

nop

mylab?

.word 0

nop

B mylab?

nop 5

****************************************************************

** The .newblock directive allows sixth definition of mylab

****************************************************************

.newblock

mylab?

.word 0

nop

B mylab?

nop 5

3.8.3

Symbolic Constants

Symbols can be set to constant values. By using constants, you can equate meaningful names with

constant values. The .set and .struct/.tag/.endstruct directives enable you to set constants to symbolic

names. Symbolic constants cannot be redefined. The following example shows how these directives can

be used:

.set

1024

; constant definitions

maxbuf .set

2*K

item

.struct

; item structure definition

value

.int

; value offset = 0

delta

.int

; delta offset = 4

i_len

.endstruct

; item size

= 8

array

.tag item

.bss array, i_len*K ; declare an array of K "items"

.text

LDW

*+B14(array.delta + 2*i_len),A1

; access array [2].delta

The assembler also has several predefined symbolic constants; these are discussed in Section 3.8.5.

Assembler Description

Symbols

3.8.4

Defining Symbolic Constants (--asm_define Option)

The --asm_define option equates a constant value or a string with a symbol. The symbol can then be used

in place of a value in assembly source. The format of the --asm_define option is as follows:

cl6x --asm_define= name[=value]

The name is the name of the symbol you want to define. The value is the constant or string value you

want to assign to the symbol. If the value is omitted, the symbol is set to 1. If you want to define a quoted

string and keep the quotation marks, do one of the following:

• For Windows, use --asm_define=name="\"value\"". For example, --asm_define=car="\"sedan\""

• For UNIX, use --asm_define=name='"value"'. For example, --asm_define=car='"sedan"'

• For Code Composer Studio, enter the definition in a file and include that file with the --cmd_file (or -@)

option.

Once you have defined the name with the --asm_define option, the symbol can be used in place of a

constant value, a well-defined expression, or an otherwise undefined symbol used with assembly

directives and instructions. For example, on the command line you enter:

cl6x --asm_define=SYM1=1 --asm_define=SYM2=2 --asm_define=SYM3=3 --asm_define=SYM4=4 value.asm

Since you have assigned values to SYM1, SYM2, SYM3, and SYM4, you can use them in source code.

Example 3-3 shows how the value.asm file uses these symbols without defining them explicitly.

Within assembler source, you can test the symbol defined with the --asm_define option with the following

directives:

Type of Test

Directive Usage

Existence

.if $isdefed(" name ")

Nonexistence

.if $isdefed(" name ") = 0

Equal to value

.if name = value

Not equal to value

.if name != value

The argument to the $isdefed built-in function must be enclosed in quotes. The quotes cause the

argument to be interpreted literally rather than as a substitution symbol.

Example 3-3. Using Symbolic Constants Defined on Command Line

If_4:

.if

SYM4 = SYM2 * SYM2

.byte

SYM4

; Equal values

.else

.byte

SYM2 * SYM2

; Unequal values

.endif

IF_5:

.if

SYM1 <= 10

.byte

; Less than / equal

.else

.byte

SYM1

; Greater than

.endif

IF_6:

.if

SYM3 * SYM2 != SYM4 + SYM2

.byte

SYM3 * SYM2

; Unequal value

.else

.byte

SYM4 + SYM4

; Equal values

.endif

IF_7:

.if

SYM1 = SYM2

.byte

SYM1

.elseif

SYM2 + SYM3 = 5

.byte

SYM2 + SYM3

.endif

Assembler Description

Symbols

3.8.5

Predefined Symbolic Constants

The assembler has several predefined symbols, including the following types:

•

$, the dollar-sign character, represents the current value of the section program counter (SPC). $ is a

relocatable symbol.

• Register symbols, including A0-A15 and B0-B15 for C6200 and C6700; and A16-31 and B16-31 for

C6400 and C6400+.

• CPU control registers, including those listed in Table 3-2. Control registers can be entered as all

upper-case or all lower-case characters; for example, CSR can also be entered as csr.

• Processor symbols, including those listed in Table 3-3.

• Assembler Version Symbols. See Table 3-4.

Table 3-2. CPU Control Registers

Description

AMR

Addressing mode register

CSR

Control status register

DESR

(C6700+ only) dMAX event status register

DETR

(C6700+ only) dMAX event trigger register

DNUM

(C6400+ and C6740 only) DSP core number register

ECR

(C6400+ and C6740 only) Exception clear register

EFR

(C6400+ and C6740 only) Exception flag register

FADCR

(C6700 only) Floating-point adder configuration register

FAUCR

(C6700 only) Floating-point auxiliary configuration register

FMCR

(C6700 only) Floating-point multiplier configuration register

GFPGFR

(C6400 only) Galois field polynomial generator function register

GPLYA

(C6400+ and C6740 only) GMPY A-side polynomial register

GPLYB

(C6400+ and C6740 only) GMPY B-side polynomial register

ICR

Interrupt clear register

IER

Interrupt enable register

IERR

(C6400+ and C6740 only) Interrupt exception report register

IFR

Interrupt flag register

ILC

(C6400+ and C6740 only) Inner loop count register

NRP

Nonmaskable interrupt return pointer

IRP

Interrupt return pointer

ISR

Interrupt set register

ITSR

(C6400+ and C6740 only) Interrupt task state register

ISTP

Interrupt service table pointer

NTSR

(C6400+ and C6740 only) NMI/Exception task state register

PCE1

Program counter

REP

(C6400+ and C6740 only) Restricted entry point address register

RILC

(C6400+ and C6740 only) Reload inner loop count register

SSR

(C6400+ and C6740 only) Saturation status register

TSCH

(C6400+ and C6740 only) Time-stamp counter (high 32) register

TSCL

(C6400+ and C6740 only) Time-stamp counter (low 32) register

TSR

(C6400+ and C6740 only) Task status register

Assembler Description

Symbols

Table 3-3. Processor Symbols

Symbol name

Description

.TMS320C6000

Always set to 1

.TMS320C6200

Set to 1 for C6200, otherwise 0

.TMS320C6400

Set to 1 for C6400, C6400+, and C6740, otherwise 0

.TMS320C6400_PLUS

Set to 1 for C6400+ and C6740, otherwise 0

.TMS320C6700

Set to 1 for C6700, C6700+, and C6740, otherwise 0

.TMS320C6700_PLUS

Set to 1 for C6700+ and C6740, otherwise 0

.TMS320C6740

Set to 1 for C6740

.LITTLE_ENDIAN

Set to 1 if little-endian mode is selected (the --big_endian assembler option is not used); otherwise 0.

.BIG_ENDIAN

Set to 1 if big-endian mode is selected (the --big_endian assembler option is used); otherwise 0.

Table 3-4. Assembler Version Symbols

Symbol name

Description

__TI_ASSEMBLER_VERSION Defined to a 7-digit integer that takes the 3-digit release version number X.Y.Z and generates an

integer XXXYYYZZZ where each portion X, Y and Z is expanded to three digits and concatenated

together. The number does not contain a decimal. For example, version 3.2.1 is represented as

3002001. The leading zeros are dropped to prevent the number being interpreted as an octal.

3.8.6

Substitution Symbols

Symbols can be assigned a string value (variable). This enables you to alias character strings by equating

them to symbolic names. Symbols that represent character strings are called substitution symbols. When

the assembler encounters a substitution symbol, its string value is substituted for the symbol name. Unlike

symbolic constants, substitution symbols can be redefined.

A string can be assigned to a substitution symbol anywhere within a program; for example:

.global _table

.asg

"B14", PAGEPTR

.asg

"*+B15(4)", LOCAL1

.asg

"*+B15(8)", LOCAL2

LDW

*+PAGEPTR(_table),A0

NOP

STW

A0,LOCAL1

When you are using macros, substitution symbols are important because macro parameters are actually

substitution symbols that are assigned a macro argument. The following code shows how substitution

symbols are used in macros:

MAC .macro src1, src2, dst

; Multiply/Accumulate macro

MPY

src1, src2, src2

NOP

ADD

src2, dst, dst

.endm

* MAC macro invocation

MAC

A0,A1,A2

See Chapter 5 for more information about macros.

Assembler Description

Expressions

3.9

Expressions

An expression is a constant, a symbol, or a series of constants and symbols separated by arithmetic

operators. The 32-bit ranges of valid expression values are -2147 483 648 to 2147 483 647 for signed

values, and 0 to 4 294 967 295 for unsigned values. Three main factors influence the order of expression

evaluation:

Parentheses

Expressions enclosed in parentheses are always evaluated first.

8 / (4 / 2) = 4, but 8 / 4 / 2 = 1

You cannot substitute braces ( { } ) or brackets ( [ ] ) for parentheses.

Precedence groups

Operators, listed in Table 3-5, are divided into nine precedence groups.

When parentheses do not determine the order of expression evaluation,

the highest precedence operation is evaluated first.

8 + 4 / 2 = 10 (4 / 2 is evaluated first)

Left-to-right evaluation

When parentheses and precedence groups do not determine the order of

expression evaluation, the expressions are evaluated from left to right,

except for Group 1, which is evaluated from right to left.

8 / 4*2 = 4, but 8 / (4*2) = 1

3.9.1

Operators

Table

3-5 lists the operators that can be used in expressions, according to precedence group.

Table 3-5. Operators Used in Expressions (Precedence)

Group⁽¹⁾

Operator

Description⁽²⁾

Unary plus

Unary minus

1s complement

Logical NOT

Multiplication

Division

Modulo

Addition

Subtraction

Shift left

Shift right

Less than

Less than or equal to

Greater than

Greater than or equal to

=[=]

Equal to

Not equal to

Bitwise AND

Bitwise exclusive OR (XOR)

Bitwise OR

(1)

Group 1 operators are evaluated right to left. All other operators are evaluated left to right.

(2)

Unary + and - have higher precedence than the binary forms.

3.9.2

Expression Overflow and Underflow

The assembler checks for overflow and underflow conditions when arithmetic operations are performed at

assembly time. It issues a warning (the message Value Truncated) whenever an overflow or underflow

occurs. The assembler does not check for overflow or underflow in multiplication.

Assembler Description

Expressions

3.9.3

Well-Defined Expressions

Some assembler directives require well-defined expressions as operands. Well-defined expressions

contain only symbols or assembly-time constants that are defined before they are encountered in the

expression. The evaluation of a well-defined expression must be absolute.

This is an example of a well-defined expression:

1000h+X

where X was previously defined as an absolute symbol.

3.9.4

Conditional Expressions

The assembler supports relational operators that can be used in any expression; they are especially

useful for conditional assembly. Relational operators include the following:

Equal to

Not equal to

Less than

Less than or equal to

Greater than

Greater than or equal to

Conditional expressions evaluate to 1 if true and 0 if false and can be used only on operands of

equivalent types; for example, absolute value compared to absolute value, but not absolute value

compared to relocatable value.

3.9.5

Legal Expressions

With the exception of the following expression contexts, there is no restriction on combinations of

operations, constants, internally defined symbols, and externally defined symbols.

When an expression contains more than one relocatable symbol or cannot be evaluated at assembly time,

the assembler encodes a relocation expression in the object file that is later evaluated by the linker. If the

final value of the expression is larger in bits than the space reserved for it, you receive an error message

from the linker. See Section 2.4 for more information on relocation expressions.

• When using the register relative addressing mode, the expression in brackets or parenthesis must be a

well-defined expression, as described in Section 3.9.3. For example:

*+A4[15]

• Expressions used to describe the offset in register relative addressing mode for the registers B14 and

B15, or expressions used as the operand to the branch instruction, are subject to the same limitations.

For these two cases, all legal expressions can be reduced to one of two forms:

relocatable symbol

± absolute symbol

(extern_1-10)

a well-defined expression

*+B14/B15[14]

Assembler Description

Expressions

3.9.6

Expression Examples

Following are examples of expressions that use relocatable and absolute symbols. These examples use

four symbols that are defined in the same section:

.global extern_1 ; Defined in an external module

intern_1: .word '"D'

; Relocatable, defined in

;

current module

intern_2

; Relocatable, defined in

;

current module

intern_3

; Relocatable, defined in

;

current module

•

Example 1

In these contexts, there are no limitations on how expressions can be formed.

.word

extern_1 * intern_2 - 13

; Legal

MVKL

(intern_1 - extern_1),A1

; Legal

•

Example 2

The first statement in the following example is valid; the statements that follow it are invalid.

B (extern_1 - 10)

; Legal

B (10-extern_1)

; Can't negate reloc. symbol

LDW *+B14 (-(intern_1)), A1

; Can't negate reloc. symbol

LDW *+B14 (extern_1/10), A1

; / not an additive operator

B (intern_1 + extern_1)

; Multiple relocatables

•

Example 3

The first statement below is legal; although intern_1 and intern_2 are relocatable, their difference is

absolute because they are in the same section. Subtracting one relocatable symbol from another

reduces the expression to relocatable symbol + absolute value. The second statement is illegal

because the sum of two relocatable symbols is not an absolute value.

B (intern_1 - intern_2 + extern_3)

; Legal

B (intern_1 + intern_2 + extern_3)

; Illegal

•

Example 4

A relocatable symbol's placement in the expression is important to expression evaluation. Although the

statement below is similar to the first statement in the previous example, it is illegal because of

left-to-right operator precedence; the assembler attempts to add intern_1 to extern_3.

B (intern_1 + extern_3 - intern_2)

; Illegal

Assembler Description

Source Listings

3.10

Source Listings

A source listing shows source statements and the object code they produce. To obtain a listing file, invoke

the assembler with the --asm_listing option (see Section 3.3).

Two banner lines, a blank line, and a title line are at the top of each source listing page. Any title supplied

by the .title directive is printed on the title line. A page number is printed to the right of the title. If you do

not use the .title directive, the name of the source file is printed. The assembler inserts a blank line below

the title line.

Each line in the source file produces at least one line in the listing file. This line shows a source statement

number, an SPC value, the object code assembled, and the source statement. Figure 3-2 shows these in

an actual listing file.

Field 1: Source Statement Number

Line number

The source statement number is a decimal number. The assembler numbers source lines as it

encounters them in the source file; some statements increment the line counter but are not listed. (For

example, .title statements and statements following a .nolist are not listed.) The difference between two

consecutive source line numbers indicates the number of intervening statements in the source file that

are not listed.

Include file letter

A letter preceding the line number indicates the line is assembled from the include file designated by

the letter.

Nesting level number

A number preceding the line number indicates the nesting level of macro expansions or loop blocks.

Field 2: Section Program Counter

This field contains the SPC value, which is hexadecimal. All sections (.text, .data, .bss, and named

sections) maintain separate SPCs. Some directives do not affect the SPC and leave this field blank.

Field 3: Object Code

This field contains the hexadecimal representation of the object code. All machine instructions and

directives use this field to list object code. This field also indicates the relocation type associated with

an operand for this line of source code. If more than one operand is relocatable, this column indicates

the relocation type for the first operand. The characters that can appear in this column and their

associated relocation types are listed below:

undefined external reference

.text relocatable

.sect relocatable

.data relocatable

.bss, .usect relocatable

% relocation expression

Field 4: Source Statement Field

This field contains the characters of the source statement as they were scanned by the assembler. The

assembler accepts a maximum line length of 200 characters. Spacing in this field is determined by the

spacing in the source statement.

Figure 3-2 shows an assembler listing with each of the four fields identified.

Assembler Description

Source Listings

Figure 3-2. Example Assembler Listing

Include file

letter

Nesting level

Line number

number

***********************************************

** Global variables

***********************************************

00000000

.bss

var1, 4

00000004

.bss

var2, 4

***********************************************

** Include multiply macro

***********************************************

.copy

mpy32.inc

mpy32

.macro

A,B

MPYLH.M1

A,B,A

; tmp1 = A.lo * B.hi

MPYHL.M2

A,B,B

; tmp2 = A.hi * B.lo

MPYU.M2

A,B,B

; tmp3 = A.lo * B.lo

ADD.L1

A,B,A

; A = tmp1 + tmp2

SHL.S1

A,16,A ; A <<= 16

ADD.L1

B,A,A

; A = A + tmp3

.endm

***********************************************

** _func multiplies 2 global ints

***********************************************

00000000

.text

00000000

_func

00000000

0200006C-

LDW

*+B14(var1),A4

00000004

0000016E-

LDW

*+B14(var2),B0

00000008

00006000

NOP

0000000c

mpy32

A4,B0

0000000c

02009881

MPYLH.M1

A4,B0,A4

; tmp1 = A.lo * B.hi

00000010

00101882

MPYHL.M2

A4,B0,B0

; tmp2 = A.hi * B.lo

00000014

00101F82

MPYU.M2

A4,B0,B0

; tmp3 = A.lo * B.lo

00000018

02009078

ADD.L1

A4,B0,A4

; A = tmp1 + tmp2

0000001c

02120CA0

SHL.S1

A4,16,A4 ; A <<= 16

00000020

02009078

ADD.L1

B0,A4,A4

; A = A + tmp3

00000024

000C6362

00000028

00008000

NOP

* end _func

Field 1

Field 2

Field 3

Field 4

Assembler Description

Debugging Assembly Source

3.11

Debugging Assembly Source

When you invoke cl6x with --symdebug:dwarf (or -g) when compiling an assembly file, the assembler

provides symbolic debugging information that allows you to step through your assembly code in a

debugger rather than using the Disassembly window in Code Composer Studio. This enables you to view

source comments and other source-code annotations while debugging.

The .asmfunc and .endasmfunc (see Mark Function Boundaries ) directives enable you to use C

characteristics in assembly code that makes the process of debugging an assembly file more closely

resemble debugging a C/C++ source file.

The .asmfunc and .endasmfunc directives allow you to name certain areas of your code, and make these

areas appear in the debugger as C functions. Contiguous sections of assembly code that are not enclosed

by the .asmfunc and .endasmfunc directives are automatically placed in assembler-defined functions

named with this syntax:

$ filename : starting source line : ending source line $

If you want to view your variables as a user-defined type in C code, the types must be declared and the

variables must be defined in a C file. This C file can then be referenced in assembly code using the .ref

directive (see Identify Global Symbols ).

Example 3-4. Viewing Assembly Variables as C Types C Program

typedef struct

{

int m1;

int m2;

} X;

X svar = { 1, 2 };

Example 3-5. Assembly Program for Example 3-4

;------------------------------------------------------------------------------

; Tell the assembler we're referencing variable "_svar", which is defined in

; another file (cvars.c).

;------------------------------------------------------------------------------

.ref _svar

;------------------------------------------------------------------------------

; addfive() - Add five to the second data member of _svar

;------------------------------------------------------------------------------

.text

.global addfive

addfive:

.asmfunc

LDW

.D2T2

*+B14(_svar+4),B4 ; load svar.m2 into B4

RET

.S2

; return from function

NOP

; delay slots 1-3

ADD

.D2

5,B4,B4

; add 5 to B4 (delay slot 4)

STW

.D2T2

B4,*+B14(_svar+4) ; store B4 back into svar.m2

; (delay slot 5)

.endasmfunc

Example 3-4 shows the cvar.c C program that defines a variable, svar, as the structure type X. The svar

variable is then referenced in the addfive.asm assembly program in Example 3-5 and 5 is added to svar's

second data member.

Compile both source files with the --symdebug:dwarf option (-g) and link them as follows:

cl6x -symdebug:dwarf cvars.c addfive.asm --run_linker --library=lnk.cmd --library=rts62.lib

--output_file=addfive.out

Assembler Description

Cross-Reference Listings

When you load this program into a symbolic debugger, addfive appears as a C function. You can monitor

the values in svar while stepping through main just as you would any regular C variable.

3.12

Cross-Reference Listings

A cross-reference listing shows symbols and their definitions. To obtain a cross-reference listing, invoke

the assembler with the --cross_reference option (see Section 3.3) or use the .option directive with the X

operand (see Select Listing Options ). The assembler appends the cross-reference to the end of the

source listing. Example 3-6 shows the four fields contained in the cross-reference listing.

Example 3-6. An Assembler Cross-Reference Listing

LABEL

VALUE

DEFN

REF

.BIG_ENDIAN

00000000

.LITTLE_ENDIAN

00000001

.TMS320C6200

00000001

.TMS320C6700

00000000

.TMS320C6X

00000001

_func

00000000'

var1

00000000-

var2

00000004-

Label

column contains each symbol that was defined or referenced during the assembly.

Value

column contains an 8-digit hexadecimal number (which is the value assigned to the

symbol) or a name that describes the symbol's attributes. A value may also be

preceded by a character that describes the symbol's attributes. Table 3-6 lists these

characters and names.

Definition

(DEFN) column contains the statement number that defines the symbol. This

column is blank for undefined symbols.

Reference

(REF) column lists the line numbers of statements that reference the symbol. A

blank in this column indicates that the symbol was never used.

Table 3-6. Symbol Attributes

Character or Name

Meaning

REF

External reference (global symbol)

UNDF

Undefined

Symbol defined in a .text section

Symbol defined in a .data section

Symbol defined in a .sect section

Symbol defined in a .bss or .usect section

Cross-Reference Listing Not Supported for C6400+ and C6740

Note: The cross-reference listing capability is not supported for C6400+ and C6740. You can use

the disassembler, the -m linker option or the object file display utility (ofd6x) to obtain similar

information.

Assembler Description

Chapter 4

Assembler Directives

Assembler directives supply data to the program and control the assembly process. Assembler directives

enable you to do the following:

• Assemble code and data into specified sections

• Reserve space in memory for uninitialized variables

• Control the appearance of listings

• Initialize memory

• Assemble conditional blocks

• Define global variables

• Specify libraries from which the assembler can obtain macros

• Examine symbolic debugging information

This chapter is divided into two parts: the first part (Section 4.1 through Section 4.10) describes the

directives according to function, and the second part (Section 4.11) is an alphabetical reference.

Topic

Page

4.1

Directives Summary

4.2

Directives That Define Sections

4.3

Directives That Initialize Constants

4.4

Directives That Perform Alignment and Reserve Space

4.5

Directives That Format the Output Listings

4.6

Directives That Reference Other Files

4.7

Directives That Enable Conditional Assembly

4.8

Directives That Define Unions or Structures

4.9

Directives That Define Symbols at Assembly Time

4.10

Miscellaneous Directives

4.11

Directives Reference

Assembler Directives

Directives Summary

4.1

Directives Summary

Table 4-1 through Table 4-9 summarize the assembler directives.

Besides the assembler directives documented here, the TMS320C6000™ software tools support the

following directives:

• The assembler uses several directives for macros. Macro directives are discussed in Chapter 5; they

are not discussed in this chapter.

• The assembly optimizer uses several directives that supply data and control the optimization process.

Assembly optimizer directives are discussed in the TMS320C6000 Optimizing Compiler User's Guide.

• The C compiler uses directives for symbolic debugging. Unlike other directives, symbolic debugging

directives are not used in most assembly language programs. Appendix A discusses these directives;

they are not discussed in this chapter.

Labels and Comments Are Not Shown in Syntaxes

Note: Any source statement that contains a directive can also contain a label and a comment.

Labels begin in the first column (only labels and comments can appear in the first column),

and comments must be preceded by a semicolon, or an asterisk if the comment is the only

element in the line. To improve readability, labels and comments are not shown as part of

the directive syntax.

Table 4-1. Directives That Define Sections

Mnemonic and Syntax

Description

See

.bss symbol, size in bytes[, alignment

Reserves size bytes in the .bss (uninitialized data) section

.bss topic

[, bankoffset] ]

.data

Assembles into the .data (initialized data) section

.data topic

.sect " section name"

Assembles into a named (initialized) section

.sect topic

.text

Assembles into the .text (executable code) section

.text topic

symbol .usect "section name", size in bytes

Reserves size bytes in a named (uninitialized) section

.usect topic

[, alignment[, bankoffset] ]

Table 4-2. Directives That Initialize Constants (Data and Memory)

Mnemonic and Syntax

Description

See

.byte value₁[, ..., value_n]

Initializes one or more successive bytes in the current section

.byte topic

.char value₁[, ..., value_n]

Initializes one or more successive bytes in the current section

.char topic

.double value₁[, ..., value_n]

Initializes one or more 64-bit, IEEE double-precision,

.double topic

floating-point constants

.field value[, size]

Initializes a field of size bits (1-32) with value

.field topic

.float value₁[, ..., value_n]

Initializes one or more 32-bit, IEEE single-precision,

.float topic

floating-point constants

.half value₁[, ... , value_n]

Initializes one or more 16-bit integers (halfword)

.half topic

.int value₁[, ... , value_n]

Initializes one or more 32-bit integers

.int topic

.long value₁[, ... , value_n]

Initializes one or more 32-bit integers

.long topic

.short value₁[, ... , value_n]

Initializes one or more 16-bit integers (halfword)

.short topic

.string {expr₁|"string₁"}[,... , {expr_n|"string_n"}]

Initializes one or more text strings

.string topic

.word value₁[, ... , value_n]

Initializes one or more 32-bit integers

.word topic

.uhalf value₁[, ... , value_n]

Initializes one or more 16-bit integers (halfword)

.uhalf topic

.uint value₁[, ... , value_n]

Initializes one or more 32-bit integers

.uint topic

.ushort value₁[, ... , value_n]

Initializes one or more 16-bit integers (halfword)

.ushort topic

.uword value₁[, ... , value_n]

Initializes one or more 32-bit integers

.uword topic

Assembler Directives

Directives Summary

Table

4-3. Directives That Perform Alignment and Reserve Space

Mnemonic and Syntax

Description

See

.align [size in bytes]

Aligns the SPC on a boundary specified by size in bytes, which

.align topic

must be a power of 2; defaults to byte boundary

.bes size

Reserves size bytes in the current section; a label points to the

.bes topic

end of the reserved space

.space size

Reserves size bytes in the current section; a label points to the

.space topic

beginning of the reserved space

Table

4-4. Directives That Format the Output Listing

Mnemonic and Syntax

Description

See

.drlist

Enables listing of all directive lines (default)

.drlist topic

.drnolist

Suppresses listing of certain directive lines

.drnolist topic

.fclist

Allows false conditional code block listing (default)

.fclist topic

.fcnolist

Suppresses false conditional code block listing

.fcnolist topic

.length [page length]

Sets the page length of the source listing

.length topic

.list

Restarts the source listing

.list topic

.mlist

Allows macro listings and loop blocks (default)

.mlist topic

.mnolist

Suppresses macro listings and loop blocks

.mnolist topic

.nolist

Stops the source listing

.nolist topic

.option option₁[, option₂, . . .]

Selects output listing options; available options are A, B, D, H,

.option topic

L, M, N, O, R, T, W, and X

.page

Ejects a page in the source listing

.page topic

.sslist

Allows expanded substitution symbol listing

.sslist topic

.ssnolist

Suppresses expanded substitution symbol listing (default)

.ssnolist topic

.tab size

Sets tab to size characters

.tab topic

.title " string "

Prints a title in the listing page heading

.title topic

.width [page width]

Sets the page width of the source listing

.width topic

Table

4-5. Directives That Reference Other Files

Mnemonic and Syntax

Description

See

.copy ["]filename["]

Includes source statements from another file

.copy topic

.def symbol₁[, ... , symbol_n]

Identifies one or more symbols that are defined in the current

.def topic

module and that can be used in other modules

.global symbol₁[, ... , symbol_n]

Identifies one or more global (external) symbols

.global topic

.include ["]filename["]

Includes source statements from another file

.include topic

.mlib ["]filename["]

Defines macro library

.mlib topic

.ref symbol₁[, ... , symbol_n]

Identifies one or more symbols used in the current module that

.ref topic

are defined in another module

Assembler Directives

Directives Summary

Table 4-6. Directives That Enable Conditional Assembly

Mnemonic and Syntax

Description

See

.break [well-defined expression]

Ends .loop assembly if well-defined expression is true. When

.break topic

using the .loop construct, the .break construct is optional.

.else

Assembles code block if the .if well-defined expression is false.

.else topic

When using the .if construct, the .else construct is optional.

.elseif well-defined expression

Assembles code block if the .if well-defined expression is false

.elseif topic

and the .elseif condition is true. When using the .if construct,

the .elseif construct is optional.

.endif

Ends .if code block

.endif topic

.endloop

Ends .loop code block

.endloop topic

.if well-defined expression

Assembles code block if the well-defined expression is true

.if topic

.loop [well-defined expression]

Begins repeatable assembly of a code block; the loop count is

.loop topic

determined by the well-defined expression.

Table

4-7. Directives That Define Unions or Structures

Mnemonic and Syntax

Description

See

.cstruct

Acts like .struct, but adds padding and alignment like that

.cstruct topic

which is done to C structures

.cunion

Acts like .union, but adds padding and alignment like that

.cstruct/.cunion

which is done to C unions

.endstruct

Ends a structure definition

.cunion topic ,

.struct

.endunion

Ends a union definition

.cstruct/.cunion ,

.union

.struct

Begins structure definition

.struct topic

.tag

Assigns structure attributes to a label

.cstruct/.cunion ,

.struct , .union

.union

Begins a union definition

.union topic

Table 4-8. Directives That Define Symbols at Assembly Time

Mnemonic and Syntax

Description

See

.asg ["]character string["], substitution symbol

Assigns a character string to substitution symbol

.asg topic

symbol .equ value

Equates value with symbol

.equ topic

.eval well-defined expression,

Performs arithmetic on a numeric substitution symbol

.eval topic

substitution symbol

.label symbol

Defines a load-time relocatable label in a section

.label topic

symbol .set value

Equates value with symbol

.set topic

.var

Adds a local substitution symbol to a macro's parameter list

.var topic

Assembler Directives

Directives That Define Sections

Table 4-9. Directives That Perform Miscellaneous Functions

Mnemonic and Syntax

Description

See

.asmfunc

Identifies the beginning of a block of code that contains a

.asmfunc topic

function

.cdecls [options,] "filename"[, "filename2"[, ...]

Share C headers between C and assembly code

.cdecls topic

.clink ["section name"]

Enables conditional linking for the current or specified section

.clink topic

.emsg string

Sends user-defined error messages to the output device;

.emsg topic

produces no .obj file

.end

Ends program

.end topic

.endasmfunc

Identifies the end of a block of code that contains a function

.endasmfunc

topic

.mmsg string

Sends user-defined messages to the output device

.mmsg topic

.newblock

Undefines local labels

.newblock topic

.nocmp

Instructs tools to not utilize 16-bit instructions for section

.nocmp topic

.wmsg string

Sends user-defined warning messages to the output device

.wmsg topic

4.2

Directives That Define Sections

These directives associate portions of an assembly language program with the appropriate sections:

• The .bss directive reserves space in the .bss section for uninitialized variables.

• The .data directive identifies portions of code in the .data section. The .data section usually contains

initialized data.

• The .sect directive defines an initialized named section and associates subsequent code or data with

that section. A section defined with .sect can contain code or data.

• The .text directive identifies portions of code in the .text section. The .text section usually contains

executable code.

• The .usect directive reserves space in an uninitialized named section. The .usect directive is similar to

the .bss directive, but it allows you to reserve space separately from the .bss section.

Chapter 2 discusses these sections in detail.

Example 4-1 shows how you can use sections directives to associate code and data with the proper

sections. This is an output listing; column 1 shows line numbers, and column 2 shows the SPC values.

(Each section has its own program counter, or SPC.) When code is first placed in a section, its SPC

equals 0. When you resume assembling into a section after other code is assembled, the section's SPC

resumes counting as if there had been no intervening code.

The directives in Example 4-1 perform the following tasks:

.text

initializes words with the values 1, 2, 3, 4, 5, 6, 7, and 8.

.data

initializes words with the values 9, 10, 11, 12, 13, 14, 15, and 16.

var_defs

initializes words with the values 17 and 18.

.bss

reserves 19 bytes.

reserves 20 bytes.

The .bss and .usect directives do not end the current section or begin new sections; they reserve the

specified amount of space, and then the assembler resumes assembling code or data into the current

section.

Assembler Directives

Directives That Define Sections

Example 4-1. Sections Directives

**************************************************

Start assembling into the .text section

**************************************************

00000000

.text

00000000

00000001

.word

1,2

00000004

00000002

00000008

00000003

.word

3,4

0000000c

00000004

**************************************************

Start assembling into the .data section

**************************************************

00000000

.data

00000000

00000009

.word

9, 10

00000004

0000000A

00000008

0000000B

.word

11, 12

0000000c

0000000C

**************************************************

Start assembling into a named,

initialized section, var_defs

**************************************************

00000000

.sect

"var_defs"

00000000

00000011

.word

17, 18

00000004

00000012

**************************************************

Resume assembling into the .data section

**************************************************

00000010

.data

00000010

0000000D

.word

13, 14

00000014

0000000E

00000000

.bss

sym, 19

; Reserve space in .bss

00000018

0000000F

.word

15, 16

; Still in .data

0000001c

00000010

**************************************************

Resume assembling into the .text section

**************************************************

00000010

.text

00000010

00000005

.word

5, 6

00000014

00000006

00000000

usym

.usect "xy", 20

; Reserve space in xy

00000018

00000007

.word

7, 8

; Still in .text

0000001c

00000008

Assembler Directives

Directives That Initialize Constants

4.3

Directives That Initialize Constants

Several directives assemble values for the current section:

•

The .byte and .char directives place one or more 8-bit values into consecutive bytes of the current

section. These directives are similar to .long and .word, except that the width of each value is restricted

to eight bits.

•

The .double directive calculates the double-precision (64-bit) IEEE floating-point representation of one

or more floating-point values and stores them in two consecutive words in the current section. The

.double directive automatically aligns to the double-word boundary.

•

The .field directive places a single value into a specified number of bits in the current word. With .field,

you can pack multiple fields into a single word; the assembler does not increment the SPC until a word

is filled.

Figure 4-1 shows how fields are packed into a word. Using the following assembled code, notice that

the SPC does not change (the fields are packed into the same word):

1 00000000 00000003

.field

3,4

2 00000000 00000083

.field

8,5

3 00000000 00002083

.field

16,7

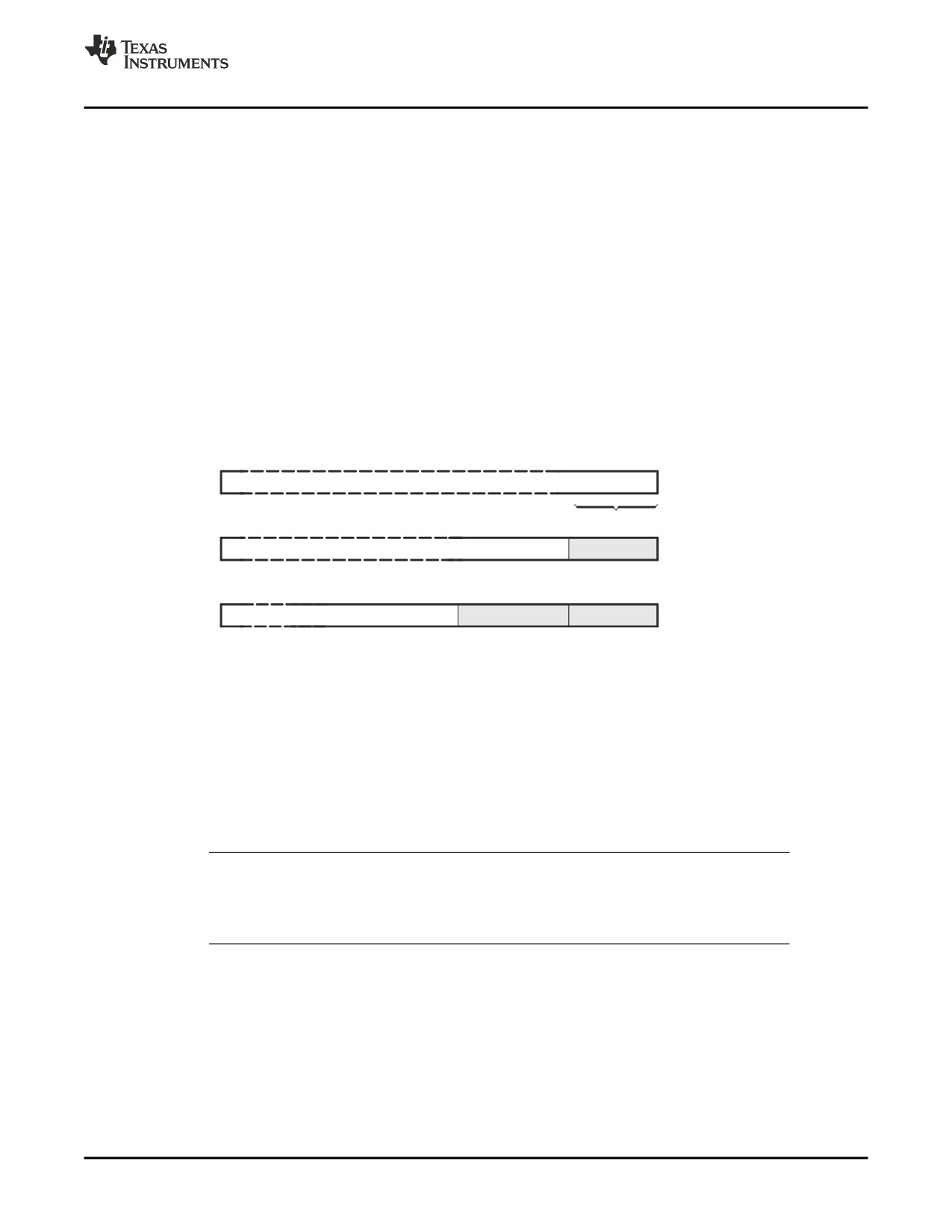

Figure 4-1. The .field Directive

.field 3, 4

4 bits

.field 8, 5

15 14 13 12

.field 16, 7

•

The .float directive calculates the single-precision (32-bit) IEEE floating-point representation of a single

floating-point value and stores it in a word in the current section that is aligned to a word boundary.

•

The .half, .uhalf, .short, and .ushort directives place one or more 16-bit values into consecutive 16-bit

fields (halfwords) in the current section. The .half and .short directives automatically align to a short

(2-byte) boundary.

•

The .int, .uint, .long, .word, .uword directives place one or more 32-bit values into consecutive 32-bit

fields (words) in the current section. The .int, .long, and .word directives automatically align to a word

boundary.

•

The .string directive places 8-bit characters from one or more character strings into the current

section. This directive is similar to .byte, placing an 8-bit character in each consecutive byte of the

current section.

Directives That Initialize Constants When Used in a .struct/.endstruct Sequence

Note: The .byte, .char, .int, .long, .word, .double, .half, .short, .string, .float, and .field directives do

not initialize memory when they are part of a .struct/ .endstruct sequence; rather, they define

a member’s size. For more information, see the .struct/.endstruct directives .

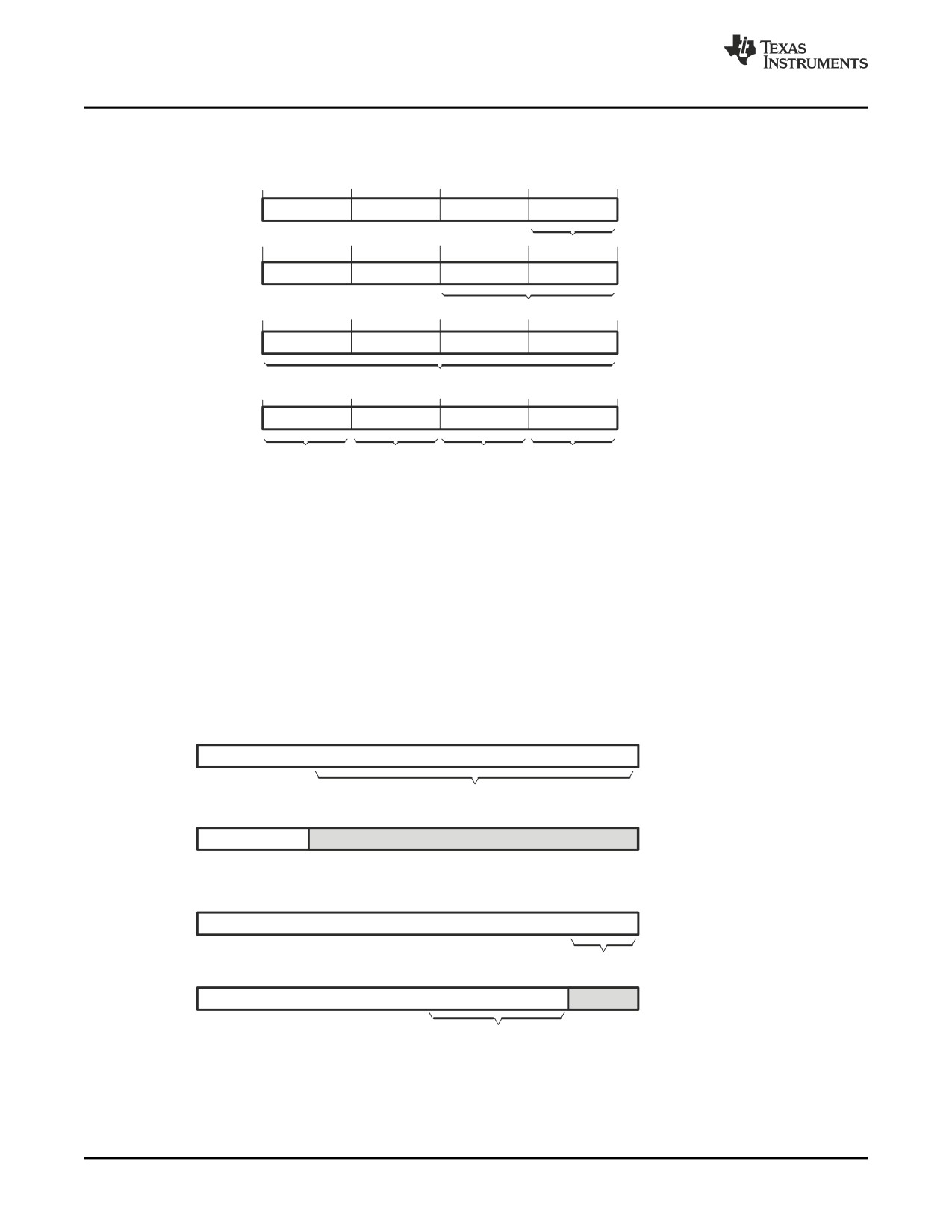

Figure 4-2 compares the .byte, .half, .word, and .string directives. Using the following assembled code:

1 00000000 000000AB

.byte

0ABh

.align 4

3 00000004 0000CDEF

.half

0CDEFh

4 00000008 89ABCDEF

.word

089ABCDEFh

5 0000000c 00000068

.string "help"

0000000d 00000065

0000000e 0000006C

0000000f 00000070

Assembler Directives

Directives That Perform Alignment and Reserve Space

Figure 4-2. Initialization Directives

Word

Contents

Code

.byte 0ABh

1 byte

.half 0CDEFh

2 bytes (half word)

.word 089ABCDEFh

whole word

.string ”help”

4.4

Directives That Perform Alignment and Reserve Space

These directives align the section program counter (SPC) or reserve space in a section:

• The .align directive aligns the SPC at the next byte boundary. This directive is useful with the .field

directive when you do not want to pack two adjacent fields in the same byte.

Figure 4-3 demonstrates the .align directive. Using the following assembled code:

2 00000000 00AABBCC

.field

0AABBCCh,24

.align

4 00000000 0BAABBCC

.field

0Bh,5

5 00000004 000000DE

.field

0DEh,10

Figure 4-3. The .align Directive

Word

Code

.field 0AABBCCh, 24

1 0 1 0 1 0 1 01 0 1 1 1 0 1 1 1 1 0 0 1 1 0 0

24-bit field

.align 2

0 0 0 0 0 0 0 0

1 0 1 0 1 0 1 01 0 1 1 1 0 1 1 1 1 0 0 1 1 0 0

0 1 0 1 1

.field 0Bh, 5

5-bit field

.field 0DEh, 10

0 0 1 1 0 1 1 1 1 0

0 1 0 1 1

10-bit field

Assembler Directives

Directives That Format the Output Listings

• The .bes and .space directives reserve a specified number of bytes in the current section. The

assembler fills these reserved bytes with 0s.

- When you use a label with .space, it points to the first byte that contains reserved bits.

- When you use a label with .bes, it points to the last byte that contains reserved bits.

Figure 4-4 shows how the .space and .bes directives work for the following assembled code:

2 00000000 00000100

.word

100h, 200h

00000004 00000200

3 00000008

Res_1:

.space

4 0000001c 0000000F

.word

5 00000033

Res_2:

.bes

6 00000034 000000BA

.byte

0BAh

Res_1 points to the first byte in the space reserved by .space. Res_2 points to the last byte in the

space reserved by .bes.

Figure 4-4. The .space and .bes Directives

Res_1 = 08h

17 bytes

reserved

20 bytes

reserved

Res_2 = 33h

4.5

Directives That Format the Output Listings

These directives format the listing file:

• The .drlist directive causes printing of the directive lines to the listing; the .drnolist directive turns it off

for certain directives. You can use the .drnolist directive to suppress the printing of the following

directives. You can use the .drlist directive to turn the listing on again.

.asg

.eval

.length

.mnolist

.var

.break

.fclist

.mlist

.sslist

.width

.emsg

.fcnolist

.mmsg

.ssnolist

.wmsg

• The source code listing includes false conditional blocks that do not generate code. The .fclist and

.fcnolist directives turn this listing on and off. You can use the .fclist directive to list false conditional

blocks exactly as they appear in the source code. You can use the .fcnolist directive to list only the

conditional blocks that are actually assembled.

• The .length directive controls the page length of the listing file. You can use this directive to adjust

listings for various output devices.

• The .list and .nolist directives turn the output listing on and off. You can use the .nolist directive to

prevent the assembler from printing selected source statements in the listing file. Use the .list directive

to turn the listing on again.

• The source code listing includes macro expansions and loop blocks. The .mlist and .mnolist directives

turn this listing on and off. You can use the .mlist directive to print all macro expansions and loop

blocks to the listing, and the .mnolist directive to suppress this listing.

Assembler Directives

Directives That Reference Other Files

•

The .option directive controls certain features in the listing file. This directive has the following

operands:

turns on listing of all directives and data, and subsequent expansions, macros, and blocks.

limits the listing of .byte and .char directives to one line.

turns off the listing of certain directives (same effect as .drnolist).

limits the listing of .half and .short directives to one line.

limits the listing of .long directives to one line.

turns off macro expansions in the listing.

turns off listing (performs .nolist).

turns on listing (performs .list).

resets the B, H, L, M, T, and W directives (turns off the limits of B, H, L, M, T, and W).

limits the listing of .string directives to one line.

limits the listing of .word and .int directives to one line.

produces a cross-reference listing of symbols. You can also obtain a cross-reference listing

by invoking the assembler with the --cross_reference option (see Section 3.3).

•

The .page directive causes a page eject in the output listing.

•

The source code listing includes substitution symbol expansions. The .sslist and .ssnolist directives

turn this listing on and off. You can use the .sslist directive to print all substitution symbol expansions

to the listing, and the .ssnolist directive to suppress this listing. These directives are useful for

debugging the expansion of substitution symbols.

•

The .tab directive defines tab size.

•

The .title directive supplies a title that the assembler prints at the top of each page.

•

The .width directive controls the page width of the listing file. You can use this directive to adjust

listings for various output devices.

4.6

Directives That Reference Other Files

These directives supply information for or about other files that can be used in the assembly of the current

file:

• The .copy and .include directives tell the assembler to begin reading source statements from another

file. When the assembler finishes reading the source statements in the copy/include file, it resumes

reading source statements from the current file. The statements read from a copied file are printed in

the listing file; the statements read from an included file are not printed in the listing file.

• The .def directive identifies a symbol that is defined in the current module and that can be used in

another module. The assembler includes the symbol in the symbol table.

• The .global directive declares a symbol external so that it is available to other modules at link time.

(For more information about global symbols, see Section 2.7.1). The .global directive does double duty,

acting as a .def for defined symbols and as a .ref for undefined symbols. The linker resolves an

undefined global symbol reference only if the symbol is used in the program. The .global directive

declares a 16-bit symbol.

• The .mlib directive supplies the assembler with the name of an archive library that contains macro

definitions. When the assembler encounters a macro that is not defined in the current module, it

searches for it in the macro library specified with .mlib.

• The .ref directive identifies a symbol that is used in the current module but is defined in another

module. The assembler marks the symbol as an undefined external symbol and enters it in the object

symbol table so the linker can resolve its definition. The .ref directive forces the linker to resolve a

symbol reference.

Assembler Directives

Directives That Enable Conditional Assembly

4.7

Directives That Enable Conditional Assembly

Conditional assembly directives enable you to instruct the assembler to assemble certain sections of code

according to a true or false evaluation of an expression. Two sets of directives allow you to assemble

conditional blocks of code:

• The .if/.elseif/.else/.endif directives tell the assembler to conditionally assemble a block of code

according to the evaluation of an expression.

.if well-defined expression

marks the beginning of a conditional block and assembles code

if the .if well-defined expression is true.

[.elseif well-defined expression]

marks a block of code to be assembled if the .if well-defined

expression is false and the .elseif condition is true.

.else

marks a block of code to be assembled if the .if well-defined

expression is false and any .elseif conditions are false.

.endif

marks the end of a conditional block and terminates the block.

• The .loop/.break/.endloop directives tell the assembler to repeatedly assemble a block of code

according to the evaluation of an expression.

.loop [well-defined expression]

marks the beginning of a repeatable block of code. The optional

expression evaluates to the loop count.

.break [well-defined expression]

tells the assembler to assemble repeatedly when the .break

well-defined expression is false and to go to the code

immediately after .endloop when the expression is true or

omitted.

.endloop

marks the end of a repeatable block.

The assembler supports several relational operators that are useful for conditional expressions. For more

information about relational operators, see Section 3.9.4.

4.8

Directives That Define Unions or Structures

These directives set up C or C-like structures or unions in assembly code.

• The .cstruct/.endstruct directives set up C structure definitions. The .cunion/.endunion directives set

up C-like union definitions. The .tag directive assigns the C structure or union characteristics to a label.

The .cstruct/.endstruct directives allow you to organize your information into structures so that similar

elements can be grouped together. Similarly, the .cunion/.endunion directives allow you to organize

your information into unions. Element offset calculation is left up to the assembler. These directives do

not allocate memory. They simply create a symbolic template that can be used repeatedly. The .cstruct

and .cunion directives force the same alignment and padding as used by the C compiler when such

types are nested within compound data structures..

The .tag directive assigns a label to a structure. This simplifies the symbolic representation and also

provides the ability to define structures that contain other structures. The .tag directive does not

allocate memory, and the structure tag (stag) must be defined before it is used.

• The .struct/.endstruct directives set up C-like structure definitions. The .union/.endunion directives

set up C-like union definitions. The .tag directive assigns the C-like structure or union characteristics to

a label.

The .struct/.endstruct directives allow you to organize your information into structures so that similar

elements can be grouped together. Similarly, the .union/.endunion directives allow you to organize your

information into unions. Element offset calculation is left up to the assembler. These directives do not

allocate memory. They simply create a symbolic template that can be used repeatedly.

The .tag directive assigns a label to a structure or union. This simplifies the symbolic representation

and also provides the ability to define structures that contain other structures. The .tag directive does

not allocate memory, and the structure tag (stag) must be defined before it is used.

Assembler Directives

Directives That Define Symbols at Assembly Time

COORDT .struct

; structure tag definition

.byte

;

.byte

T_LEN

.endstruct

COORD

.tag COORDT

; declare COORD (coordinate)

.bss COORD, T_LEN

; actual memory allocation

LDB

*+B14(COORD.Y), A2 ; move member Y of structure

; COORD into register A2

4.9

Directives That Define Symbols at Assembly Time

Assembly-time symbol directives equate meaningful symbol names to constant values or strings.

•

The .asg directive assigns a character string to a substitution symbol. The value is stored in the

substitution symbol table. When the assembler encounters a substitution symbol, it replaces the

symbol with its character string value. Substitution symbols can be redefined.

.asg "10, 20, 30, 40", coefficients

; Assign string to substitution symbol.

.byte coefficients

; Place the symbol values 10, 20, 30, and 40

; into consecutive bytes in current section.

•

The .eval directive evaluates a well-defined expression, translates the results into a character string,

and assigns the character string to a substitution symbol. This directive is most useful for manipulating

counters:

.asg

1 , x

; x = 1

.loop

; Begin conditional loop.

.byte

x*10h

; Store value into current section.

.break

x = 4

; Break loop if x = 4.

.eval

x+1, x

; Increment x by 1.

.endloop

; End conditional loop.

•

The .label directive defines a special symbol that refers to the load-time address within the current

section. This is useful when a section loads at one address but runs at a different address. For

example, you may want to load a block of performance-critical code into slower off-chip memory to

save space and move the code to high-speed on-chip memory to run. See the .label topic for an

example using a load-time address label.

•

The .set and .equ directives set a constant value to a symbol. The symbol is stored in the symbol table

and cannot be redefined; for example:

bval .set 0100h

; Set bval = 0100h

.long bval, bval*2, bval+12

; Store the values 0100h, 0200h, and 010Ch

; into consecutive words in current section.

The .set and .equ directives produce no object code. The two directives are identical and can be used

interchangeably.

•

The .var directive allows you to use substitution symbols as local variables within a macro.

Assembler Directives

Miscellaneous Directives

4.10

Miscellaneous Directives

These directives enable miscellaneous functions or features:

• The .asmfunc and .endasmfunc directives mark function boundaries. These directives are used with

the compiler --symdebug:dwarf (-g) option to generate debug information for assembly functions.

• The .cdecls directive enables programmers in mixed assembly and C/C++ environments to share C

headers containing declarations and prototypes between C and assembly code.

• The .clink directive enables conditional linking by telling the linker to leave the named section out of

the final object module output of the linker if there are no references found to any symbol in the

section. The .clink directive can be applied to initialized or uninitialized sections.

• The .end directive terminates assembly. If you use the .end directive, it should be the last source

statement of a program. This directive has the same effect as an end-of-file character.

• The .newblock directive resets local labels. Local labels are symbols of the form $n, where n is a

decimal digit, or of the form NAME?, where you specify NAME. They are defined when they appear in

the label field. Local labels are temporary labels that can be used as operands for jump instructions.

The .newblock directive limits the scope of local labels by resetting them after they are used. See

Section 3.8.2 for information on local labels.

• The .nocmp directive for C6400+ and C6740 instructs the tools to not utilize 16-bit instructions for the

section .nocmp appears in.

These three directives enable you to define your own error and warning messages:

• The .emsg directive sends error messages to the standard output device. The

.emsg directive

generates errors in the same manner as the assembler, incrementing the error count and preventing

the assembler from producing an object file.

• The .mmsg directive sends assembly-time messages to the standard output device. The .mmsg

directive functions in the same manner as the .emsg and .wmsg directives but does not set the error

count or the warning count. It does not affect the creation of the object file.

• The .wmsg directive sends warning messages to the standard output device. The .wmsg directive

functions in the same manner as the .emsg directive but increments the warning count rather than the

error count. It does not affect the creation of the object file.

For more information about using the error and warning directives in macros, see Section 5.7.

4.11

Directives Reference

The remainder of this chapter is a reference. Generally, the directives are organized alphabetically, one

directive per topic. Related directives (such as .if/.else/.endif), however, are presented together in one

topic.

Assembler Directives

.align — Align SPC on the Next Boundary

.align

Align SPC on the Next Boundary

Syntax

.align [size in bytes]

Description

The .align directive aligns the section program counter (SPC) on the next boundary,

depending on the size in bytes parameter. The size can be any power of 2, although

only certain values are useful for alignment. An operand of 1 aligns the SPC on the next

byte boundary, and this is the default if no size in bytes is given. The assembler

assembles words containing null values (0) up to the next size in bytes boundary:

aligns SPC to byte boundary

aligns SPC to halfword boundary

aligns SPC to word boundary

aligns SPC to doubleword boundary

128

aligns SPC to page boundary

Using the .align directive has two effects:

• The assembler aligns the SPC on an x-byte boundary within the current section.

• The assembler sets a flag that forces the linker to align the section so that individual

alignments remain intact when a section is loaded into memory.

Example

This example shows several types of alignment, including .align 2, .align 8, and a default

.align.

1 00000000 00000004

.byte

.align

3 00000002 00000045

.string

"Errorcnt"

00000003 00000072

00000004 00000072

00000005 0000006F

00000006 00000072

00000007 00000063

00000008 0000006E

00000009 00000074

.align

5 00000008 0003746E

.field

3,3

6 00000008 002B746E

.field

5,4

.align

8 0000000c 00000003

.field

3,3

.align

10 00000010 00000005

.field

5,4

.align

12 00000011 00000004

.byte

Assembler Directives

.asg/.eval — Assign a Substitution Symbol

.asg/.eval

Assign a Substitution Symbol

Syntax

.asg ["]character string["], substitution symbol

.eval well-defined expression, substitution symbol

Description

The .asg directive assigns character strings to substitution symbols. Substitution

symbols are stored in the substitution symbol table. The .asg directive can be used in

many of the same ways as the .set directive, but while .set assigns a constant value

(which cannot be redefined) to a symbol, .asg assigns a character string (which can be

redefined) to a substitution symbol.

• The assembler assigns the character string to the substitution symbol. The quotation

marks are optional. If there are no quotation marks, the assembler reads characters

up to the first comma and removes leading and trailing blanks. In either case, a

character string is read and assigned to the substitution symbol.

• The substitution symbol must be a valid symbol name. The substitution symbol is up

to 128 characters long and must begin with a letter. Remaining characters of the

symbol can be a combination of alphanumeric characters, the underscore (_), and

the dollar sign ($).

The .eval directive performs arithmetic on substitution symbols, which are stored in the

substitution symbol table. This directive evaluates the well-defined expression and

assigns the string value of the result to the substitution symbol. The .eval directive is

especially useful as a counter in .loop/.endloop blocks.

• The well-defined expression is an alphanumeric expression in which all symbols have

been previously defined in the current source module, so that the result is an

absolute.

• The substitution symbol must be a valid symbol name. The substitution symbol is up

to 128 characters long and must begin with a letter. Remaining characters of the

symbol can be a combination of alphanumeric characters, the underscore (_), and

the dollar sign ($).

Example

This example shows how .asg and .eval can be used.

.sslist ; show expanded substitution symbols

.asg

*+B14(100), GLOB100

.asg

*+B15(4),

ARG0

00000000

003B22E4

LDW

GLOB100,A0

LDW

*+B14(100),A0

00000004

00BC22E4

LDW

ARG0,A1

LDW

*+B15(4),A1

00000008

00006000

NOP

0000000c

010401E0

ADD

A0,A1,A2

.asg

0,x

.loop

.word

100*x

.eval

x+1,x

.endloop

00000010

00000000

.word

100*x

.word

100*0

.eval

x+1,x

.eval

0+1,x

00000014

00000064

.word

100*x

.word

100*1

.eval

x+1,x

.eval

1+1,x

00000018

000000C8

.word

100*x

.word

100*2

.eval

x+1,x

.eval

2+1,x

0000001c

0000012C

.word

100*x

.word

100*3

.eval

x+1,x

.eval

3+1,x

Assembler Directives

.asmfunc/.endasmfunc — Mark Function Boundaries

00000020 00000190

.word

100*x

.word

100*4

.eval

x+1,x

.eval

4+1,x

.asmfunc/.endasmfunc Mark Function Boundaries

Syntax

symbol .asmfunc

.endasmfunc

Description

The .asmfunc and .endasmfunc directives mark function boundaries. These directives

are used with the compiler -g option (--symdebug:dwarf) to allow assembly code

sections to be debugged in the same manner as C/C++ functions.

You should not use the same directives generated by the compiler (see Appendix A) to

accomplish assembly debugging; those directives should be used only by the compiler to

generate symbolic debugging information for C/C++ source files.

The .asmfunc and .endasmfunc directives cannot be used when invoking the compiler

with the backwards-compatibility --symdebug:coff option. This option instructs the

compiler to use the obsolete COFF symbolic debugging format, which does not support

these directives.

The symbol is a label that must appear in the label field.

Consecutive ranges of assembly code that are not enclosed within a pair of .asmfunc

and .endasmfunc directives are given a default name in the following format:

$ filename : beginning source line : ending source line $

Example

In this example the assembly source generates debug information for the user_func

section.

00000000

.sect

".text"

.global user_func

.global _printf

user_func: .asmfunc

00000000

00000010!

CALL

.S1

_printf

00000004

01BC94F6

STW

.D2T2

B3,*B15--(16)

00000008

01800E2A'

MVKL

.S2

RL0,B3

0000000c

01800028+

MVKL

.S1

SL1+0,A3

00000010

01800068+

MVKH

.S1

SL1+0,A3

00000014

01BC22F5

STW

.D2T1

A3,*+B15(4)

00000018

0180006A' ||

MVKH

.S2

RL0,B3

0000001c

01BC92E6

RL0:

LDW

.D2T2

*++B15(16),B3

00000020

020008C0

ZERO

.D1

00000024

00004000

NOP

00000028

000C0362

RET

.S2

0000002c

00008000

NOP

.endasmfunc

00000000

.sect

".const"

00000000

00000048

SL1:

.string "Hello World!",10,0

00000001

00000065

00000002

0000006C

00000003

0000006C

00000004

0000006F

00000005

00000020

00000006

00000057

00000007

0000006F

00000008

00000072

00000009

0000006C

0000000a

00000064

0000000b

00000021

0000000c

0000000A

0000000d

00000000

Assembler Directives

.bss — Reserve Space in the .bss Section

.bss

Reserve Space in the .bss Section

Syntax

.bss symbol, size in bytes[, alignment[, bank offset]]

Description

The .bss directive reserves space for variables in the .bss section. This directive is

usually used to allocate space in RAM.

• The symbol is a required parameter. It defines a label that points to the first location

reserved by the directive. The symbol name must correspond to the variable that you

are reserving space for.

• The size in bytes is a required parameter; it must be an absolute expression. The

assembler allocates size bytes in the .bss section. There is no default size.

• The alignment is an optional parameter that ensures that the space allocated to the

symbol occurs on the specified boundary. This boundary indicates the size of the slot

in bytes and must be set to a power of 2. If the SPC is aligned to the specified

boundary, it is not incremented.

• The bank offset is an optional parameter that ensures that the space allocated to the

symbol occurs on a specific memory bank boundary. The bank offset value measures

the number of bytes to offset from the alignment specified before assigning the

symbol to that location.

For more information about sections, see Chapter 2.

Example

In this example, the .bss directive is used to allocate space for a variable, array. The

symbol array points to 100 bytes of uninitialized space (at .bss SPC = 0). Symbols

declared with the .bss directive can be referenced in the same manner as other symbols

and can also be declared global.

*******************************************

** Start assembling into .text section. **

*******************************************

4 00000000

.text

5 00000000 008001A0

A0,A1

*******************************************

** Allocate 100 bytes in .bss.

*******************************************

10 00000000

.bss

array,100

*******************************************

** Still in .text

*******************************************

15 00000004 010401A0

A1,A2

*******************************************

** Declare external .bss symbol

*******************************************

.global array

Assembler Directives

.byte/.char —

Initialize Byte

.byte/.char

Initialize Byte

Syntax

.byte value₁[, ... , value_n]

.char value₁[, ... , value_n]

Description

The .byte and .char directives place one or more values into consecutive bytes of the

current section. A value can be one of the following:

• An expression that the assembler evaluates and treats as an 8-bit signed number

• A character string enclosed in double quotes. Each character in a string represents a

separate value, and values are stored in consecutive bytes. The entire string must be

enclosed in quotes.

The first byte occupies the eight least significant bits of a full 32-bit word. The second

byte occupies bits eight through 15 while the third byte occupies bits 16 through 23. The

assembler truncates values greater than eight bits. You can use up to 100 value

parameters, but the total line length cannot exceed 200 characters.

If you use a label, it points to the location of the first byte that is initialized.

When you use .byte or .char in a .struct/.endstruct sequence, .byte and .char define a

member's size; they do not initialize memory. For more information, see the

.struct/.endstruct/.tag topic .

Example

In this example, 8-bit values (10, -1, abc, and a) are placed into consecutive bytes in

memory with .byte. Also, 8-bit values (8, -3, def, and b) are placed into consecutive

bytes in memory with .char. The label STRX has the value 0h, which is the location of

the first initialized byte. The label STRY has the value 6h, which is the first byte

initialized by the .char directive.

1 00000000 0000000A strx

.byte

10,-1,"abc",'a'

00000001 000000FF

00000002 00000061

00000003 00000062

00000004 00000063

00000005 00000061

2 00000006 00000008

stry

.char

8,-3,"def",'b'

Assembler Directives

.cdecls — Share C Headers Between C and Assembly Code

.cdecls

Share C Headers Between C and Assembly Code

Syntax

Single Line:

.cdecls [options,] "filename"[, "filename2"[,...]]

Syntax

Multiple Lines:

.cdecls [options]

/*---------------------------------------------------------------------------------*/

/* C/C++ code - Typically a list of #includes and a few defines */

/*---------------------------------------------------------------------------------*/

Description

The .cdecls directive allows programmers in mixed assembly and C/C++ environments

to share C headers containing declarations and prototypes between the C and assembly

code. Any legal C/C++ can be used in a .cdecls block and the C/C++ declarations cause

suitable assembly to be generated automatically, allowing you to reference the C/C++

constructs in assembly code; such as calling functions, allocating space, and accessing

structure members; using the equivalent assembly mechanisms. While function and

variable definitions are ignored, most common C/C++ elements are converted to

assembly, for instance: enumerations, (non-function-like) macros, function and variable

prototypes, structures, and unions.

The .cdecls options control whether the code is treated as C or C++ code; and how the

.cdecls block and converted code are presented. Options must be separated by

commas; they can appear in any order:

Treat the code in the .cdecls block as C source code (default).

CPP

Treat the code in the .cdecls block as C++ source code. This is the

opposite of the C option.

NOLIST Do not include the converted assembly code in any listing file generated

for the containing assembly file (default).

LIST

Include the converted assembly code in any listing file generated for the

containing assembly file. This is the opposite of the NOLIST option.

NOWARN Do not emit warnings on STDERR about C/C++ constructs that cannot be

converted while parsing the .cdecls source block (default).

WARN Generate warnings on STDERR about C/C++ constructs that cannot be

converted while parsing the .cdecls source block. This is the opposite of

the NOWARN option.

In the single-line format, the options are followed by one or more filenames to include.

The filenames and options are separated by commas. Each file listed acts as if #include

"filename" was specified in the multiple-line format.

In the multiple-line format, the line following .cdecls must contain the opening .cdecls

block indicator %{. Everything after the %{, up to the closing block indicator %}, is

treated as C/C++ source and processed. Ordinary assembler processing then resumes

on the line following the closing %}.

The text within %{ and %} is passed to the C/C++ compiler to be converted into

assembly language. Much of C language syntax, including function and variable

definitions as well as function-like macros, is not supported and is ignored during the

conversion. However, all of what traditionally appears in C header files is supported,

including function and variable prototypes; structure and union declarations;

non-function-like macros; enumerations; and #define's.

Assembler Directives

.cdecls

—

Headers Between C and Assembly Code

The resulting assembly language is included in the assembly file at the point of the

.cdecls directive. If the LIST option is used, the converted assembly statements are

printed in the listing file.

The assembly resulting from the .cdecls directive is treated similarly to a .include file.

Therefore the .cdecls directive can be nested within a file being copied or included. The

assembler limits nesting to ten levels; the host operating system may set additional

restrictions. The assembler precedes the line numbers of copied files with a letter code

to identify the level of copying. An A indicates the first copied file, B indicates a second

copied file, etc.

The .cdecls directive can appear anywhere in an assembly source file, and can occur

multiple times within a file. However, the C/C++ environment created by one .cdecls is

not inherited by a later .cdecls; the C/C++ environment starts new for each .cdecls.

See Chapter 12 for more information on setting up and using the .cdecls directive with C

header files.

Example

In this example, the .cdecls directive is used call the C header.h file.

C header file:

#define WANT_ID 10

#define NAME "John\n"

extern int a_variable;

extern float cvt_integer(int src);

struct myCstruct { int member_a; float member_b; };

enum status_enum { OK = 1, FAILED = 256, RUNNING =

};

Source file:

.cdecls C,LIST,"myheader.h"

size:

.int $sizeof(myCstruct)

aoffset: .int myCstruct.member_a

boffset: .int myCstruct.member_b

okvalue: .int status_enum.OK

failval: .int status_enum.FAILED

.if $$defined(WANT_ID)

.cstring NAME

.endif

Listing File:

.cdecls C,LIST,"myheader.h"

; ------------------------------------------

; Assembly Generated from C/C++ Source Code

; ------------------------------------------

; =========== MACRO DEFINITIONS ===========

.define "10",WANT_ID

.define """John\n""",NAME

; =========== TYPE DEFINITIONS ===========

status_enum

.enum

00000001 OK

.emember 1

00000100 FAILED

.emember 256

00000000 RUNNING

.emember 0

.endenum

myCstruct

.struct 0,4

; struct size=(8

bytes|64

bits),

alignment=4

00000000 member_a

.field 32

; int member_a - offset 0

bytes, size

(4 bytes|32

bits)

00000004 member_b

.field 32

; float member_b - offset

4 bytes, size

(4 bytes|32

bits)

Assembler Directives

.clink — Conditionally Leave Section Out of Object Module Output

00000008

.endstruct

; final size=(8 bytes|64 bits)

; =========== EXTERNAL FUNCTIONS ===========

.global _cvt_integer

; =========== EXTERNAL VARIABLES ===========

.global _a_variable

2 00000000

00000008 size:

.int $sizeof(myCstruct)

3 00000004

00000000 aoffset: .int myCstruct.member_a

4 00000008

00000004 boffset: .int myCstruct.member_b

5 0000000c

00000001 okvalue: .int status_enum.OK

6 00000010

00000100 failval: .int status_enum.FAILED

.if $defined(WANT_ID)

8 00000014

0000004A id

.cstring NAME

00000015

0000006F

00000016

00000068

00000017

0000006E

00000018

0000000A

00000019

00000000

.endif

.clink

Conditionally Leave Section Out of Object Module Output

Syntax

.clink ["section name"]

Description

The .clink directive enables conditional linking by telling the linker to leave a section out

of the final object module output of the linker if there are no references found to any

symbol in section name. The .clink directive can be applied to initialized or uninitialized

sections.

The section name identifies the section. If .clink is used without a section name, it

applies to the current initialized section. If .clink is applied to an uninitialized section, the

section name is required. The section name is significant to 200 characters and must be

enclosed in double quotes. A section name can contain a subsection name in the form

section name:subsection name.

The .clink directive tells the linker to leave the section out of the final object module

output of the linker if there are no references found in a linked section to any symbol

defined in the specified section. The --absolute_exe linker option produces the final

output in the form of an absolute, executable output module.

A section in which the entry point of a C program is defined cannot be marked as a

conditionally linked section.

Example

In this example, the Vars and Counts sections are set for conditional linking.

1 00000000

.sect "Vars"

.clink

; Vars section is conditionally linked

5 00000000 0000001A X:

.word 01Ah

6 00000004 0000001A Y:

.word 01Ah

7 00000008 0000001A Z:

.word 01Ah

8 00000000

.sect "Counts"

.clink

; Counts section is conditionally linked

12 00000000 0000001A XCount: .word 01Ah

13 00000004 0000001A YCount: .word 01Ah

14 00000008 0000001A ZCount: .word 01Ah

15 00000000

.text

; By default, .text is unconditionally linked

18 00000000 00B802C4

LDH

*B14,A1

19 00000004 00000028+

MVKL

X,A0

20 00000008 00000068+

MVKH

X,A0

; These references to symbol X cause the Vars

; section to be linked into the COFF output

23 0000000c 00040AF8

CMPLT A0,A1,A0

Assembler Directives

.copy/.include —

Copy Source File

.copy/.include

Copy Source File

Syntax

.copy ["]filename["]

.include ["]filename["]

Description

The .copy and .include directives tell the assembler to read source statements from a

different file. The statements that are assembled from a copy file are printed in the

assembly listing. The statements that are assembled from an included file are not printed

in the assembly listing, regardless of the number of .list/.nolist directives assembled.

When a .copy or .include directive is assembled, the assembler:

1. Stops assembling statements in the current source file

2. Assembles the statements in the copied/included file

3. Resumes assembling statements in the main source file, starting with the statement

that follows the .copy or .include directive

The filename is a required parameter that names a source file. It can be enclosed in

double quotes and must follow operating system conventions. If filename starts with a

number the double quotes are required.

You can specify a full pathname (for example, /320tools/file1.asm). If you do not specify

a full pathname, the assembler searches for the file in:

1. The directory that contains the current source file

2. Any directories named with the --include_path assembler option

3. Any directories specified by the C6X_A_DIR environment variable

4. Any directories specified by the C6X_C_DIR environment variable

For more information about the --include_path option and C6X_A_DIR, see Section 3.4.

For more information about C6X_C_DIR, see the TMS320C6000 Optimizing Compiler

User's Guide.

The .copy and .include directives can be nested within a file being copied or included.

The assembler limits nesting to 32 levels; the host operating system may set additional

restrictions. The assembler precedes the line numbers of copied files with a letter code

to identify the level of copying. A indicates the first copied file, B indicates a second

copied file, etc.

Example

In this example, the .copy directive is used to read and assemble source statements

from other files; then, the assembler resumes assembling into the current file.

The original file, copy.asm, contains a .copy statement copying the file byte.asm. When

copy.asm assembles, the assembler copies byte.asm into its place in the listing (note

listing below). The copy file byte.asm contains a .copy statement for a second file,

word.asm.

When it encounters the .copy statement for word.asm, the assembler switches to

word.asm to continue copying and assembling. Then the assembler returns to its place

in byte.asm to continue copying and assembling. After completing assembly of byte.asm,

the assembler returns to copy.asm to assemble its remaining statement.

copy.asm

byte.asm

word.asm

(source file)

(first copy file)

(second copy file)

.space

** In byte.asm

** In word.asm

.copy "byte.asm"

.byte

32,1+ 'A'

.word

0ABCDh,

56q

** Back in original file

.copy "word.asm"

.string "done"

** Back in byte.asm

.byte

67h

Assembler Directives

.copy/.include — Copy Source File

Listing file:

1 00000000

.space 29

.copy "byte.asm"

** In byte.asm

2 0000001d 00000020

.byte 32,1+ 'A'

0000001e 00000042

.copy "word.asm"

** In word.asm

2 00000020 0000ABCD

.word 0ABCDh, 56q

00000024 0000002E

** Back in byte.asm

5 00000028 0000006A

.byte 67h + 3q

** Back in original file

5 00000029 00000064

.string "done"

0000002a 0000006F

0000002b 0000006E

0000002c 00000065

Example

In this example, the .include directive is used to read and assemble source statements

from other files; then, the assembler resumes assembling into the current file. The

mechanism is similar to the .copy directive, except that statements are not printed in the

listing file.

include.asm

byte2.asm

word2.asm

(source file)

(first copy file)

(second copy file)

.space

** In byte2.asm

** In word2.asm

.include "byte2.asm"

.byte

32,1+ 'A'

.word

0ABCDh,

56q

** Back in original file

.include "word2.asm"

.string "done"

** Back in byte2.asm

.byte

67h

Listing file:

1 00000000

.space 29

.include "byte2.asm"

** Back in original file

5 00000029 00000064

.string "done"

0000002a 0000006F

0000002b 0000006E

0000002c 00000065

Assembler Directives

.cstruct/.cunion/.endstruct/.endunion/.tag

— Declare C Structure Type

.cstruct/.cunion/.endstruct/.endunion/.tag Declare C Structure Type

Syntax

[stag]

.cstruct|.cunion

[expr]

[mem₀] element

[expr₀]

[mem₁] element

[expr₁]

[mem_n]

.tag stag

[expr_n]

[mem_N] element

[expr_N]

[size]

.endstruct|.endunion

label

.tag

stag

Description

The .cstruct and .cunion directives have been added to support ease of sharing of

common data structures between assembly and C code. The .cstruct and .cunion

directives can be used exactly like the existing .struct and .union directives except that

they are guaranteed to perform data layout matching the layout used by the C compiler

for C struct and union data types.

In particular, the .cstruct and .cunion directives force the same alignment and padding as

used by the C compiler when such types are nested within compound data structures.

The .endstruct directive terminates the structure definition. The .endunion directive

terminates the union definition.

The .tag directive gives structure characteristics to a label, simplifying the symbolic

representation and providing the ability to define structures that contain other structures.

The .tag directive does not allocate memory. The structure tag (stag) of a .tag directive

must have been previously defined.

Following are descriptions of the parameters used with the .struct, .endstruct, and .tag

directives:

• The stag is the structure's tag. Its value is associated with the beginning of the

structure. If no stag is present, the assembler puts the structure members in the

global symbol table with the value of their absolute offset from the top of the

structure. A .stag is optional for .struct, but is required for .tag.

• The element is one of the following descriptors: .byte, .char, .int, .long, .word,

.double, .half, .short, .string, .float, and .field. All of these except .tag are typical

directives that initialize memory. Following a .struct directive, these directives

describe the structure element's size. They do not allocate memory. A .tag directive

is a special case because stag must be used (as in the definition of stag).

• The expr is an optional expression indicating the beginning offset of the structure.

The default starting point for a structure is 0.

• The expr_n/N is an optional expression for the number of elements described. This

value defaults to 1. A .string element is considered to be one byte in size, and a .field

element is one bit.

• The mem_n/N is an optional label for a member of the structure. This label is absolute

and equates to the present offset from the beginning of the structure. A label for a

structure member cannot be declared global.

• The size is an optional label for the total size of the structure.

Example

This example illustrates a structure in C that will be accessed in assembly code.

; typedef struct STRUCT1

; {

int i0;

/* offset 0 */

;

short s0;

/* offset 4 */

; } struct1;

/* size 8, alignment 4 */

;

Assembler Directives

.cstruct/.cunion/.endstruct/.endunion/.tag — Declare C Structure Type

; typedef struct STRUCT2

; {

struct1 st1; /* offset 0 */

;

short s1;

/* offset 8 */

; } struct2;

/* size 12, alignment 4 */

;

; The structure will get the following offsets once

; the C compiler lays out the structure elements according

; to the C standard rules:

;

; offsetof(struct1, i0) = 0

; offsetof(struct1, s0) = 4

; sizeof(struct1)

= 8

;

; offsetof(struct2, s1) = 0

; offsetof(struct2, i1) = 8

; sizeof(struct2)

= 12

;

; Attempts to replicate this structure in assembly using the

; .struct/.union directive will not create the correct offsets

; because the assembler tries to use the most compact arrangement:

struct1

.struct

.int

; bytes 0-3

.short

; bytes 4-5

struct1len

.endstruct

; size 6, alignment 4

struct2

.struct

st1

.tag struct1

; bytes 0-5

.short

; bytes 6-7

endstruct2

.endstruct

; size 8, alignment 4

.sect "data1"

.word struct1.i0

; 0

.word struct1.s0

; 4

.word struct1len

; 6

.sect "data2"

.word struct2.st1

; 0

.word struct2.s1

; 6

.word endstruct2

; 8

;

; The .cstruct/.cunion directives will calculate

; the offsets in the same manner as the C compiler. The

; resulting assembly structure can be used to access the

; elements of the C structure. Notice the different in

; the offsets from those structures defined via .struct

; above, and compare them to the offsets for the C code.

cstruct1

.cstruct

.int

; bytes 0-3

.short

; bytes 4-5

cstruct1len .endstruct

; size 8, alignment 4

cstruct2

.cstruct

st1

.tag cstruct1

; bytes 0-7

.short

; bytes 8-9

cendstruct2 .endstruct

; size 12, alignment 4

.sect "data3"

.word cstruct1.i0, struct1.i0

; 0

.word cstruct1.s0, struct1.s0

; 4

.word cstruct1len, struct1len

; 8

.sect "data4"

.word cstruct2.st1, struct2.st1 ; 0

.word cstruct2.s1, struct2.s1

; 8

.word cendstruct2, endstruct2

; 12

Assembler Directives

.data — Assemble Into the .data Section

.data

Assemble Into the .data Section

Syntax

.data

Description

The .data directive tells the assembler to begin assembling source code into the .data

section; .data becomes the current section. The .data section is normally used to contain

tables of data or preinitialized variables.

For more information about sections, see Chapter 2.

Example

In this example, code is assembled into the .data and .text sections.

***********************************************

Reserve space in .data

***********************************************

4 00000000

.data

5 00000000

.space

0CCh

***********************************************

Assemble into .text

***********************************************

10 00000000

.text

11 00000000 00800358

ABS

A0,A1

***********************************************

Assemble into .data

***********************************************

16 000000cc

table:

.data

17 000000cc FFFFFFFF

.word

-1

18 000000d0 000000FF

.byte

0FFh

***********************************************

Assemble into .text

***********************************************

23 00000004

.text

24 00000004 008001A0

A0,A1

***********************************************

** Resume assembling into the .data section **

***********************************************

29 000000d1

.data

30 000000d4 00000000

coeff

.word

00h,0ah,0bh

000000d8 0000000A

000000dc 0000000B

Assembler Directives

TMS320C6000 Assembly Language Tools v 6.1. User's Guide - page 2
