08 Car care

Washing and cleaning the car

08

200

Washing the car

The following points should be kept in mind
when washing and cleaning the car:

The car should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause dam-
age. To help prevent corrosion, it is partic-
ularly important to wash the car frequently
in the wintertime when salt has been used
on the roads.

Avoid washing your car in direct sunlight.
Doing so may cause detergents and wax
to dry out and become abrasive. To avoid
scratching, use lukewarm water to soften
the dirt before you wash with a soft
sponge, and plenty of sudsy water.

Bird droppings: Remove from paintwork
as soon as possible. Otherwise the finish
may be permanently damaged.

A detergent can be used to facilitate the
softening of dirt and oil.

Dry the car with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.

Tar spots can be removed with tar remover
after the car has been washed.

A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper
blades. Frequent cleaning of the wind-
shield and wiper blades improves visibility

considerably and also helps prolong the
service life of the wiper blades.

Wash off the dirt from the underside (wheel
housings, fenders, etc).

In areas of high industrial fallout, more fre-
quent washing is recommended.

NOTE

When washing the car, remember to remove
dirt from the drain holes in the doors and
sills.

Exterior components

Volvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the
exterior of your vehicle. The instructions for
using these products should be followed care-
fully. Solvents or stain removers should not be
used.

CAUTION

Avoid waxing or polishing plastic or rub-
ber components

Polishing chromed strips can wear
away or damage the surface

Polishes containing abrasive sub-
stances should not be used

CAUTION

During high pressure washing, the
spray mouthpiece must never be closer
to the vehicle than 13" (30 cm). Do not
spray into the locks.

Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for
example when refueling.

Automatic washing – simple and quick

We do NOT recommend washing your car in an
automatic wash during the first six months
(because the paint will not have hardened suf-
ficiently).

An automatic wash is a simple and quick way
to clean your car, but it is worth remembering
that it may not be as thorough as when you
yourself go over the car with sponge and water.

08 Car care

 Washing and cleaning the car

08

``

201

Keeping the underbody clean is most impor-
tant, especially in the winter. Some automatic
washers do not have facilities for washing the
underbody.

CAUTION

Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.

Make sure that side view mirrors, auxil-
iary lamps, etc, are secure, and that any
antenna(s) are retracted or removed.
Otherwise there is risk of the machine
dislodging them

Chromed wheels: Clean chrome-
plated wheels using the same deter-
gents used for the body of the vehicle.
Aggressive wheel-cleaning agents can
permanently stain chrome-plated
wheels.

WARNING

When the car is driven immediately after
being washed, apply the brakes several
times in order to remove any moisture
from the brake linings.

Engine cleaning agents should not be
used when the engine is warm. This
constitutes a fire risk.

Exterior lighting

Condensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights, fog lights, or taillights. This is nor-
mal and the lights are designed to withstand
moisture. Normally, condensation will dissi-
pate after the lights have been on for a short
time.

Polishing and Waxing

Normally, polishing is not required during
the first year after delivery, however, wax-
ing may be beneficial.

Before applying polish or wax the vehicle
must be washed and dried. Tar spots can
be removed with kerosene or tar remover.
Difficult spots may require a fine rubbing
compound.

After polishing use liquid or paste wax.

Several commercially available products
contain both polish and wax.

Waxing alone does not substitute for pol-
ishing a dull surface.

A wide range of polymer-based waxes can
be purchased today. These waxes are easy
to use and produce a long-lasting, high-
gloss finish that protects the bodywork
against oxidation, road dirt and fading.

Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).

CAUTION

Volvo does not recommend the use of long-
life or durable paint protection coatings,
some of which may claim to prevent pitting,
fading, oxidation, etc. These coatings have
not been tested by Volvo for compatibility
with your vehicle's clear coat. Some of them
may cause the clear coat to soften, crack,
or cloud. Damage caused by application of
paint protection coatings may not be cov-
ered under your vehicle's paint warranty.

Upholstery care

Fabric

Clean with soapy water or a detergent. For
more difficult spots caused by oil, ice cream,
shoe polish, grease, etc., use a clothing/fabric
stain remover. Consult your Volvo retailer.

Interior plastic components

Cleaning interior plastic components should
be done with a cleaning agent specially
designed for this purpose. Consult your Volvo
retailer.

Alcantera™ suede-like material

Suede-like upholstery can be cleaned with a
soft cloth and mild soap solution.

08 Car care

Washing and cleaning the car

08

202

Leather care

Volvo's leather upholstery is manufactured
with a protectant to repel soiling. Over time,
sunlight, grease and dirt can break down the
protection. Staining, cracking, scuffing, and
fading can result.

Volvo offers an easy-to-use, non-greasy
leather care kit formulated to clean and beau-
tify your vehicle's leather, and to renew the
protective qualities of its finish. The cleaner
removes dirt and oil buildup. The light cream
protectant restores a barrier against soil and
sunlight.

Volvo also offers a special leather softener that
should be applied after the cleaner and pro-
tectant. It leaves leather soft and smooth, and
reduces friction between leather and other fin-
ishes in the vehicle.

Volvo recommends cleaning, protecting and
conditioning your vehicle's leather two to four
times a year. Ask your Volvo retailer about
Leather Care Kit 951 0251 and Leather Soft-
ener 943 7429.

Cleaning leather upholstery

1.

Pour leather cleaner on a damp sponge
and squeeze it until the cleaner foams.

2.

Apply the foam to the stain by moving the
sponge with circular movements.

3.

Dampen the stain thoroughly with the
sponge. Let the sponge absorb the stain,
do not rub.

4.

Dry the stain with soft paper towels or a
towel, and allow the leather to dry com-
pletely.

Protecting leather upholstery

1.

Put a small amount of protectant cream on
a cloth and apply a thin coating of cream
to the upholstery with light circular move-
ments.

2.

Allow the leather to dry for 20 minutes.

This will help the leather resist staining and
protect against sunlight's harmful UV rays.

CAUTION

Under no circumstances should gaso-
line, naphtha or similar cleaning agents
be used on the plastic or the leather
since these can cause damage.

Take extra care when removing stains
such as ink or lipstick since the coloring
can spread.

Use solvents sparingly. Too much sol-
vent can damage the seat padding.

Start from the outside of the stain and
work toward the center.

Sharp objects (e.g. pencils or pens in a
pocket) or Velcro fasteners on clothing
may damage the textile upholstery.

Clothing that is not colorfast, such as
new jeans or suede garments, may stain
the upholstery.

Cleaning the seat belts

Clean only with lukewarm water and a mild
soap solution.

08 Car care

 Washing and cleaning the car

08

203

Cleaning floor mats

The floor mats should be vacuumed or brushed
clean regularly, especially during winter when
they should be taken out for drying. Spots on
textile mats can be removed with a mild deter-
gent. For best protection in winter, Volvo rec-
ommends the use of Volvo rubber floor mats.
Consult your Volvo retailer.

08 Car care

Paint touch up

08

204

Touching up minor paint damage

Paint damage requires immediate attention to
avoid rusting. Make it a habit to check the finish
regularly - when washing the vehicle for
instance. Touch-up if necessary.

Paint repairs require special equipment and
skill. Contact a trained and authorized Volvo
service technician for any extensive damage.
Minor scratches can be repaired by using
Volvo touch-up paint.

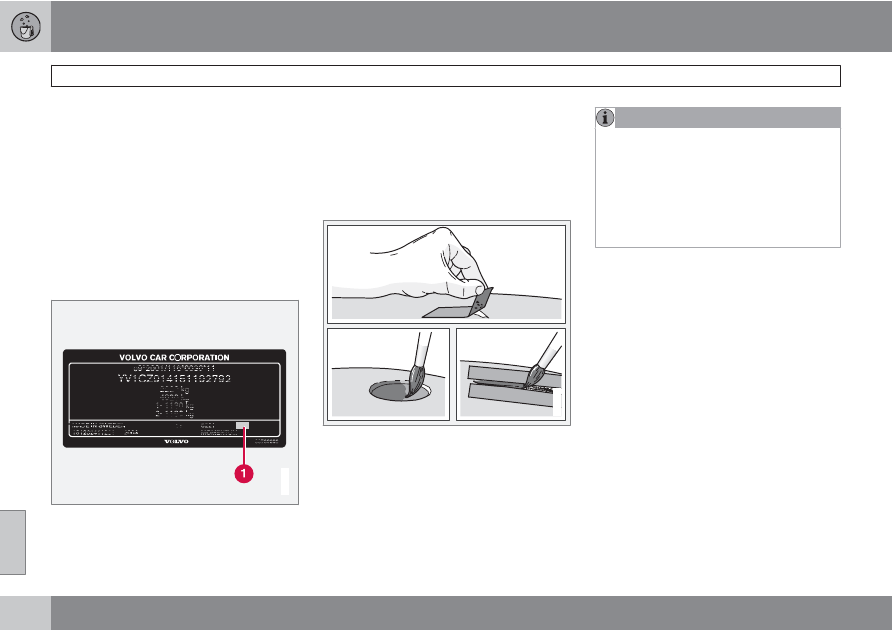

Color code

G031024

When ordering touch-up paint from your Volvo
retailer, make sure you have the right color.
Use the paint code indicated on the model
plate (1 in the illustration).

Minor stone chips and scratches

Material:

Primer – can

Paint – touch-up pen

Brush

Masking tape

G020345

NOTE

When touching up the vehicle, it should be
clean and dry. The surface temperature
should be above 60° F (15° C).

If the stone chip has not penetrated down
to the metal and an undamaged layer of
paint remains, the touch-up paint can be
applied as soon as the spot has been
cleaned.

Deep scratches

1.

Place a strip of masking tape over the dam-
aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.

2.

Thoroughly mix the primer and apply it with
a small brush. When the primer surface is
dry, the paint can be applied using a brush.
Mix the paint thoroughly; apply several thin
paint coats and let dry after each applica-
tion.

3.

If there is a longer scratch, you may want
to protect surrounding paint by masking it
off.

09 Maintenance and servicing

Volvo maintenance

09

208

General

Volvo advises you to follow the maintenance
program outlined in the Warranty and Service
Records Information booklet. This mainte-
nance program contains inspections and serv-
ices necessary for the proper function of your
vehicle. The maintenance services contain
several checks that require special tools and
training, and therefore must be performed by a
qualified technician. To keep your Volvo in top
condition, specify time-tested and proven
Genuine Volvo Parts and Accessories.

The Federal Clean Air Act – U.S

The Federal Clean Air Act requires vehicle
manufacturers to furnish written instructions to
the ultimate purchaser to assure the proper
servicing and function of the components that
control emissions. These services, which are
listed in the "Warranty and Service Records
Information" booklet, are not covered by the
warranty. You will be required to pay for labor
and material used.

Maintenance

Your Volvo passed several major inspections
before it was delivered to you, in accordance
with Volvo specifications. The maintenance
procedures outlined in the Warranty and Serv-
ice Records Information booklet, many of
which will positively affect your vehicle's emis-
sions, should be performed as indicated. It is
recommended that receipts for vehicle emis-
sion maintenance be retained in case ques-
tions arise concerning maintenance. Inspec-
tion and maintenance should also be per-
formed anytime a malfunction is observed or
suspected.

Applicable warranties – U.S/Canada

In accordance with applicable U.S. and Cana-
dian regulations, the following list of warranties
is provided.

New Vehicle Limited Warranty

Parts and Accessories Limited Warranty

Corrosion Protection Limited Warranty

Seat Belt and Supplemental Restraint Sys-
tems Limited Warranty

Emission Design and Defect Warranty

Emission Performance Warranty

These are the federal warranties; other warran-
ties are provided as required by state/provin-
cial law. Refer to your separate Warranty and

Service Records Information booklet for
detailed information concerning each of the
warranties.

Periodic maintenance helps minimize
emissions

Periodic maintenance will help keep your vehi-
cle running well. Your Warranty and Service
Records Information booklet provides a com-
prehensive periodic maintenance schedule up
to 150,000 miles (240,000 km) of vehicle main-
tenance. The schedule includes components
that affect vehicle emissions. This page
describes some of the emission-related com-
ponents.

Vehicle Event Data (Black Box)

Your vehicle's driving and safety systems
employ computers that monitor, and share
with each other, information about your vehi-
cle's operation. One or more of these comput-
ers may store what they monitor, either during
normal vehicle operation or in a crash or near-
crash event. Stored information may be read
and used by:

Volvo Car Corporation

service and repair facilities

09 Maintenance and servicing

 Volvo maintenance

09

209

law enforcement or government agencies

others who may assert a legal right to
know, or who obtain your consent to know
such information.

09 Maintenance and servicing

Maintaining your car

09

210

Owner maintenance

Periodic maintenance requirements and inter-
vals are described in your vehicle's Warranty
and Service Records Information booklet.

The following points can be carried out
between the normally scheduled maintenance
services.

Each time the car is refueled:

Check the engine oil level.

Clean the windshield, windshield wipers,
headlights, and taillights.

Monthly:

Check cold tire pressure in all tires. Inspect
the tires for wear.

Check that engine coolant and other fluid
levels are between the indicated "min" and
"max" markings.

Clean interior glass surfaces with a glass
cleaner and soft paper towels.

Wipe driver information displays with a soft
cloth.

Visually inspect battery terminals for cor-
rosion. Corrosion may indicate a loose ter-
minal connector, or a battery near the end
of its useful service life. Consult a trained
and qualified Volvo service technician for
additional information.

As needed:

Wash the car, including the undercarriage,
to reduce wear that can be caused by a
buildup of dirt, and corrosion that can be
caused by salt residues.

Clean leaves and twigs from air intake
vents at the base of the windshield, and
from other places where they may collect.

NOTE

Complete service information for qualified
technicians is available online for purchase
or subscription at www.volvotechinfo.com.

Hoisting the vehicle

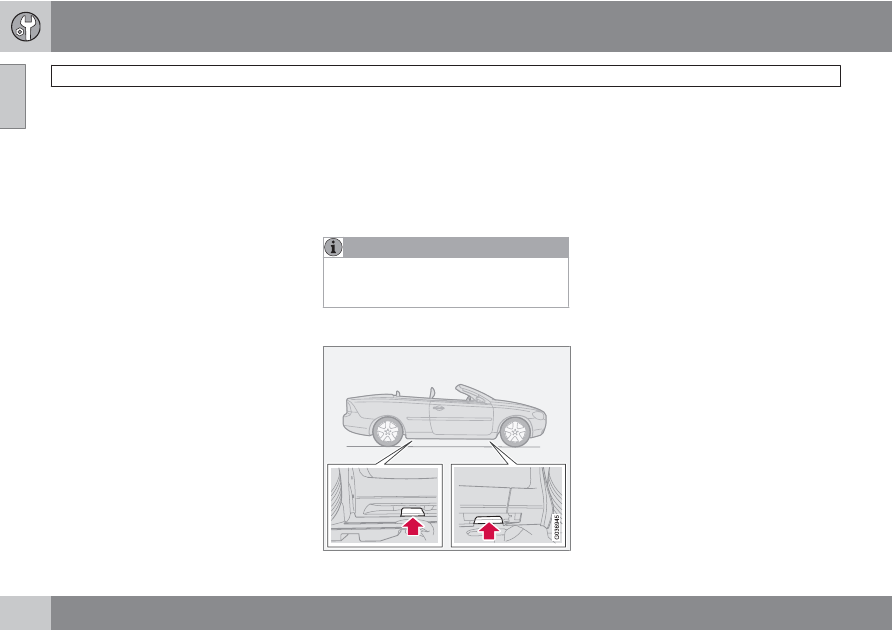

If a garage jack is used to lift the vehicle, the
two jack attachments points should be used.
They are specially reinforced to bear the weight
of the vehicle. A garage jack can also be placed
under the front of the engine support frame.
Take care not to damage the splash guard
under the engine. Ensure that the jack is posi-
tioned so that the vehicle cannot slide off it.
Always use axle stands or similar structures.

If a two-post hoist is used to lift the vehicle, the
front and rear lift arm pads should be centered
under the reinforced lift plates on the inboard
edge of the sill rail (see illustration).

Emission inspection readiness

What is an Onboard Diagnostic System
(OBD II)?

OBD II is part of your vehicle's computerized
engine management system. It stores diagnos-
tic information about your vehicle's emission
controls. It can light the Check Engine light
(MIL) if it detects an emission control "fault." A
"fault" is a component or system that is not
performing within an expected range. A fault
may be permanent or temporary. OBD II will
store a message about any fault.

09 Maintenance and servicing

 Maintaining your car

09

211

How Do States Use OBD II for Emission
Inspections?

Many states connect a computer directly to a
vehicle's OBD II system. The inspector can
then read "faults." In some states, this type of
inspection has replaced the tailpipe emission
test.

How Can My Vehicle Fail OBD II Emission
Inspection?

Your vehicle can fail OBD II emission inspec-
tion for any of the following reasons.

If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.

If your vehicle's Check Engine light was lit,
but went out without any action on your
part, OBD II will still have a recorded fault.
Your vehicle may pass or fail, depending
on the inspection practices in your area.

If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.

How Can I Prepare for My Next OBD II
Emission Inspection?

If your Check Engine (MIL) light is lit – or
was lit but went out without service, have

your vehicle diagnosed and, if necessary,
serviced by a qualified Volvo technician.

If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a
period of driving is necessary to bring the
OBD II system to "ready" for inspection. A
half-hour trip of mixed stop-and-go/high-
way driving is typically needed to allow
OBD II to reach readiness. Your Volvo
retailer can provide you with more infor-
mation on planning a trip.

Maintain your vehicle in accordance with
your vehicle's maintenance schedule.

09 Maintenance and servicing

Hood

09

212

Opening the hood

G031032

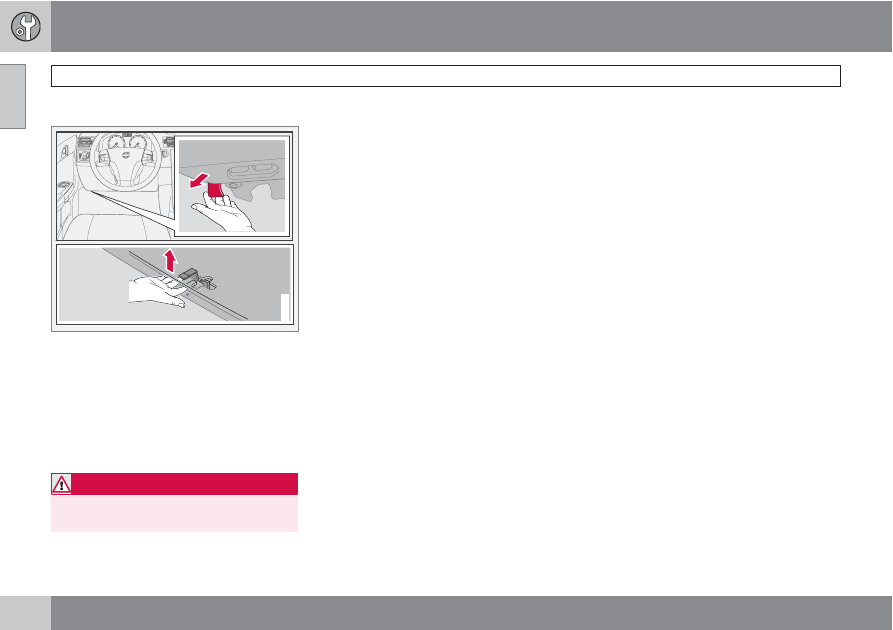

To open the hood:

1.

Pull the lever located under the left side of
the dash to release the hood lock.

2.

Lift the hood slightly.

3.

Press up the release control located under
the front edge of the hood (at the center)
up to the right, and lift the hood.

WARNING

Check that the hood locks engage properly
when closed.

09 Maintenance and servicing

 Engine compartment

09

213

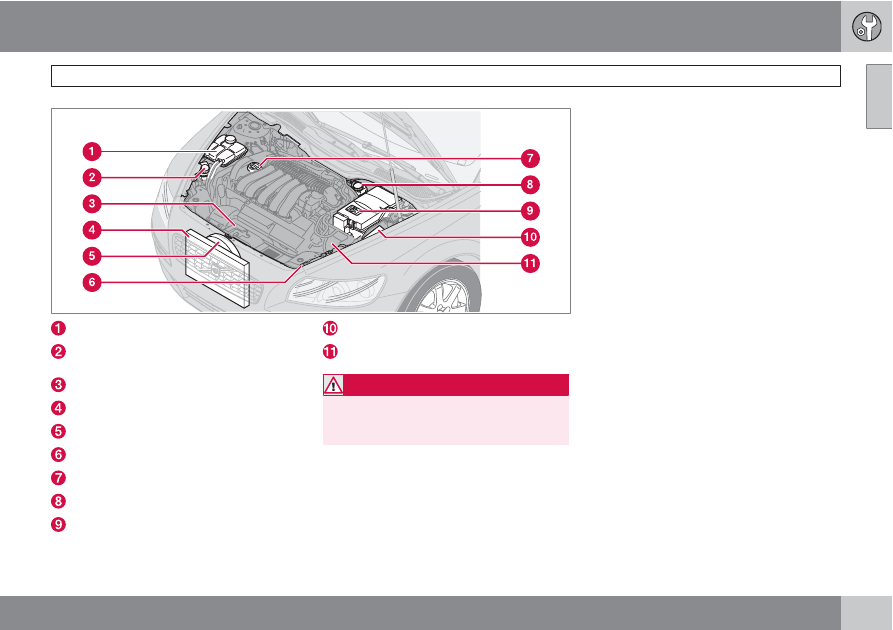

G026456

Cooling system expansion tank

Power steering fluid reservoir (concealed
behind the headlight)

Dipstick – engine oil

Radiator

Cooling fan

Washer fluid reservoir

Engine oil filler cap

Brake/clutch fluid reservoir

Battery

Relay/fuse box

Air cleaner

WARNING

The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.

09 Maintenance and servicing

Engine oil

09

214

Changing engine oil and oil filter

See page 271 for oil specifications. Refer to
the Warranty and Service Records Information
booklet for information on the oil change inter-
vals.

Volvo recommends Castrol.

NOTE

Volvo does not recommend the use of
oil additives.

Synthetic oil is not used when the oil is
changed at the normal maintenance
intervals except at owner request and at
additional charge. Please consult a
trained and qualified Volvo service tech-
nician.

Checking and adding oil

The oil level should be checked every time the
vehicle is refueled. This is especially important
during the period up to the first scheduled
maintenance service

The car should be parked on a level surface
when the oil is checked.

If the engine is warm, wait for at least
10–15 minutes after the engine has been
switched off before checking the oil.

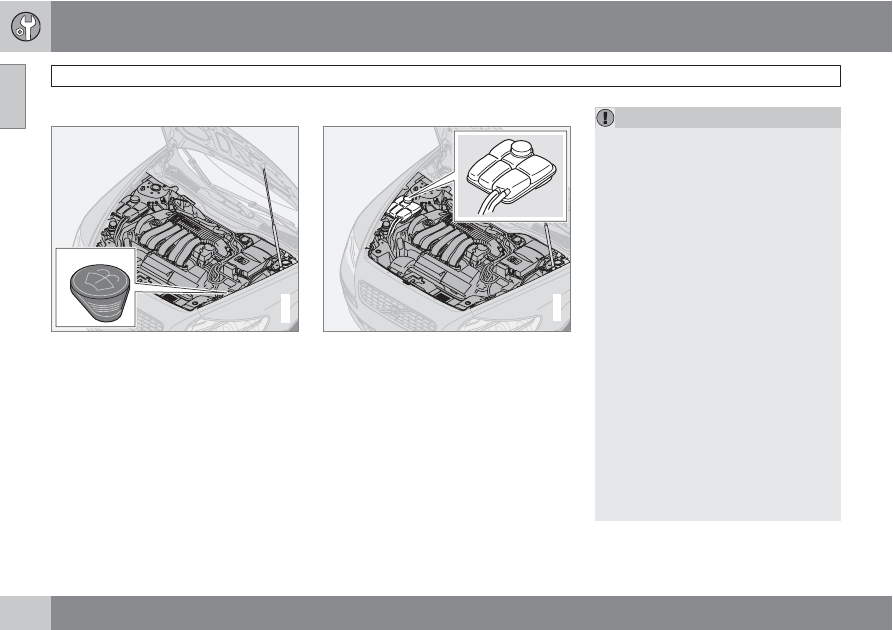

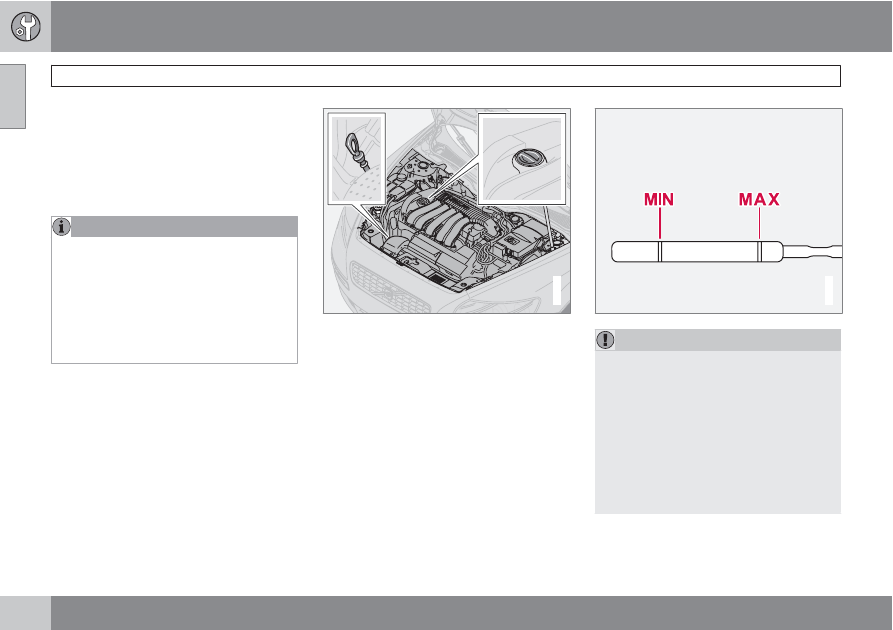

G020338

Location of dipstick and oil filler cap

Checking the oil

1.

Pull out the dipstick and wipe it with a lint-
free rag.

2.

Reinsert the dipstick, pull it out, and check
the oil level.

3.

Add oil if necessary. If the level is close to
the MIN mark, add approximately
1 US quart (1 liter) of oil.

4.

Run the engine until it reaches normal
operating temperature.

5.

Switch off the engine and wait for at least
10–15 minutes and recheck the oil level. If
necessary, add oil until the level is near the
MAX mark.

G020336

CAUTION

Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.

Oil that is lower than the specified qual-
ity can damage the engine.

Always add oil of the same type and
viscosity as already used.

Never fill oil above the MAX mark. This
could cause an increase in oil consump-
tion.

09 Maintenance and servicing

Fluids

09

216

Washer fluid

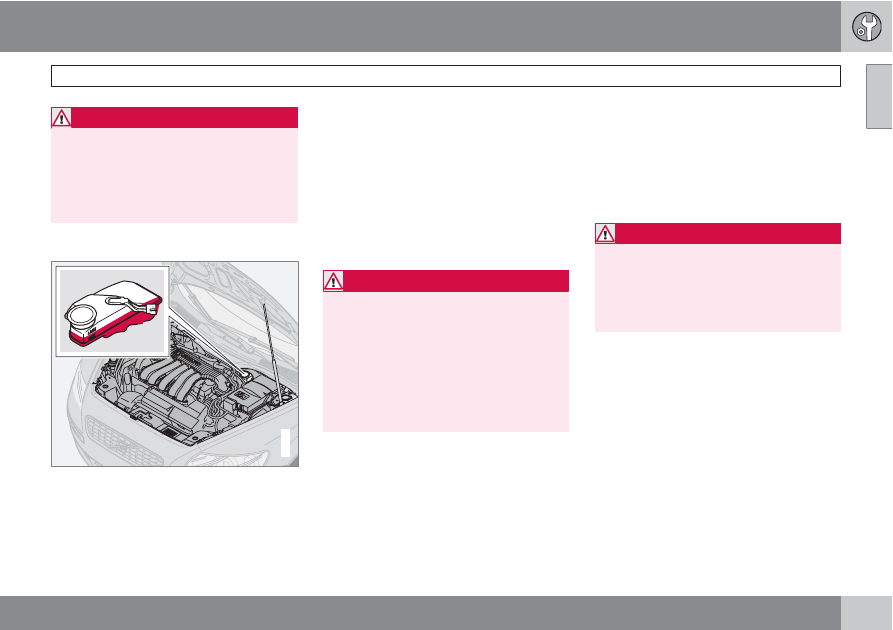

G026425

Washer fluid reservoir

The washer fluid reservoir is located in the
engine compartment and holds approximately
6.8 US qts (6.5 liters). During cold weather, the
reservoir should be filled with windshield
washer solvent containing antifreeze.

Coolant

G020334

Coolant reservoir

Normally, the coolant does not need to be
changed. If the system must be drained, con-
sult a trained and qualified Volvo service tech-
nician.

CAUTION

If necessary, top up the cooling system
with Volvo Genuine Coolant/Antifreeze
only (a 50/50 mix of water and anti-
freeze).

Different types of antifreeze/coolant
may not be mixed.

If the cooling system is drained, it
should be flushed with clean water or
premixed anti-freeze before it is refilled
with the correct mixture of water/anti-
freeze.

The cooling system must always be
kept filled to the correct level, and the
level must be between the MIN and
MAX marks. If it is not kept filled, there
can be high local temperatures in the
engine which could result in damage.
Check coolant regularly!

Do not top up with water only. This
reduces the rust-protective and anti-
freeze qualities of the coolant and has a
lower boiling point. It can also cause
damage to the cooling system if it
should freeze.

Do not use chlorinated tap water in the
vehicles cooling system.

09 Maintenance and servicing

 Fluids

09

217

WARNING

Never remove the radiator cap while the
engine is warm. Wait until the vehicle cools.

If it is necessary to top off the coolant when
the engine is warm, unscrew the expansion
tank cap slowly so that the overpressure
dissipates.

Brake fluid

G020333

Brake fluid reservoir

The brake fluid should always be between the
MIN and MAX marks on the side of the reser-
voir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.

Fluid type: DOT 4+ boiling point >536 °F

(280 °C), P/N 9437433

Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult your
Volvo retailer. Always entrust brake fluid
changing to a trained and qualified Volvo serv-
ice technician.

WARNING

If the fluid level is below the MIN mark
in the reservoir or if a brake-related
message is shown in the information
display: DO NOT DRIVE. Have the car
towed to a trained and qualified Volvo
service technician and have the brake
system inspected.

Dot 4+ should never be mixed with any
other type of brake fluid.

Power steering fluid

The fluid level is checked at each service inter-
val.

Fluid type: Volvo power steering fluid or equiv-
alent.

Replace: No fluid change required.

WARNING

If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.

09 Maintenance and servicing

Wiper blades

09

218

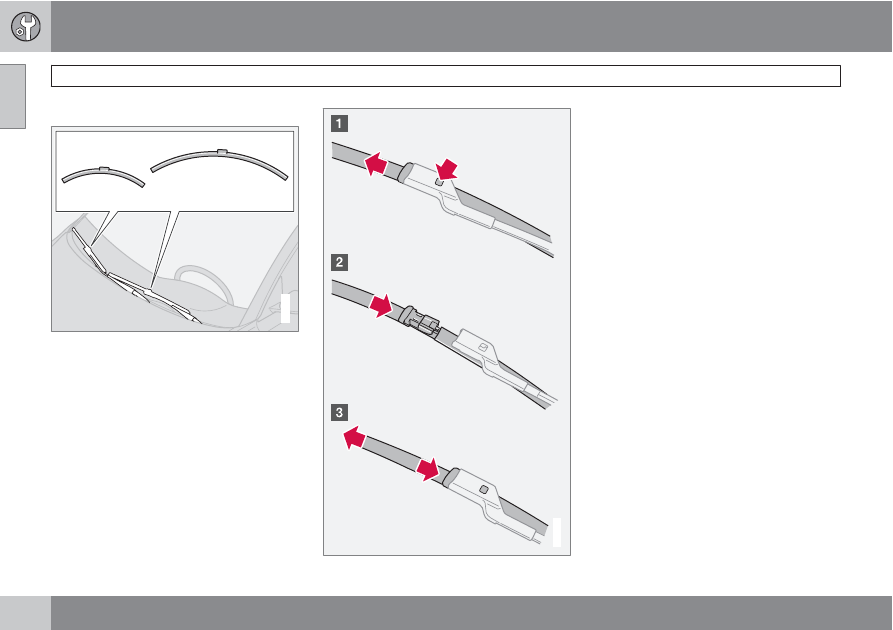

Replacing windshield wiper blades

G020330

1.

Fold out the wiper arm.

2.

Press the button on the wiper blade attach-
ment and pull straight out (1), parallel with
the wiper arm.

3.

Press a new wiper blade (2) until it clicks
into place.

4.

Ensure the blade is securely attached (3).

5.

Fold in the wiper arm.

The wiper blades are different lengths. The
blade on the driver's side is longer than the one
on the passenger's side.

G020329

Keeping the windshield wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. See page 200 for
washing instructions.

09 Maintenance and servicing

 Battery

09

``

219

Battery maintenance

Driving habits and conditions, climate, the
number of starts, etc., all affect the service life
and function of the battery. In order for your
battery to perform satisfactorily, keep the fol-
lowing in mind:

Check the fluid level in each cell in the battery
every 24 months or every 15,000

1

 miles

(24,000 km), whichever is sooner.

Use a screw driver to open the caps or
cover and a flashlight to inspect the level.

If necessary, add distilled water. The level
should never be above the indicator.

The fluid level should be checked if the
battery has been recharged.

After inspection, be sure the cap over each
battery cell or the cover is securely in
place.

Check that the battery cables are correctly
connected and properly tightened.

Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.

The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.

To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.

If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.

The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.

Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.

WARNING

PROPOSITION 65 WARNING!

Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.

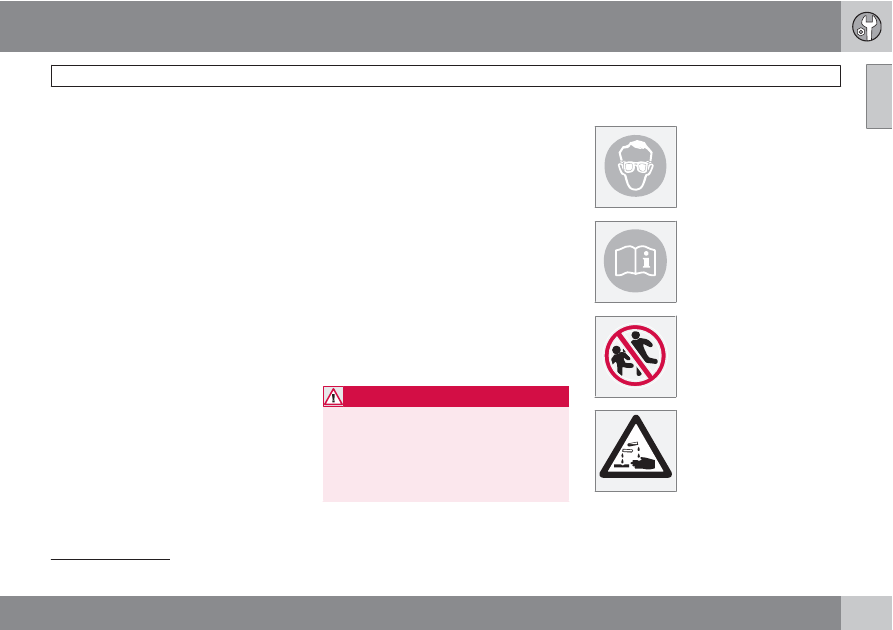

Battery symbols

Wear protection goggles

See owner's manual for
details

Keep away from children

Corrosive

1

More frequently in warm climates.















Content   ..  10  11  12  13   ..
