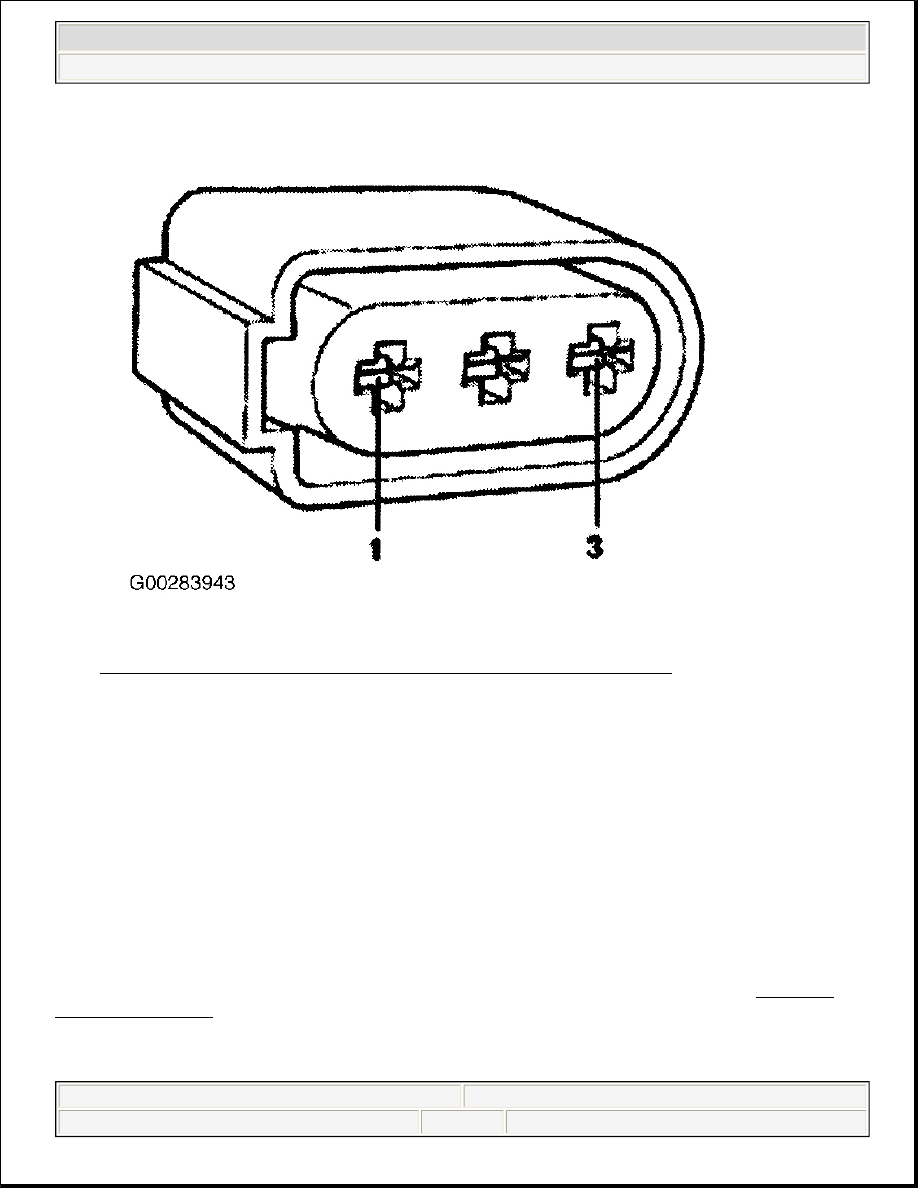

Fig. 9: Identifying Coolant Fan Control Thermo Switch Contacts (Type C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Bridge contact 2 and contact 3 of connector with jumper wire. Turn ignition on, with engine off. Fan

should run at high speed.

5. If fan(s) do not run, check for open circuit between connector and fans. Also check for faulty fan ground

circuit. Repair as necessary. If wiring is OK, replace fan.

REMOVAL & INSTALLATION

A/C HIGH PRESSURE SENSOR OR SWITCH

When replacing switch or sensor (B), always use new "O" ring (A). Tighten to specification. See TORQUE
SPECIFICATIONS .

TORQUE SPECIFICATIONS

NOTE:

A/C high pressure sensor or switch can be removed without discharging
refrigerant system.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:32 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

TORQUE SPECIFICATIONS

WIRING DIAGRAMS

1999

See COOLING FAN in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

2000

See COOLING FAN in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

2001

See COOLING FAN in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

2002

See COOLING FAN in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

2003

See COOLING FAN in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

2004

See appropriate COOLING FAN wiring diagram in SYSTEM WIRING DIAGRAMS in ELECTRICAL.

Application

Ft. Lbs. (N.m)

Coolant Fan Control Thermo Switch

26 (35)

INCH Lbs. (N.m)

A/C High Pressure Sensor or Switch

(1)

 44 (5)

(1)

A/C refrigerant does not need to be discharged. Use new "O" ring.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:32 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 ENGINE

Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

COOLING SYSTEM, SERVICING

COOLING SYSTEM, GENERAL INFORMATION

WARNING:

When performing repair work, especially due to the confined conditions
in the engine compartment, pay attention to the following:

z

Route all types of lines (e.g. for fuel, hydraulics, EVAP system,
coolant, refrigerant, brake fluid and vacuum) as well as electrical
wiring so that the original positions are restored.

z

Ensure sufficient clearance to all moving or hot components.

NOTE:

z

When the engine is warm the cooling system is under pressure. If
necessary release the pressure before beginning repair work.

z

Hoses are secured with spring-type clamps. In cases of repair only use
spring-type clamps.

z

Assembly tool VAS 5024 or hose clip pliers V.A.G 1921 are recommended
for installing spring-type clamps.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Perform cooling system leakage test with cooling system tester V.A.G 1274 and adapters V.A.G 1274/8 and
V.A.G 1274/9.

Components of cooling system body side, See COOLING SYSTEM COMPONENTS - BODY SIDE,
REMOVING AND INSTALLING .

Components of cooling system engine side, See COOLING SYSTEM COMPONENTS - ENGINE SIDE,
REMOVING AND INSTALLING .

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

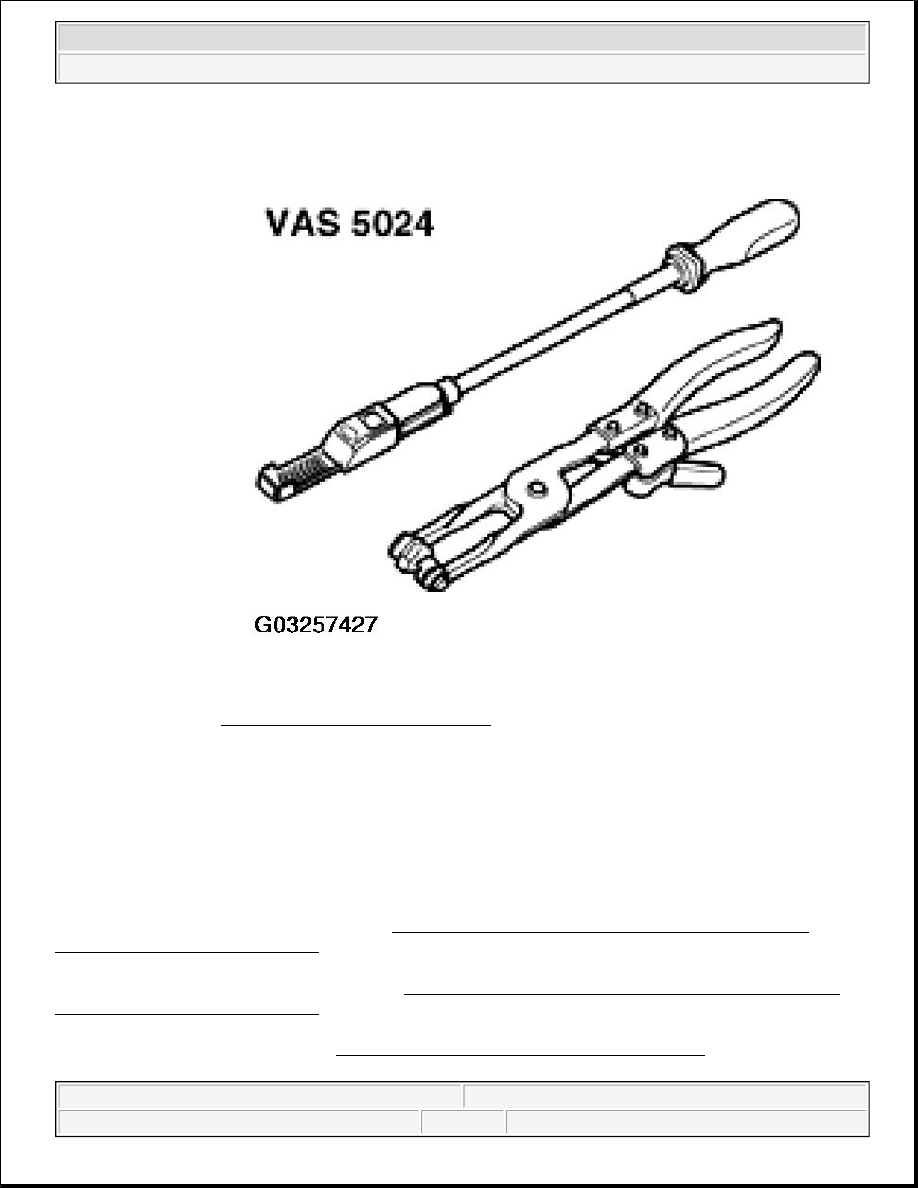

Fig. 1: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

When installing coolant hoses route stress-free so that they do not come
into contact with other components (observe markings on coolant
connection and hose).
