Volkswagen New Beetle. Manual - part 957

ENGINE COOLING FAN

2.0L (Engine Codes AEG, AVH & AZG)

1. Ensure main fuses are OK. Battery fuse panel is located near battery. See Fig. 6 . Ensure coolant fan

control thermo switch is OK.

First Stage

On

198-207°F (92-97°C)

Off

183-196°F (84-91°C)

Second Stage

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

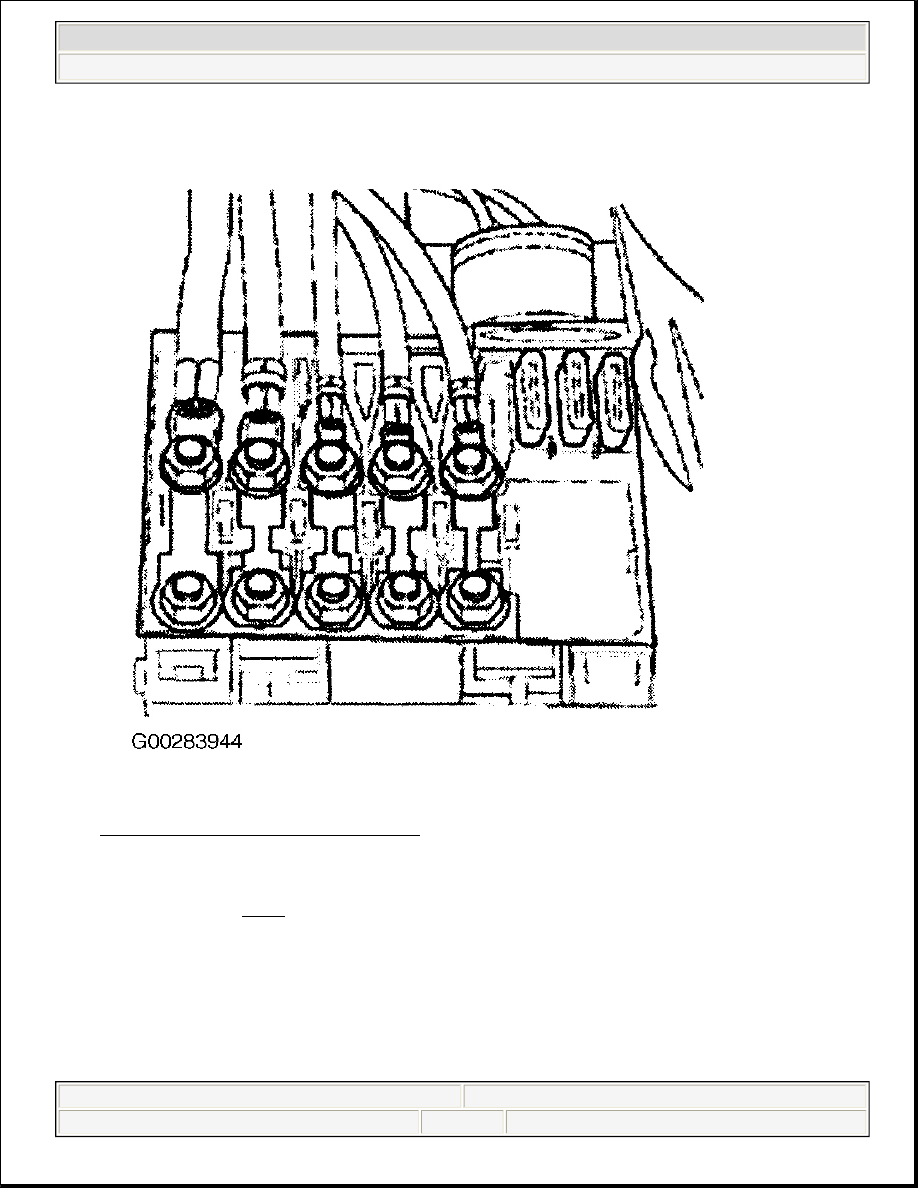

Fig. 6: Locating Main Fuses Near Battery
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Remove left sound insulation panel from under front of vehicle to gain access to coolant fan control

thermo switch. See Fig. 7 .



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

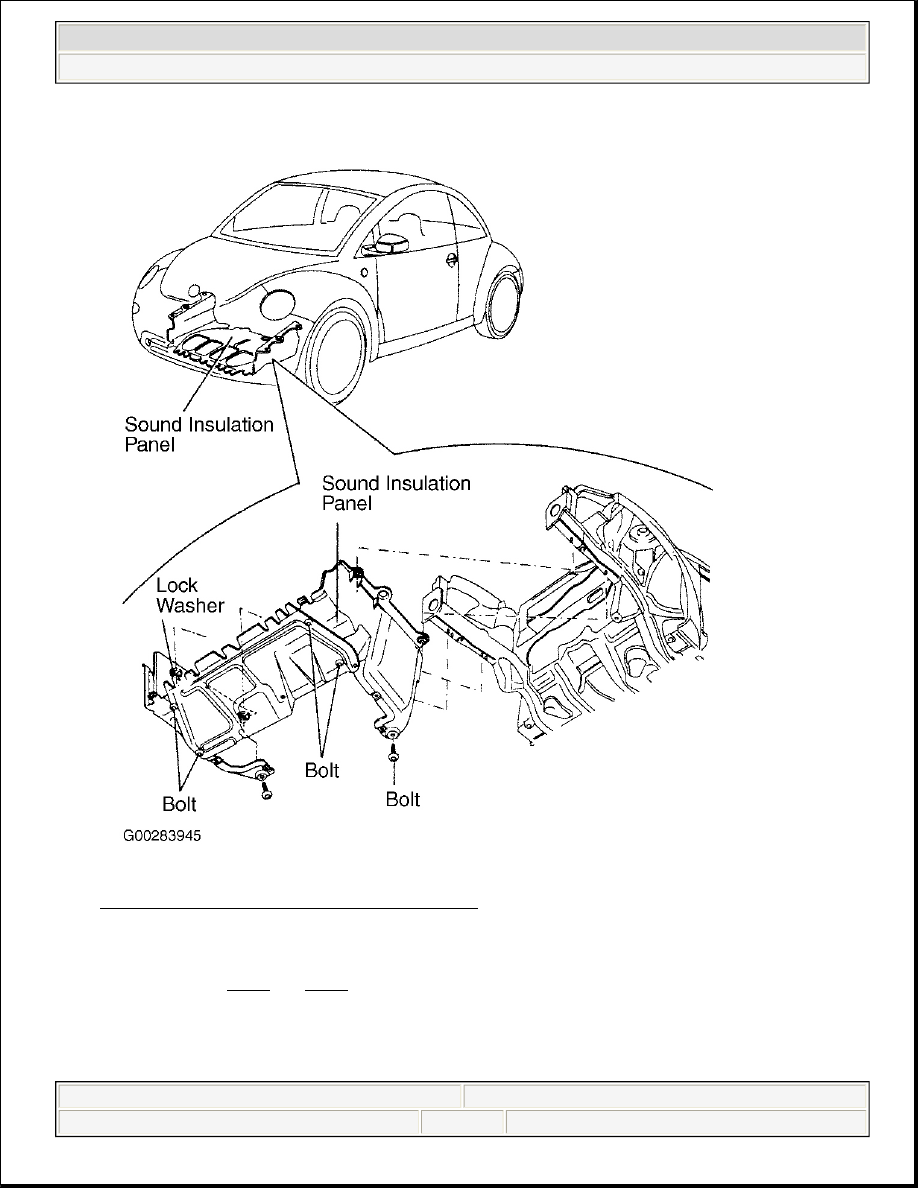

Fig. 7: Exploded View Of Sound Insulation Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Disconnect 3-pin connector off of thermo switch. Bridge contact 1 and contact 2 of connector with

jumper wire. See Fig. 8 and Fig. 9 . Fans should run at low speed.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

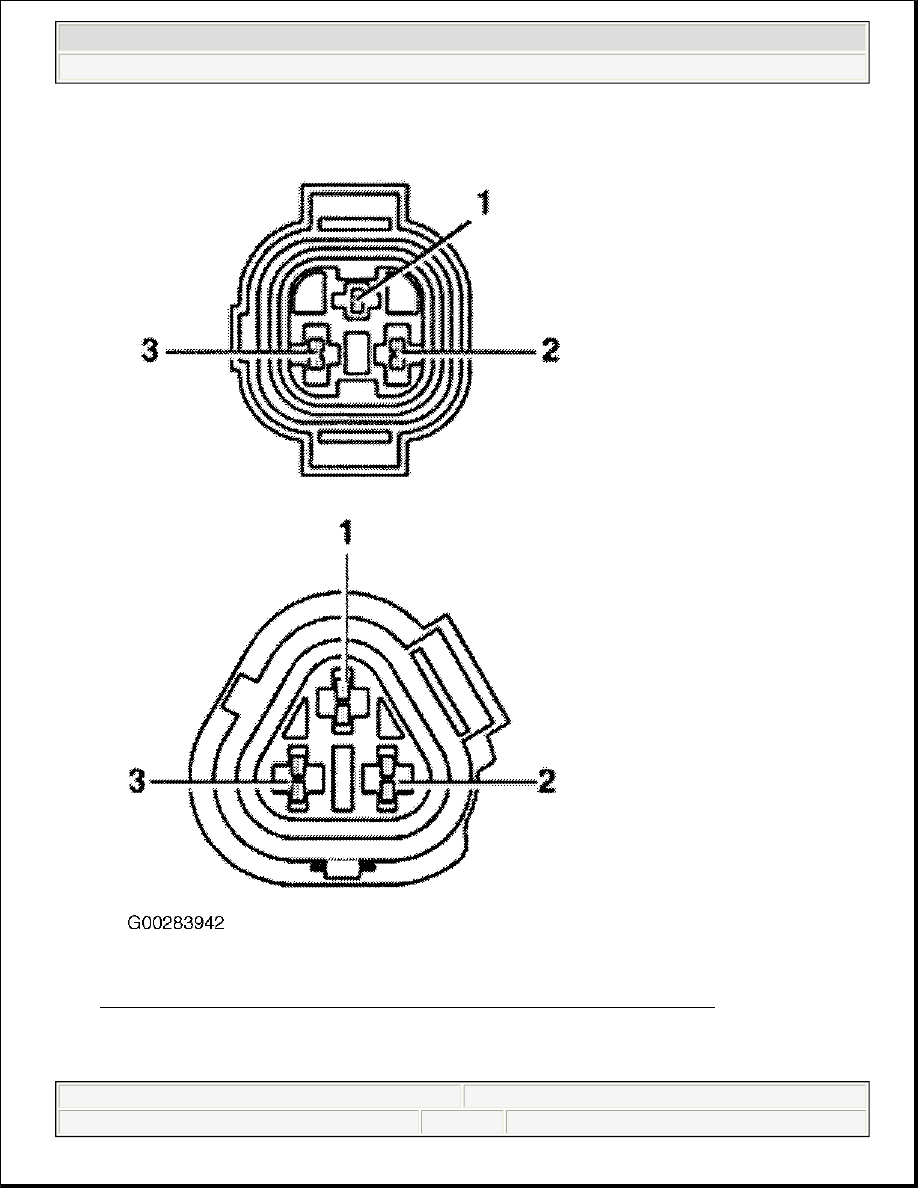

Fig. 8: Identifying Coolant Fan Control Thermo Switch Contacts (Types A & B)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.
