2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:45 AM

Page 154

© 2004 Mitchell Repair Information Company, LLC.

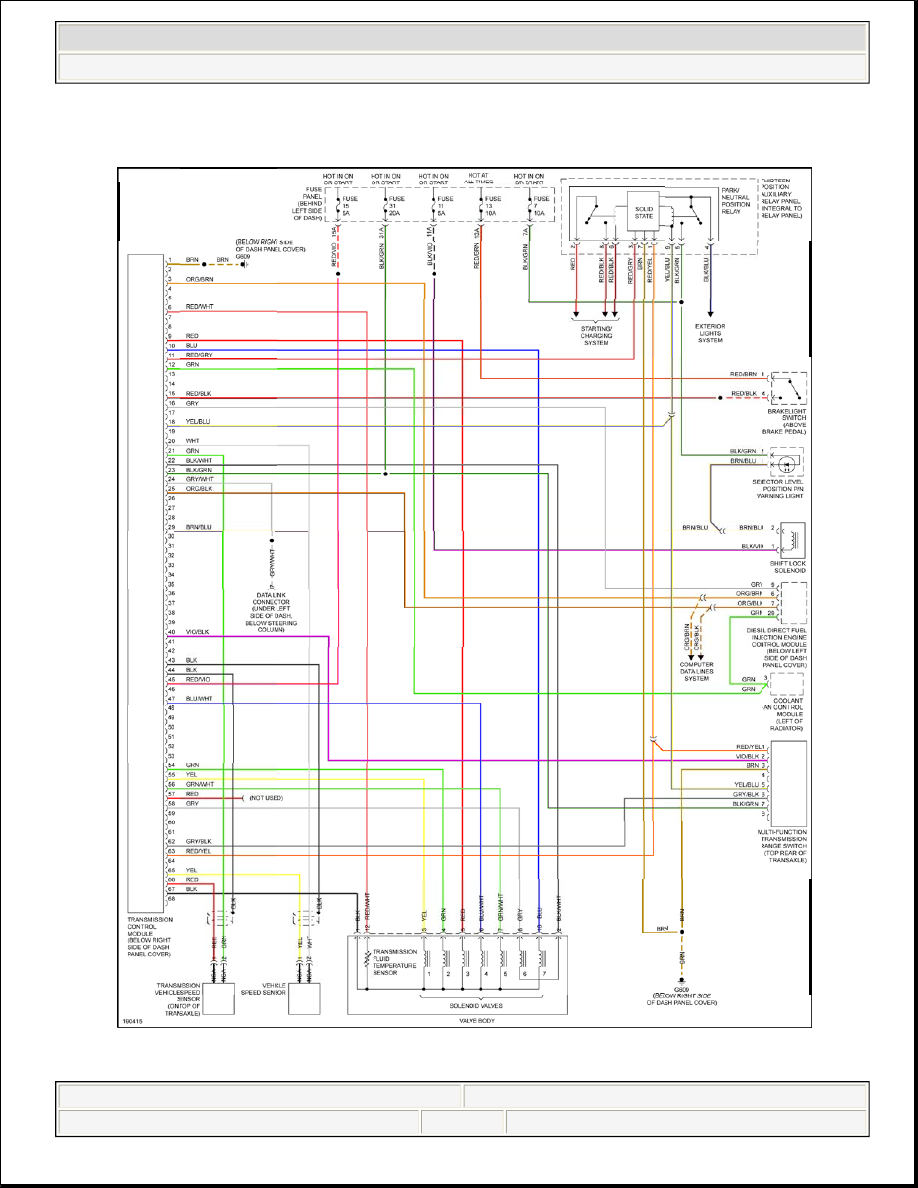

Fig. 77: 1.9L Turbo Diesel, A/T Circuit

2.0L



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:45 AM

Page 155

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:45 AM

Page 156

© 2004 Mitchell Repair Information Company, LLC.

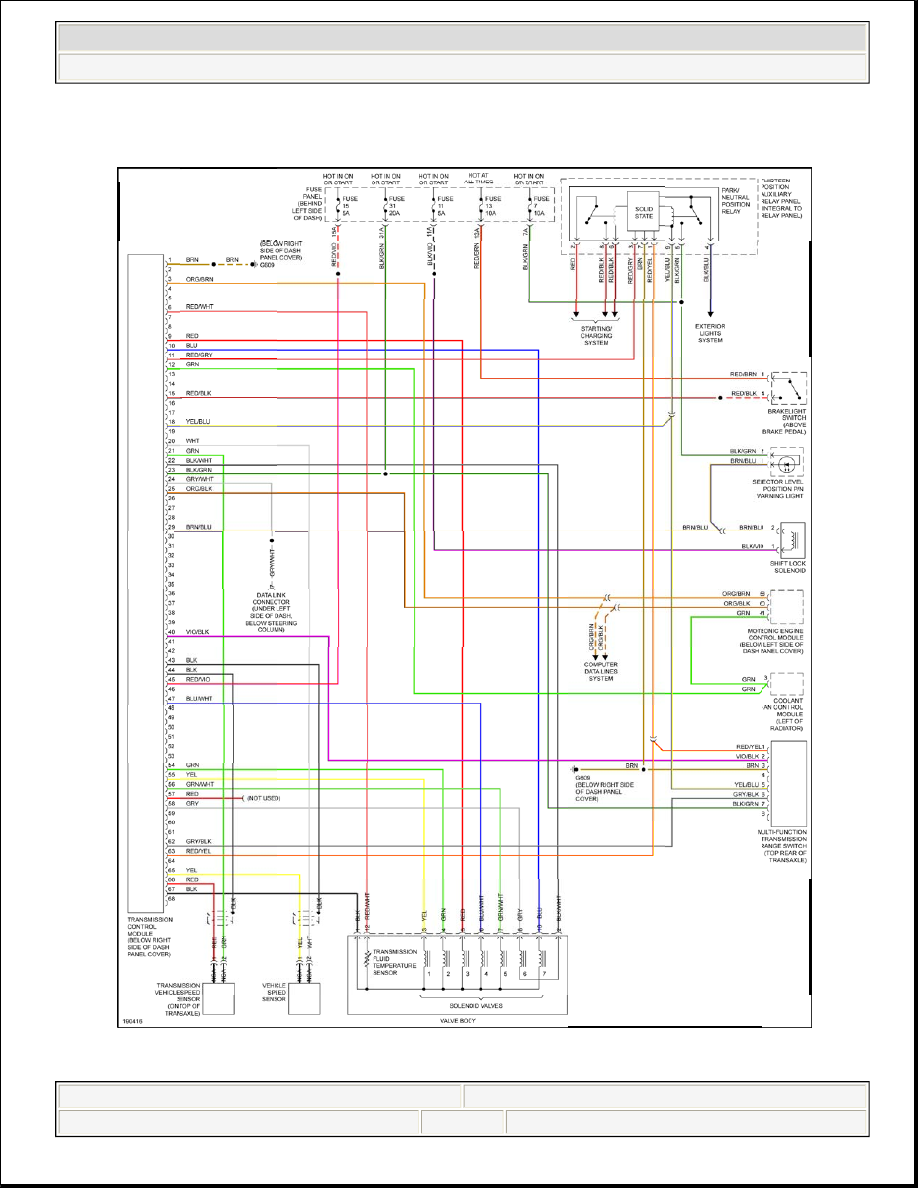

Fig. 78: 2.0L, A/T Circuit, 4 Speed A/T



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:45 AM

Page 157

© 2004 Mitchell Repair Information Company, LLC.
