Volkswagen New Beetle. Manual - part 894



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:44 AM

Page 146

© 2004 Mitchell Repair Information Company, LLC.

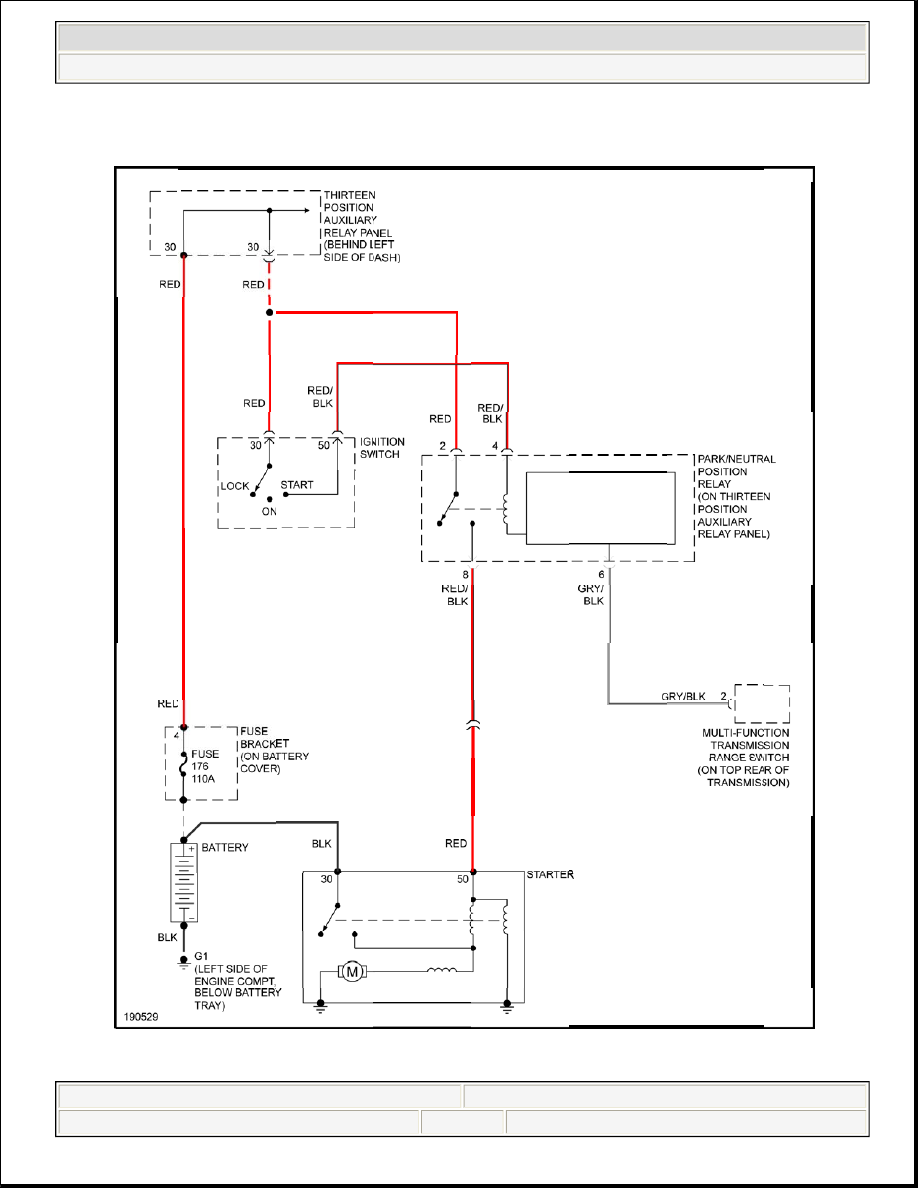

Fig. 73: Starting Circuit, 6 Speed A/T



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:44 AM

Page 147

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:44 AM

Page 148

© 2004 Mitchell Repair Information Company, LLC.

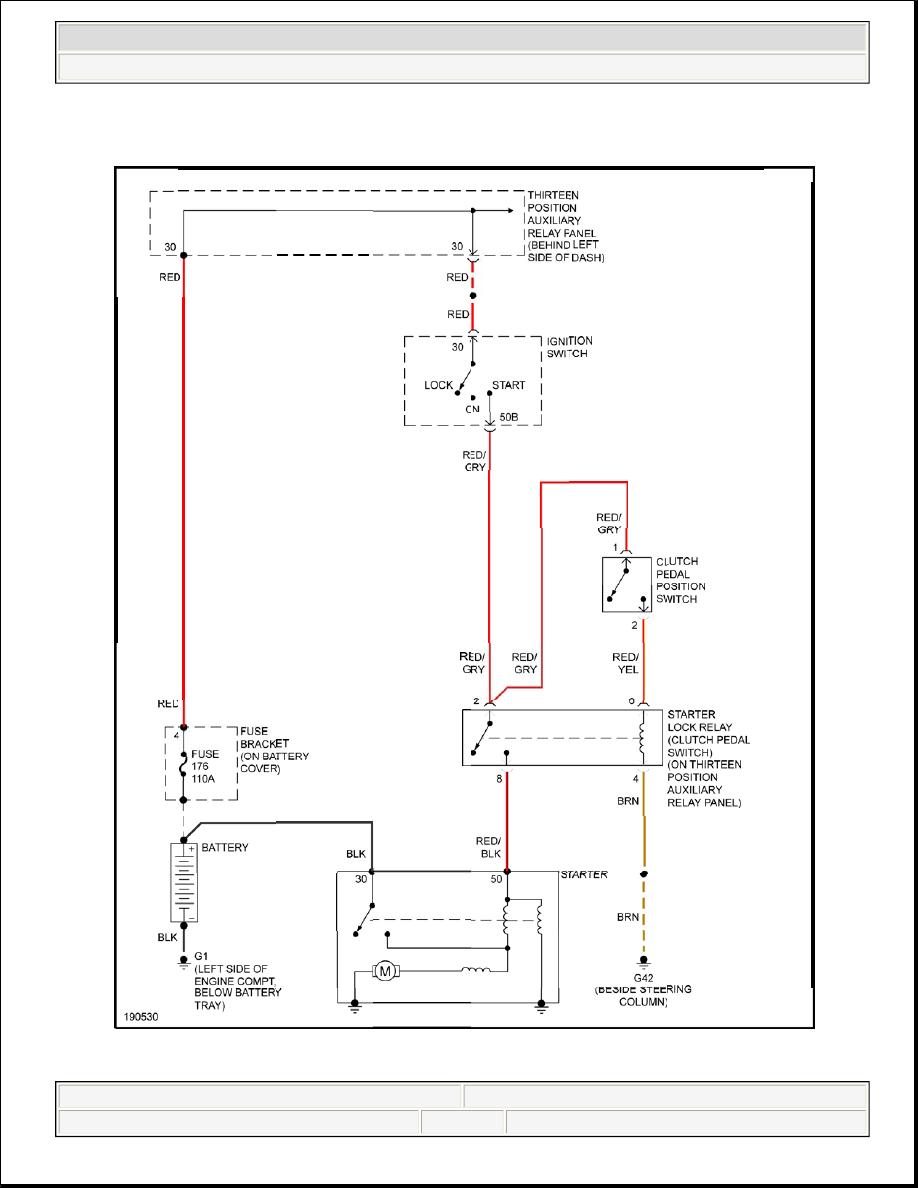

Fig. 74: Starting Circuit, M/T

SUPPLEMENTAL RESTRAINTS



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:44 AM

Page 149

© 2004 Mitchell Repair Information Company, LLC.
