Volkswagen New Beetle. Manual - part 862



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:35 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

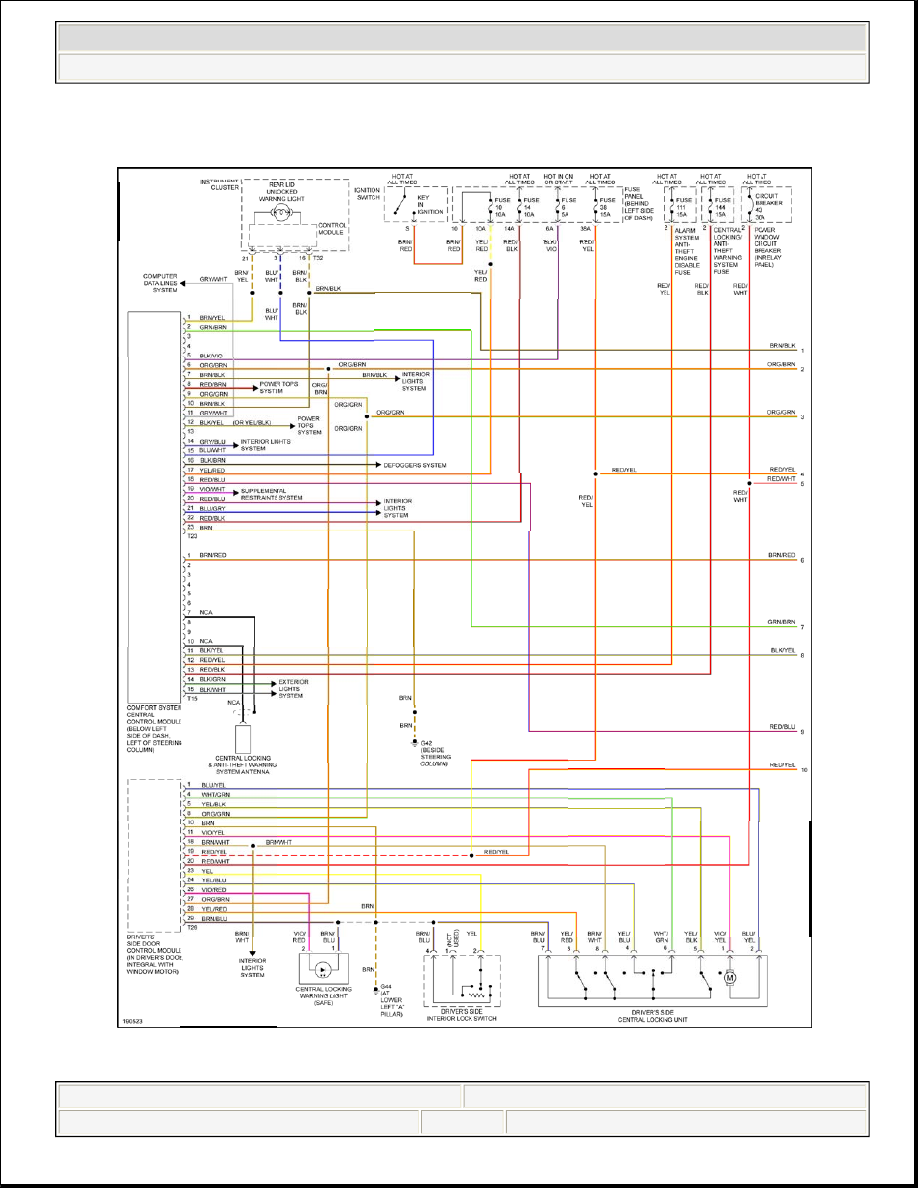

Fig. 9: Power Door Locks Circuit, Convertible (2 of 2)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:35 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:35 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

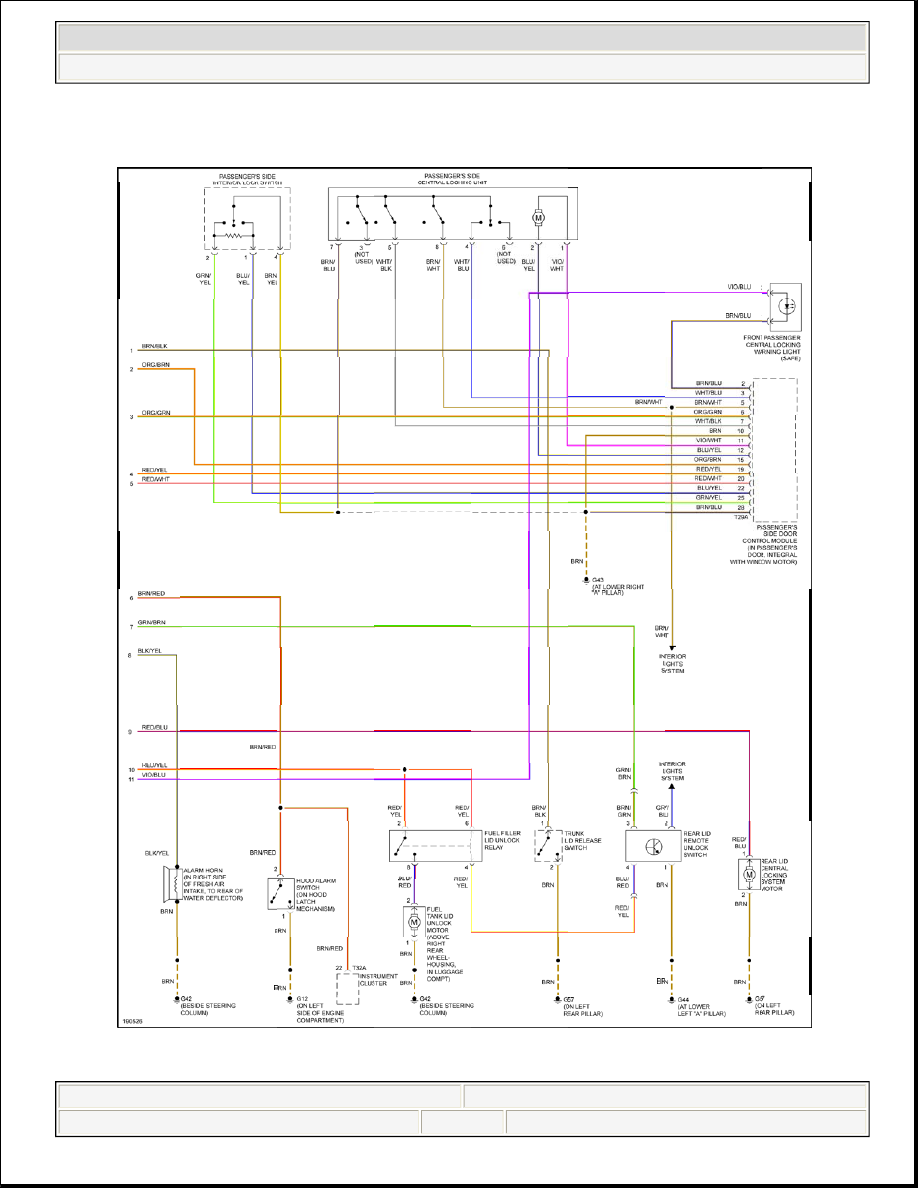

Fig. 10: Power Door Locks Circuit, Except Convertible (1 of 2)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:35 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.
