Volkswagen New Beetle. Manual - part 860



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:34 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

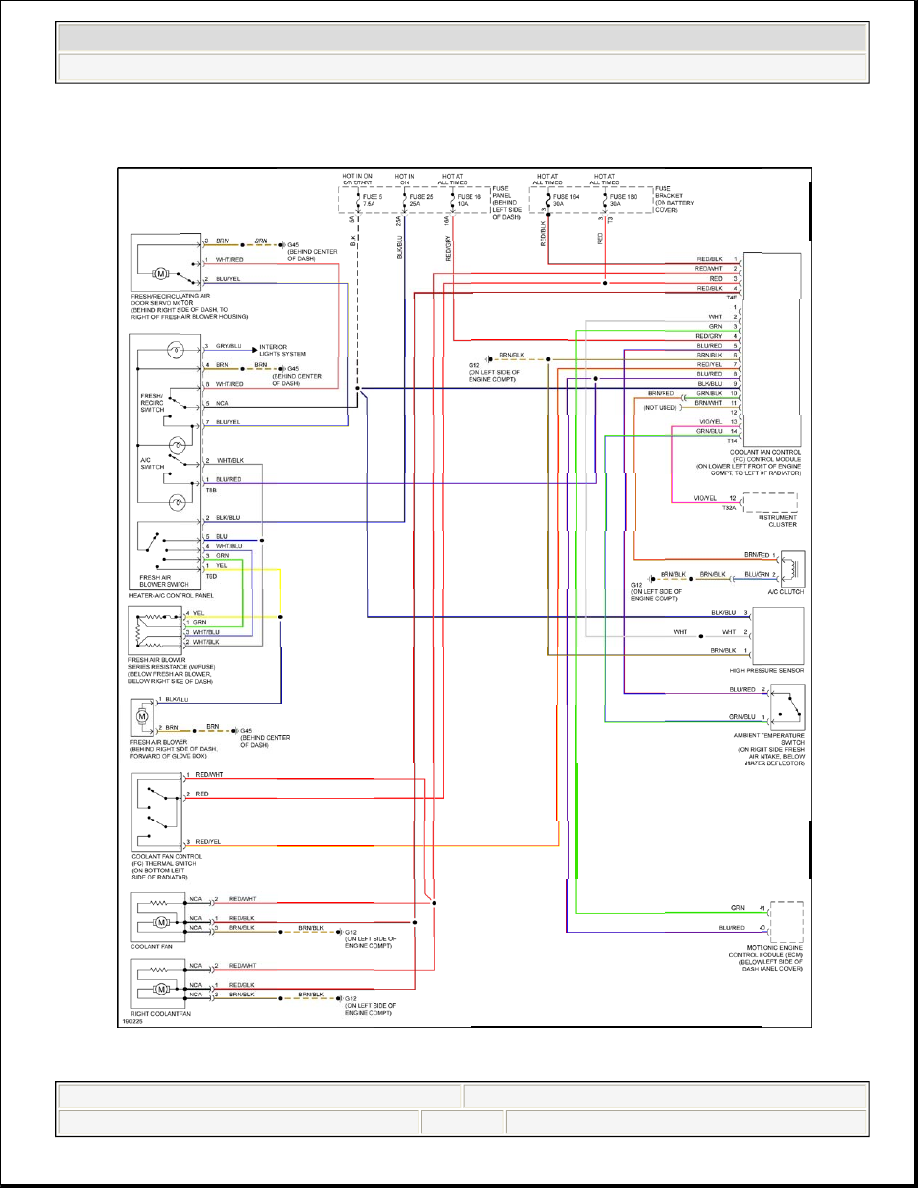

Fig. 5: 2.0L, Manual A/C Circuit, Convertible

ANTI-LOCK BRAKES



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:34 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:34 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

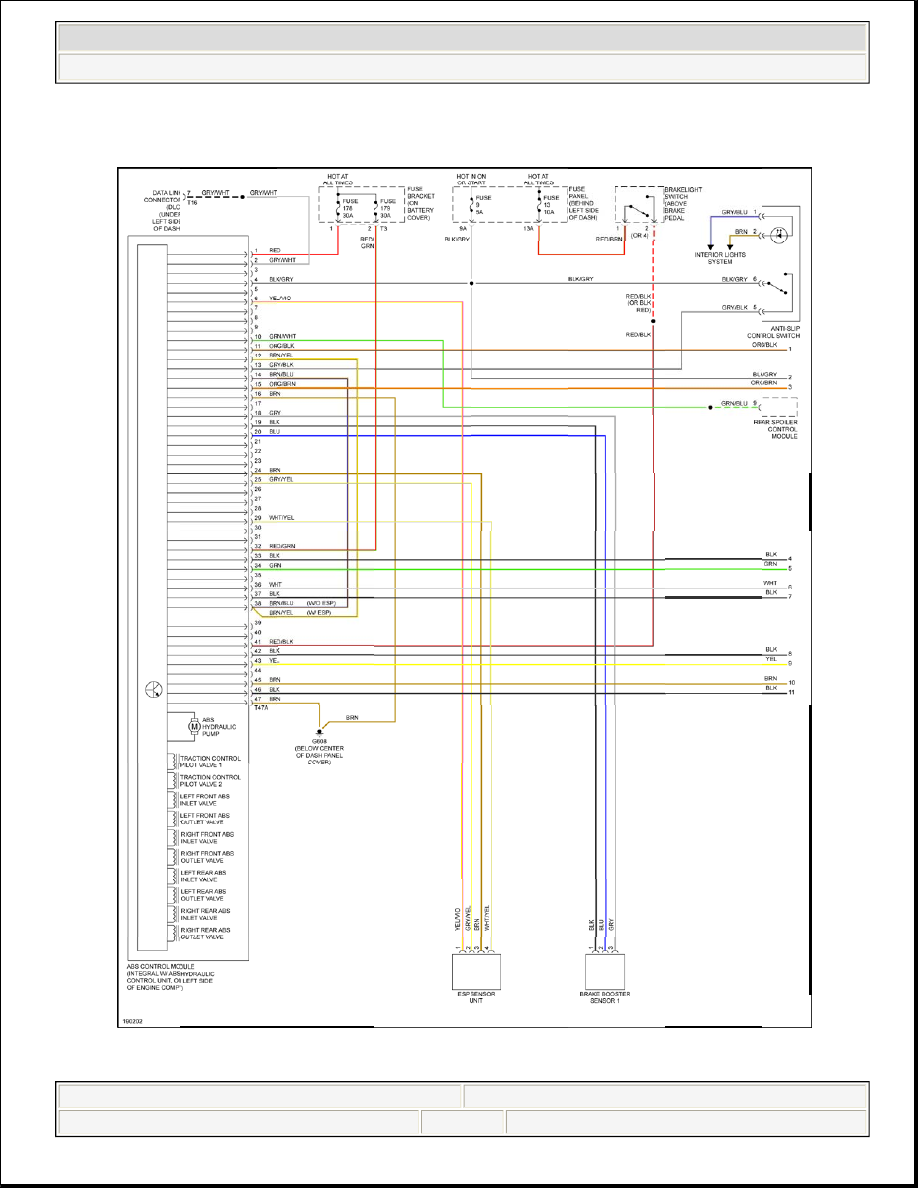

Fig. 6: Anti-lock Brakes Circuit (1 of 2)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:35 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.
