Fig. 127: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (27 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

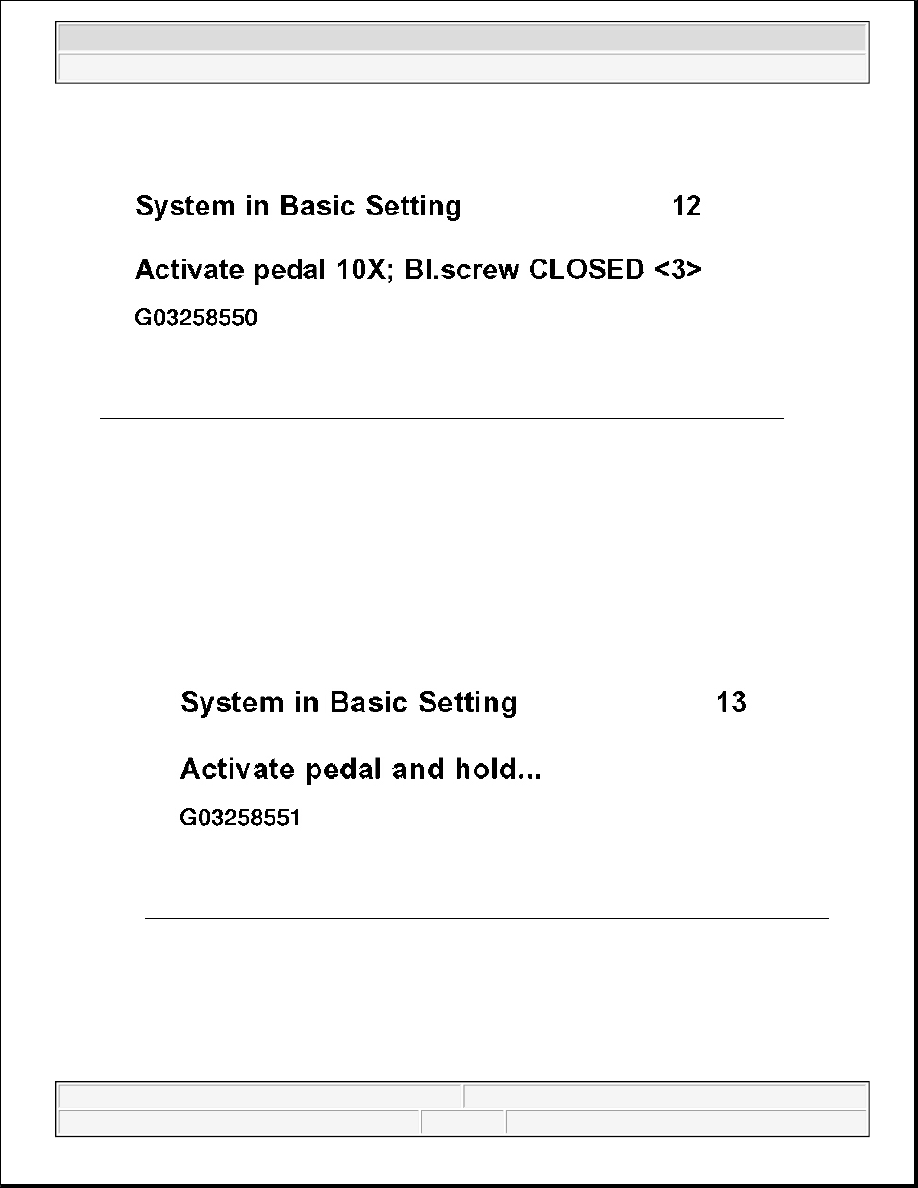

Fig. 128: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (28 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 129: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (29 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

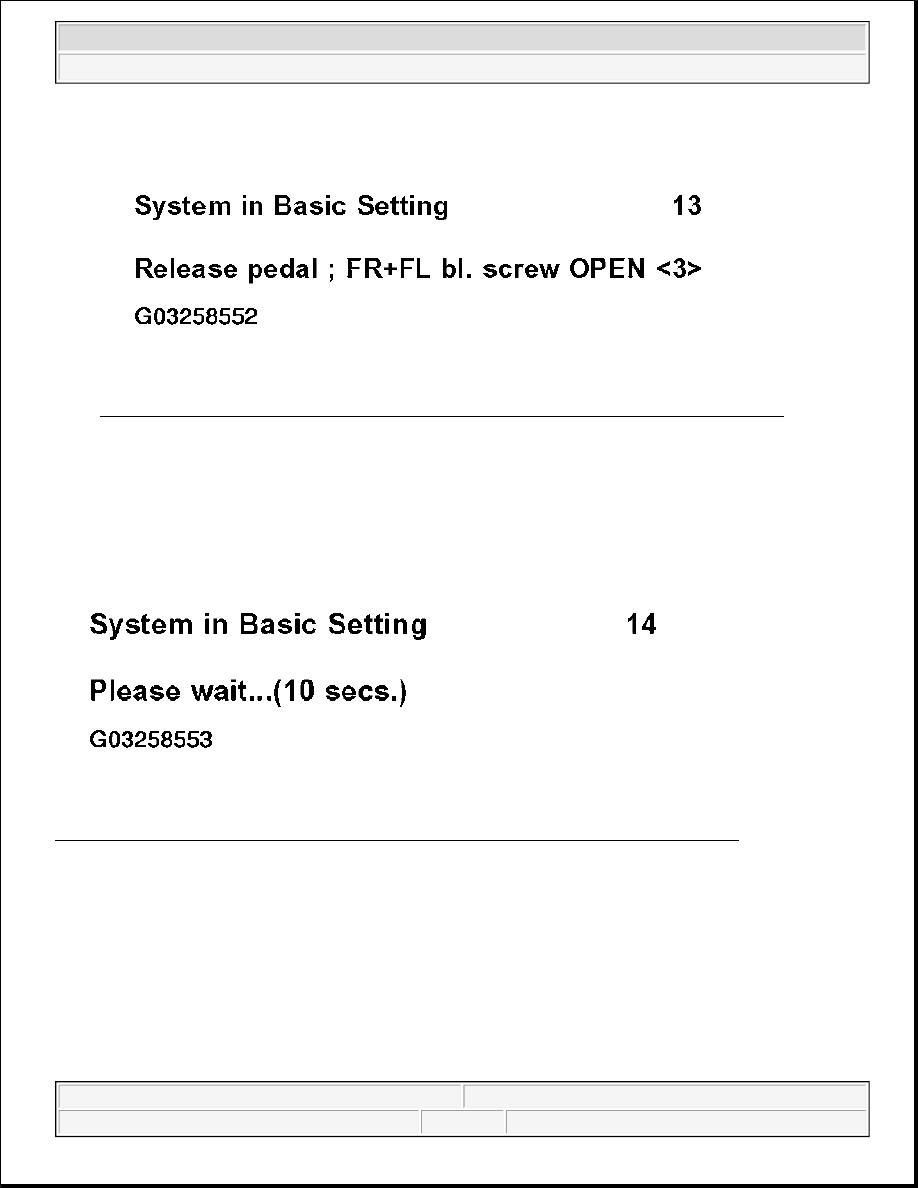

Fig. 130: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (30 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

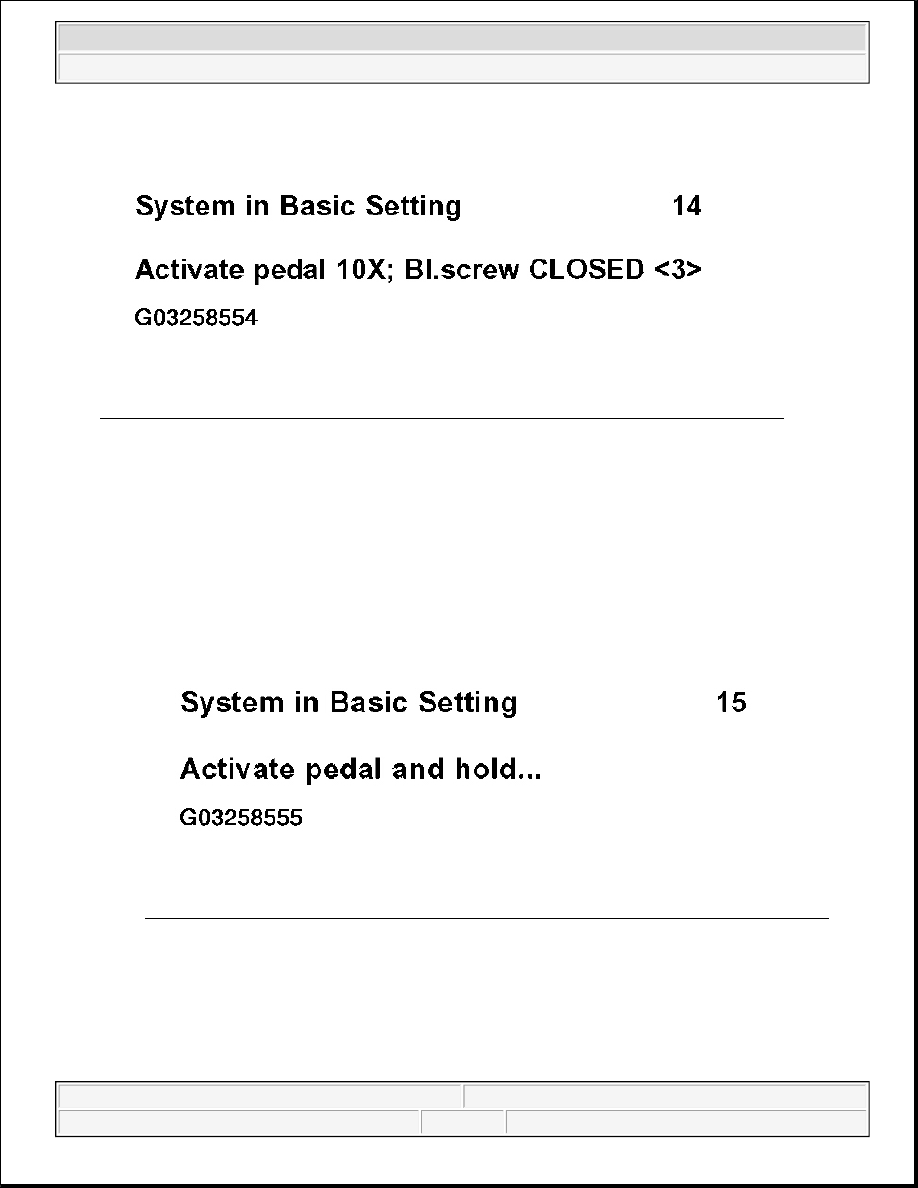

Fig. 131: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (31 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

Fig. 132: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (32 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

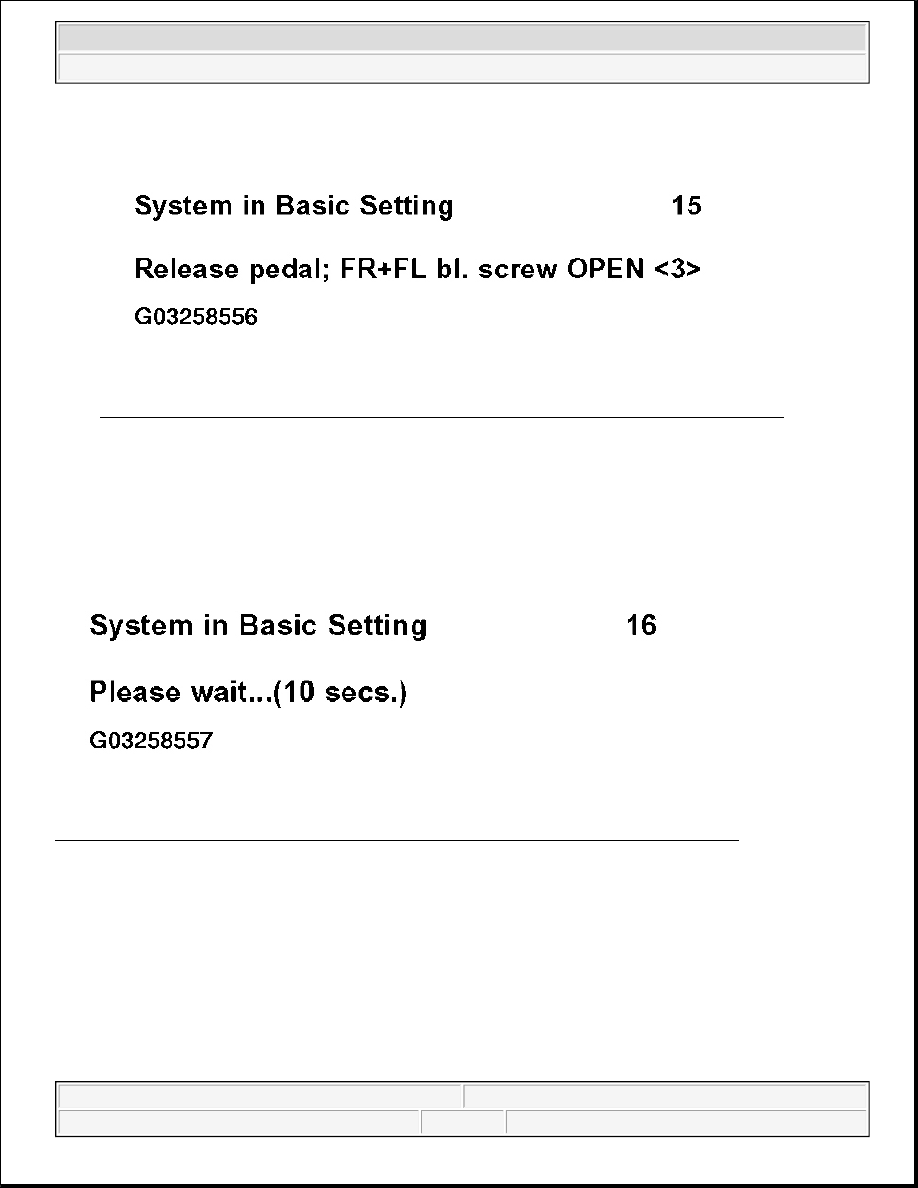

Fig. 133: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (33 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 134: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (34 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.
