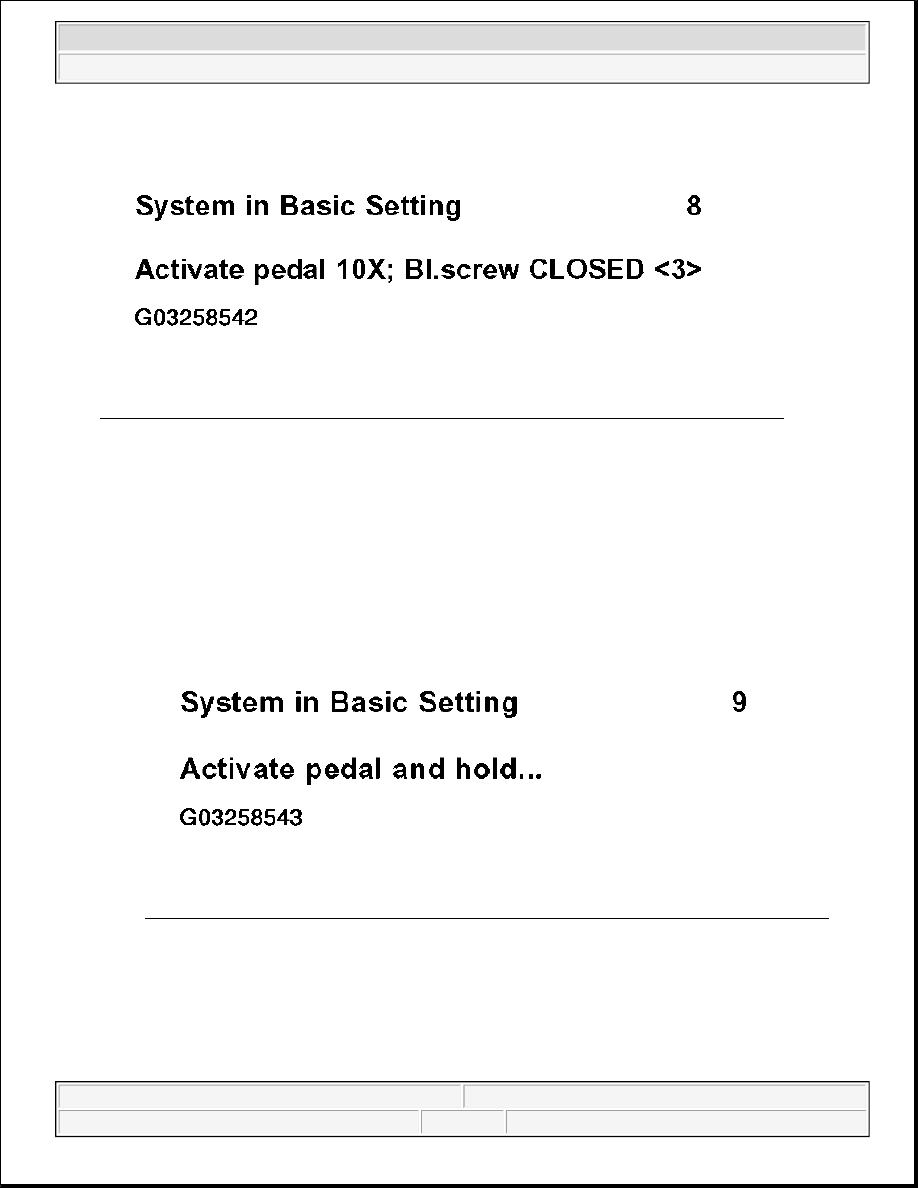

Fig. 119: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (19 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

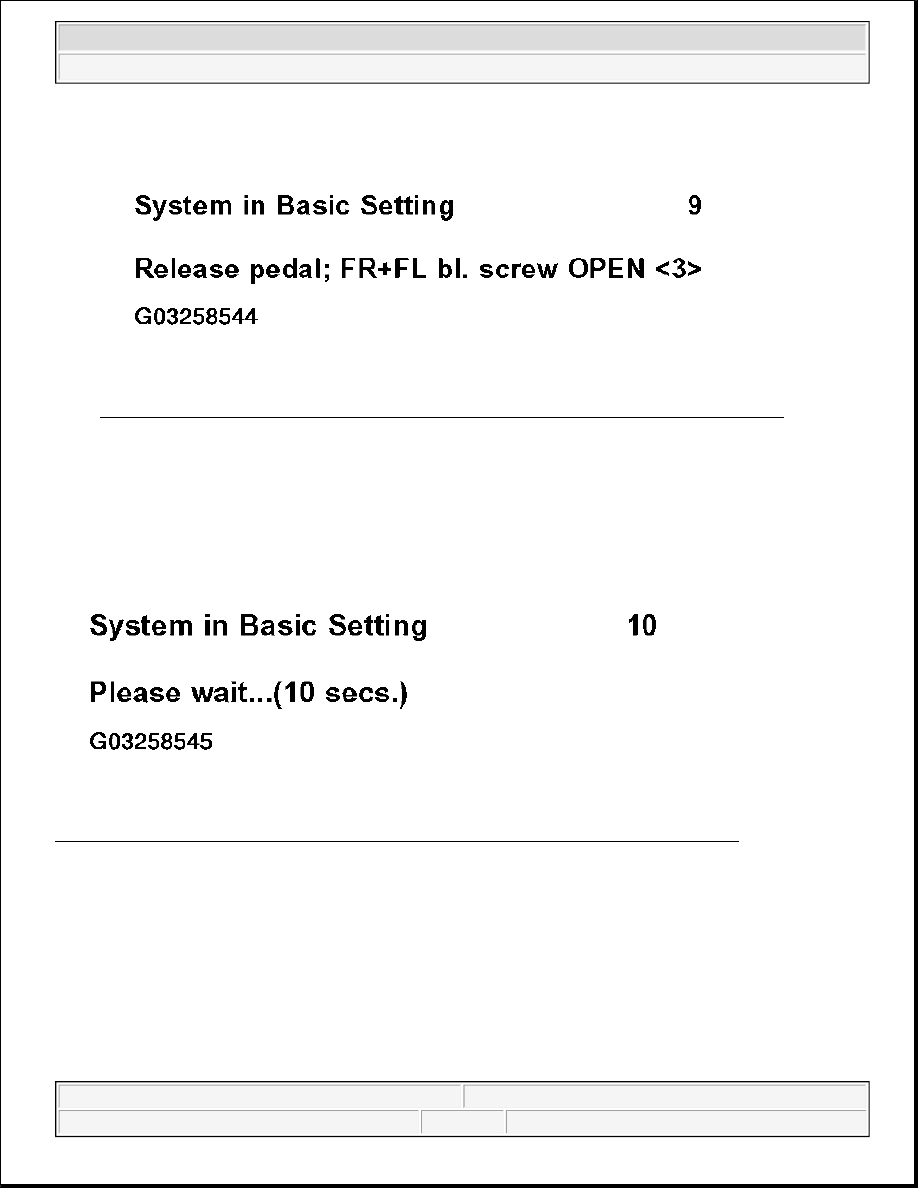

Fig. 120: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (20 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

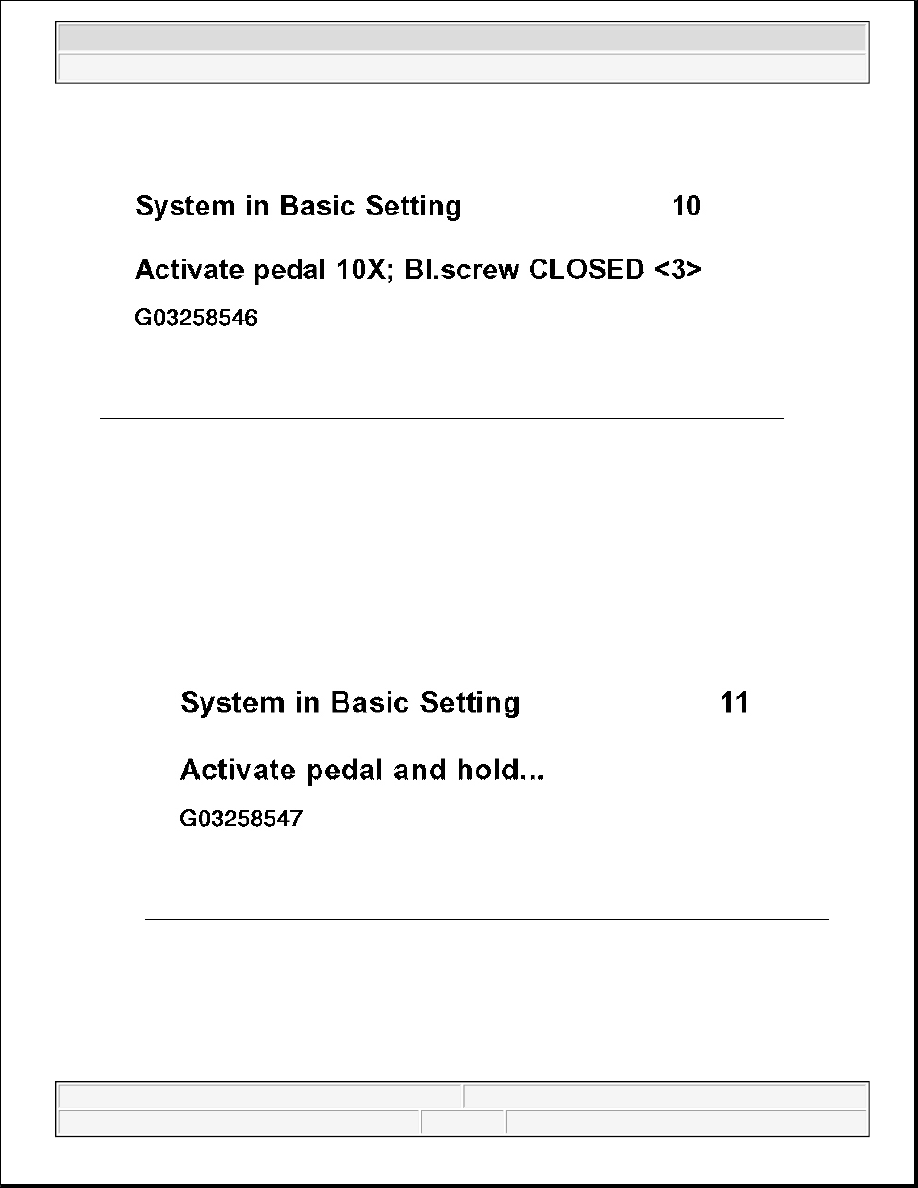

Fig. 121: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (21 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 122: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (22 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 123: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (23 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

Fig. 124: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (24 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 125: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (25 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 126: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (26 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.
