Fig. 41: Removing Relay Protective Housing From Cable Channel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connection from control module (arrow -1-) and pull off (arrow -2-).

z

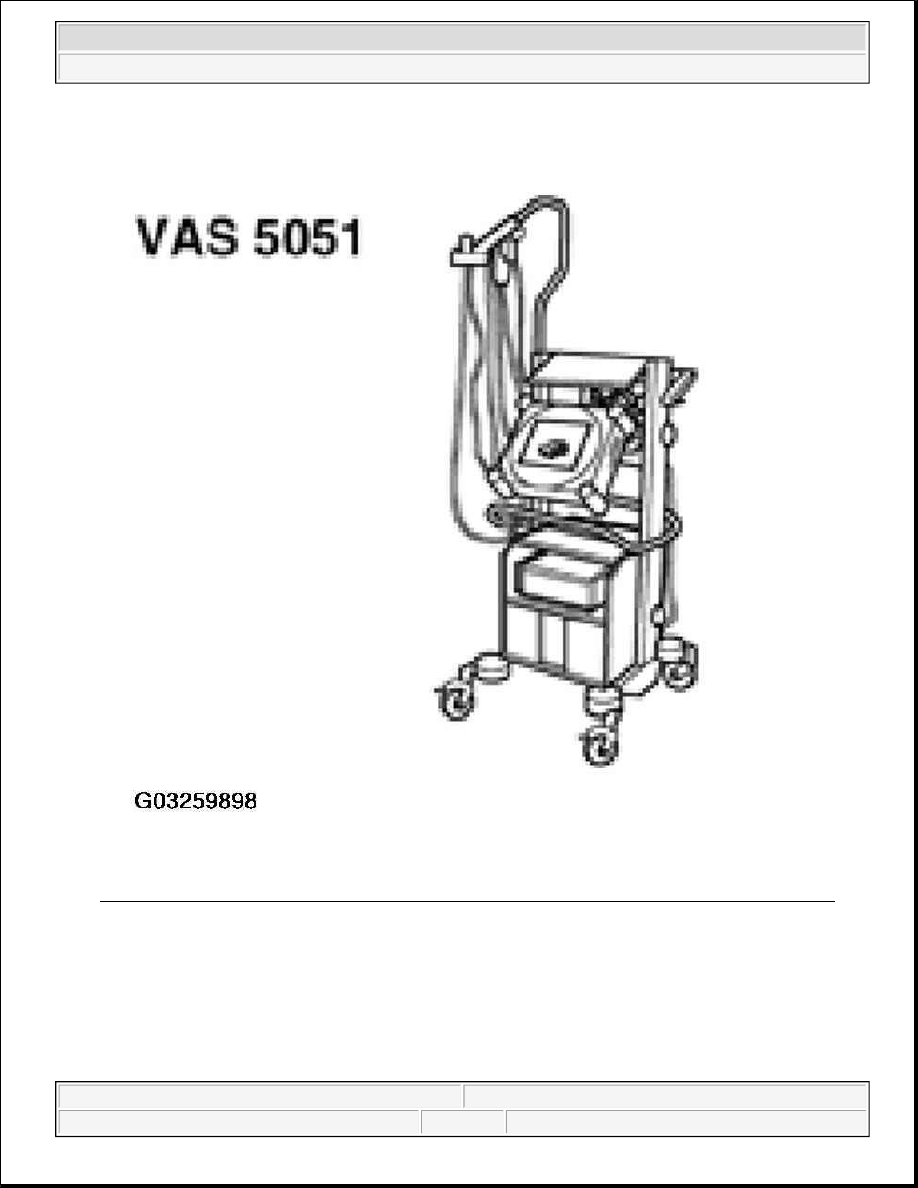

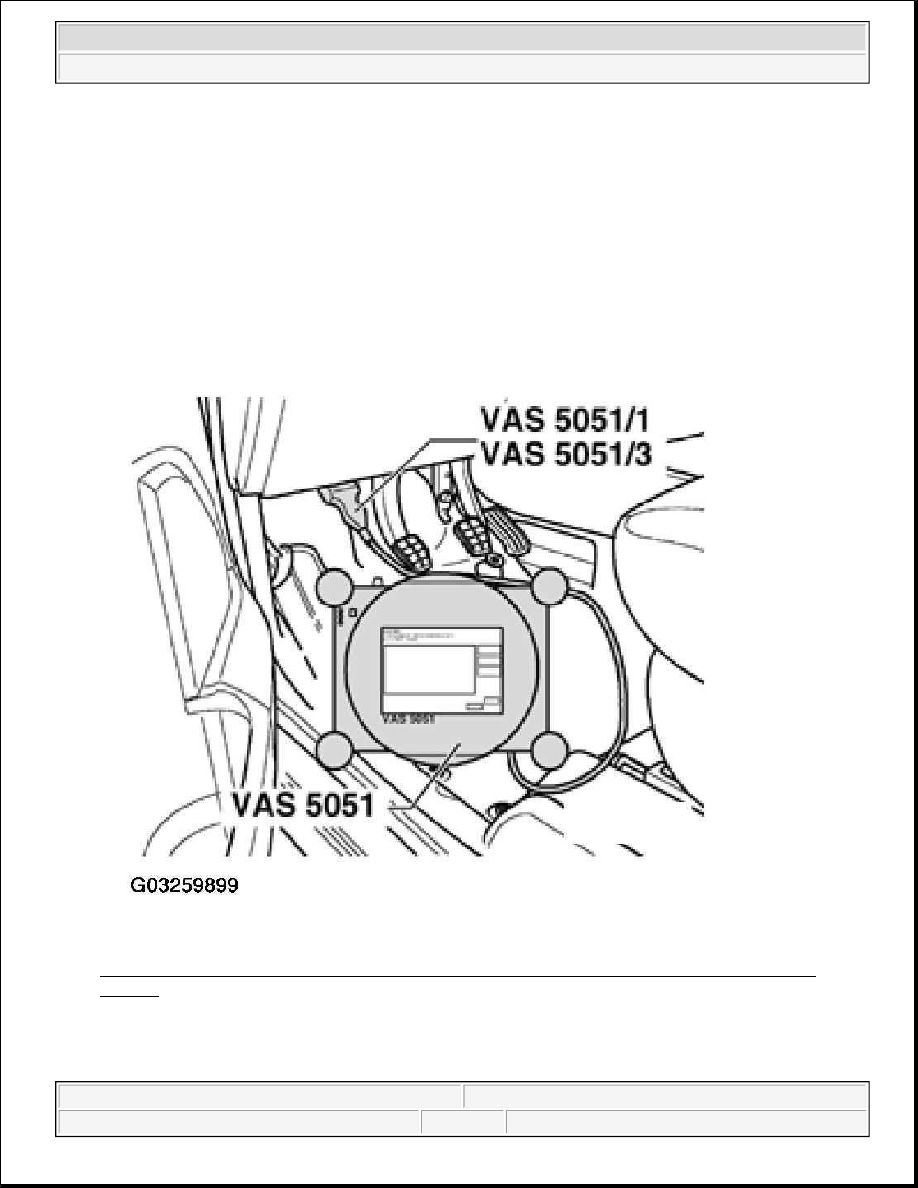

Install brake pedal depressor VAG 1869/2.

z

Connect a bleeder bottle hose to left front and right rear brake caliper bleed screws and open bleed
screws.

z

Depress brake pedal at least 60 mm (2.362 in.) using brake pedal depressor.

z

Close left front and right rear bleed screws

z

Do not remove brake pedal depressor VAG 1869/2.

z

Place sufficient lint-free cloths under control module and the hydraulic unit.

Make sure no brake fluid reaches the contacts.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 42: Releasing Connection From Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect brake line from hydraulic unit -1- to brake master cylinder and tie-up.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 43: Disconnecting Brake Line From Hydraulic Unit To Brake Master Cylinder And Tie-Up
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect the remaining brake lines from the hydraulic unit.

z

Seal brake lines and threaded holes with sealing plugs from repair kit Part No. 1H0 698 311 A.

z

Remove bolts -arrows- from bracket for control module/hydraulic unit.

z

Take out hydraulic unit with control module.

Removing control module from hydraulic unit



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



z

Place hydraulic unit with control module downward on a clean flat surface.

z

Remove torx socket head screws E5 -arrows- from control module and pull off control module.

z

Carefully lift the hydraulic unit along with the hydraulic pump, at the joint -1-, upward off the control
module.

Fig. 44: Carefully Lift The Hydraulic Unit Along With The Hydraulic Pump Off The Control
Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

When pulling off of the control module, make sure that the hydraulic unit electrical contact pin is not tilted
against the control module solenoid valves.

WARNING:

The hydraulic pump must not be separated from the hydraulic unit.
