Volkswagen New Beetle. Manual - part 667



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 29: Disconnecting Wheel Speed Sensor And Speed Sensor Wiring Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ABS WHEEL SPEED SENSOR WIRING TO REAR AXLE, REMOVING AND INSTALLING

Special tools and equipment

z

VAS 1978 wiring harness repair kit



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 30: Identifying VAS 1978 Wiring Harness Repair Kit
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



z

Obtain radio code on vehicles with coded radio.

z

Disconnect battery.

z

Disconnect wheel speed sensor and speed sensor wiring connector.

z

Remove rear interior side panel.

See SIDE PANEL TRIM, REMOVING AND INSTALLING

z

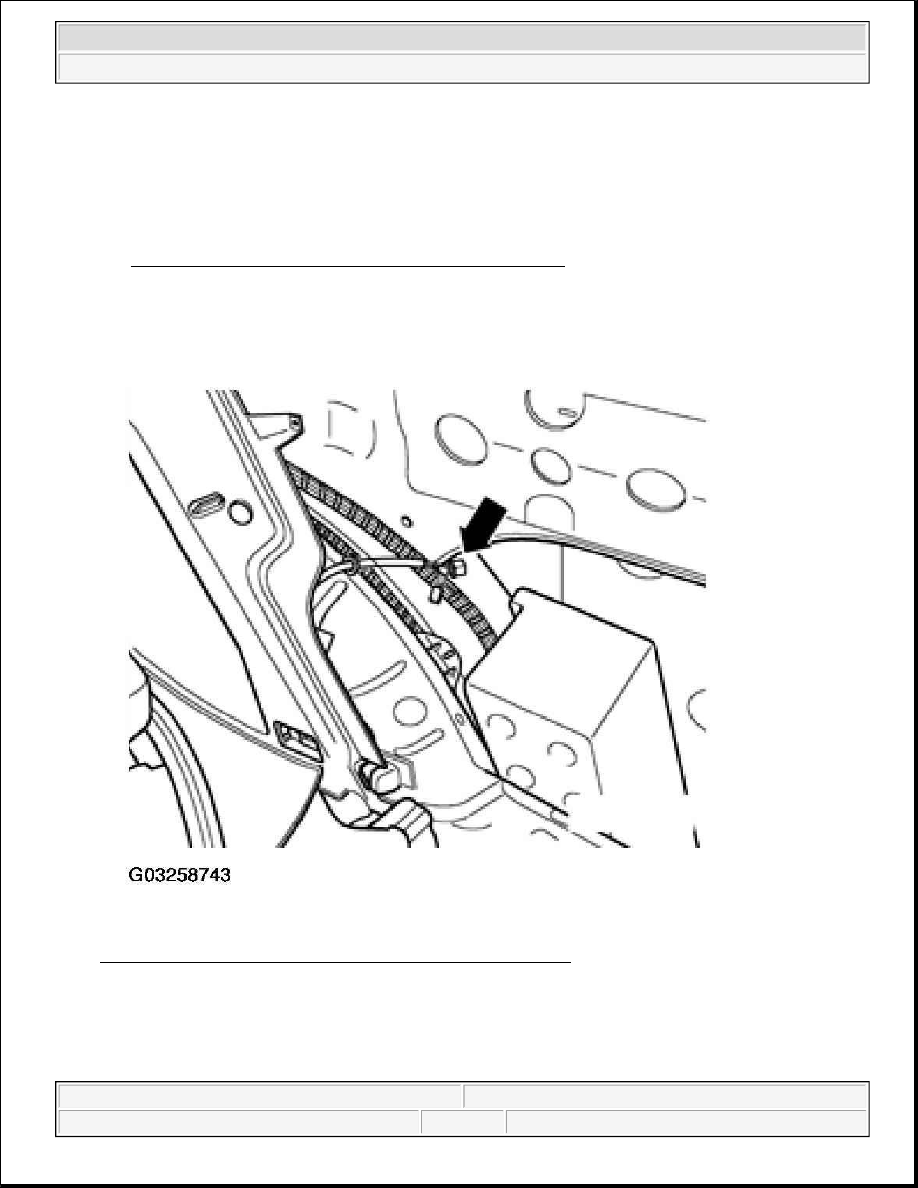

Strip insulation (arrow) from shrink connection.

Fig. 31: Identifying Strip Insulation From Shrink Connection
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Cut wheel speed sensor wire in front of spliced connection with stripping pliers from wiring repair kit
VAS 1978 and remove faulty wiring.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle
