Volkswagen New Beetle. Manual - part 665

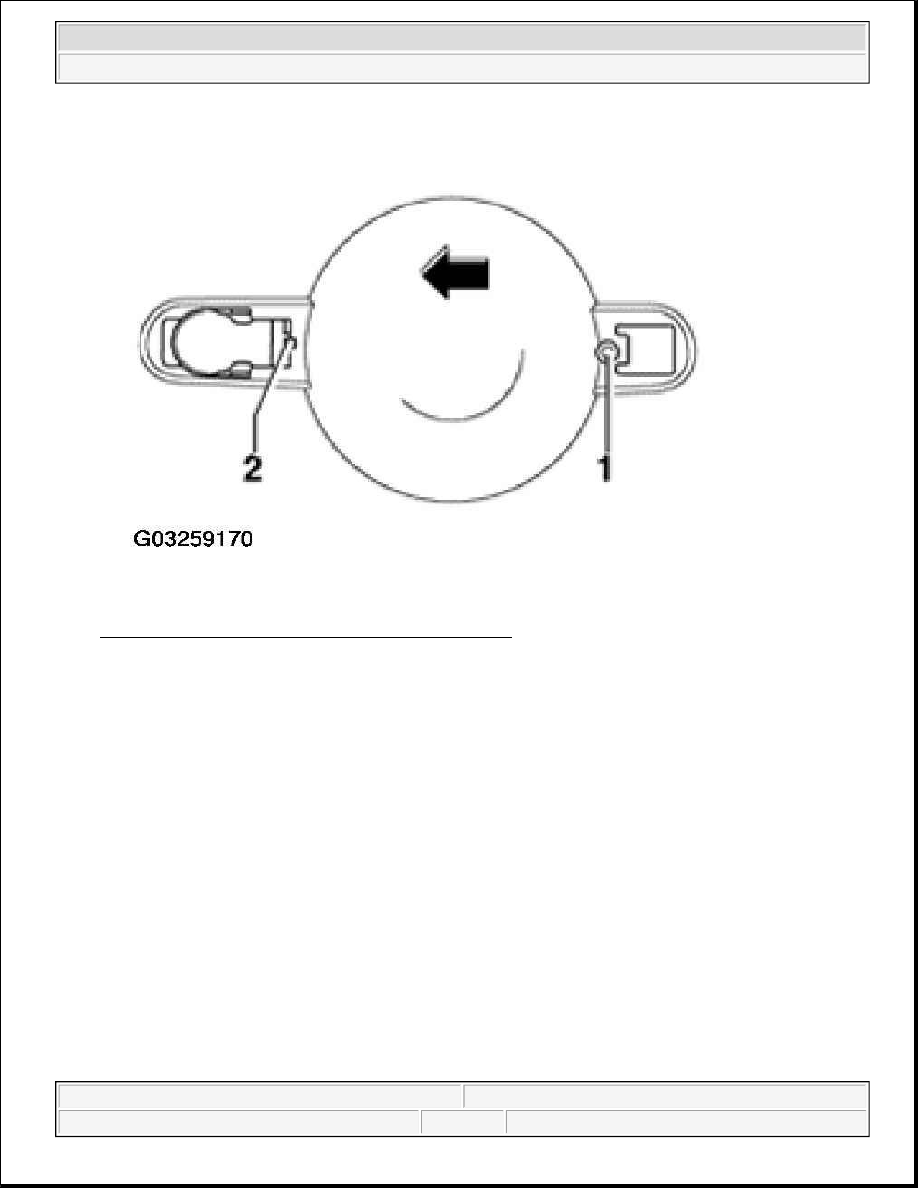

Fig. 23: Identifying Harness Connector T25 Terminal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Using extractor tool from harness repair kit VAS 1978, push out applicable terminals.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



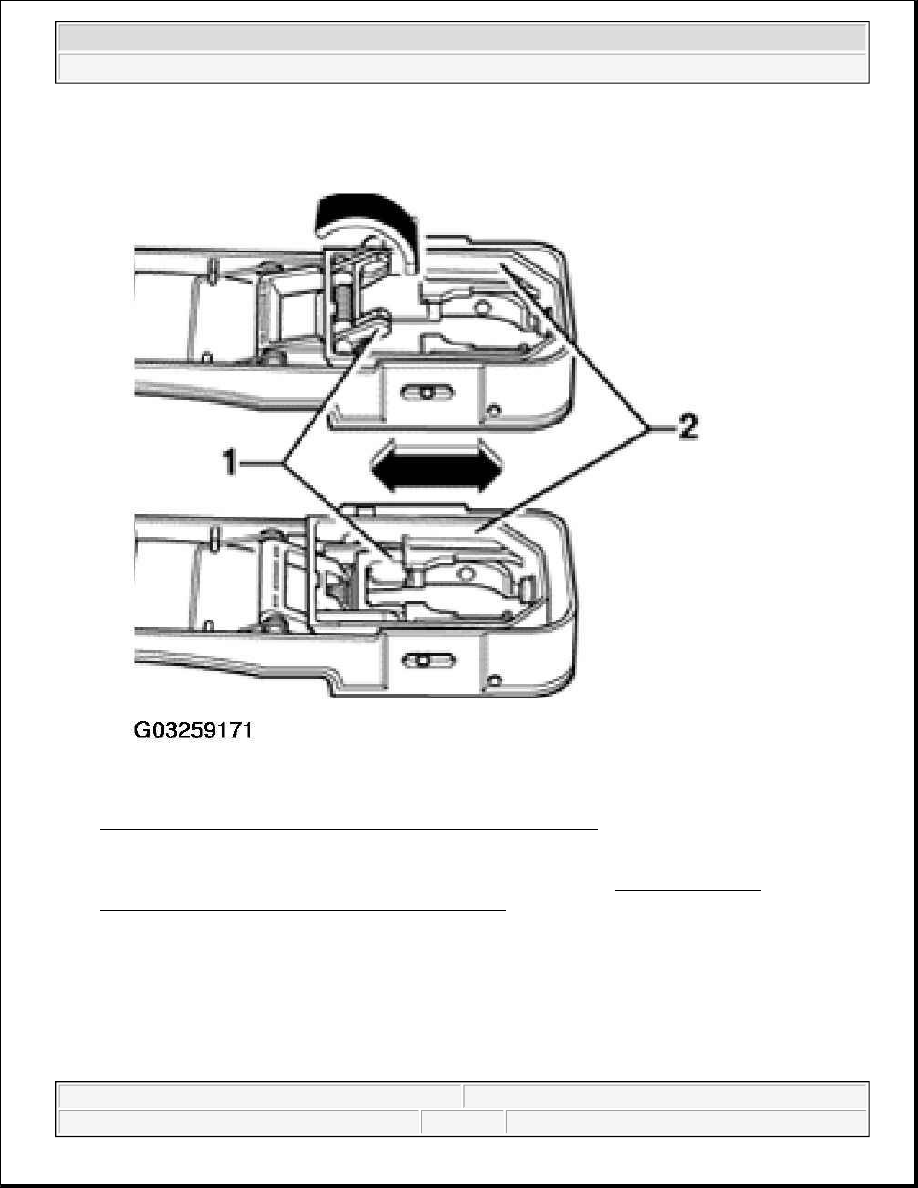

Fig. 24: Pushing Out Applicable Terminals Using Extractor Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect wheel speed sensor and speed sensor wiring connector, see REMOVING AND
INSTALLING SPEED SENSOR ON FRONT AXLE .

z

Replace faulty wheel speed sensor wiring.

z

Connect speed sensor to speed sensor wiring.

z

Secure wheel speed sensor wiring (arrows).

NOTE:

Make sure the wiring is not twisted in the wheel well.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



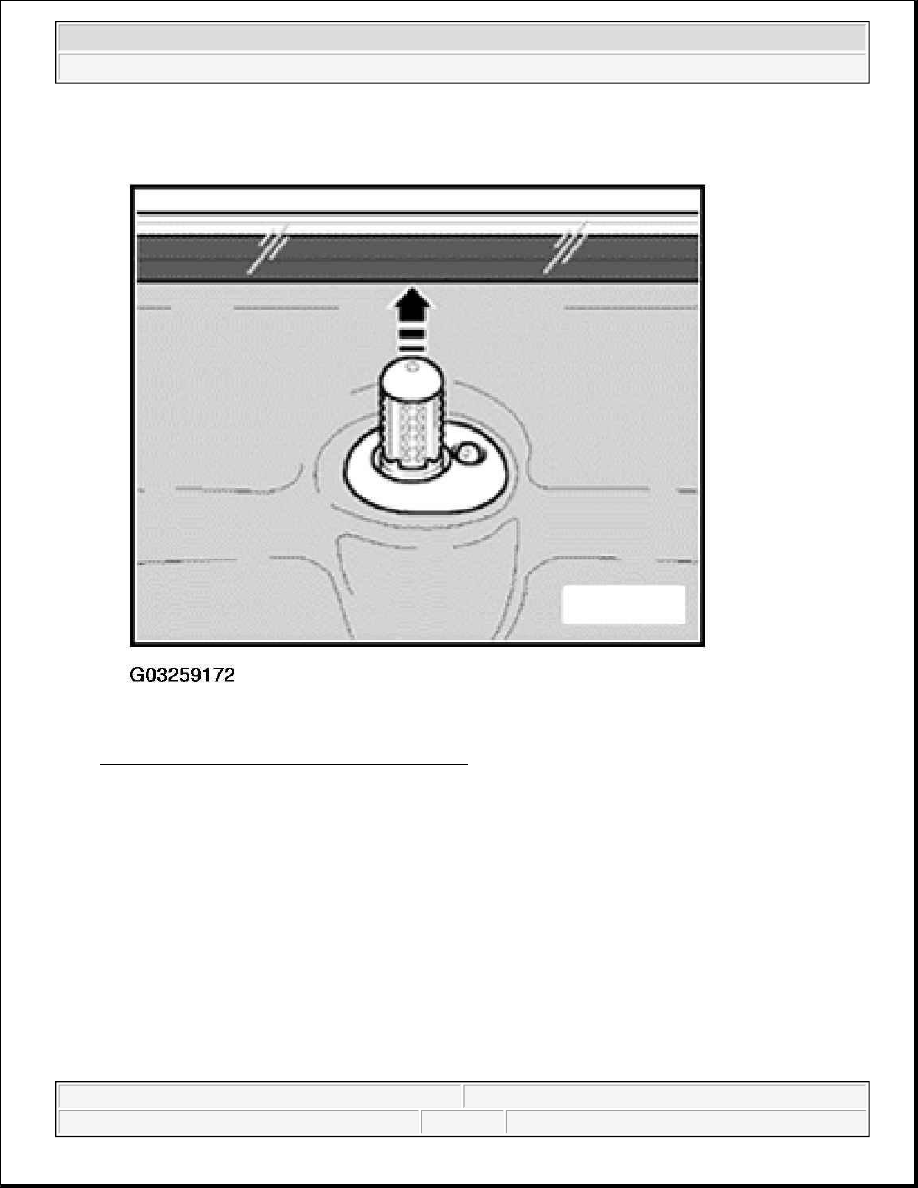

Fig. 25: Identifying Wheel Speed Sensor Wiring
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install pin connectors in connector housing.

z

Using installation tool from VAS 1978, push individual wire seals to stop.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



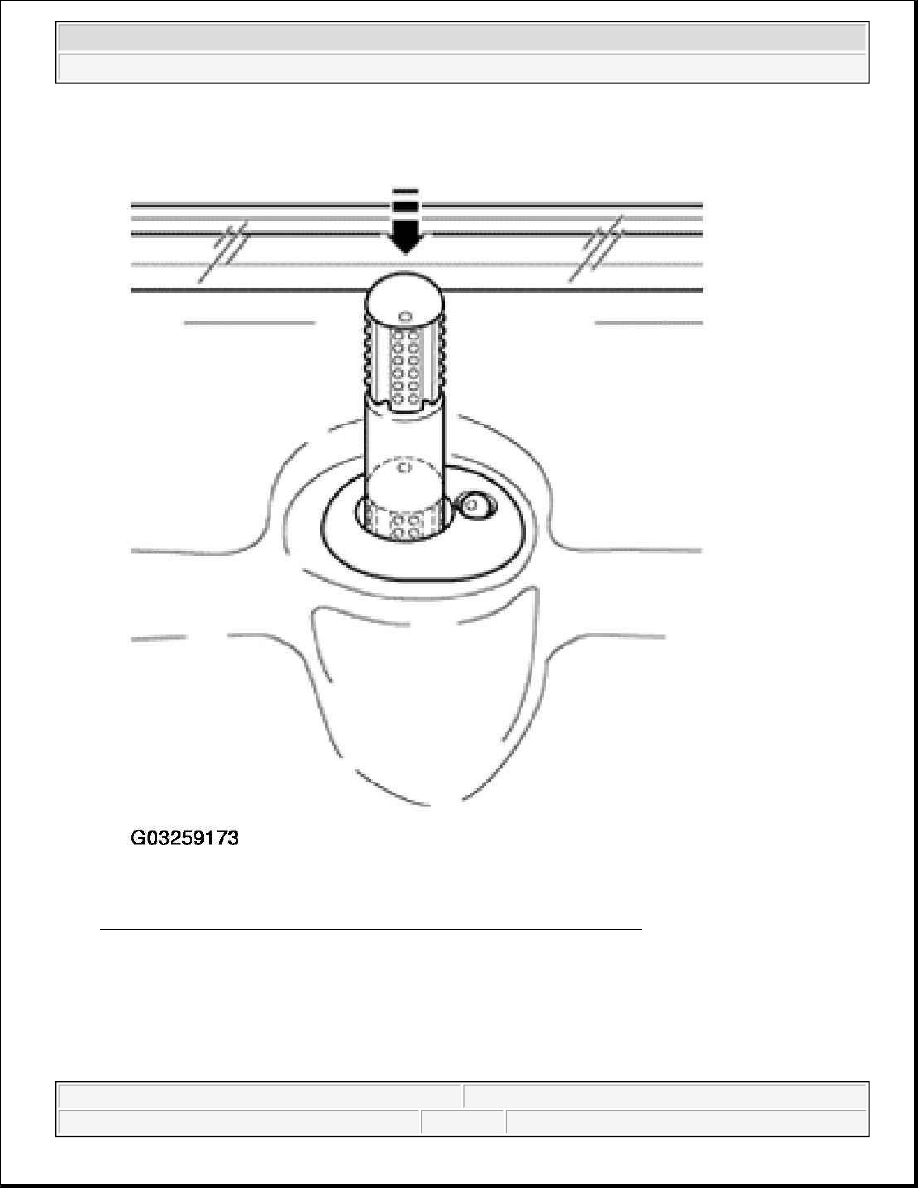

Fig. 26: Pushing Individual Wire Seals To Stop Using Installation Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Secure terminals by engaging purple latch and install connector cover of multi-pin connector.

ABS SYSTEM COMPONENTS ON REAR AXLE, REMOVING AND
INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle
