Fig. 54: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (3 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:

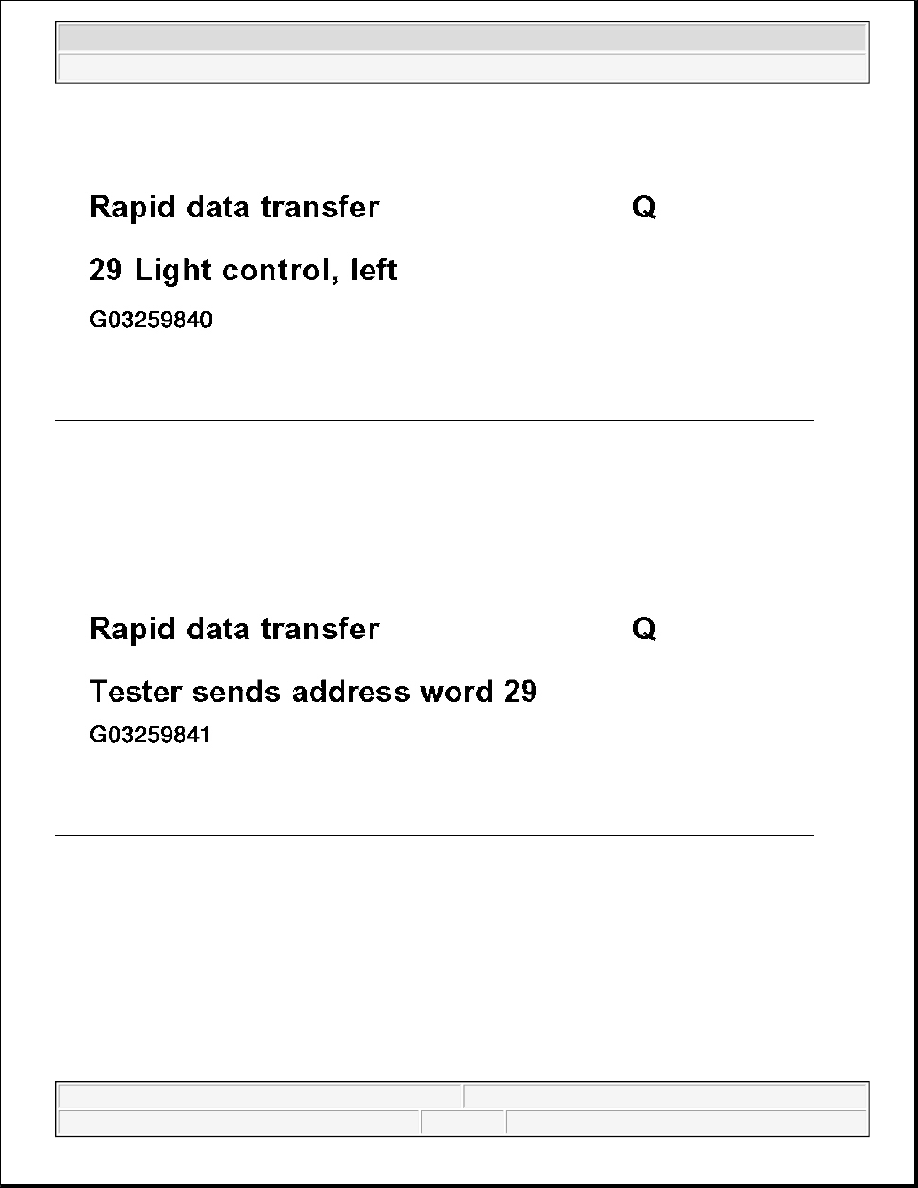

Fig. 55: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

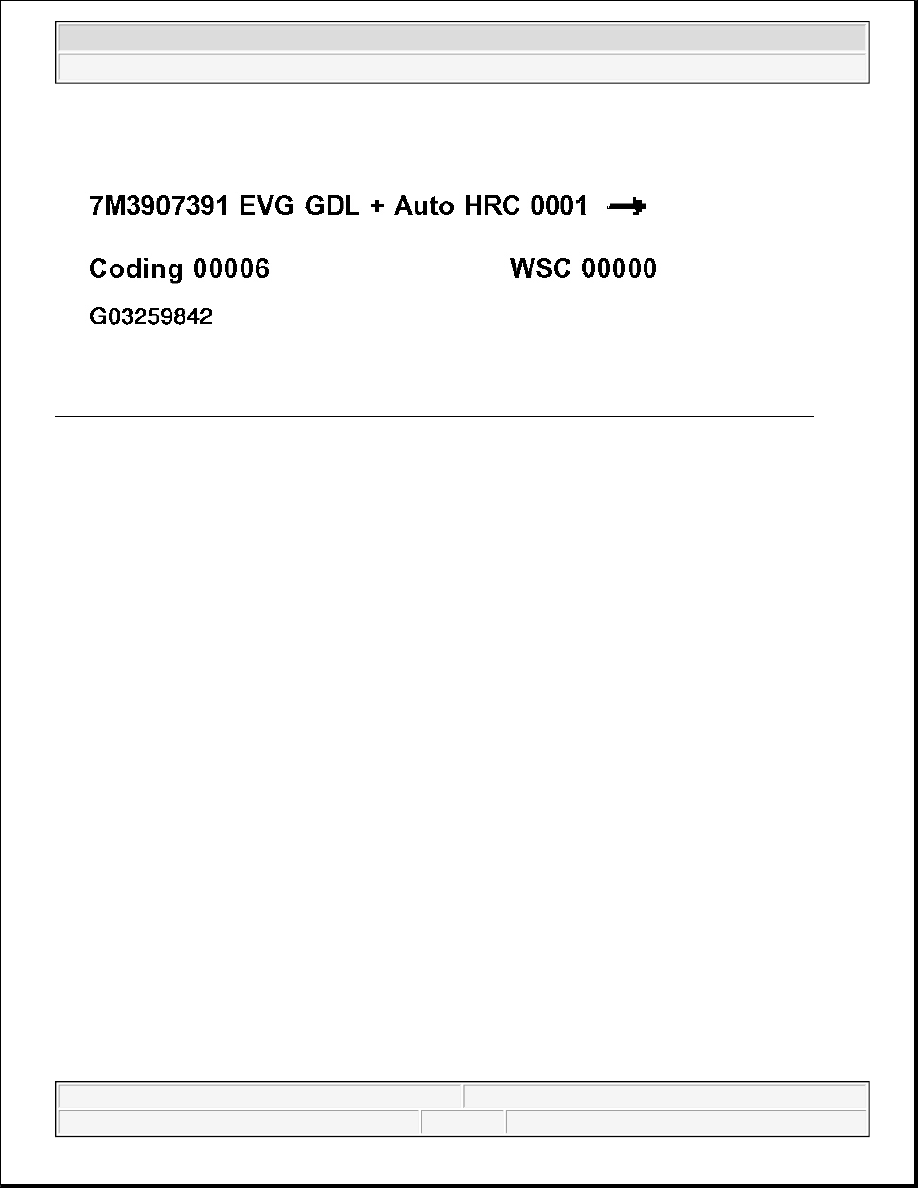

Fig. 56: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Upper line:

z

Part No. of control module (Part and version numbers illustrated here are examples only)

z

System designation (headlight range control)

z

Version number (Part and version numbers illustrated here are examples only)

Bottom line:

z

Coding number (Dependent on type of drive.)

z

Dealership number

z

Press --> key.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 57: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -8- to select "Read measuring value block" address word 08.

Indicated on display:

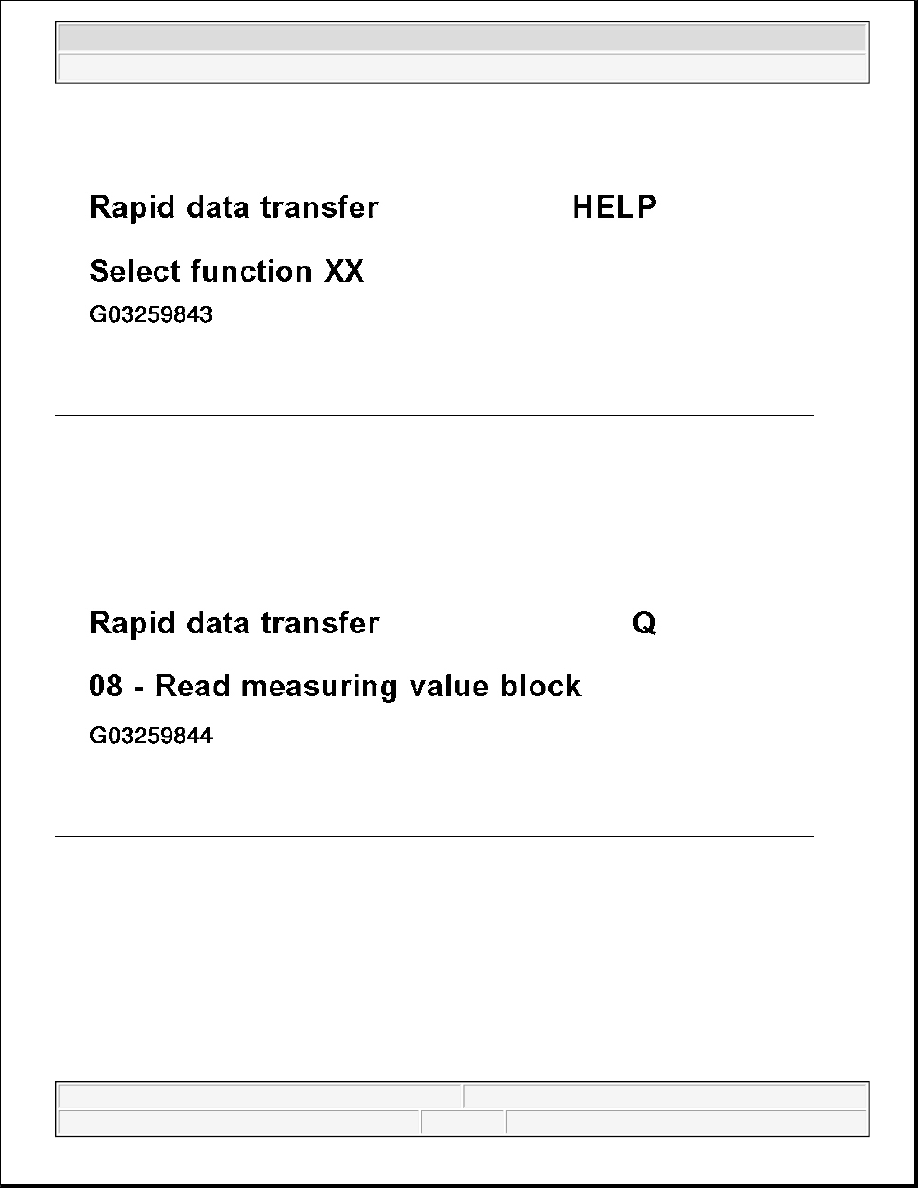

Fig. 58: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 59: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press key 0 twice and press key 2 once to select display group number 002.

z

Press -Q- button to confirm input.

Indicated on display:

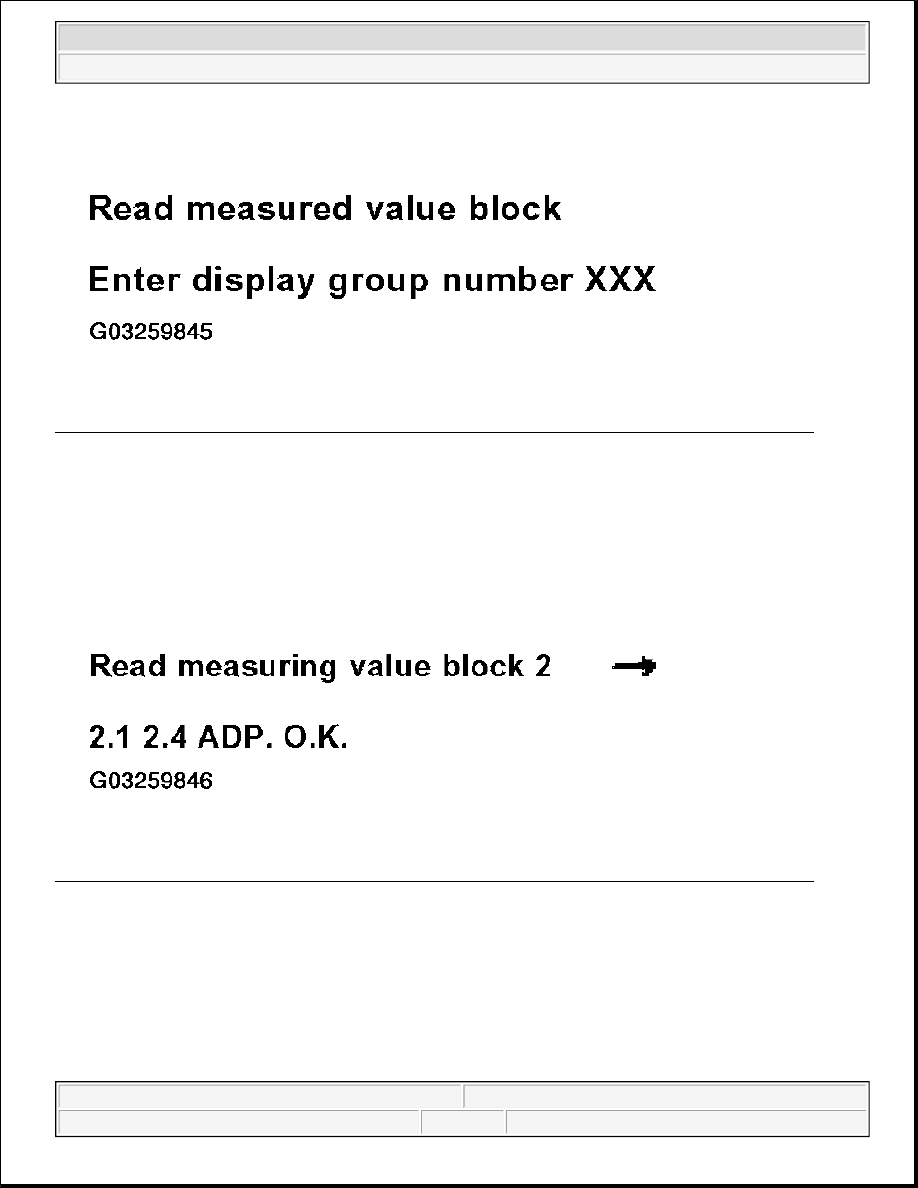

Fig. 60: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Specification for rear level control system sensor, shown in display zone 2,
must lie between 2.0 - 3.5 Volt.

NOTE:

If voltage is outside specified tolerances, then check for the following:

z

sensor is not loose in it's mounting.
