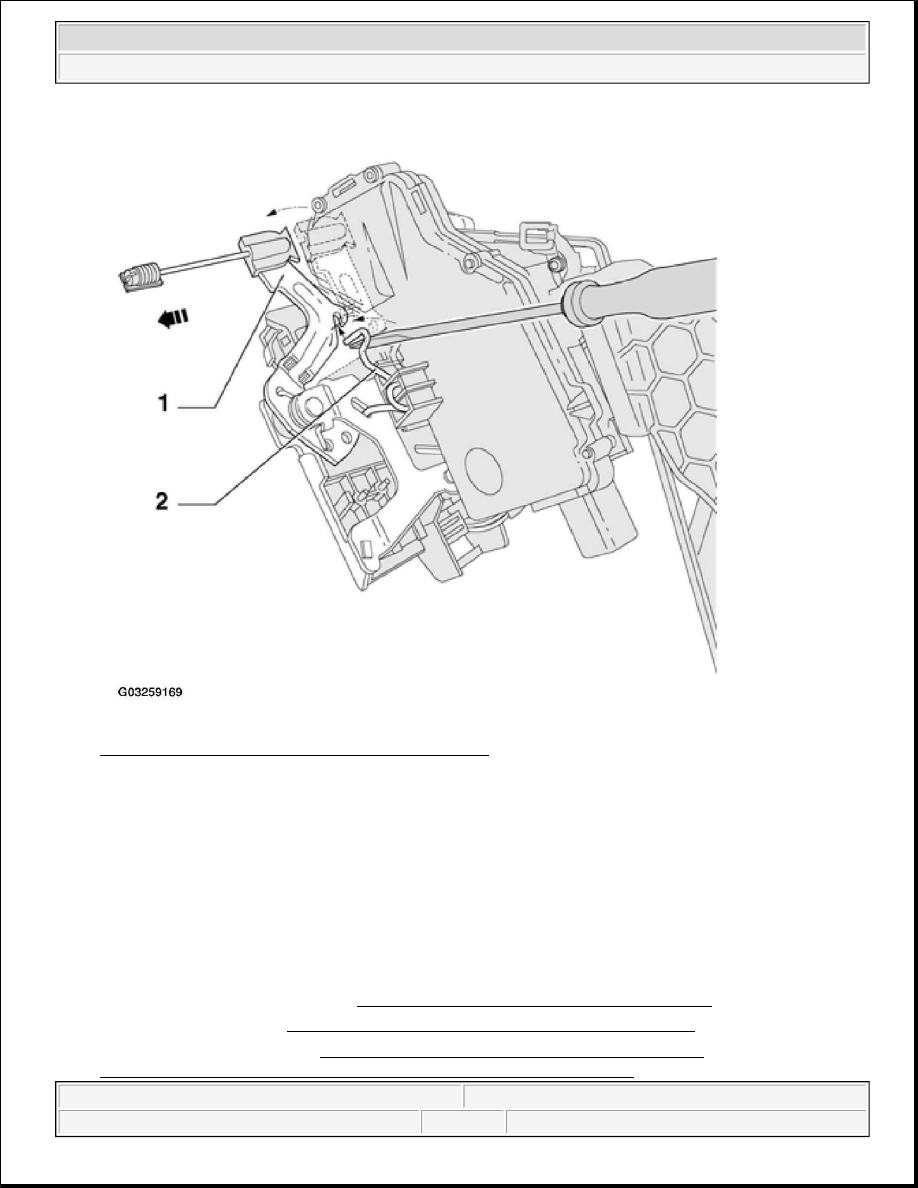

Fig. 53: Pulling Lock Lever In Direction Of Arrow
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install in reverse order of removal.

BEARING BRACKET, REMOVING AND INSTALLING

Removing

z

Remove lock cylinder housing, see LOCK CYLINDER HOUSING, REMOVING .

z

Remove door handle, see DOOR HANDLE, REMOVING AND INSTALLING .

z

Remove assembly carrier, see DOOR LOCK, REMOVING AND INSTALLING or Convertible, see
DOOR LOCK, REMOVING AND INSTALLING (CONVERTIBLE) .

NOTE:

Hooking operating lever in locks lock. Incorrectly attaching Bowden cable later
is thereby prevented (lock may move slightly).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Remove bolt/screw -1-, slide bearing bracket to rear in door and unhook retaining lug -2- in door cut-out.

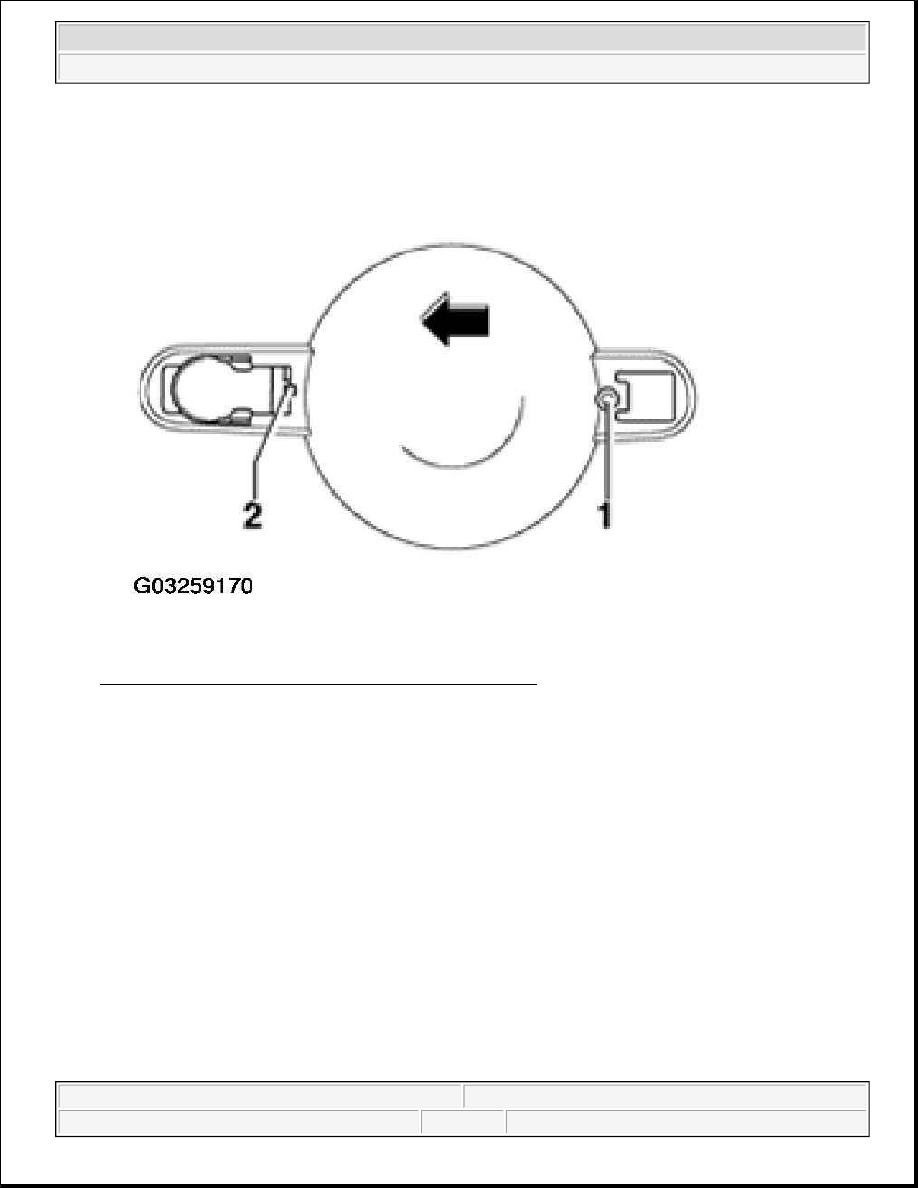

Fig. 54: Removing Hook Retaining Lug In Door Cut-Out
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Install in reverse order of removal.

z

Before inserting the bearing bracket make sure sprung lever -1- is in its correct installation position and
reinstate if necessary.

Sprung lever -1- must be pressed into bearing bracket, against spring pressure, and blocked in this
position by sliding locking device -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



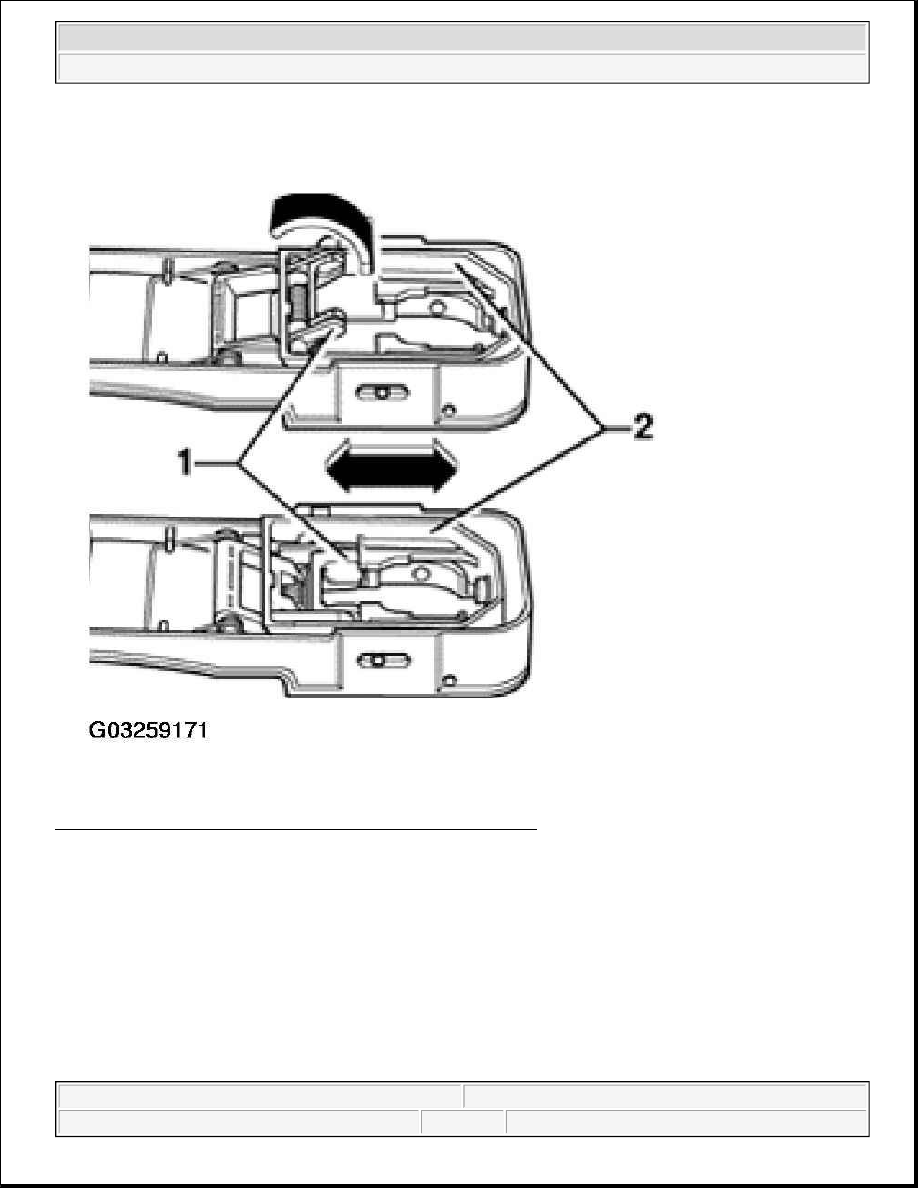

Fig. 55: Identifying Sprung Lever Correct Installation Position
Courtesy of VOLKSWAGEN OF AMERICA, INC.

LOCKING KNOB FOR RELEASE ROD, REMOVING AND INSTALLING

Removing right-hand door

z

Release locking knob by turning 180° counterclockwise.

NOTE:

z

Description for removing and installing locking knob must be adhered to.

z

Locking rods can unscrew from locks or damage mounting if procedures
are not observed.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Remove locking knob upward.

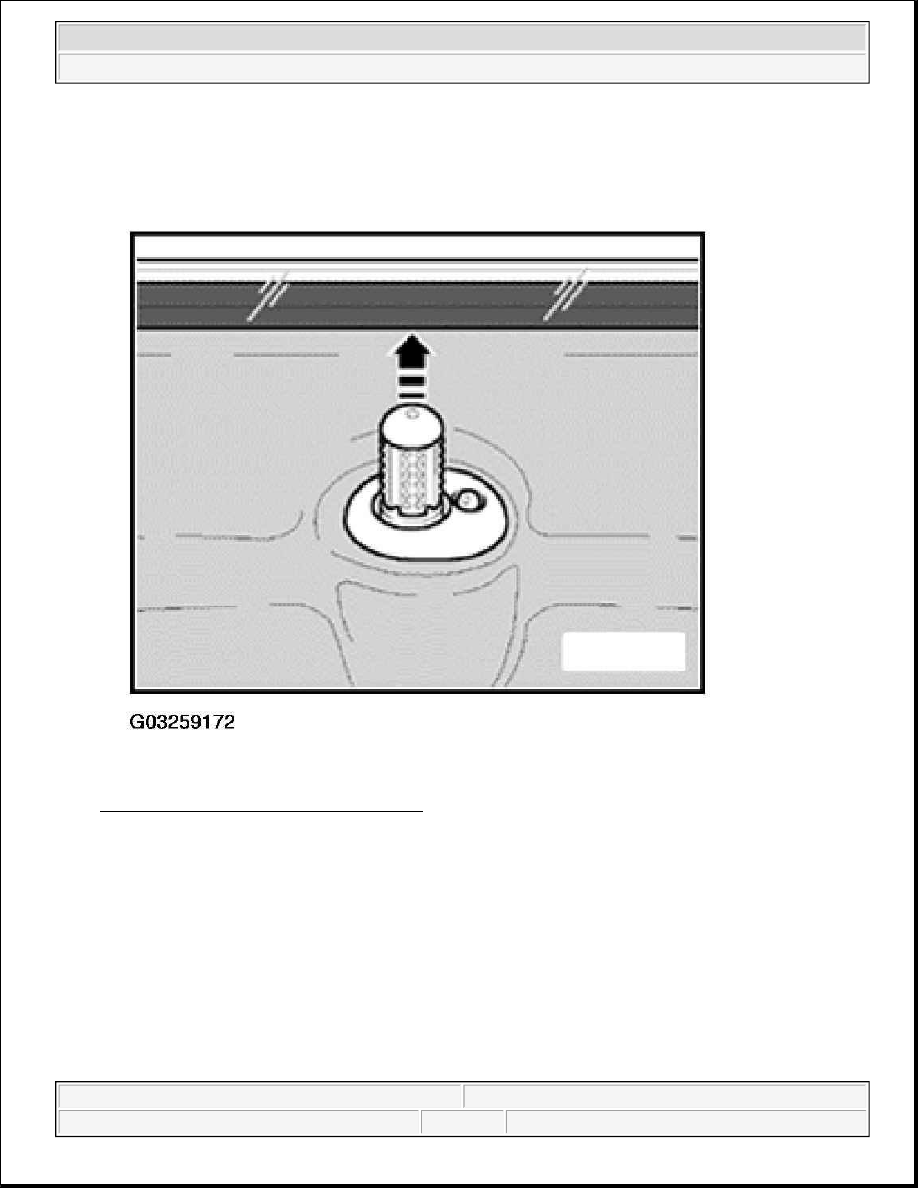

Fig. 56: Removing Locking Knob Upward
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing right-hand door

z

Install locking knob onto locking rod with mark (small dot) on top toward vehicle interior.

z

Press locking knob onto locking rod until fluted section is flush with height of door trim.

z

Then turn locking knob 180° counterclockwise.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
