Volkswagen New Beetle. Manual - part 487

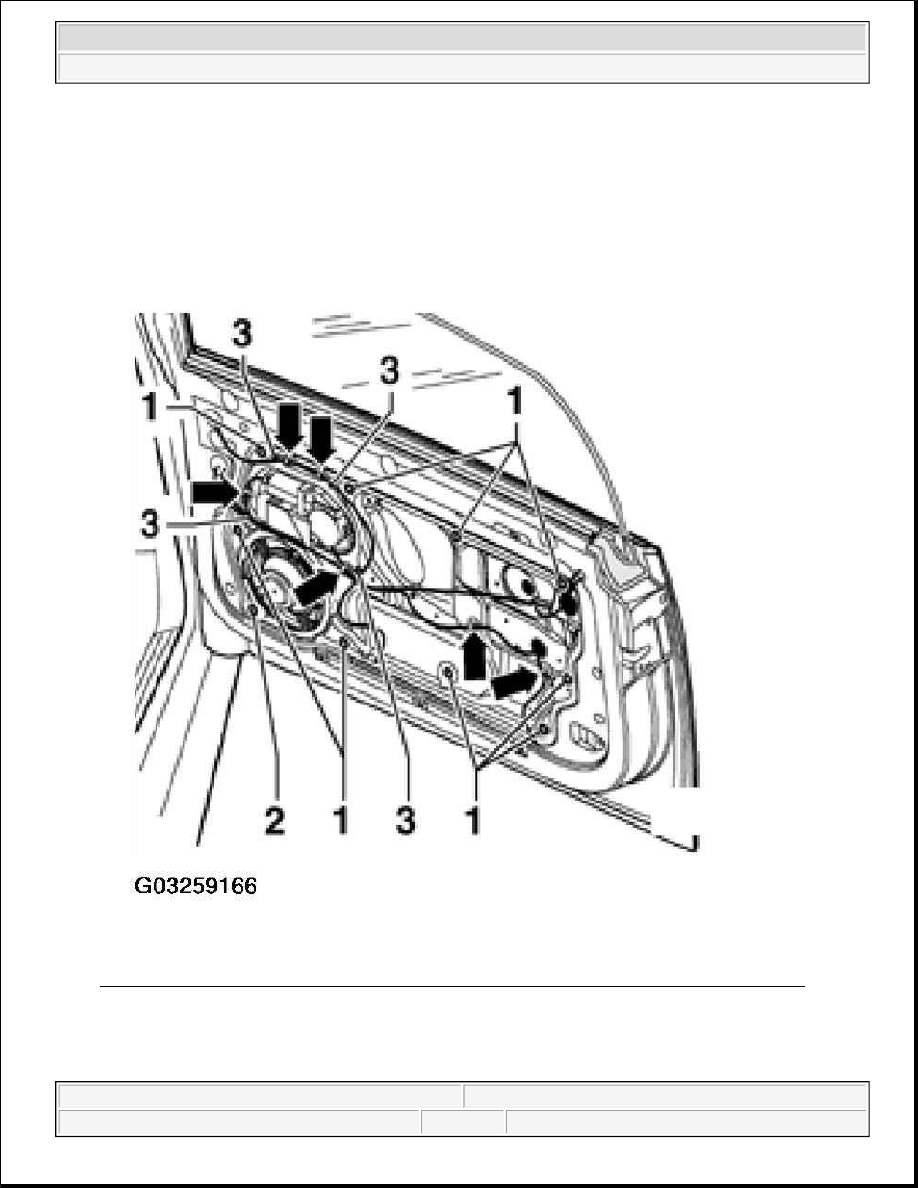

Fig. 49: Removing Door Lock Mechanism Bolts/Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Disconnect all connections and wiring harness clips -arrows-.

z

Remove bolts/screws -1-, -3- and nut -2-. Pull top of assembly carrier off door, lift and remove from door
toward hinges.

z

Turn mounting plate and remove connector from door lock.

Fig. 50: Disconnecting All Connections And Wiring Harness Clips From Door (Convertible)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drive out clips -1- with a drift.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



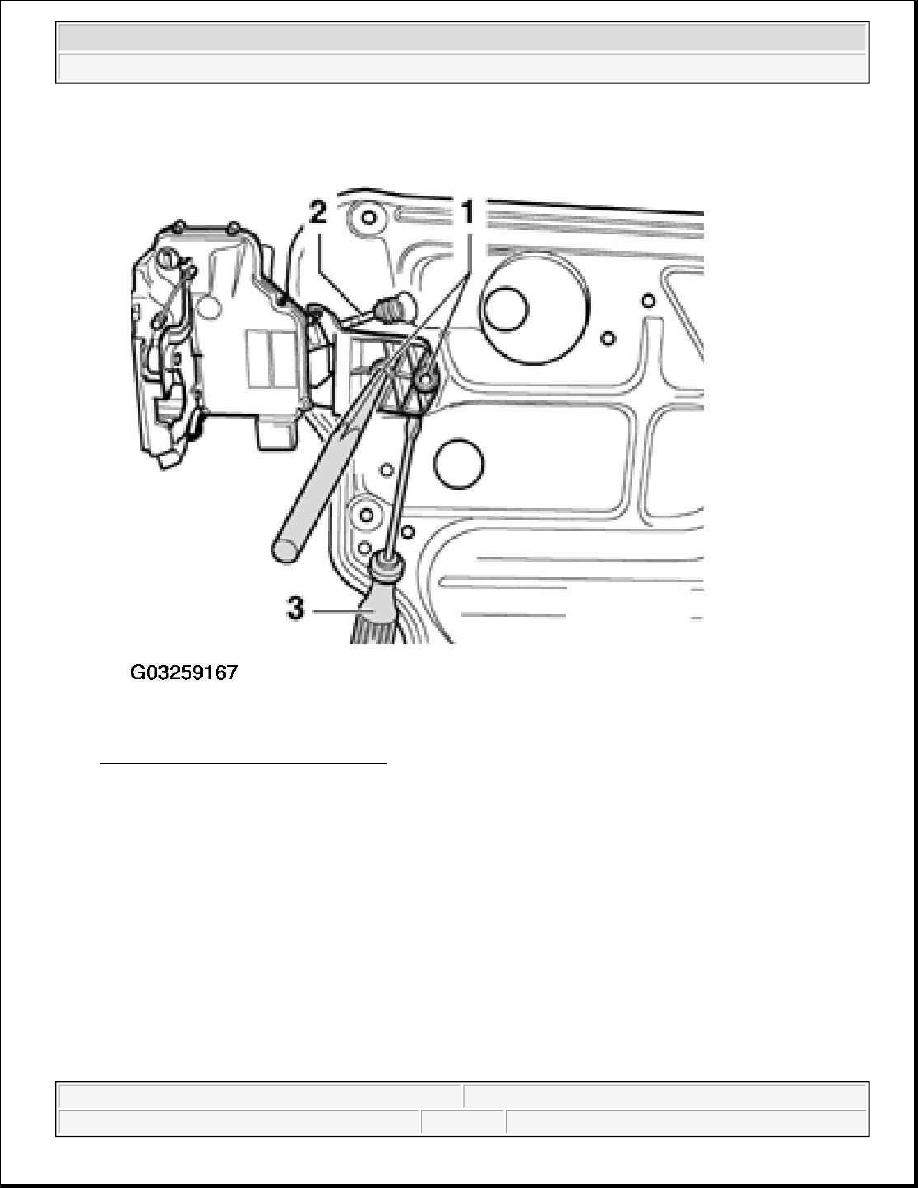

Fig. 51: Driving Out Clips With Drift
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pry door lock with retaining bracket off assembly carrier using a screwdriver -3-.

z

Pull cable -2- out of assembly carrier.

z

Unclip Cable -1-.

z

Turn cable nipple through 90° and take out from eye.

NOTE:

Retaining bracket is not part of scope of delivery for door lock. It is
secured to door lock by a bolt/screw and a pop rivet.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

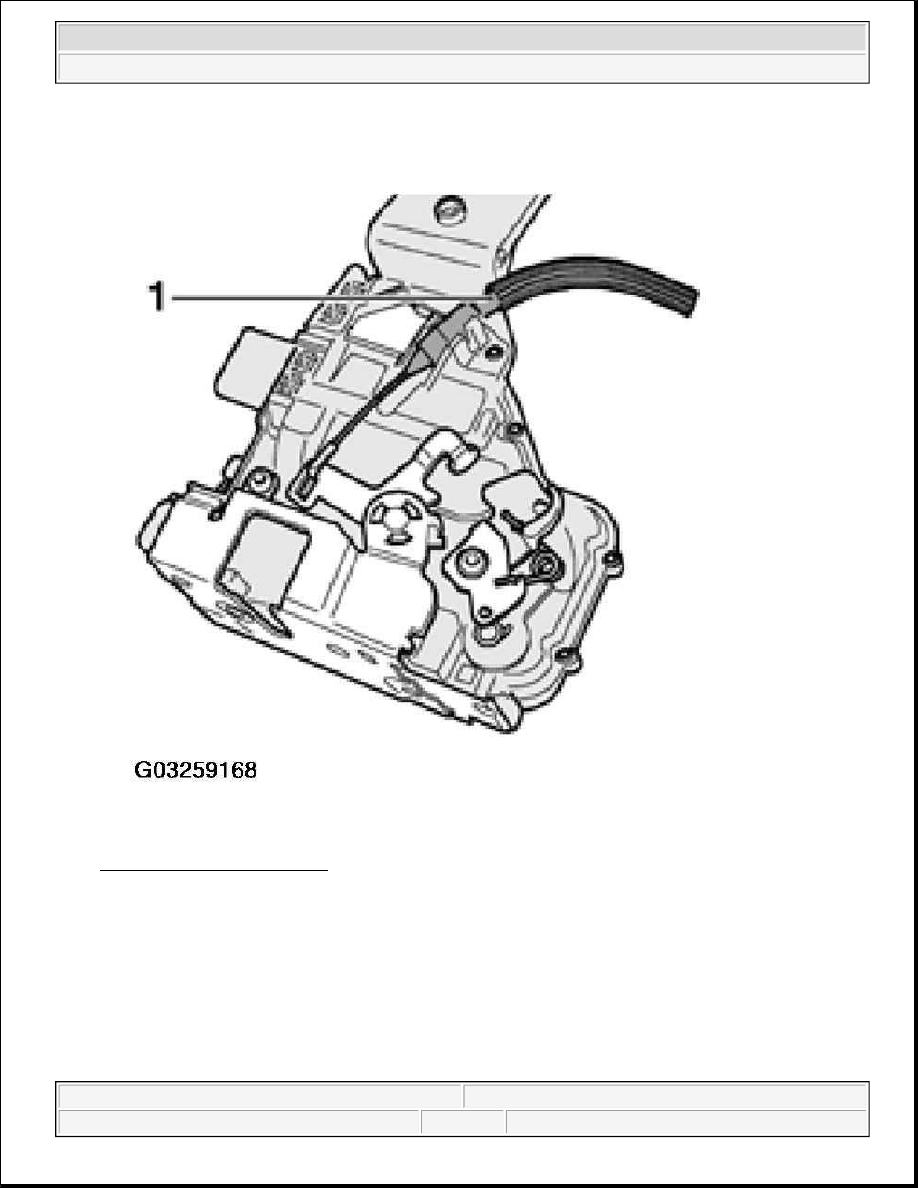

Fig. 52: Removing Cable Clip
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Pull lock lever -1- in direction of -arrow-.

z

Tension spring -2- which is secured on door lock, in direction of -arrow- with a screwdriver and hook
locking lever into spring.
