Volkswagen New Beetle. Manual - part 475

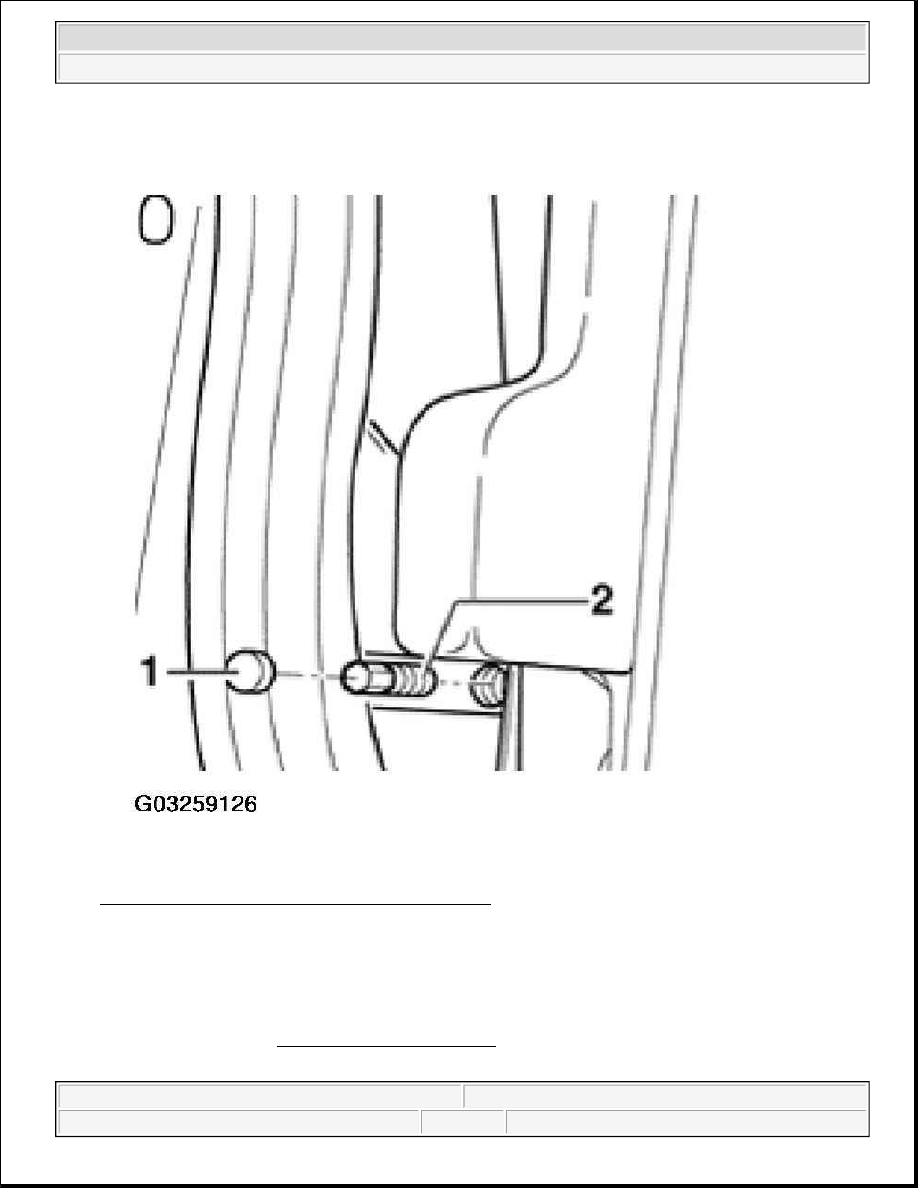

Fig. 10: Removing Grub Screw From Lower Hinge
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If access to the grub screw through the gap between door and A-pillar is not possible, or is extremely
difficult, then proceed as follows:

z

Release rear half of front wheel housing in area of A-pillar so that access to fender securing points along
A-pillar is possible. See WHEEL HOUSING LINER .

z

Remove screws -1- and nuts -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

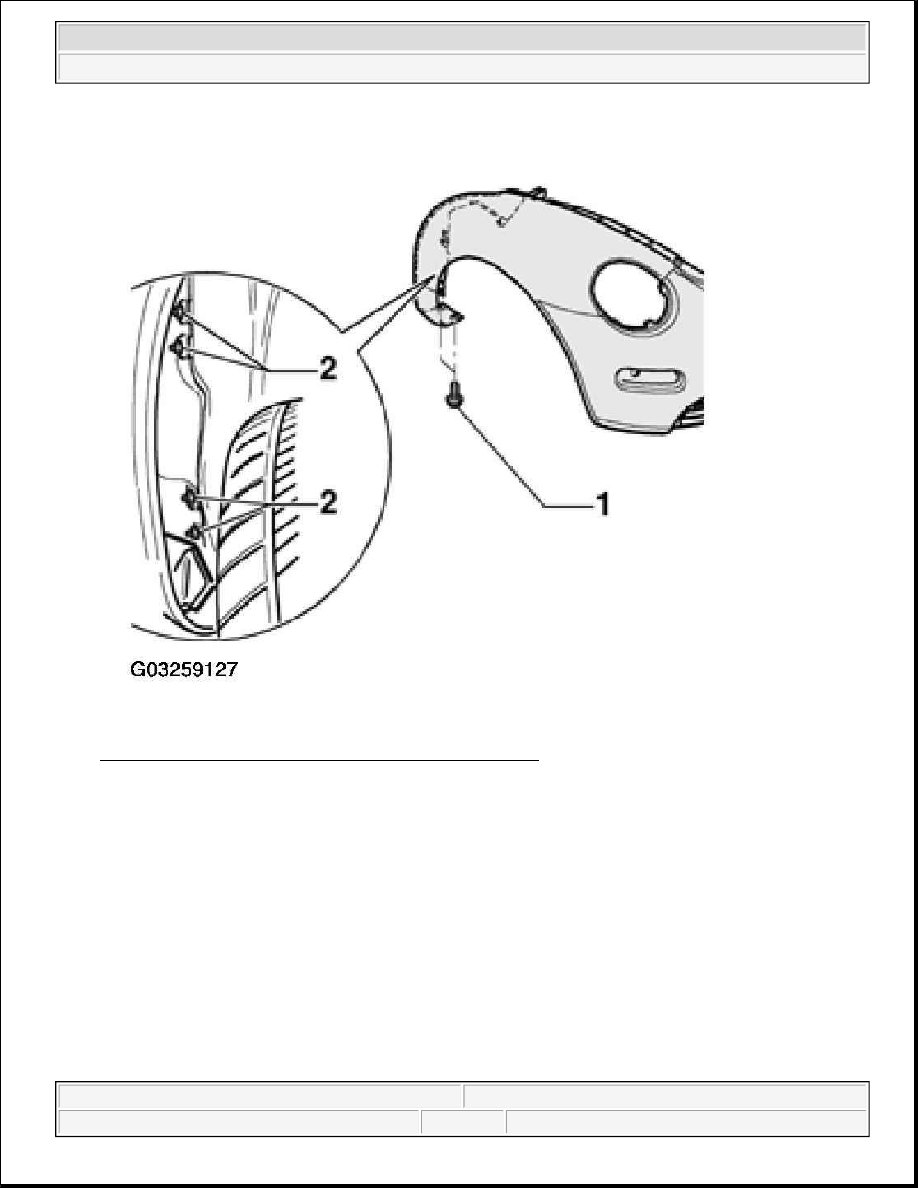

Fig. 11: Removing Front Wheel Fender Screws And Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Carefully pull fender -1- off A-pillar -arrow- and block fender (e. g. with a plastic wedge).

z

Pull cover cap off grub screw if necessary and remove grub screw -2- from lower hinge.

z

Torque setting: 13 N.m.

z

Remove block from fender after removing grub screw.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

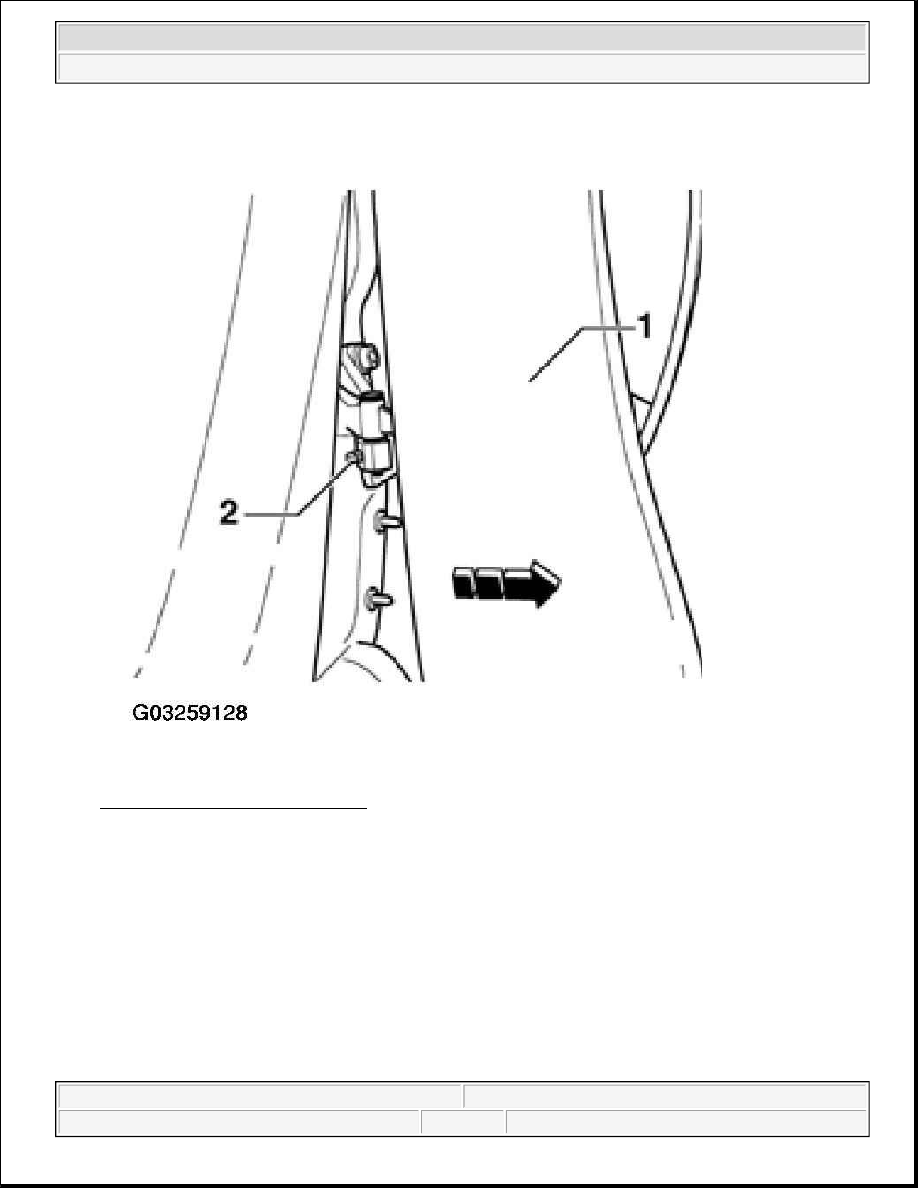

Fig. 12: Removing Fender A-Pillar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Models Up To 05.00

z

Remove bolt -1- from upper hinge.

z

Torque setting: 27 N.m.

z

Lift door out off hinge angled brackets upward.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

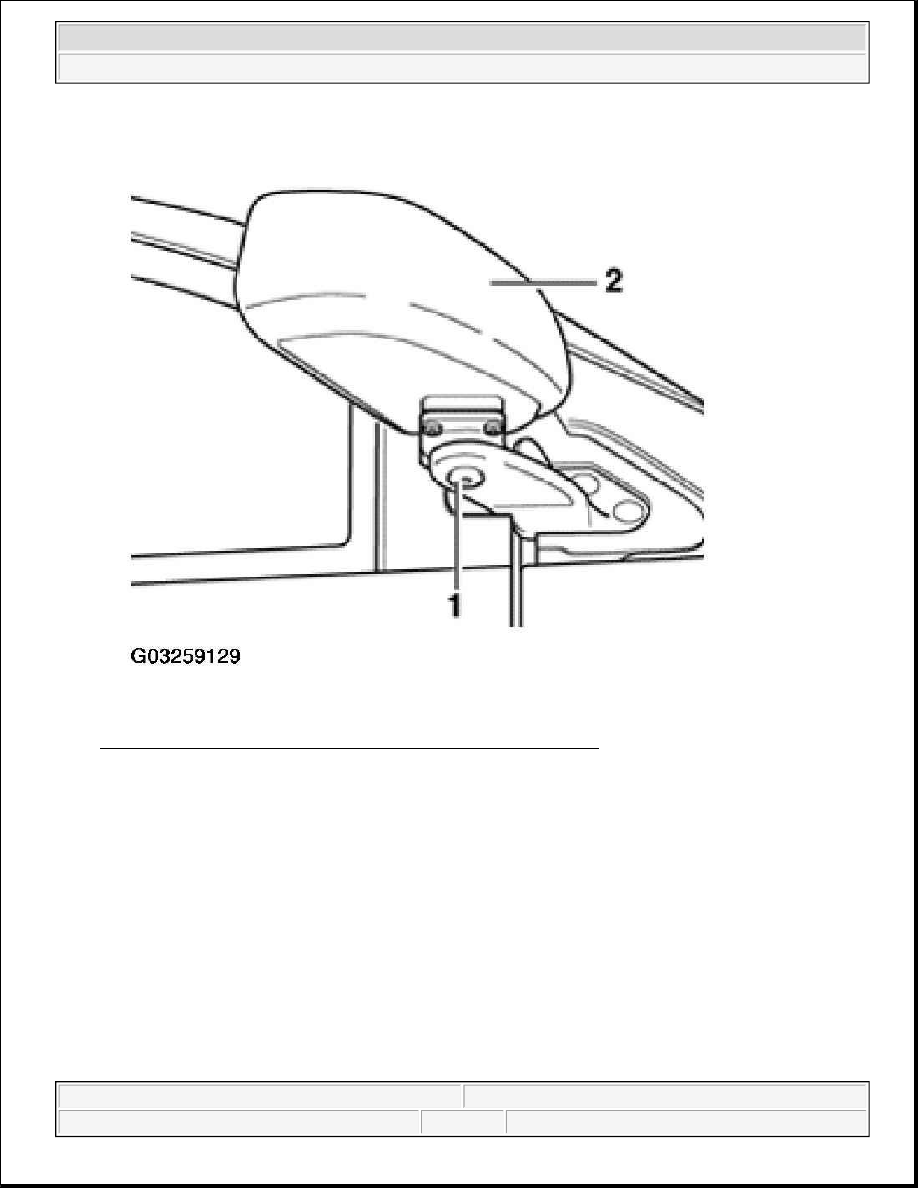

Fig. 13: Removing Bolt From Upper Hinge (Models Up To 05.00)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Models From 06.00 And Up

z

Remove bolt -1- from upper hinge.

z

Torque setting: 27 N.m

z

Lift door out off hinge angled brackets upward.

NOTE:

The exterior mirror -2- is removed from vehicle with door.
