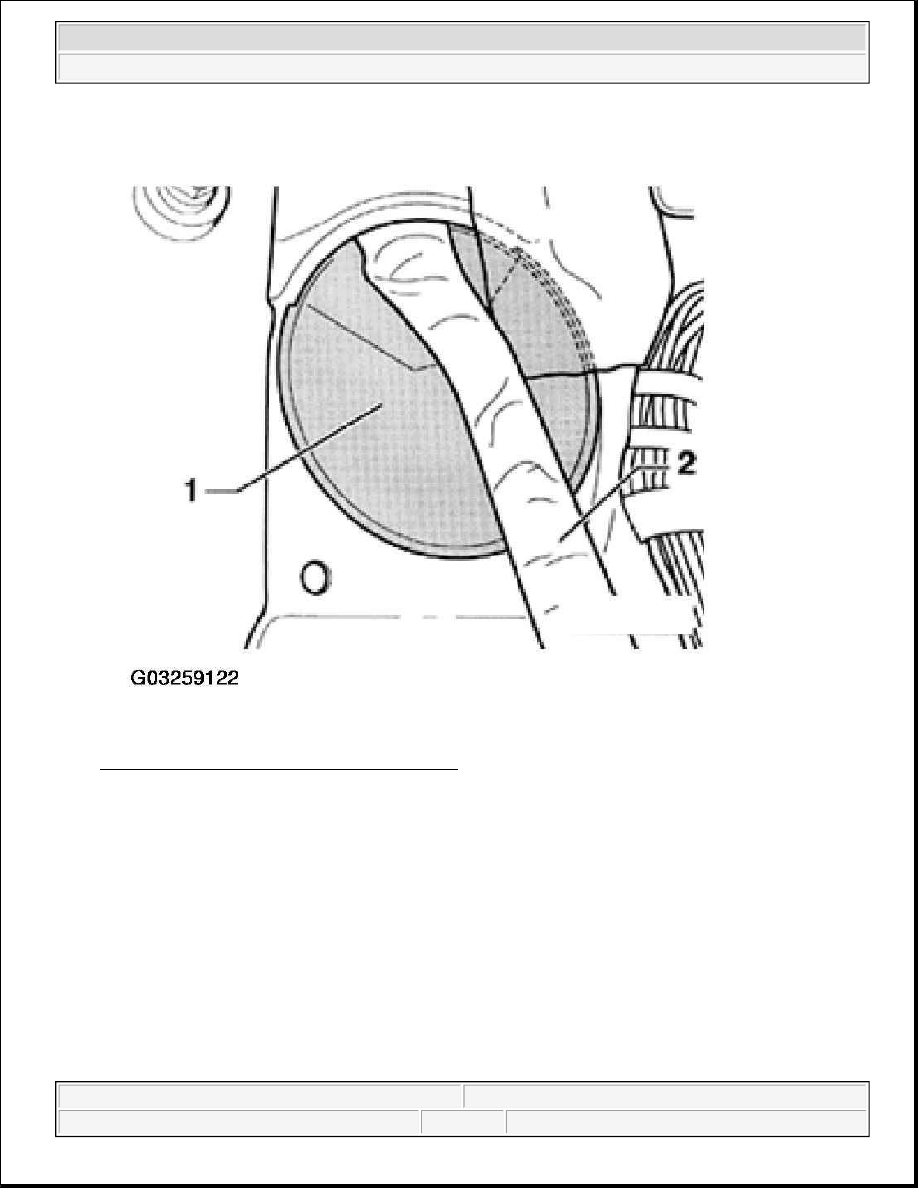

Fig. 6: Removing Cover From Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull wiring harness out of A-pillar at boot -1- between door and A-pillar.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

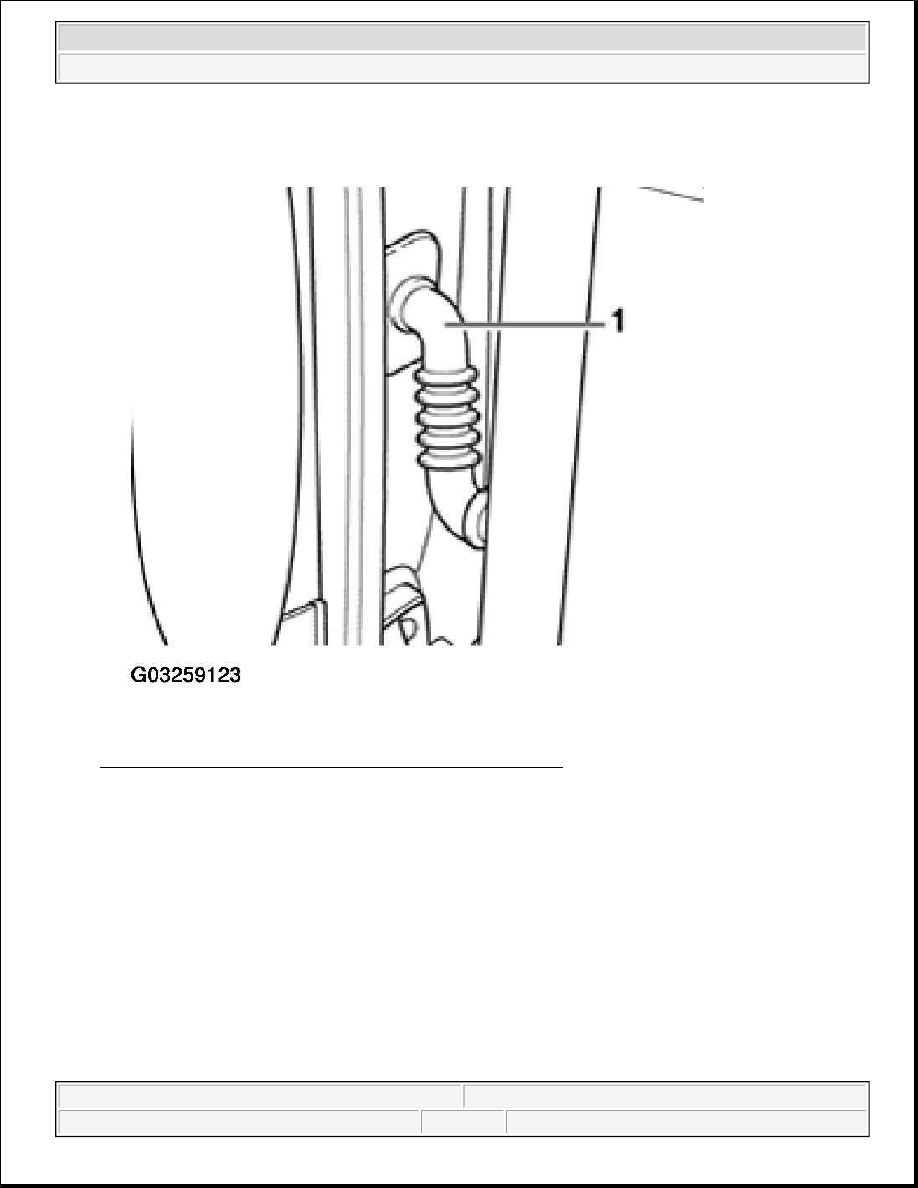

Fig. 7: Identifying A-Pillar Boot Between Door And A-Pillar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove door arrester -2- pin -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

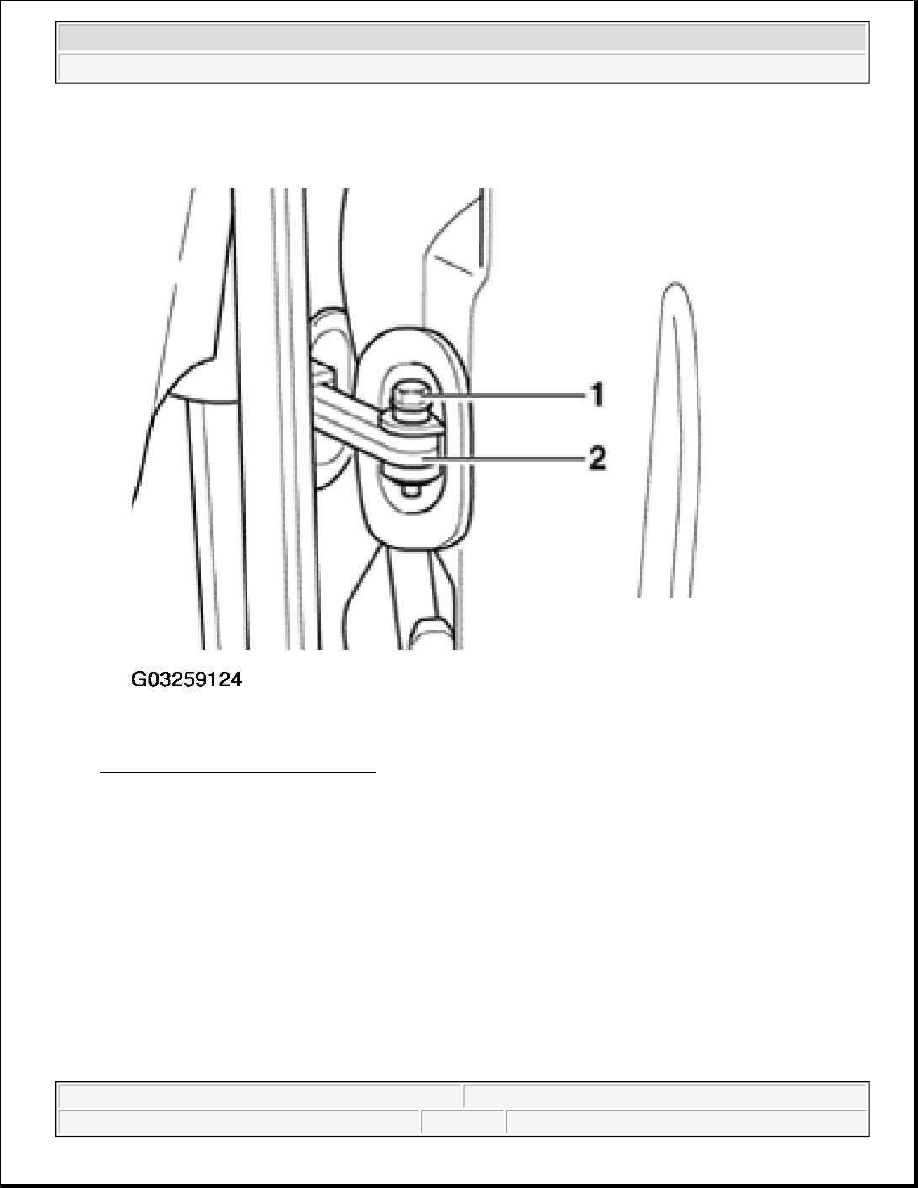

Fig. 8: Removing Door Arrester Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

To prevent damage to paint work, mask lower edge of fender -2- in area of lower hinge -3- with textile
reinforced adhesive tape -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

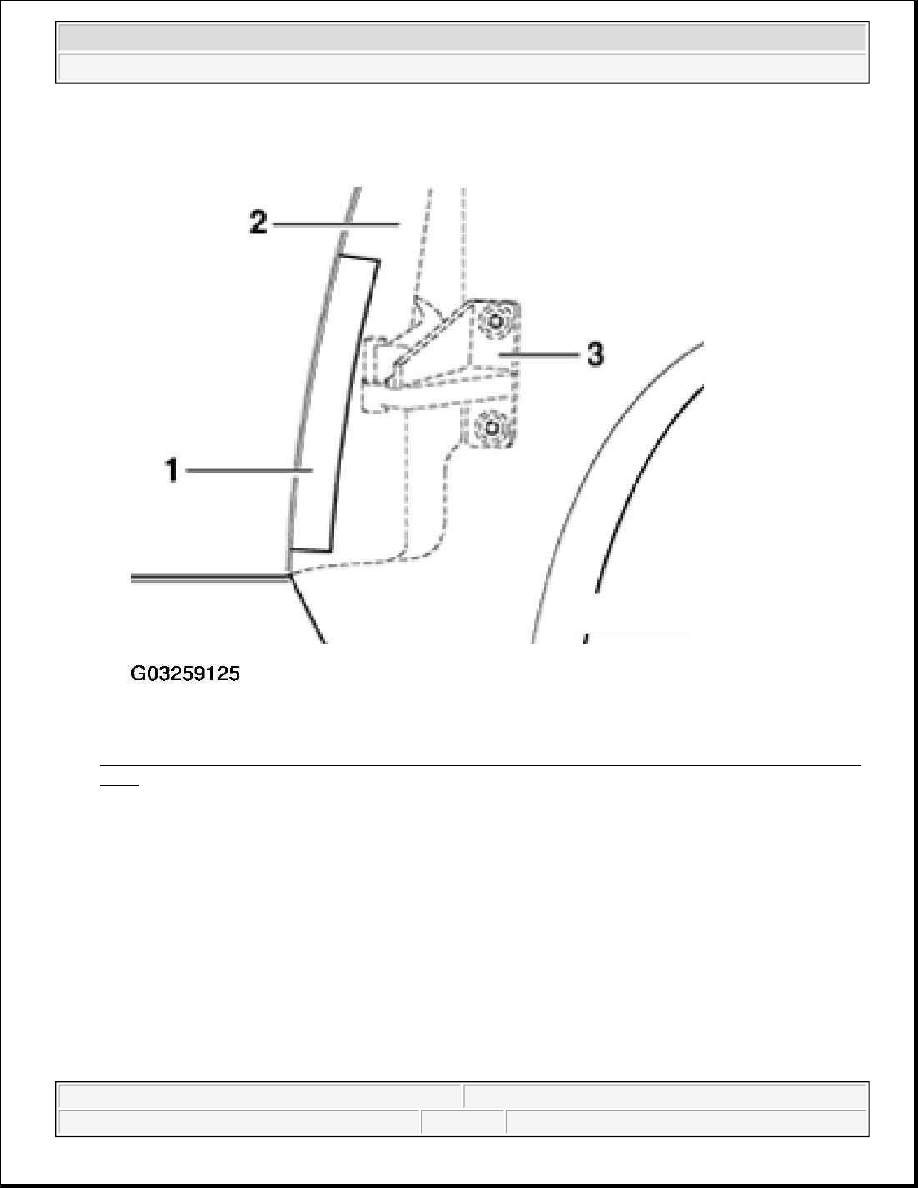

Fig. 9: Masking Lower Edge Of Fender In Area Of Lower Hinge With Textile Reinforced Adhesive
Tape
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull cover cap -1- off grub screw on lower hinge.

z

Remove grub screw -2- on lower hinge.

z

Torque setting: 13 N.m.
