END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function 06 "End Output".

Indicated on display

Fig. 28: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing (5 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

If this appears on the display, the test sequence is faulty.

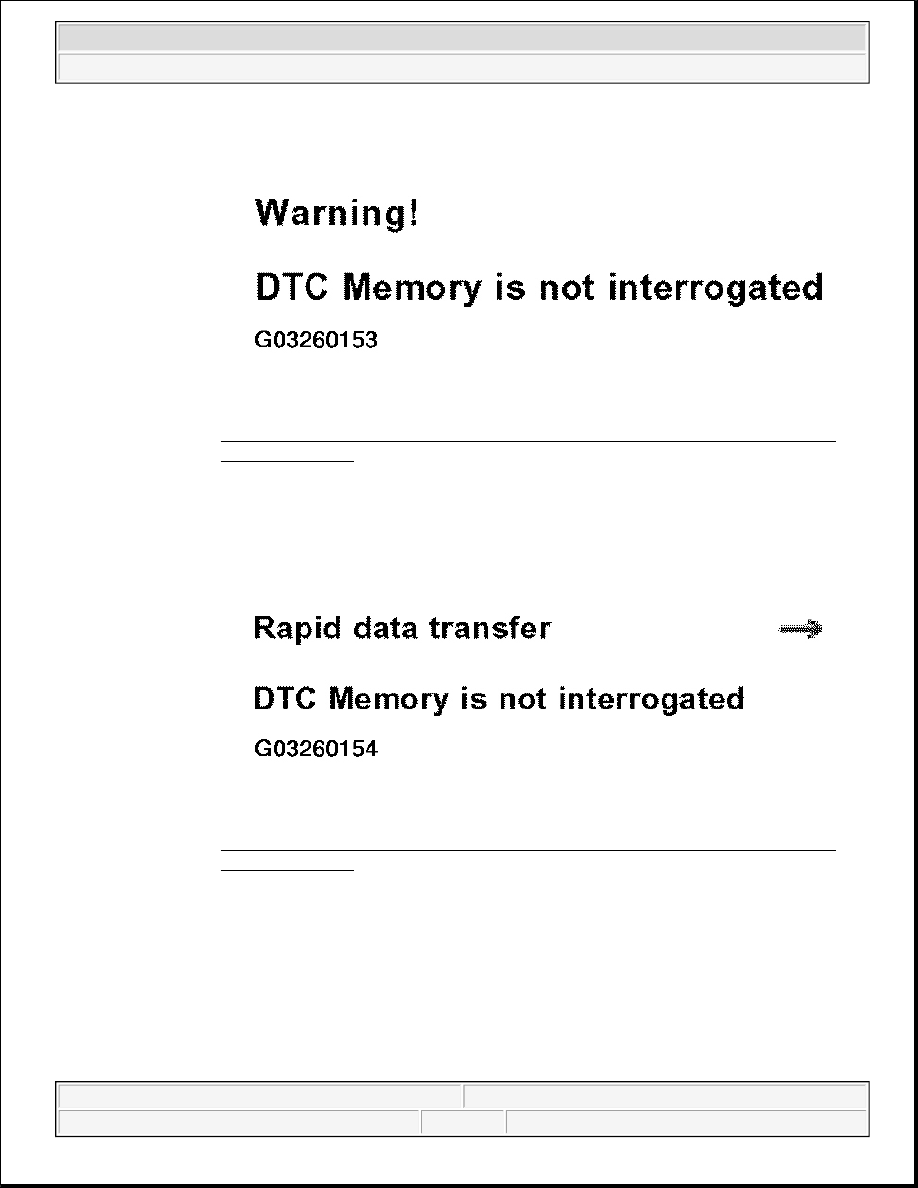

Fig. 29: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing (6 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Follow the test sequence exactly: First check DTC memory, if necessary
repair malfunctions, then erase DTC memory.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

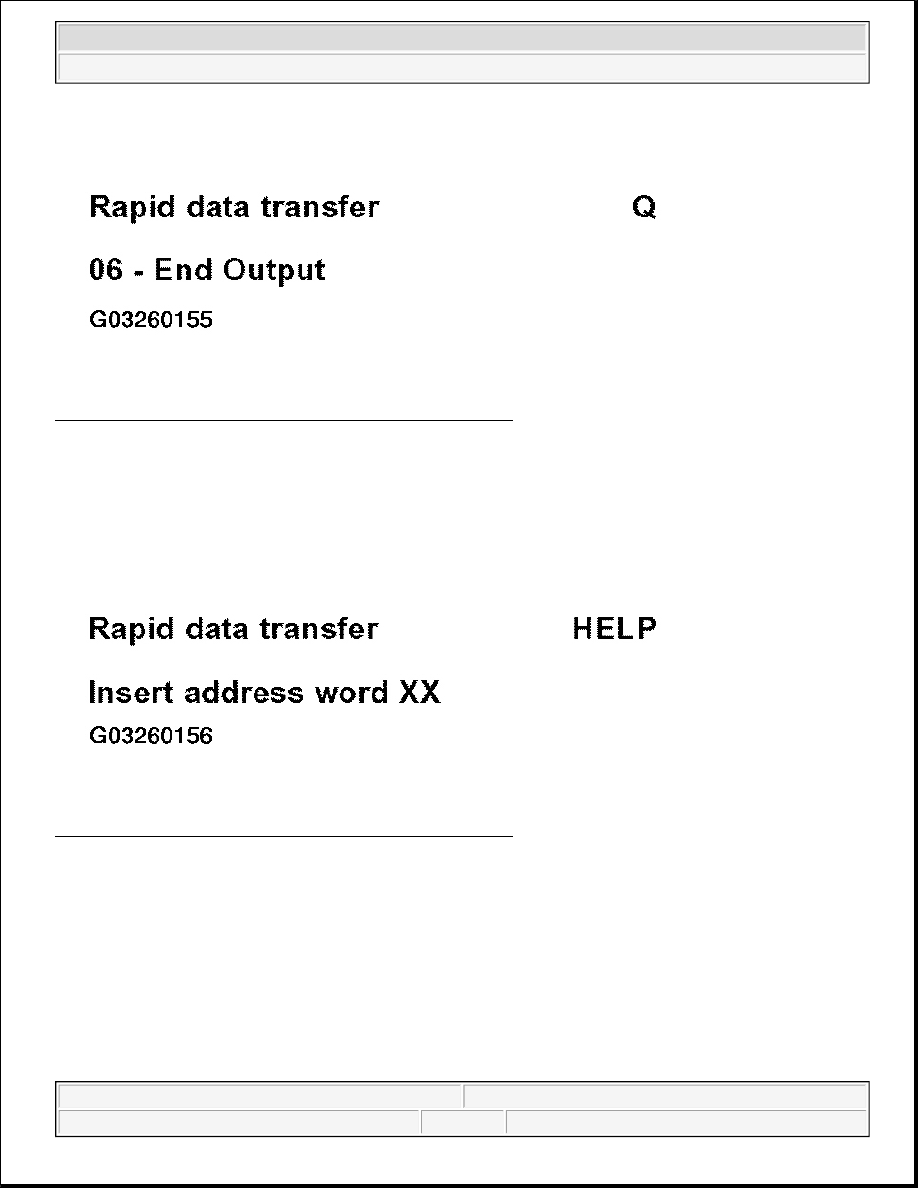

Fig. 30: VAG 1551 Scan Tool Display - End Output (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input

Indicated on display

Fig. 31: VAG 1551 Scan Tool Display - End Output (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Switch ignition off.

z

Disconnect VAG1551 scan tool.

CODE CONTROL MODULE (FUNCTION 07)

By using the code control module function the radio can be coded as follows:

z

VAG1551 scan tool connected ("Radio" address word 56); press --> button to advance program sequence



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Coding

z

Press buttons -0- and -7- to select function 07 "Code Control Module"..

z

Press -Q- button to confirm input.

z

Indicated on display

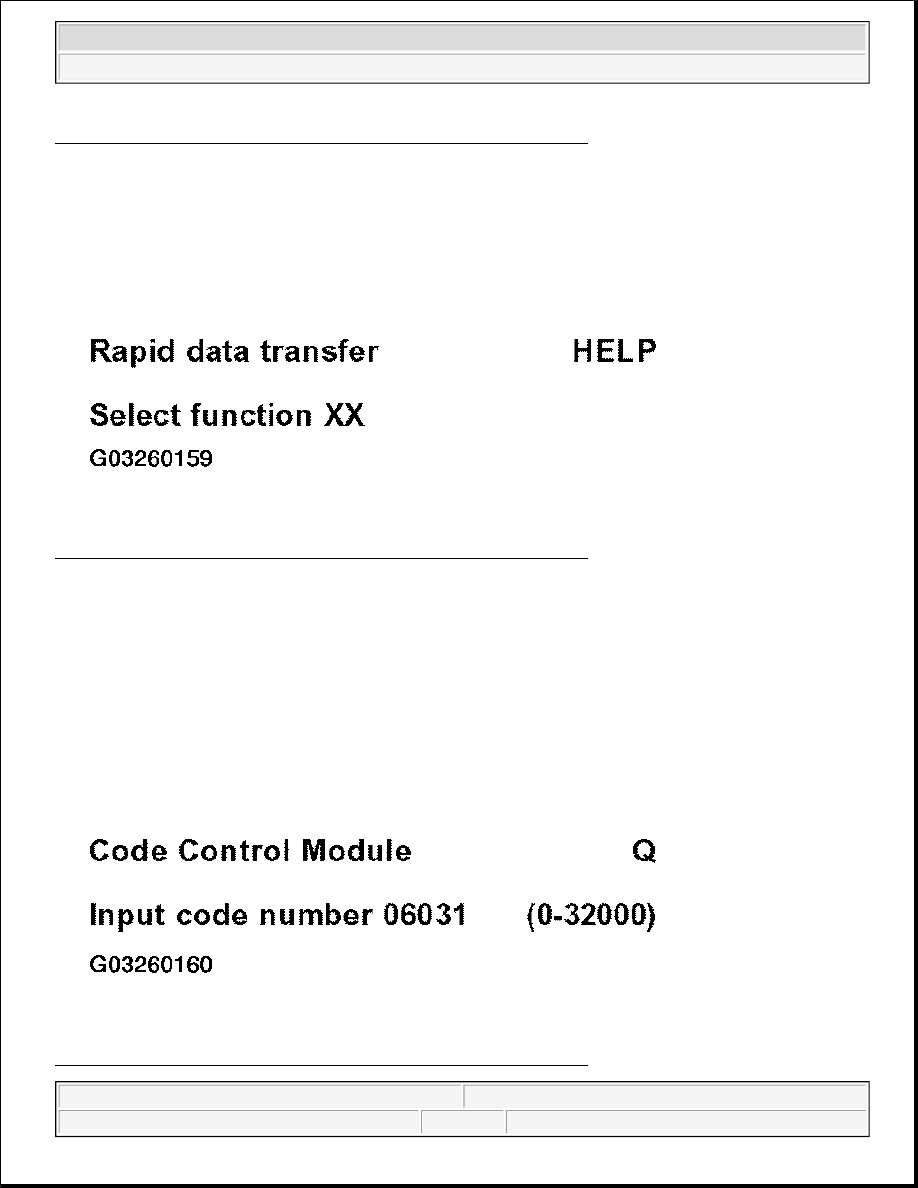

Fig. 32: VAG 1551 Scan Tool Display - Code Control Module (1 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Radio coding (non-Monsoon)

Monsoon coding, See RADIO CODING (MONSOON)

z

06401- for vehicles without CD-changer (if CD-changer is installed later, radio code must be changed
accordingly)

z

06403- for vehicles with CD-changer

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

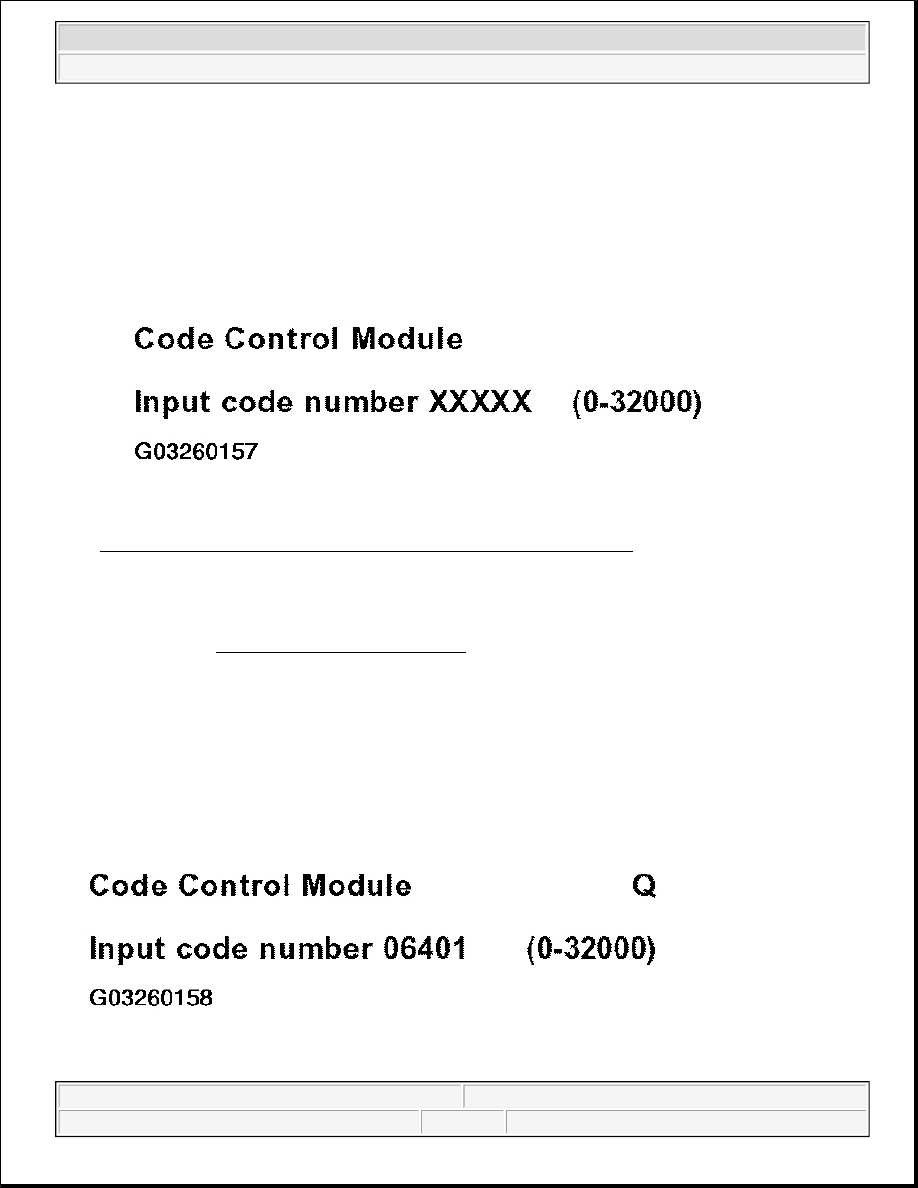

Fig. 33: VAG 1551 Scan Tool Display - Code Control Module (2 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 34: VAG 1551 Scan Tool Display - Code Control Module (3 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Radio coding (Monsoon)

z

06031- for New Beetle USA, no passive loudspeakers, Monsoon 2-door, active antenna and no CD
changer

z

06033- for New Beetle USA, no passive loudspeakers, Monsoon 2-door, active antenna and CD changer

Indicated on display

Fig. 35: VAG 1551 Scan Tool Display - Code Control Module (4 Of 7)
