Fig. 21: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (6 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -6- to select function 06 "End Output".

Indicated on display

Fig. 22: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (7 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

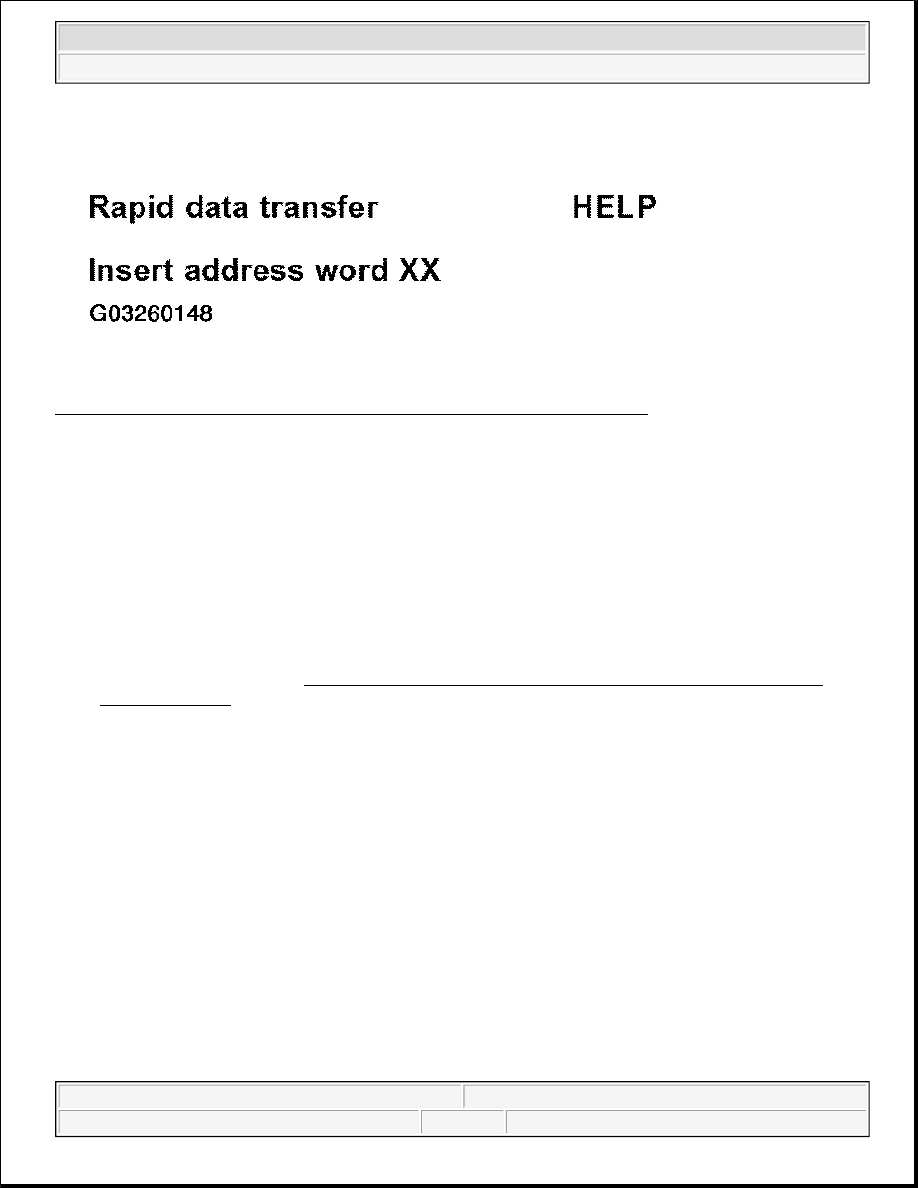

Fig. 23: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (8 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Scan tool returns to start of program sequence.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

Requirements

z

DTC memory checked, See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02)

z

All malfunctions repaired

(DTC) Memory, erasing (function 05)

After DTC memory has been successfully checked:

Indicated on display

NOTE:

After erasing the DTC memory its contents will automatically be indicated. If the
DTC memory cannot be erased, check DTC memory again and repair
malfunctions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

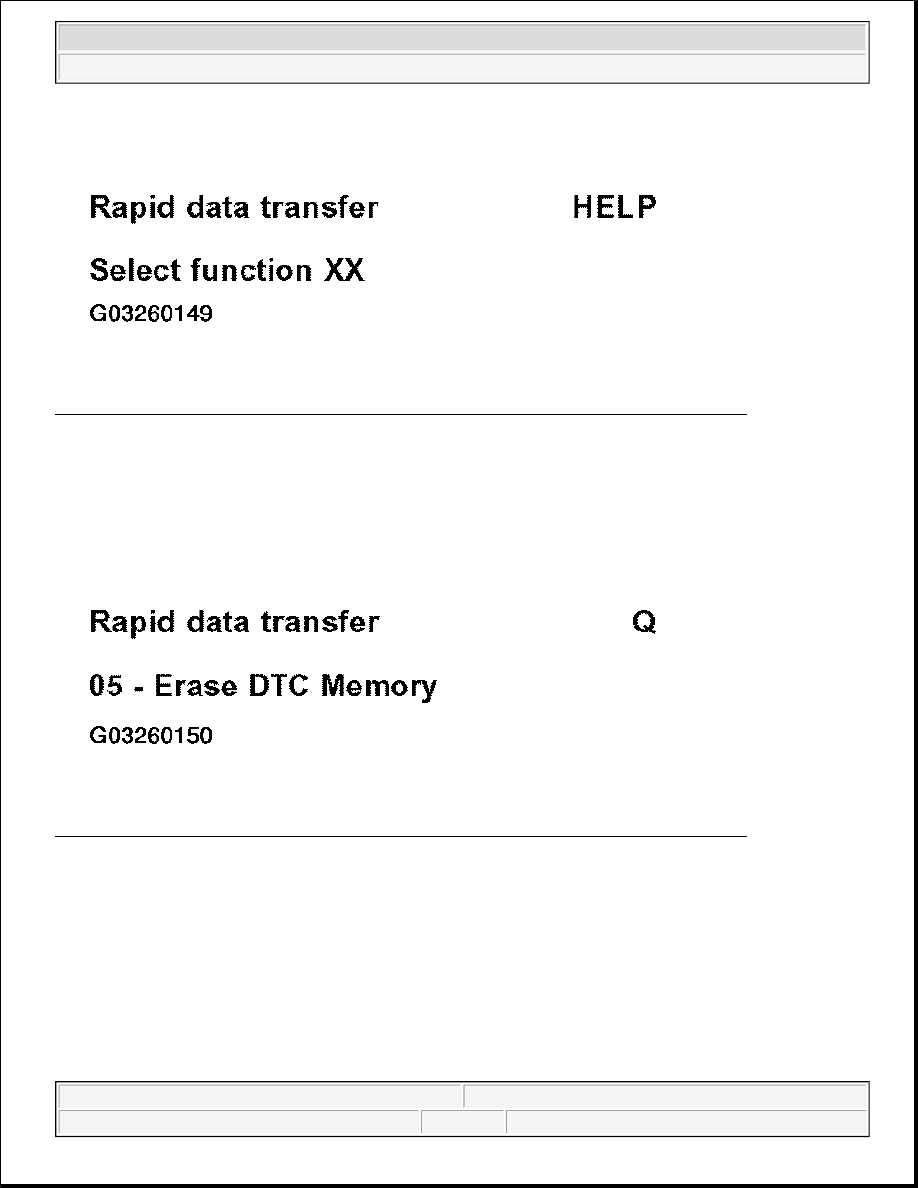

Fig. 24: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (1 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

Indicated on display

Fig. 25: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (2 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

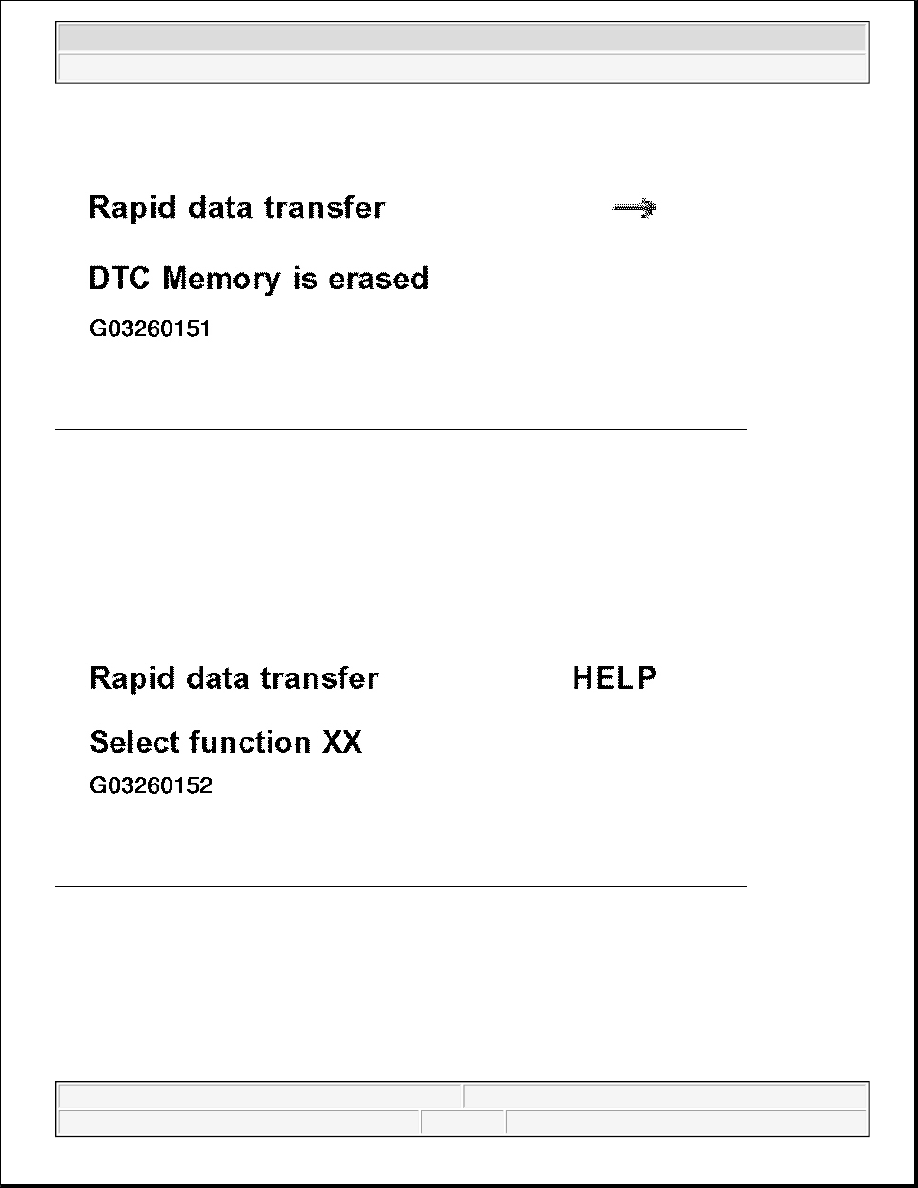

Fig. 26: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (3 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC memory is now erased.

z

Press --> button.

Indicated on display

Fig. 27: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (4 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

z

If this appears on the display, the test sequence is faulty.
