Volkswagen New Beetle. Manual - part 370

Fig. 185: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (7 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

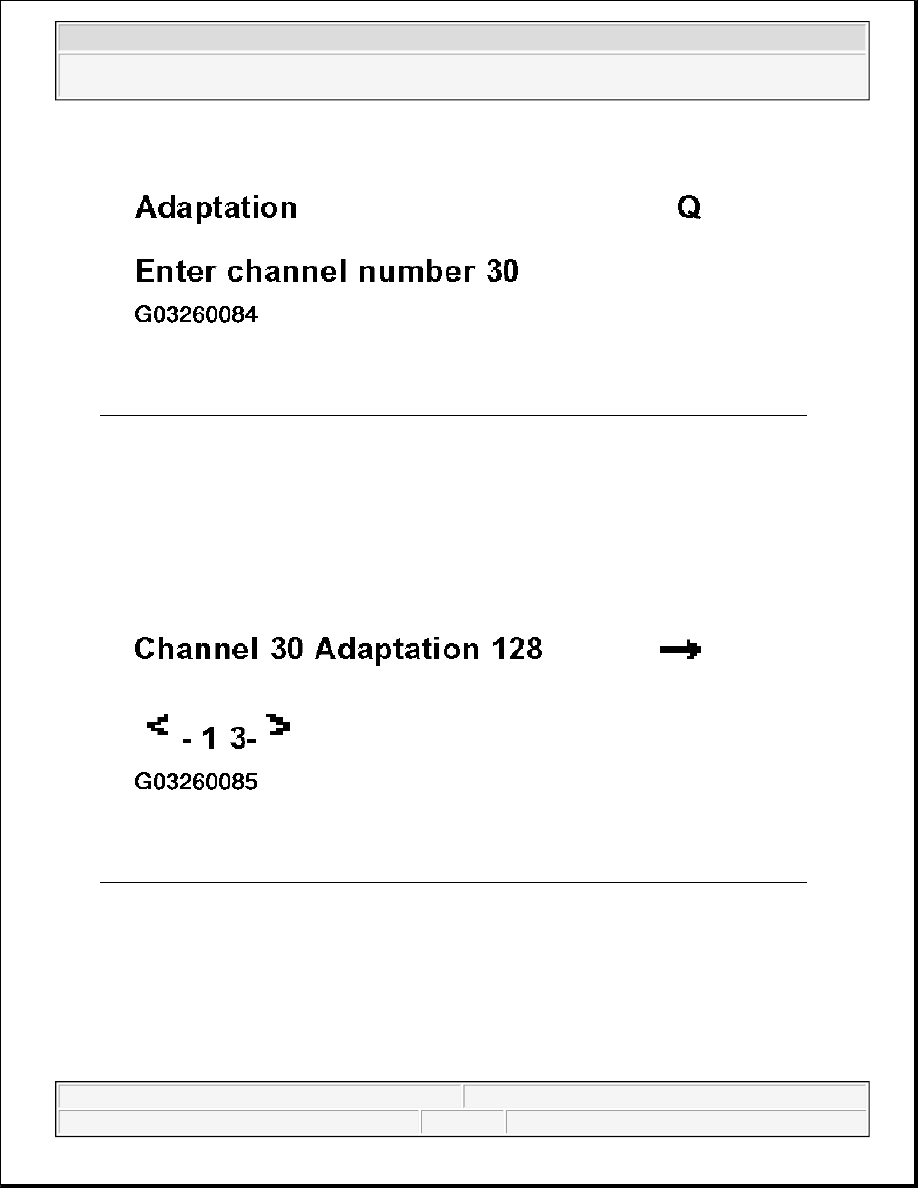

Indicated on display:

z

Use button 1 to decrease adaptation value down to 120

z

Use button 3 to increase value up to 136, e.g. 130.

Fig. 186: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (8 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 187: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (9 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

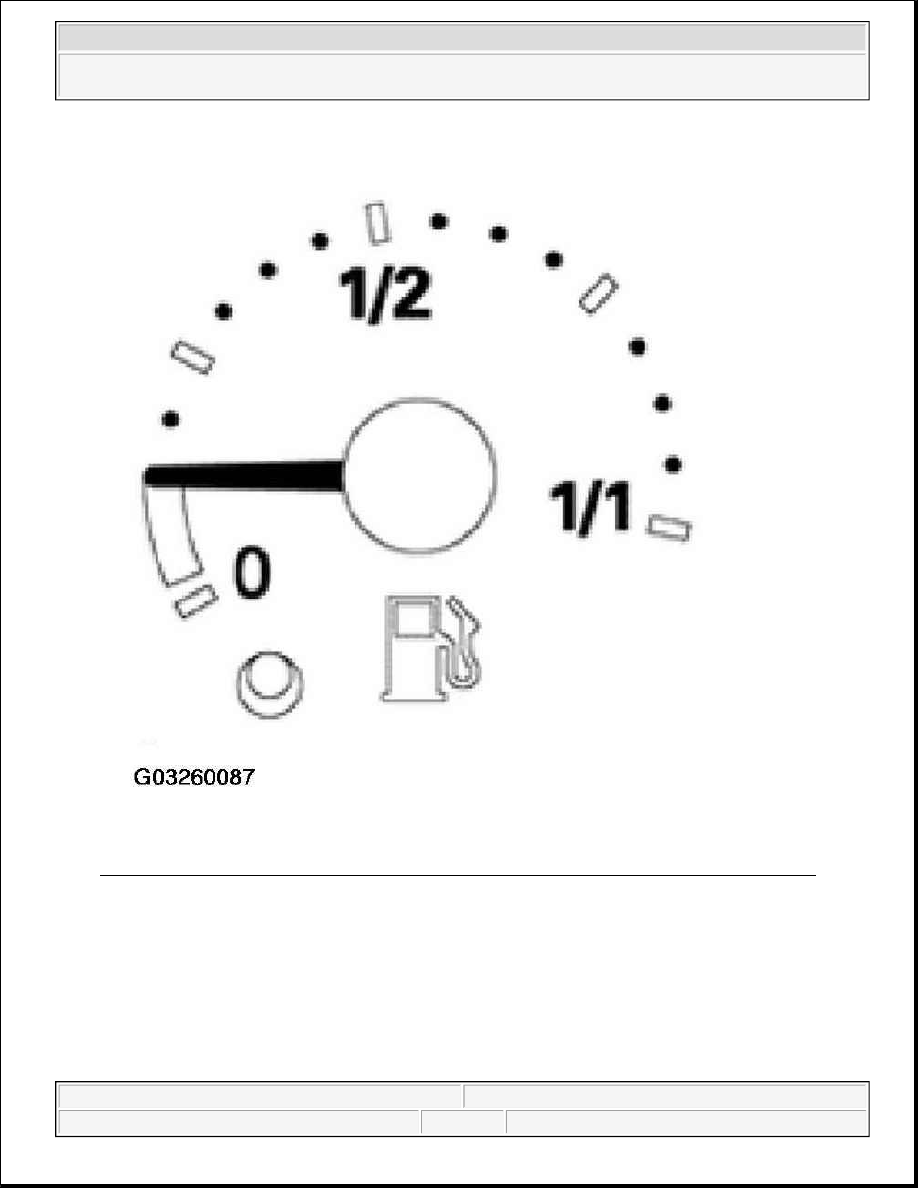

Adaptation is correct when the fuel gauge needle is positioned on the middle of the three red graduations
(reserve) as illustrated.

When needle position is OK:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 188: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (10 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

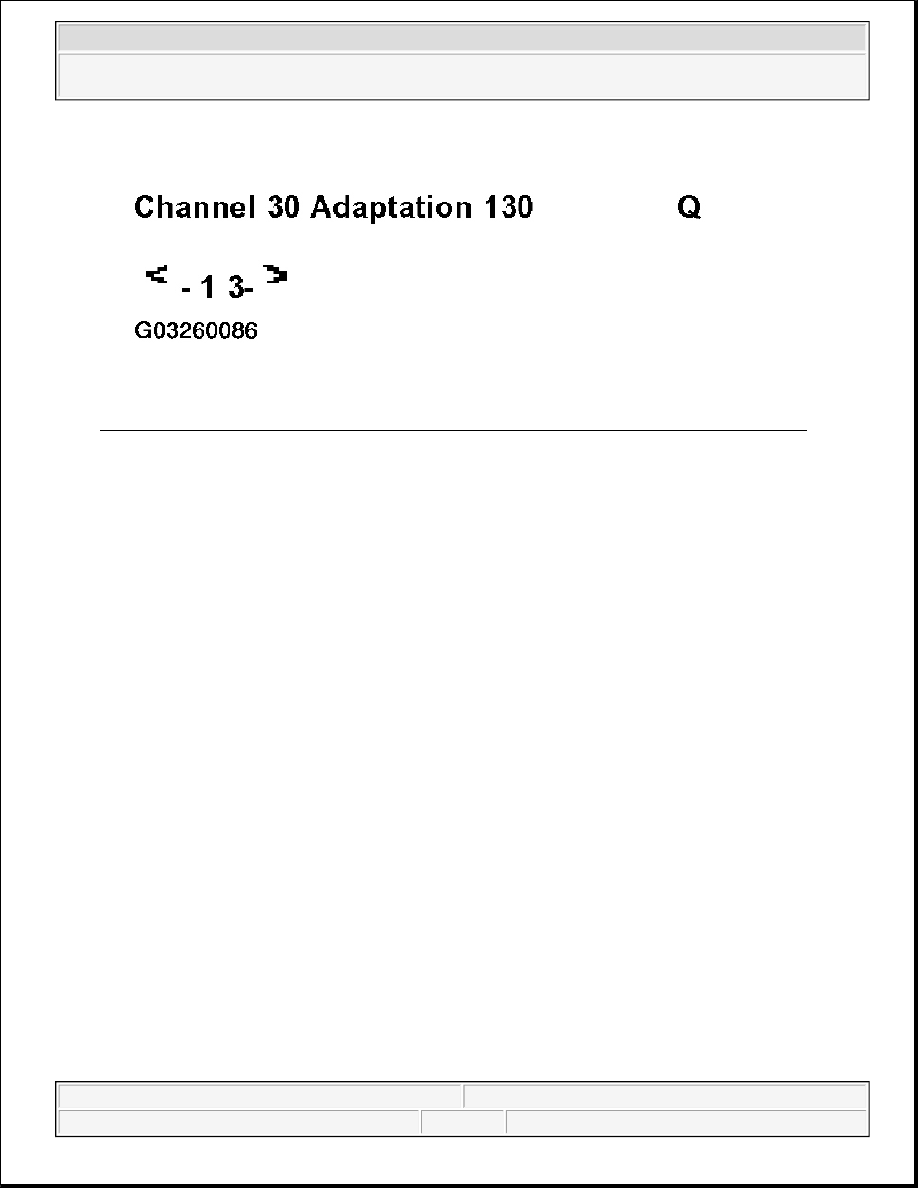

Indicated on display (example only):

z

Press -Q- button to confirm input .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 189: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (11 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

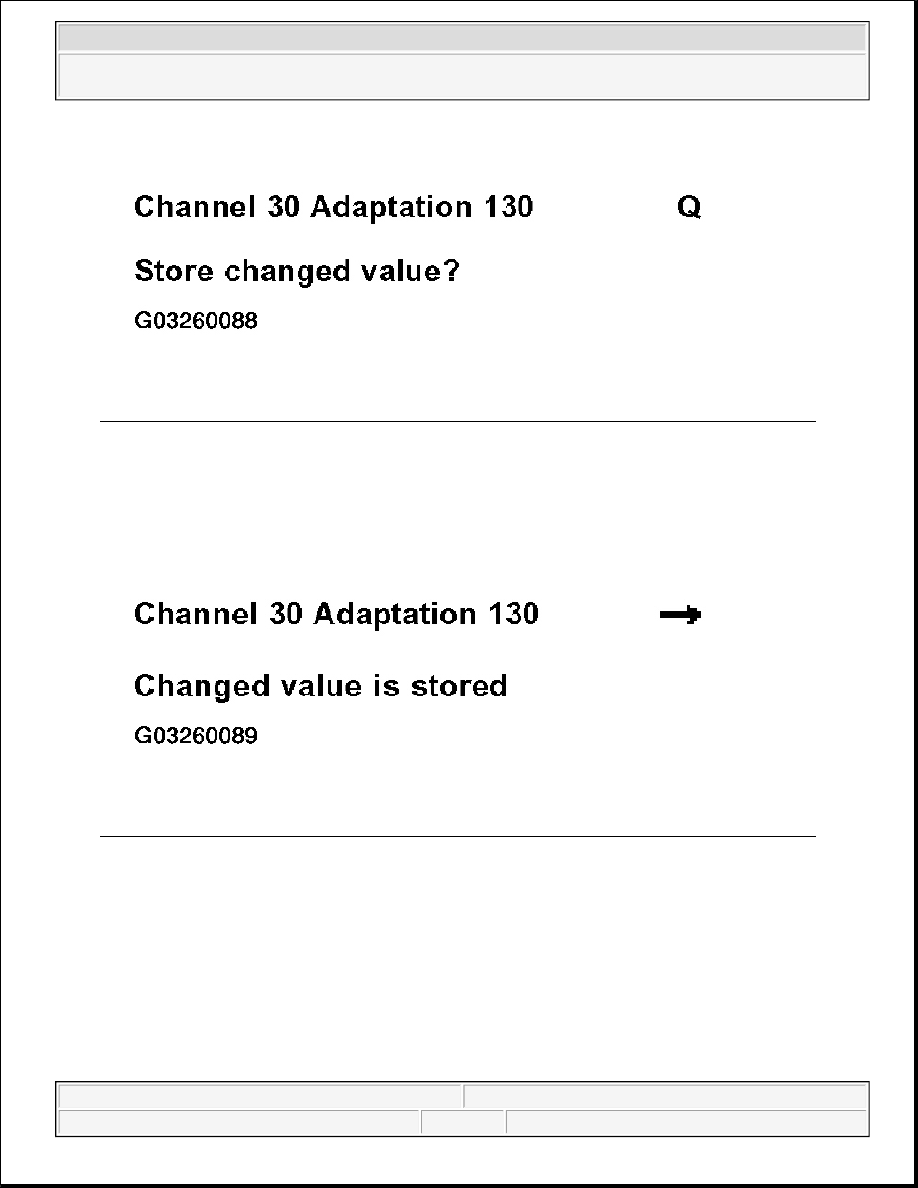

Indicated on display:

z

Press --> button to complete adaptation sequence .

Fig. 190: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (12 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -0- and -6- to select function 06 "End output".

NOTE:

If fuel gauge cannot be adapted correctly, replace fuel gauge sender.
