Volkswagen New Beetle. Manual - part 369

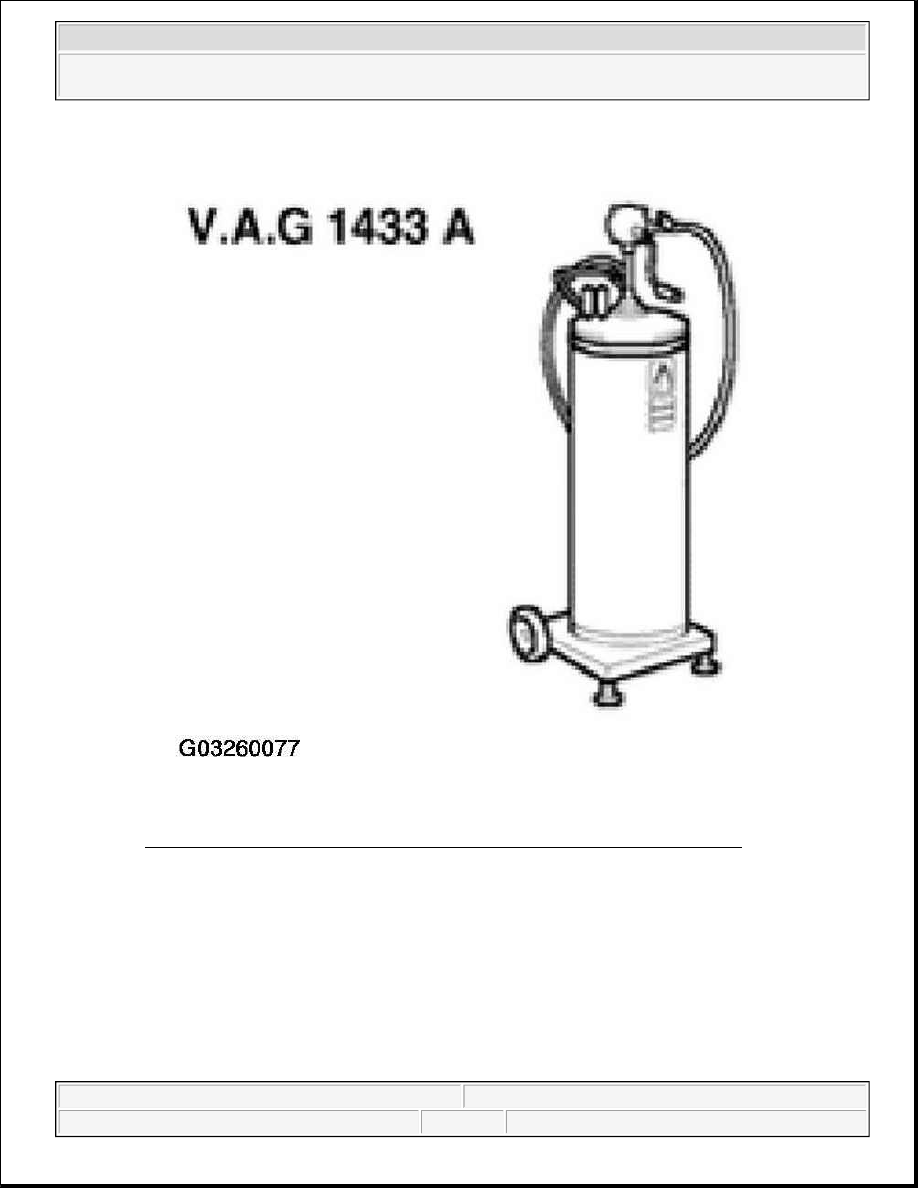

Fig. 178: Identifying Fuel Extraction Unit VAG 1433 A (Or Local Equivalent)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

Wait a minimum of 1 minute before proceeding with adaptation in order to
ensure a stable fuel level for adaptation purposes.

WARNING:

z

Fire hazard. DO NOT smoke or work near heaters or have anything
in the area that can ignite fuel.

z

Always drain fuel from fuel tank using an approved fuel cart.

z

Wear fuel-resistant gloves whenever working with open parts of the



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

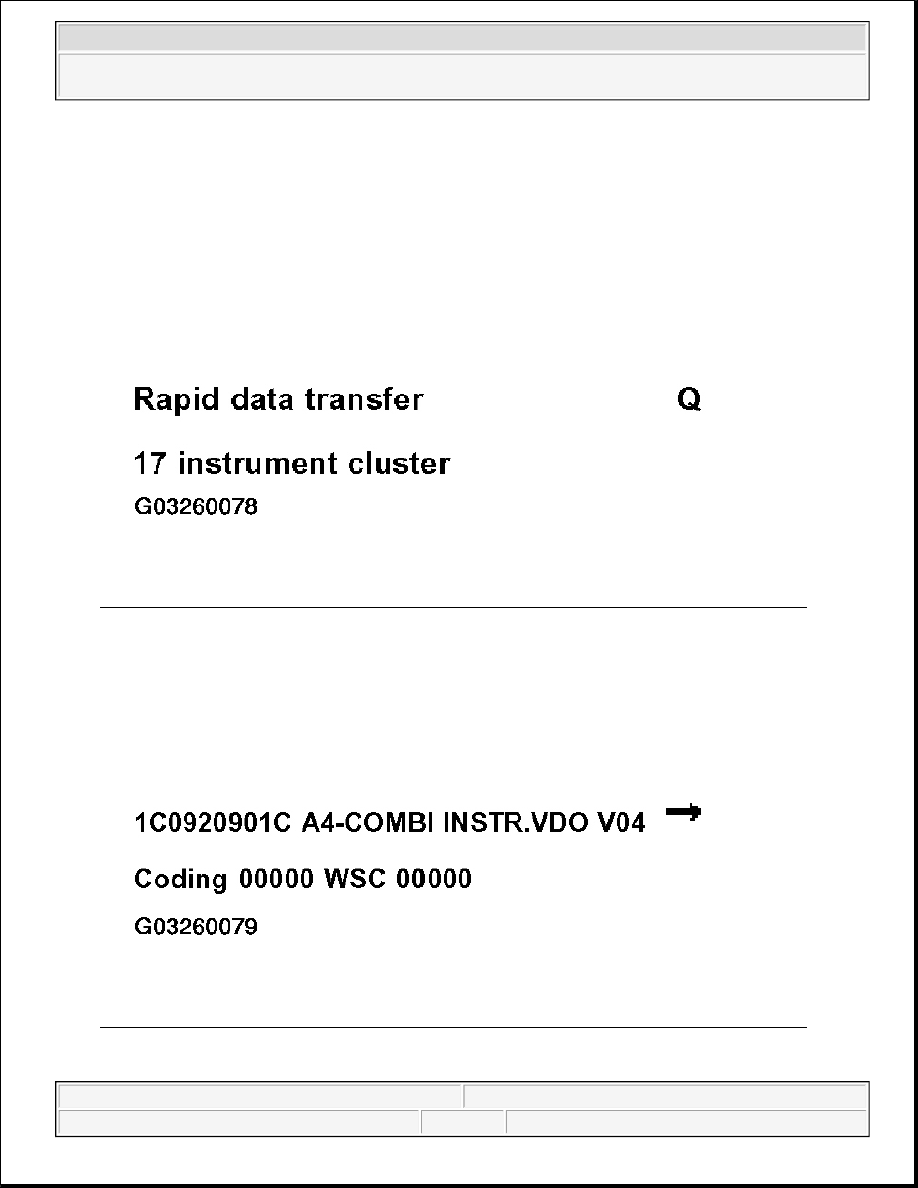

Connect VAG 1551 Scan Tool (ST), select 1 "Rapid Data Transfer", switch on ignition, input address
word 17 "Instrument cluster".

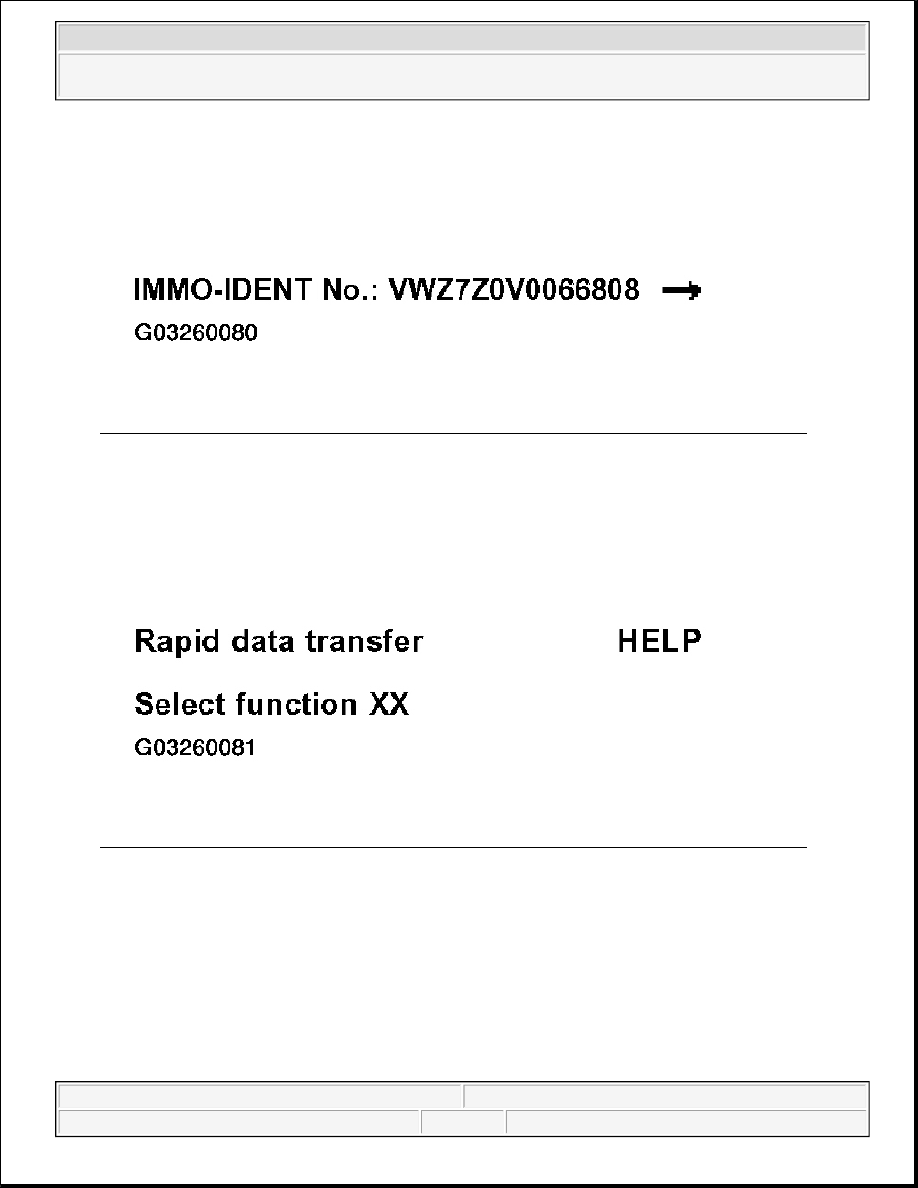

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 179: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (1 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only):

z

Press -Q- button to confirm input.

Fig. 180: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (2 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

fuel system.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

z

Press -Q- button to confirm input.

Fig. 181: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (3 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

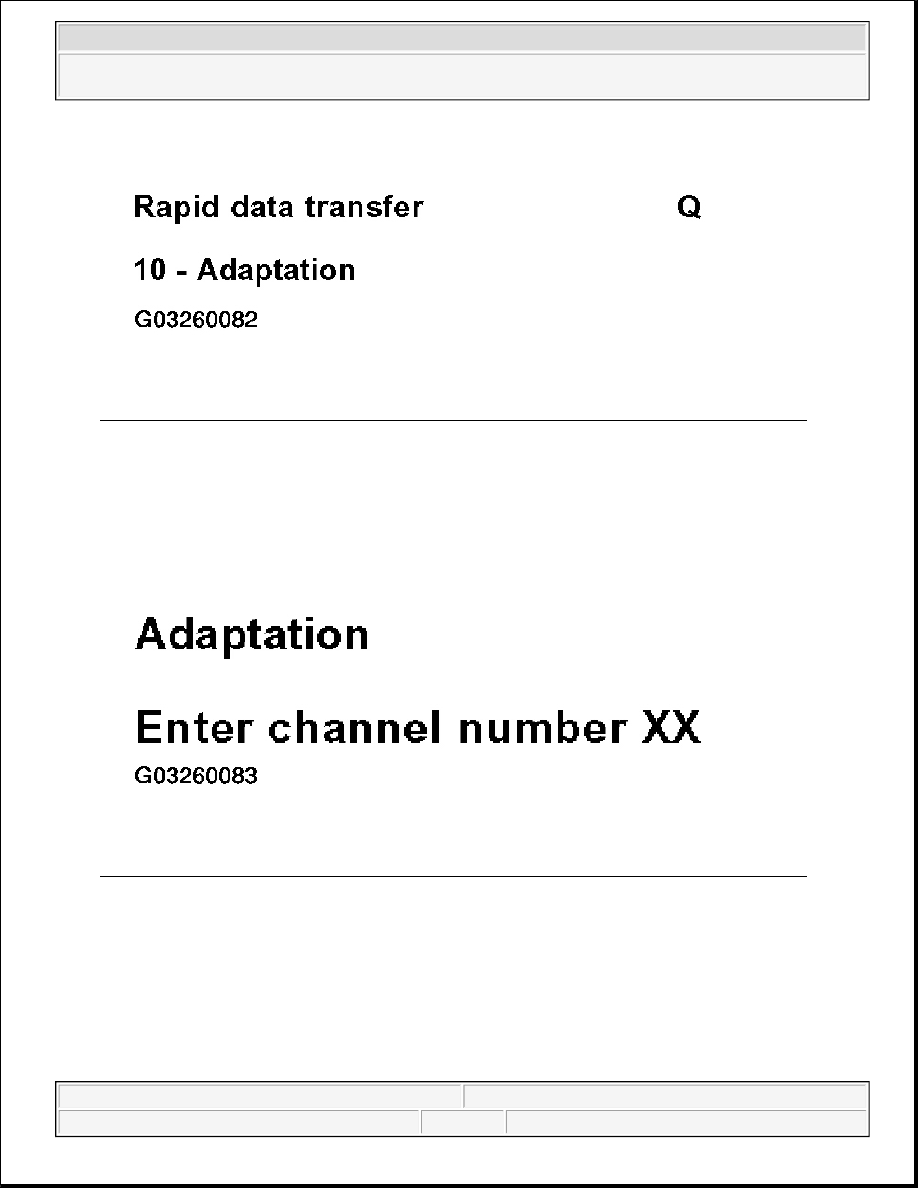

Indicated on display (select function):

z

Press buttons -1- and -0- to select function 10 "Adaptation".

Fig. 182: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (4 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 183: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (5 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -3- and -0- to select channel 30.

Fig. 184: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (6 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.
