Fig. 197: Break Down Display Group 006 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Evaluating display group number 006
EVALUATING DISPLAY GROUP NUMBER 006 - CENTRAL LOCKING

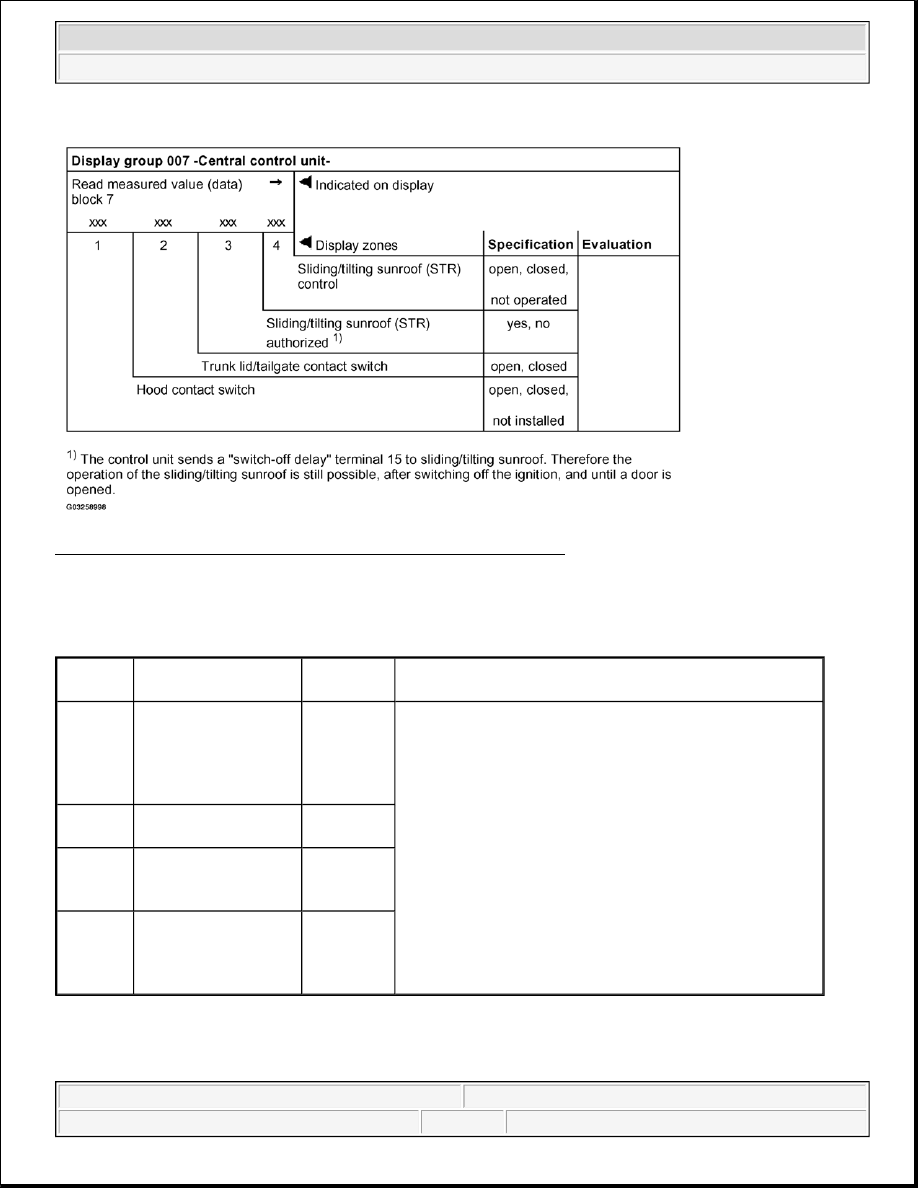

Break down of display content for display group number 007
Display
zone
Designation
Display
contents
Corrective action
1
S-terminal
operated
not operated
z
Visual check of wiring
z
Check that connections of relevant current circuit are
correctly connected and fit tightly together while
simultaneously observing display
z
If the display does not change after checking
connections, correct malfunction or replace relevant
component
z
Erase DTC memory
z
Perform functional check
z
Check DTC memory again
2
Key number
mv = 1...4
(1)
When operating a "learned" radio wave remote control key, as
shown here, indicates in which position the key was
learned/taught.
If the tester displays "0" even when the remote button is
pressed, this key must be "re-synchronized" using adaptation
(10).
3
Tailgate key
switch
open
not operated
implausible
z
Visual check of wiring
z
Check that connections of relevant current circuit are
correctly connected and fit tightly together while
simultaneously observing display
z
If the display does not change after checking
connections, correct malfunction or replace relevant
component
z
Erase DTC memory
z
Perform functional check
z
Check DTC memory again
4
Ignition
Terminal 15
on
Terminal 15
off
(1)

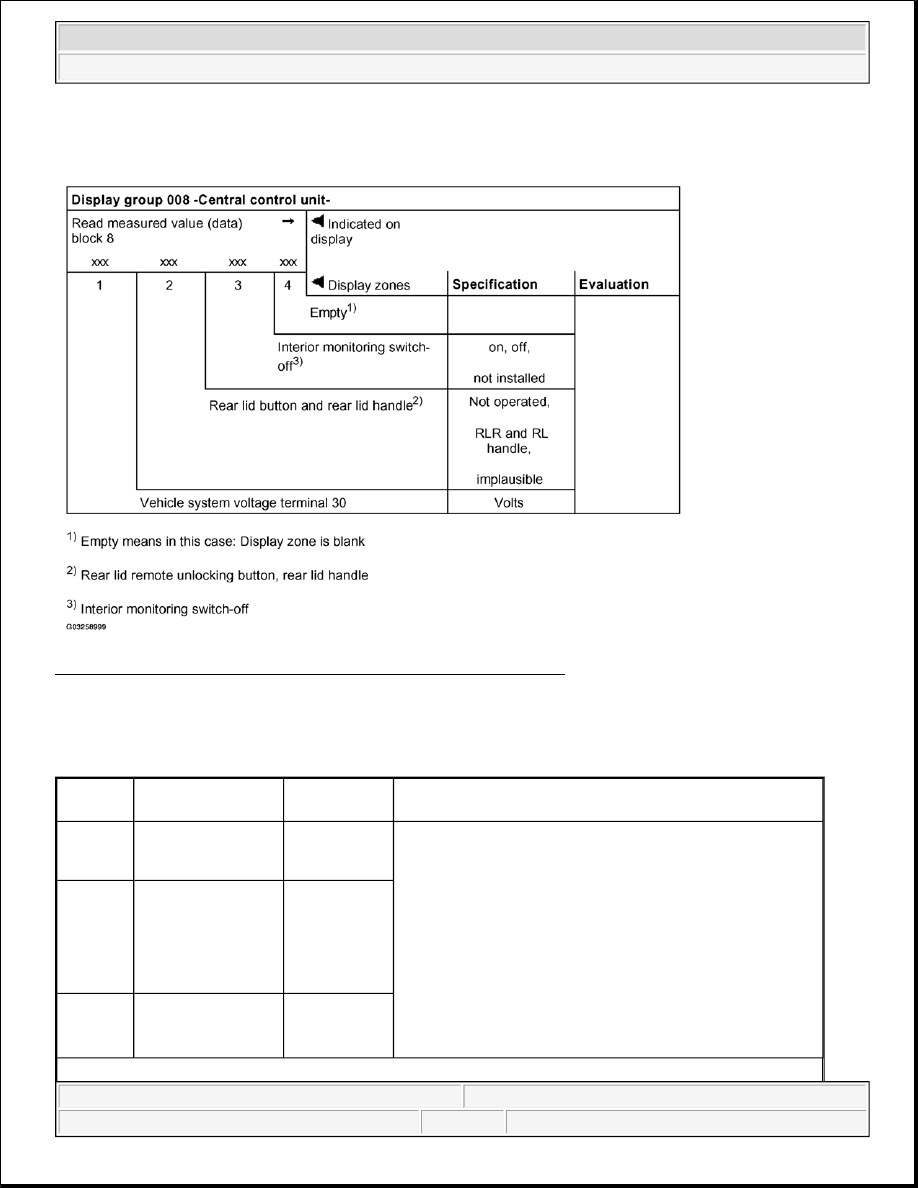

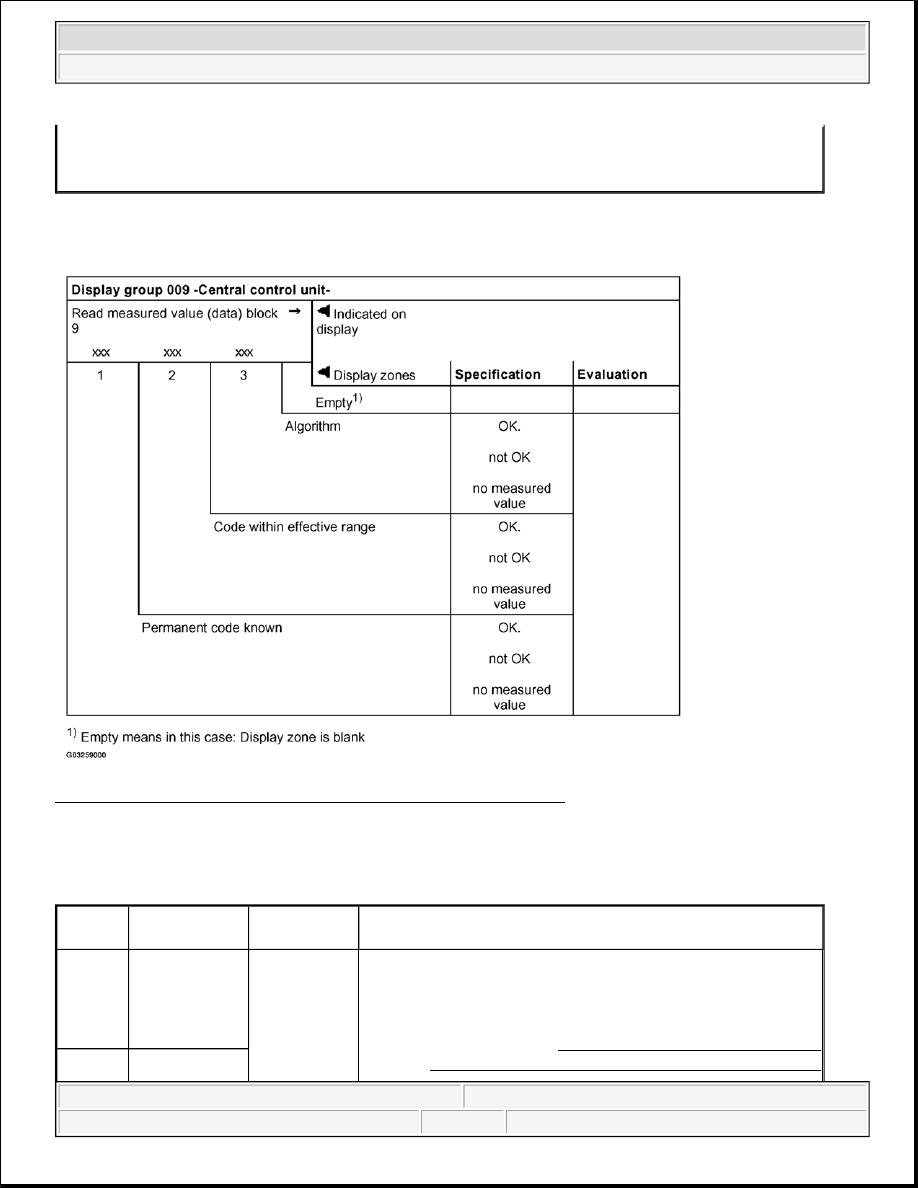

A max. of 4 wave remote control keys can be learned/taught.
