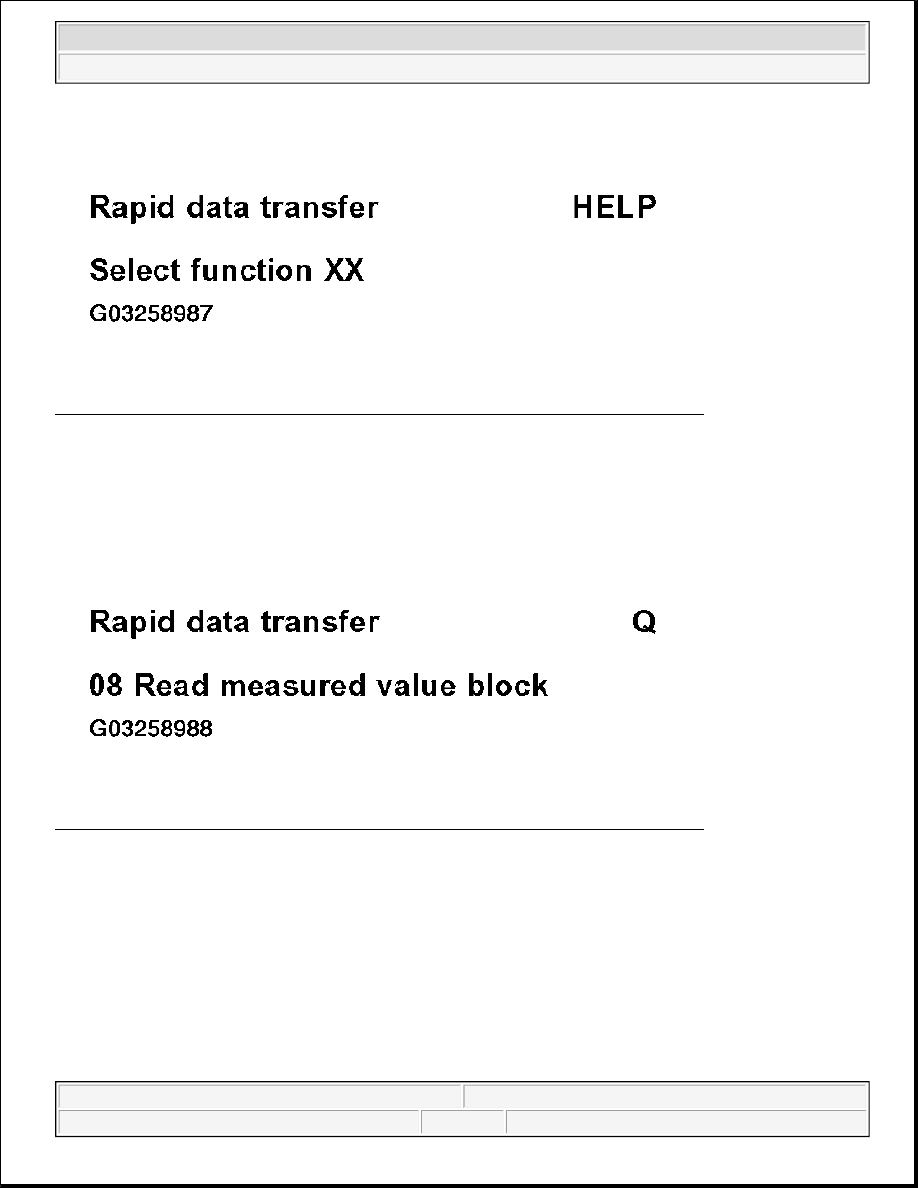

Fig. 187: Scan Tool Display - Central Locking Measured Value (Data) Block (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- (08 initiates function "Read measured value block").

Indicated on display:

Fig. 188: Scan Tool Display - Central Locking Measured Value (Data) Block (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



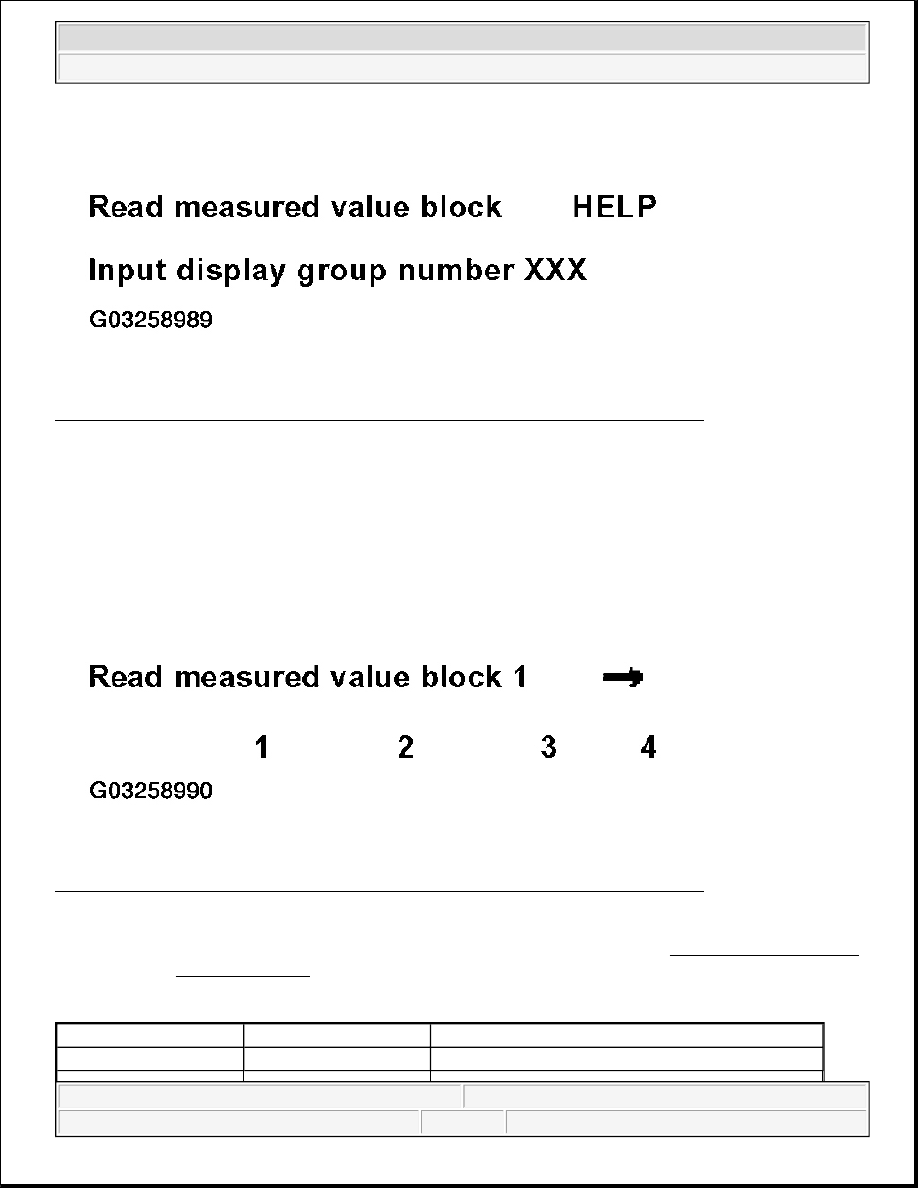

Fig. 189: Scan Tool Display - Central Locking Measured Value (Data) Block (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- for "Display group number 1" and confirm entry with -Q- button.

Indicated on display: (1 ...4 - display zones)

Fig. 190: Scan Tool Display - Central Locking Measured Value (Data) Block (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SCAN TOOL DISPLAY GROUP CHART

NOTE:

The display group number 001 is an example, to illustrate the sequence.

NOTE:

To change to another display group proceed as shown in SCAN TOOL DISPLAY
GROUP CHART .

Display group

V.A.G 1551

V.A.G 1552

Higher

Press button 3

Press "UPPER ARROW" button



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Displayed after pressing -C- button.

Indicated on display:

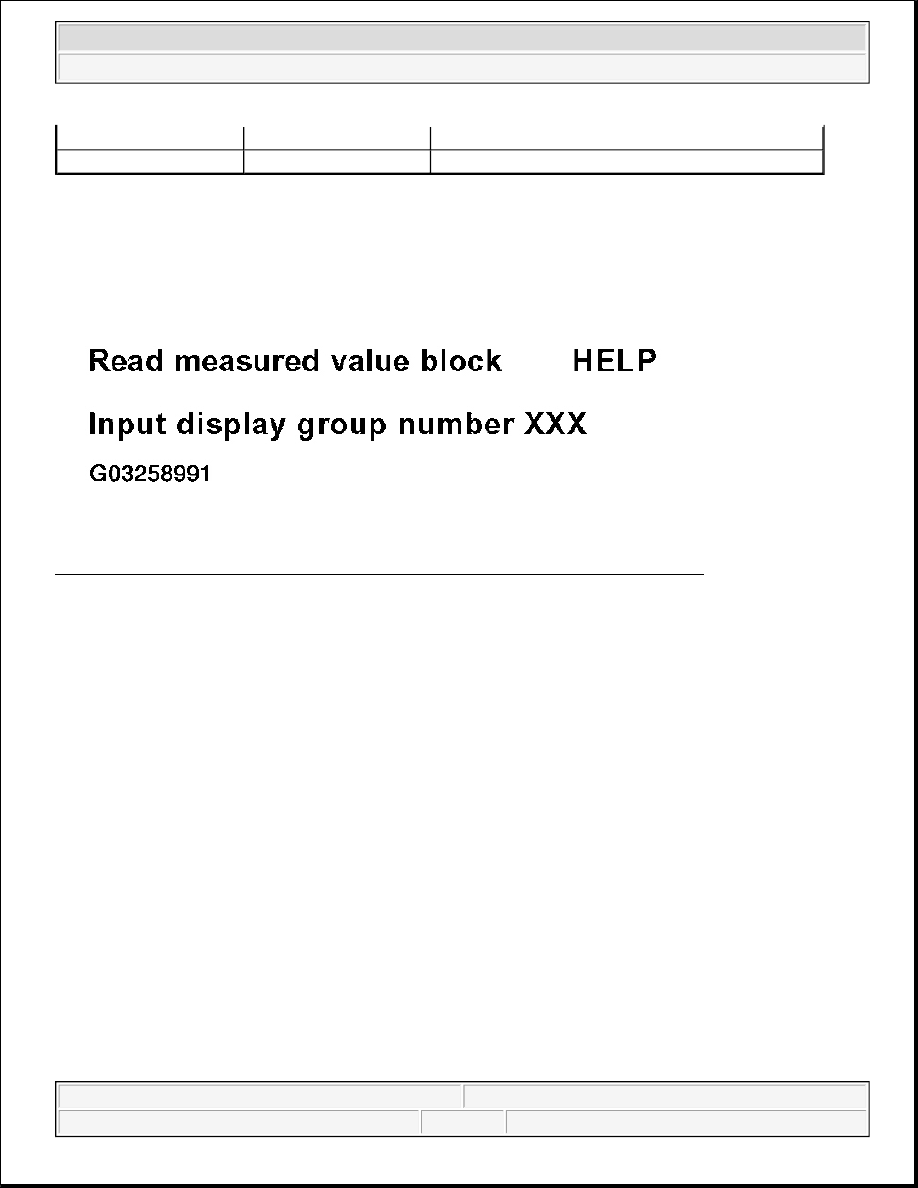

Fig. 191: Scan Tool Display - Central Locking Measured Value (Data) Block (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Now enter the display group number required.

DISPLAY GROUP OVERVIEW

Break down of display content for display group number 001

Lower

Press button 1

Press "UPPER ARROW" button

Skip

Press button C

Press button C



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



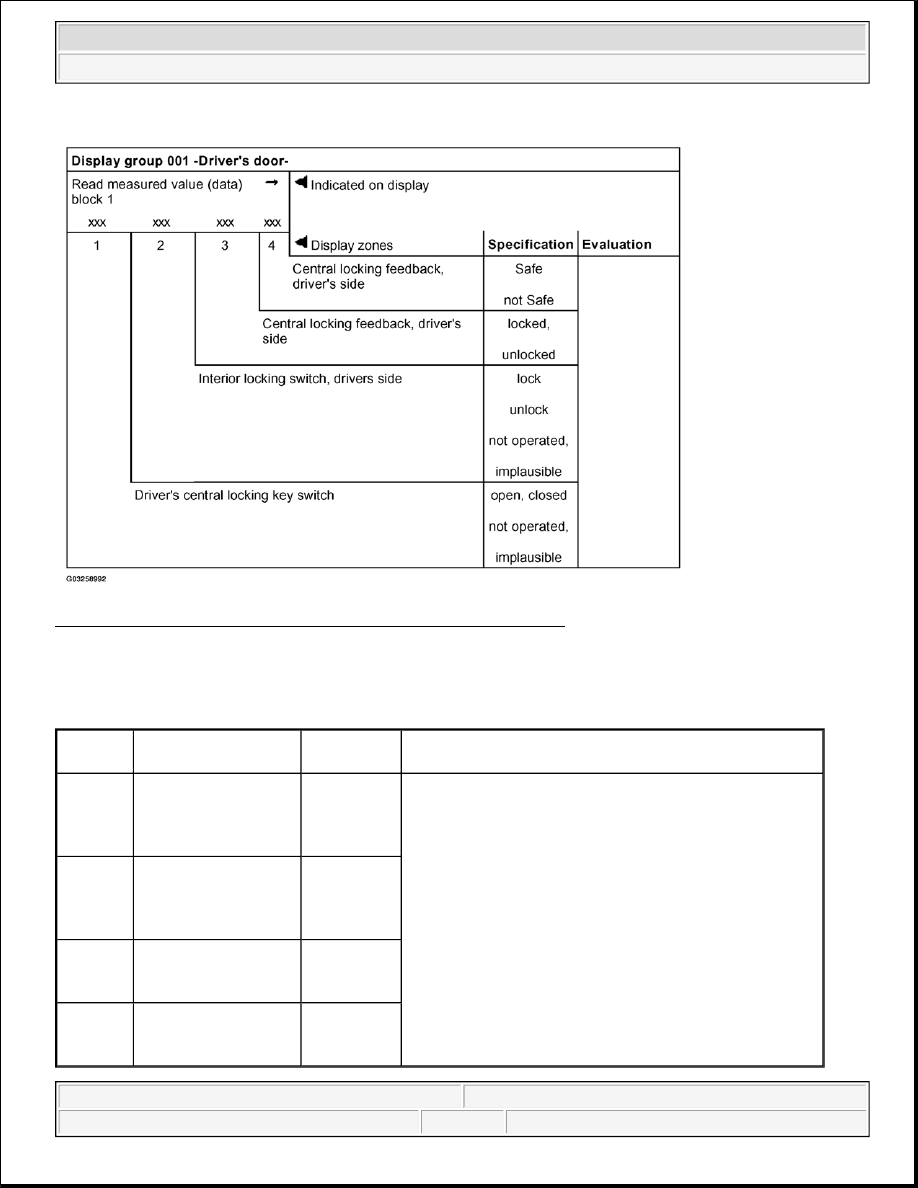

Fig. 192: Break Down Display Group 001 Chart - Central Locking
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 001

EVALUATING DISPLAY GROUP NUMBER 001 - CENTRAL LOCKING

Display
zone

Designation

Display

content

Corrective action

1

Key switch, driver's

side

open

closed

not operated

implausible

z

Visual check of wiring

z

Check lock mechanics

z

Check that connections of relevant current circuit

are correctly connected and fit tightly together

while simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Interior locking

switch, drivers side

lock

unlock

not operated,

implausible

3

Central locking

feedback locked,

driver's side

locked

unlocked

4

Central locking

feedback "safe",

driver's side

Safe

not Safe
