Some functions which could previously be performed with V.A.G 1551/1552 must now be performed with the
Vehicle Diagnosis, Testing and Information System VAS 5051 in the operating mode vehicle On Board
Diagnosis (OBD): See Operating instructions for Vehicle Diagnosis, Testing and Information System VAS
5051.

The malfunction information displayed is used to refer to the Diagnostic Trouble Code (DTC) table with notes
on the possible causes for directed repair measures.

Malfunctions which can be attributed to a temporary open circuit in the wiring or a loose contact (terminal), will
also be stored. These malfunctions will be displayed as sporadic malfunctions "SP".

Determining the items which have possibly triggered the anti-theft alarm system

The breakdown of the display content illustrated on BREAK DOWN OF DISPLAY CONTENT FOR
DISPLAY GROUP NUMBER 015 for the display group number 15 gives information as to which component
triggered the alarm system last, and can therefore help the fault finding/repair.

This "malfunction memory" cannot be erased.

Only statistical malfunctions are considered:

z

Central locking inoperative

z

Mirror positioning motor inoperative

z

Window regulator positioning motor inoperative

z

CAN communication inoperative

SYSTEM ACTIVE INDICATOR

The optical functional display for the central locking is an LED in the drivers door upper trim section. The LED
flashes for 28 days after locking the door and goes out if the doors are not unlocked within this period.

The function of the anti-theft alarm system (ATA) is not distinctly indicated.

ANTI-THEFT ALARM SYSTEM, DETERMINING THE ITEMS WHICH CAUSED ALARM TO
TRIGGER

The breakdown of the display content illustrated, see BREAK DOWN OF DISPLAY CONTENT FOR
DISPLAY GROUP NUMBER 015 for the display group number 15 gives information as to which component
triggered the alarm system last, and can therefore help the fault finding/repair.

This "malfunction memory" cannot be erased.

INTERIOR MONITORING SYSTEM, DESCRIPTION

NOTE:

Before changing a component erase fault memory, perform functional checks
and Check DTC memory again.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



The interior monitoring system is a component part of the anti-theft alarm system. The system is comprised of
two sensors which are installed in place of the rear reading lights. The reading light function is integrated in the
component and operating the light is separate function on each of the two sensors.

The monitoring of the interior works on the ultrasonic principle. If the armed system detects movement in the
vehicle then an alarm is raised via the anti-theft alarm system (ATA).

The interior monitoring sensors can be switched off via a button in the B pillar/door sill and using the adaption
function (function 10, channel number 05). To do this the ignition key must be removed from the ignition lock
after switching off the ignition then press the button and lock the vehicle.

When the vehicle is next unlocked the sensors are reactivated

For technical reasons one must wait at least 30 seconds when the vehicle is locked for all test possibilities.

ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM (VEHICLES WITH POWER
WINDOWS), INITIATING

Test prerequisites:

z

Voltage supply and fuses for the respective system OK.

z

To initiate the On Board Diagnosis (OBD) the ignition must be switched on "Terminal 15 on".

OBD for the Comfort System (vehicles with power windows)

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING .

z

Switch on ignition.

z

Press button -1- for "Rapid data transfer" mode.

z

Switch on printer with Print button (warning la in button lights up) if using V.A.G 1551 or print via the
print menu when using VAS 5051, if necesssary.

Indicated on display: see Fig. 7 .

NOTE:

z

If the display remains blank, check V.A.G 1551 voltage supply according to
electrical wiring diagram.

See Electrical Wiring Diagrams, Troubleshooting & Component Locations

z

Additional operating information can be printed out depending on the
program by pressing the HELP button of V.A.G 1551 or VAS 5051.

z

The --> button serves to advance the program sequence.

z

The PRINT button of V.A.G 1551 is used for switching on the printer
(warning lamp in button lights up). Print via the print menu when using
VAS 5051, if necesssary.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

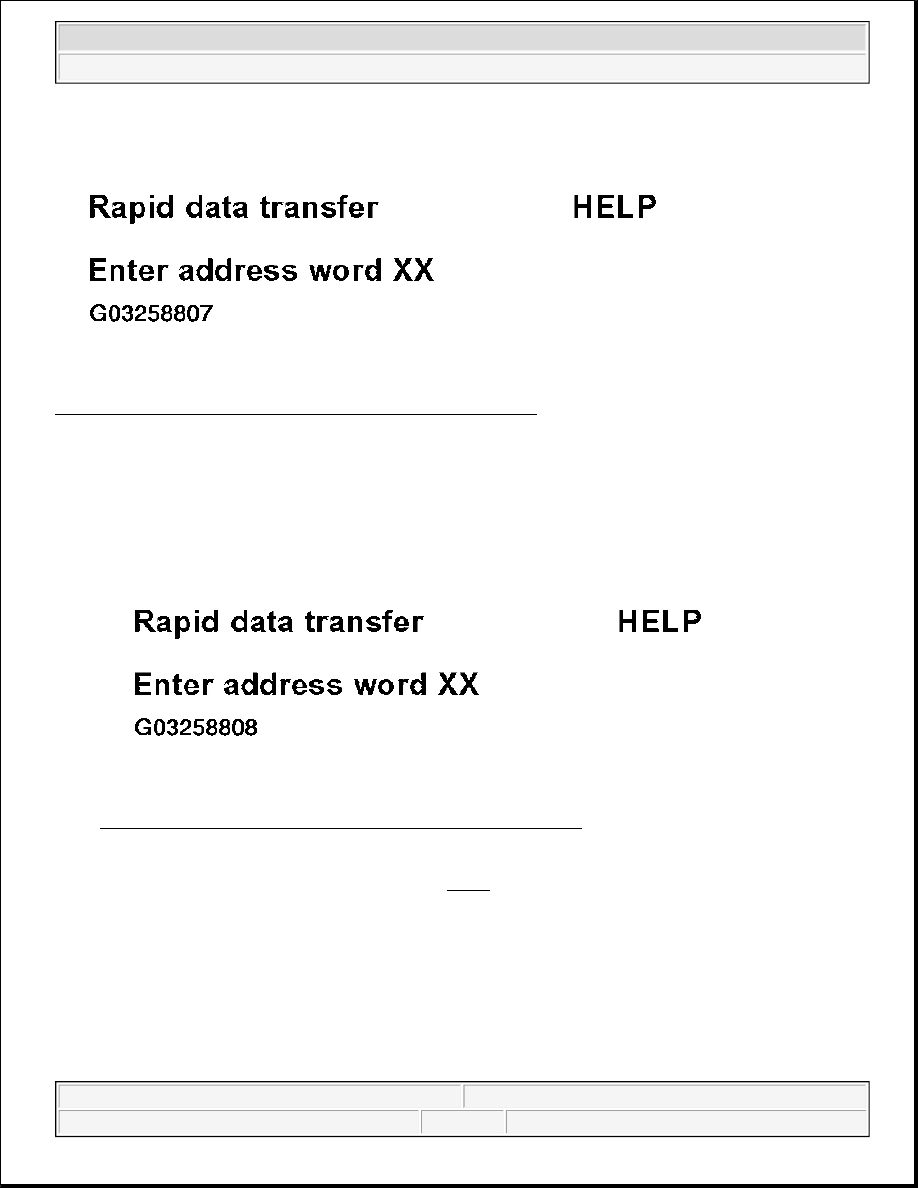

Fig. 7: Scan Tool Display - OBD For Comfort System (1 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -4- and -6-.

Fig. 8: Scan Tool Display - OBD For Comfort System (2 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display after entering the address 46: see Fig. 9 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

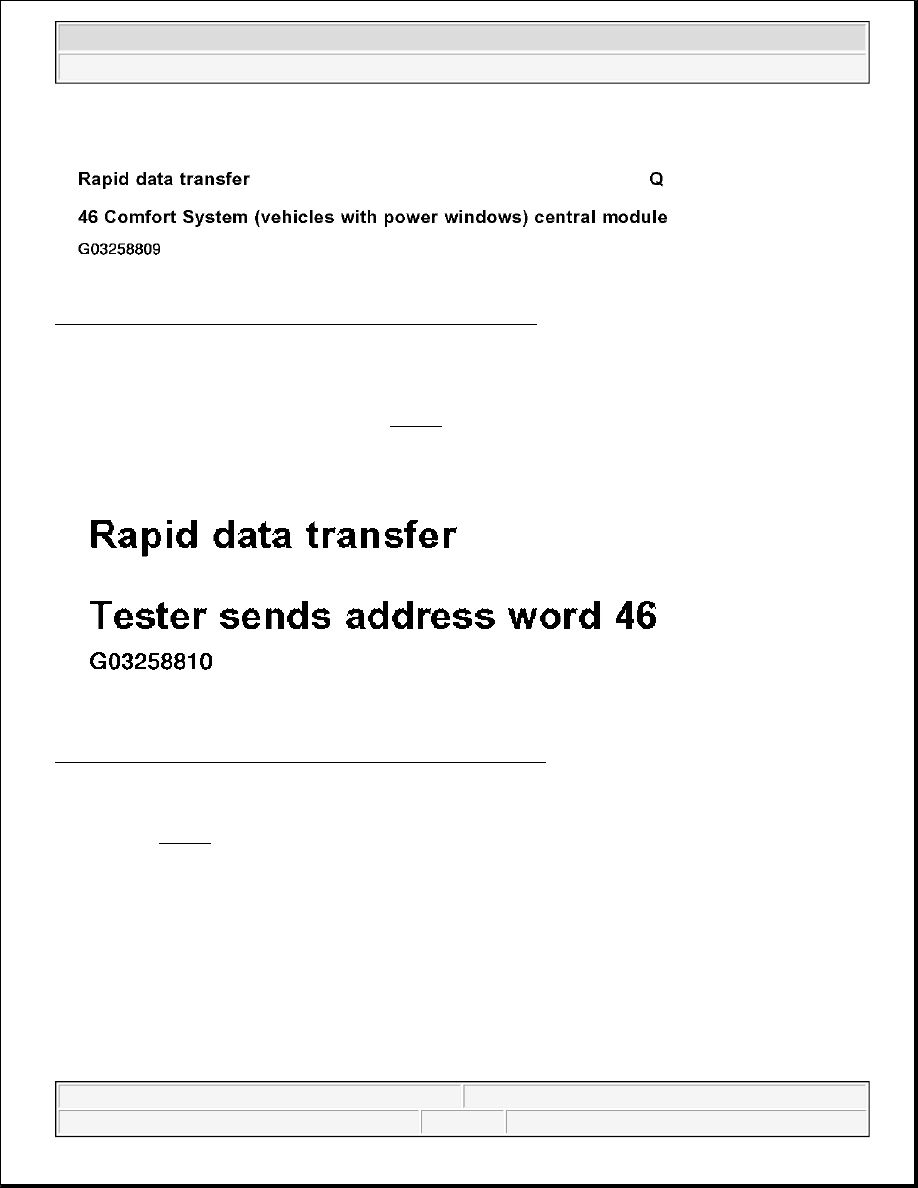

Fig. 9: Scan Tool Display - OBD For Comfort System (3 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

And the following is indicated on display: see Fig. 10 .

Fig. 10: Scan Tool Display - OBD For Comfort System (4 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Scan tool V.A.G 1551 displays the control module identification for the central control unit (Central CU, for
example): see Fig. 11 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
