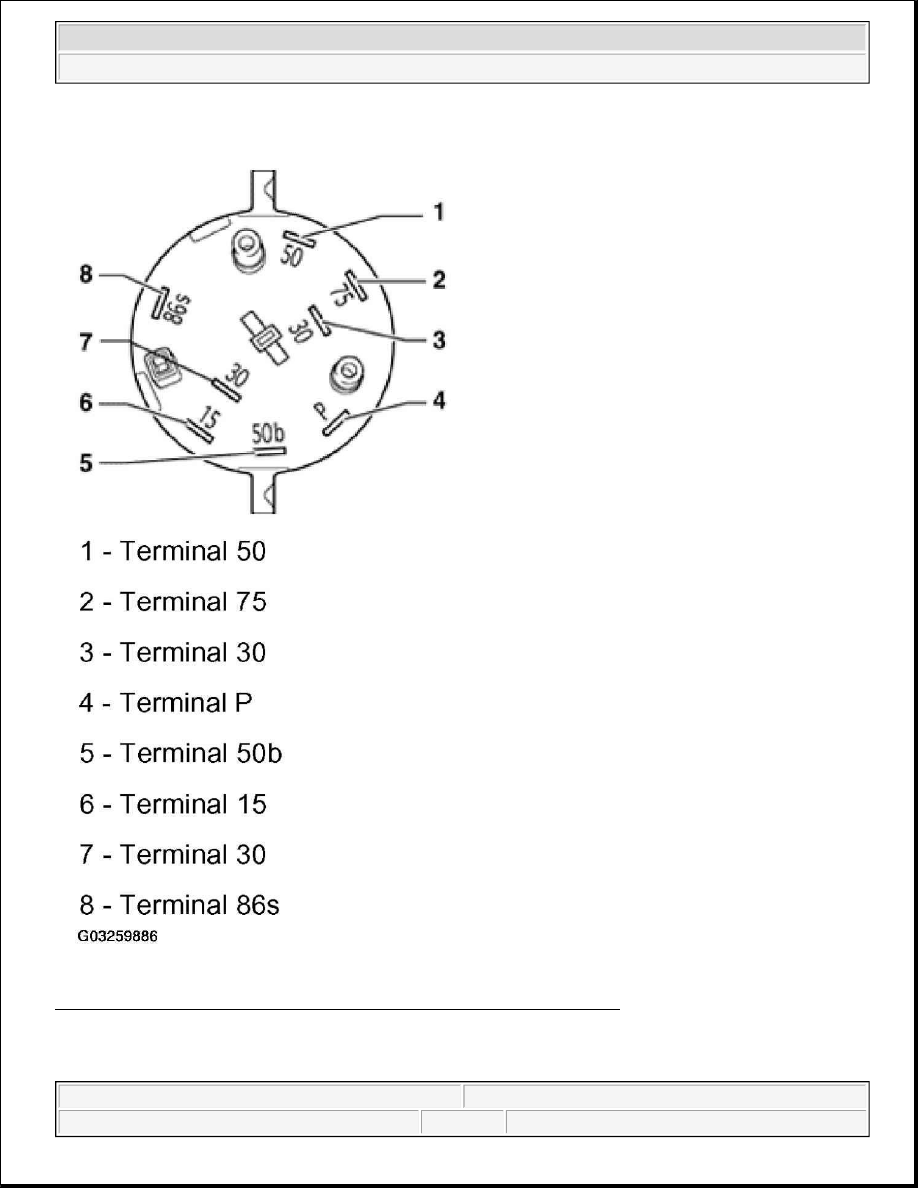

Fig. 100: Identifying Ignition/Starter Switch Connector (8-Pin) Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

On Board Diagnostic (OBD) - New Beetle

ON BOARD DIAGNOSIS (OBD)

TOOLS

Special tools, workshop equipment, testers, measuring instruments and auxiliary items required

z

V.A.G 1551 /3B Cable

z

V.A.G 1551 Scan tool

z

VAS 5056 Test box

z

VAS 5056/2 Adapter cable

z

VAS 5056/3 Adapter cable



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

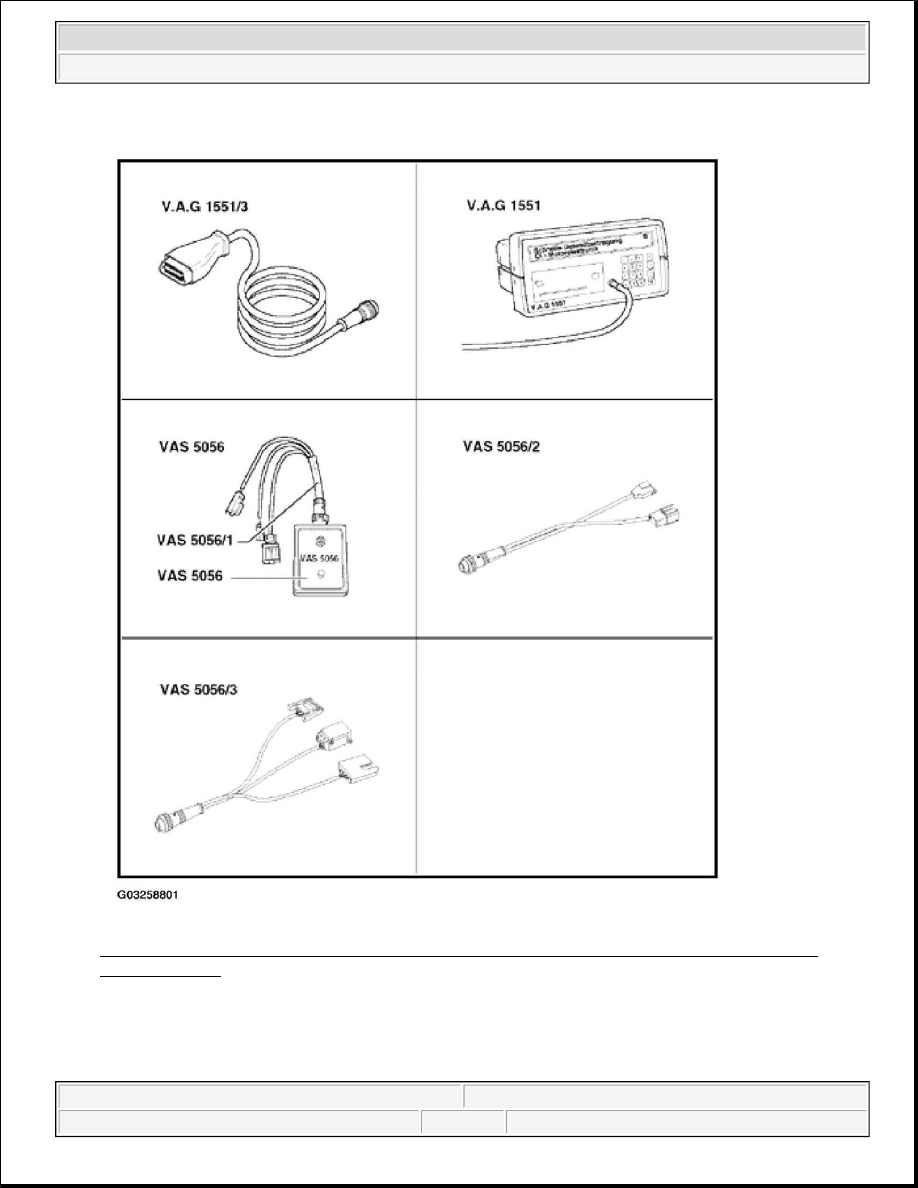

Fig. 1: Identifying Special Tools, Workshop Equipment, Testers, Measuring Instruments And
Auxiliary Items
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAS 5051 Vehicle Diagnosis, Testing and Information System

Some functions which could previously be performed with V.A.G 1551/1552 must be performed with the VAS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



5051 in the operating mode vehicle self-diagnosis: Operating instructions for Vehicle Diagnosis, Testing and
Information System VAS 5051.

SCAN TOOL, CONNECTING

Check prerequisites:

z

All fuses according to current flow diagram OK.

z

Battery voltage at least 9 V.

z

Connect scan tool V.A.G 1551 with cable V.A.G 1551/3.

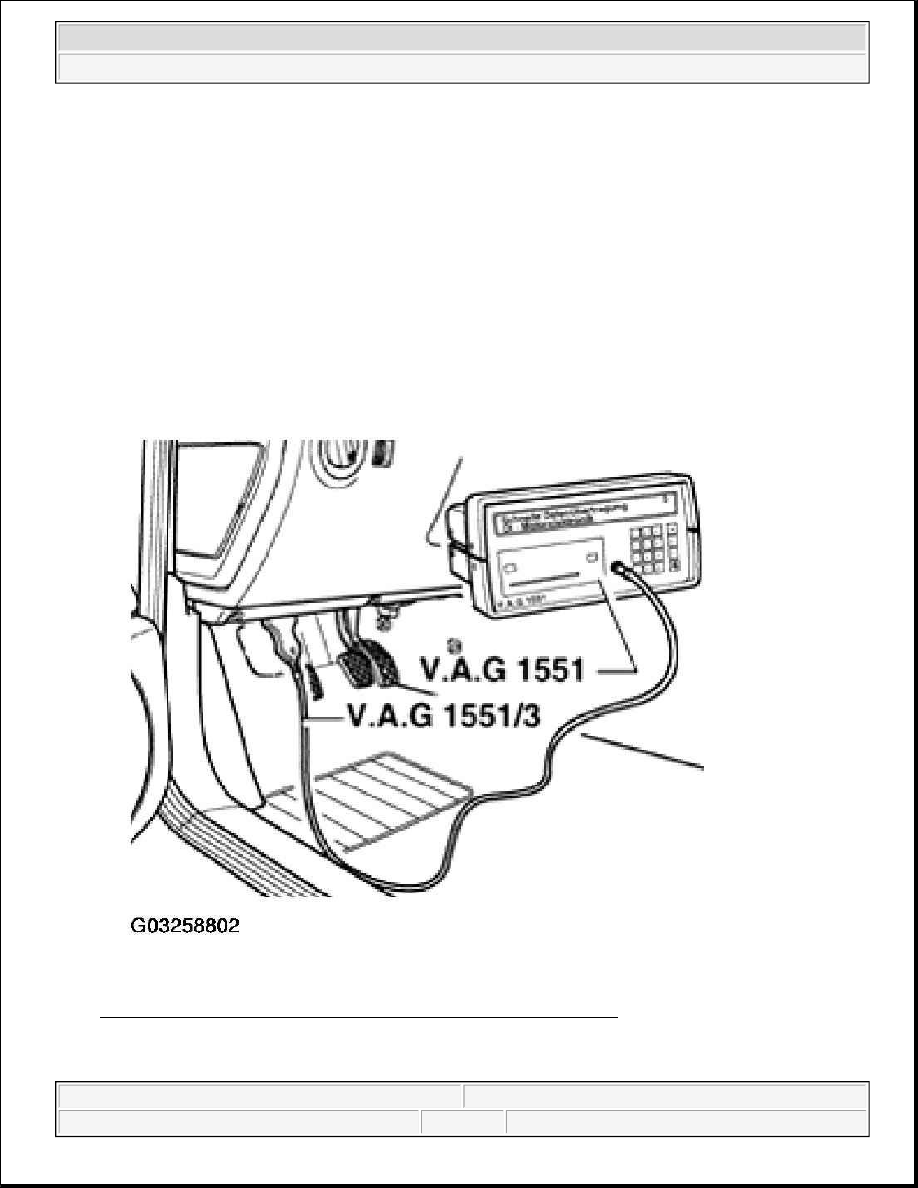

Fig. 2: Connecting Scan Tool V.A.G 1551 With Cable V.A.G 1551/3
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
