Disassembling and assembling 1st and 2nd gear locking collar and synchro-hub

1st gear

1.0 ... 1.7 mm

0.5 mm

3rd gear

1.0 ... 1.7 mm

4th gear

1.0 ... 1.7 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 119: Disassembling And Assembling 1st And 2nd Gear Locking Collar And Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Spring

2. Locking collar

3. Synchro-hub

4. Locking piece

{

Slide locking collar over synchro-hub.

The wide shoulder of the synchro-hub (arrow -A-) and the outer splines of the locking collar (arrow
-B-) face opposite directions after assembly. Recesses for locking pieces on synchro-hub and
locking collar must align.

Assembling 1st and 2nd gear locking collar/synchro-hub

Fig. 120: Assembling 1st And 2nd Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Locking collar is pushed over synchro-hub.

{

Insert locking pieces and install springs 120° off-set. The angled end of spring must locate in
hollow locking piece.

Installation position 1st and 2nd gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 121: Identifying Installation Position 1st And 2nd Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The locking collar splines (arrow -1-) point to splines for 3rd/4th gear synchro-hub -A-.

The wide shoulder of the synchro-hub (arrow -2-) then faces to 1st gear -B-.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



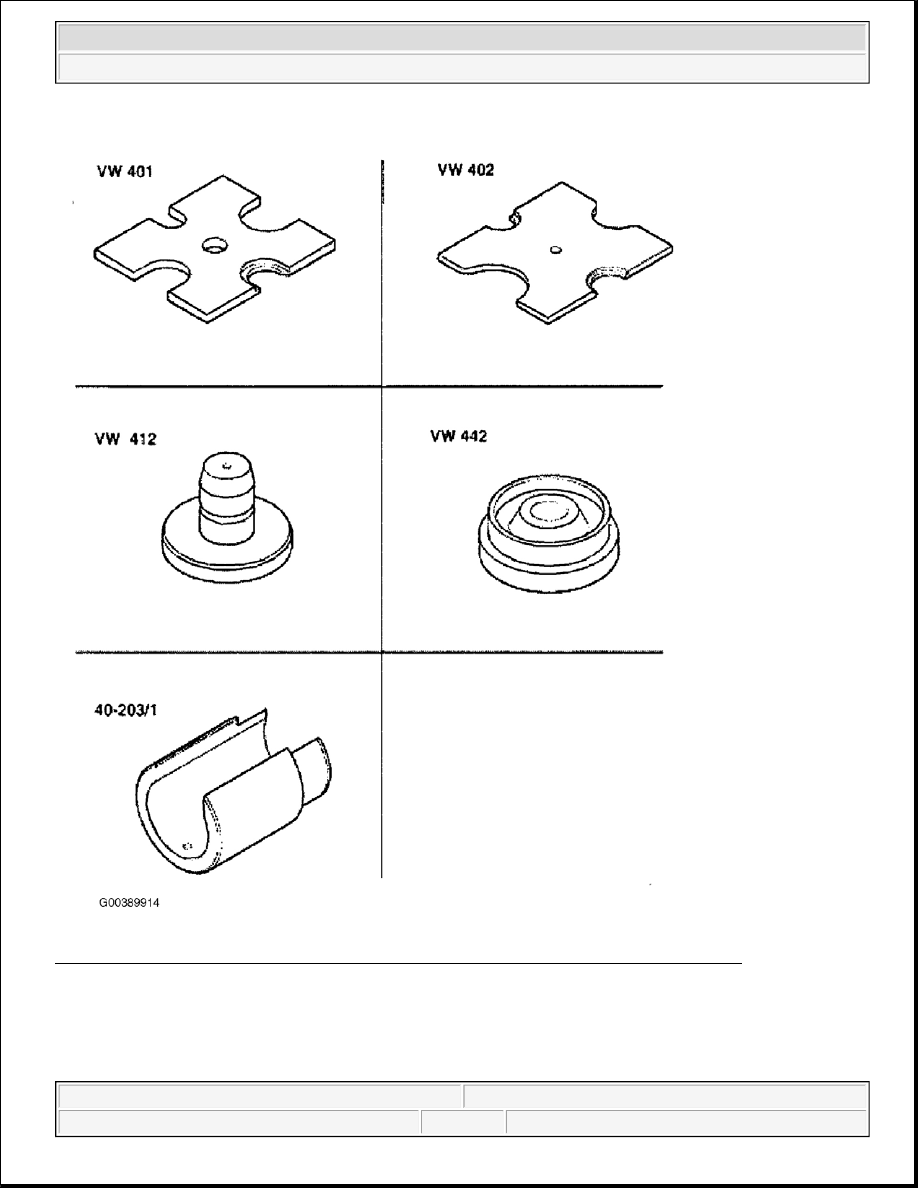

Pressing on 1st and 2nd gear locking collar/synchro-hub

Fig. 122: Pressing On 1st And 2nd Gear Locking Collar/Synchro-Hub
