Volkswagen New Beetle. Manual - part 2521

Fig. 95: Pressing Out Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Pressing in tapered roller bearing outer race

Fig. 96: Pressing In Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

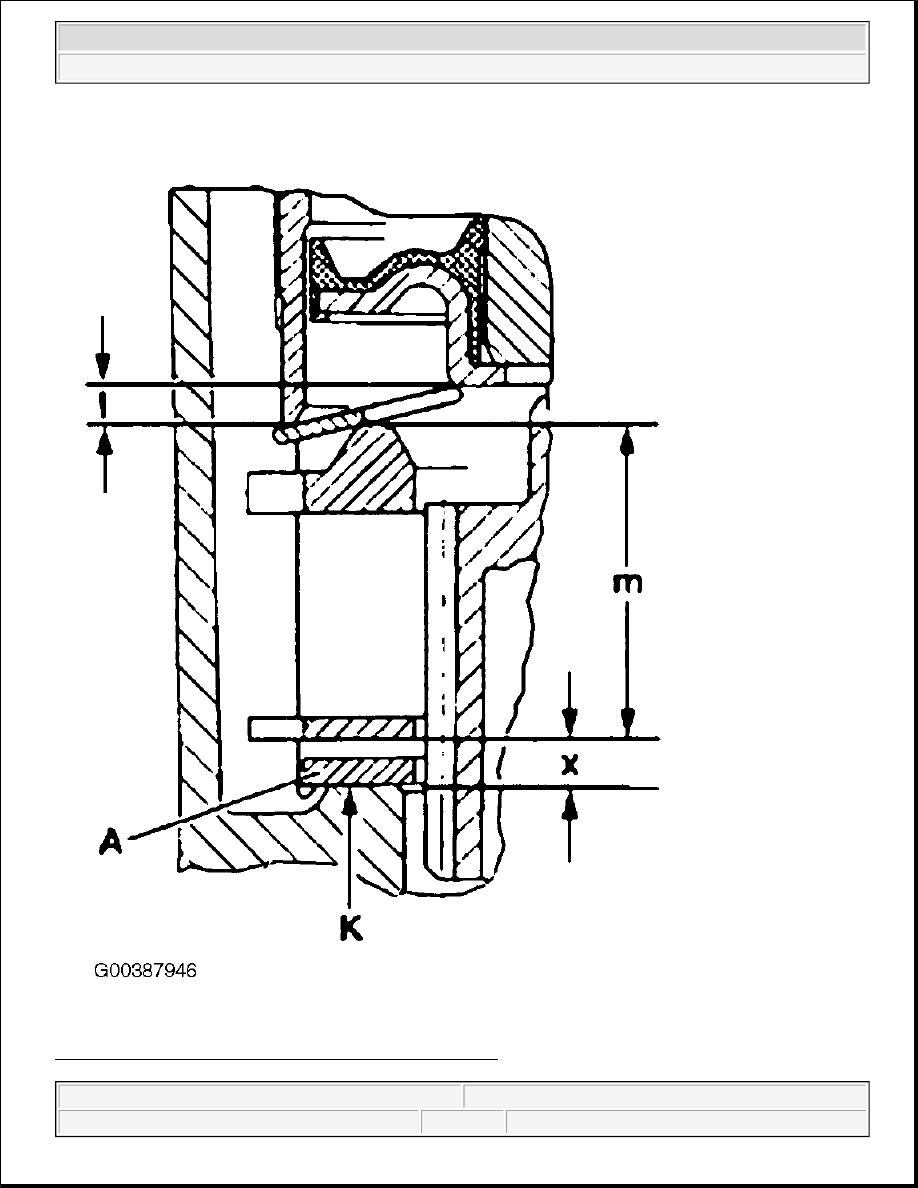

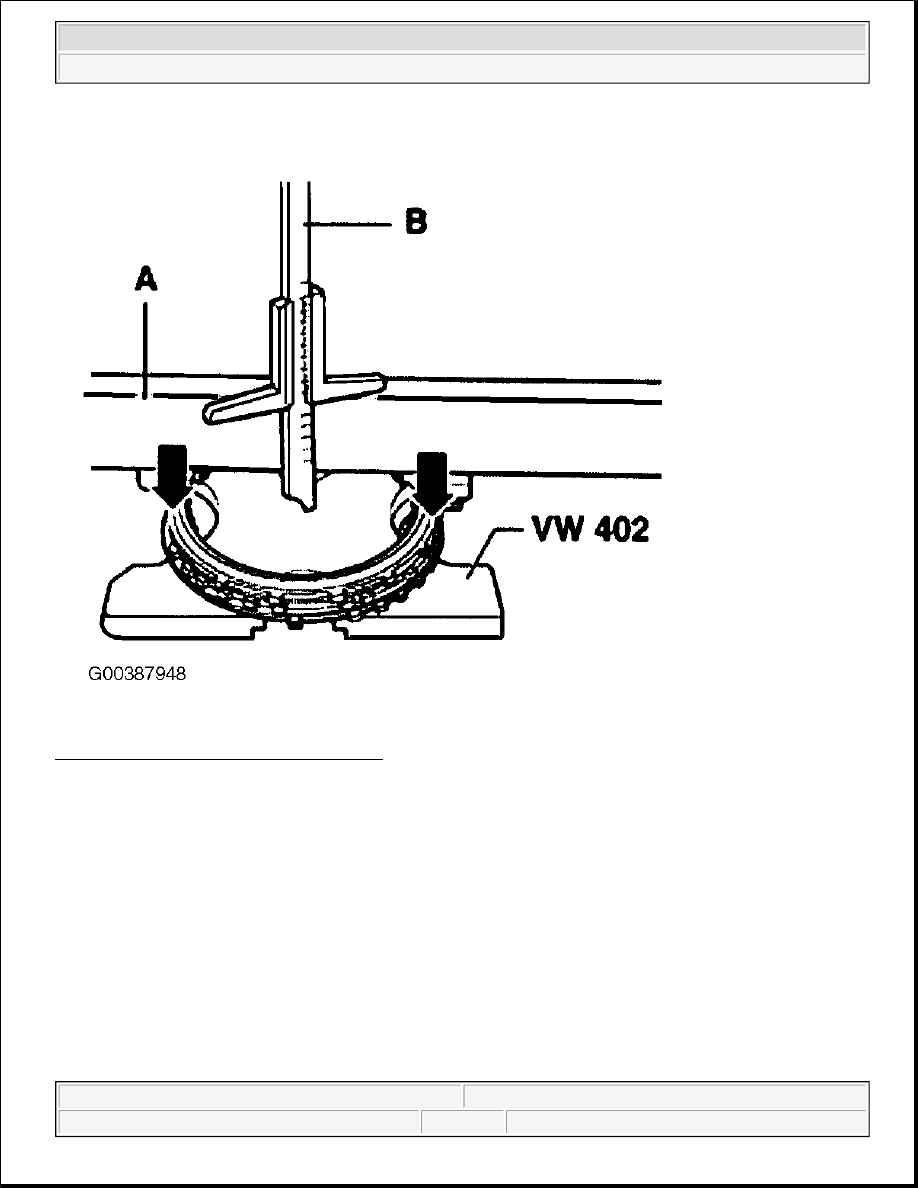

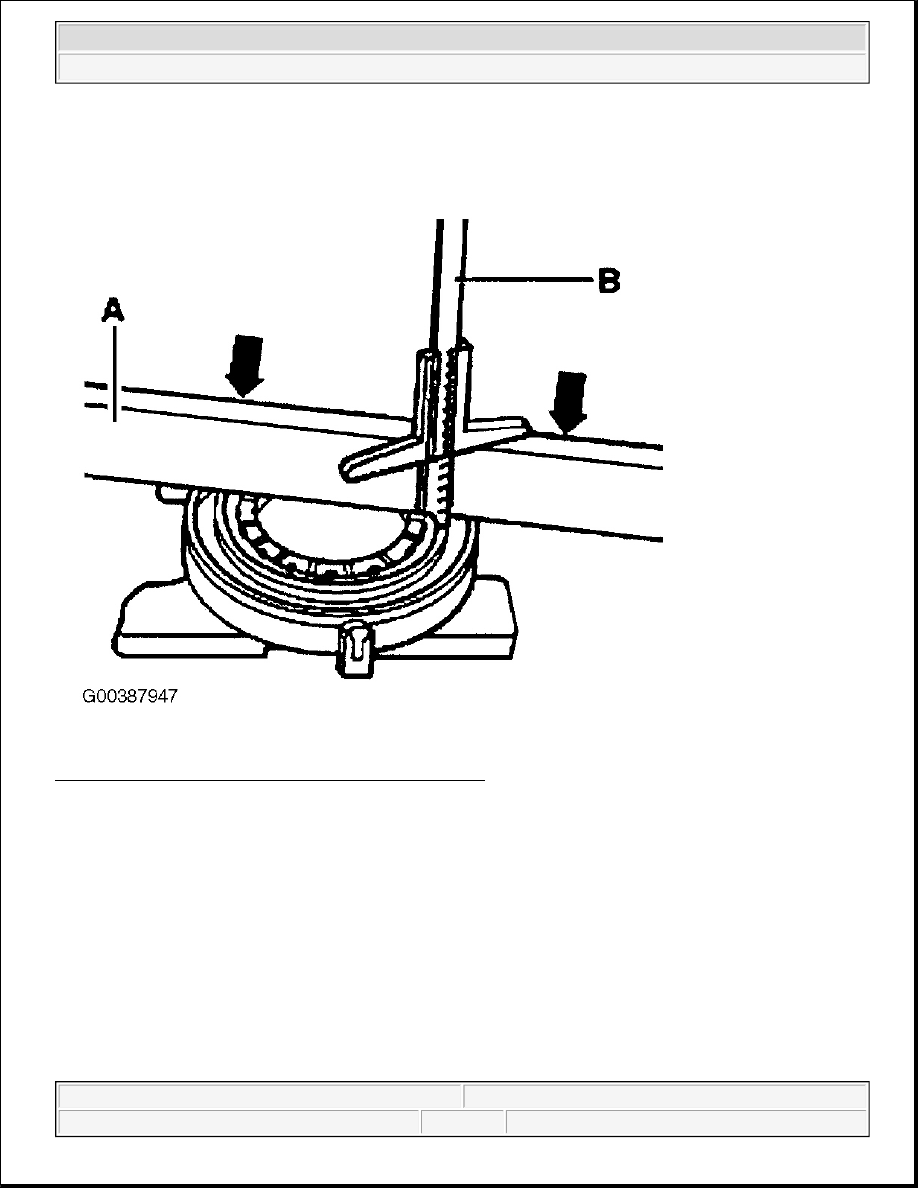

Install with adjusting shim after adjusting input shaft.

5th gear synchronizer



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 97: Identifying 5th Gear Synchronizer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Springs for lock pieces

2. Locking collar

With 3 recesses (arrows A) for the locking pieces (item 4)

3. Synchro-hub

4. Locking pieces

Installation position: The thin extension (arrow B) faces the pointed teeth of the locking collar (item -2-)

Assembling 5th gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 98: Assembling 5th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push locking collar over synchro-hub.

Pointed teeth -A- of the locking collar and shoulder -B- of the syncro-hub face in one direction. The cut
outs for the locking piece in the locking collar and the syncro-hub must be in-line with one another (See
5th gear synchronizer and Fig. 122 ).

z

Insert locking pieces (Installation position: see 5th gear synchronizer ).

z

Insert springs offset by 120° underneath lug - C-. Angled ends of spring must be directly behind locking
pieces (arrows).

Changed springs for 5th gear synchronizer from transmission manufacture date November 11 01
