z

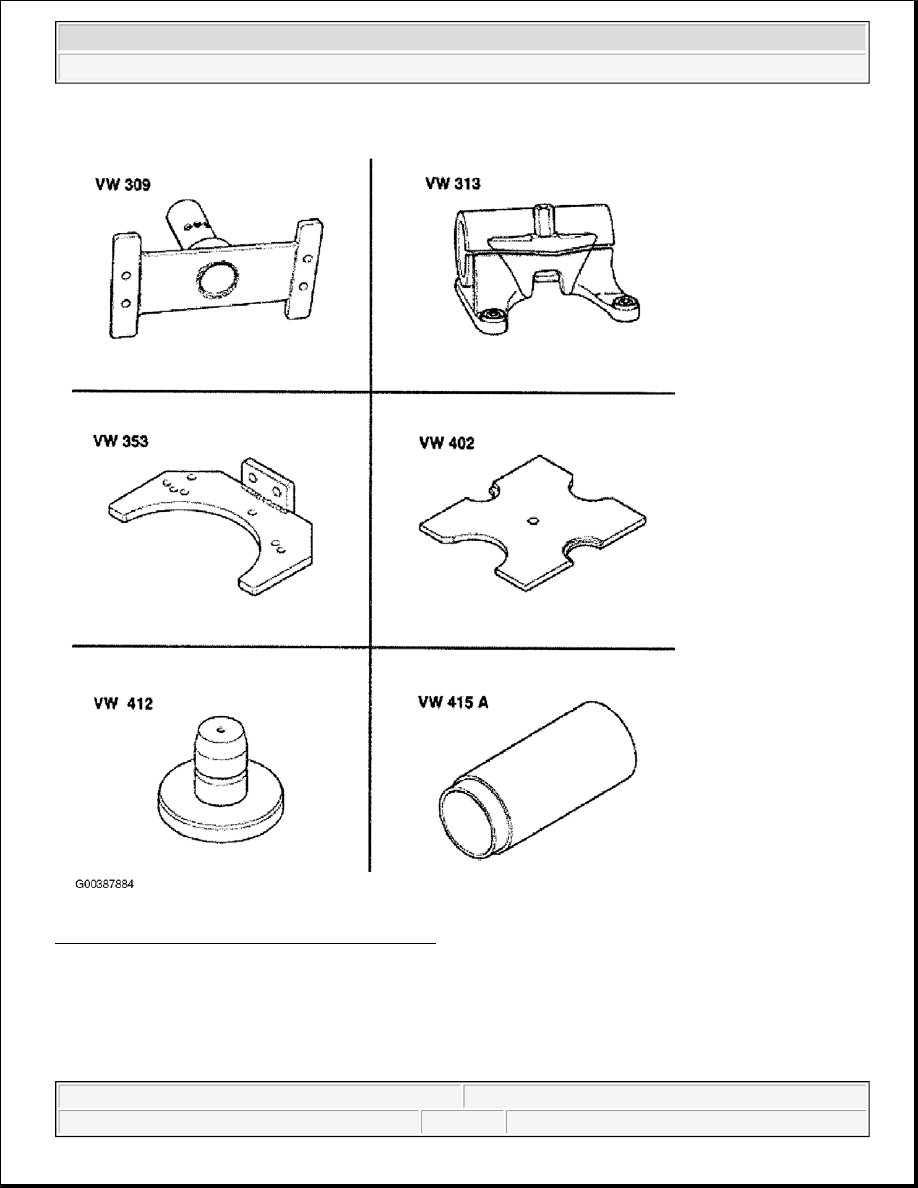

Driving in. See Driving bushing for starter in flush
z
Can be replaced without removing transmission
12. Clutch housing
z
If replaced: Adjustment overview. See Adjustment overview
13. Guide sleeve
z
With input shaft seal and a vulcanized O-ring
z

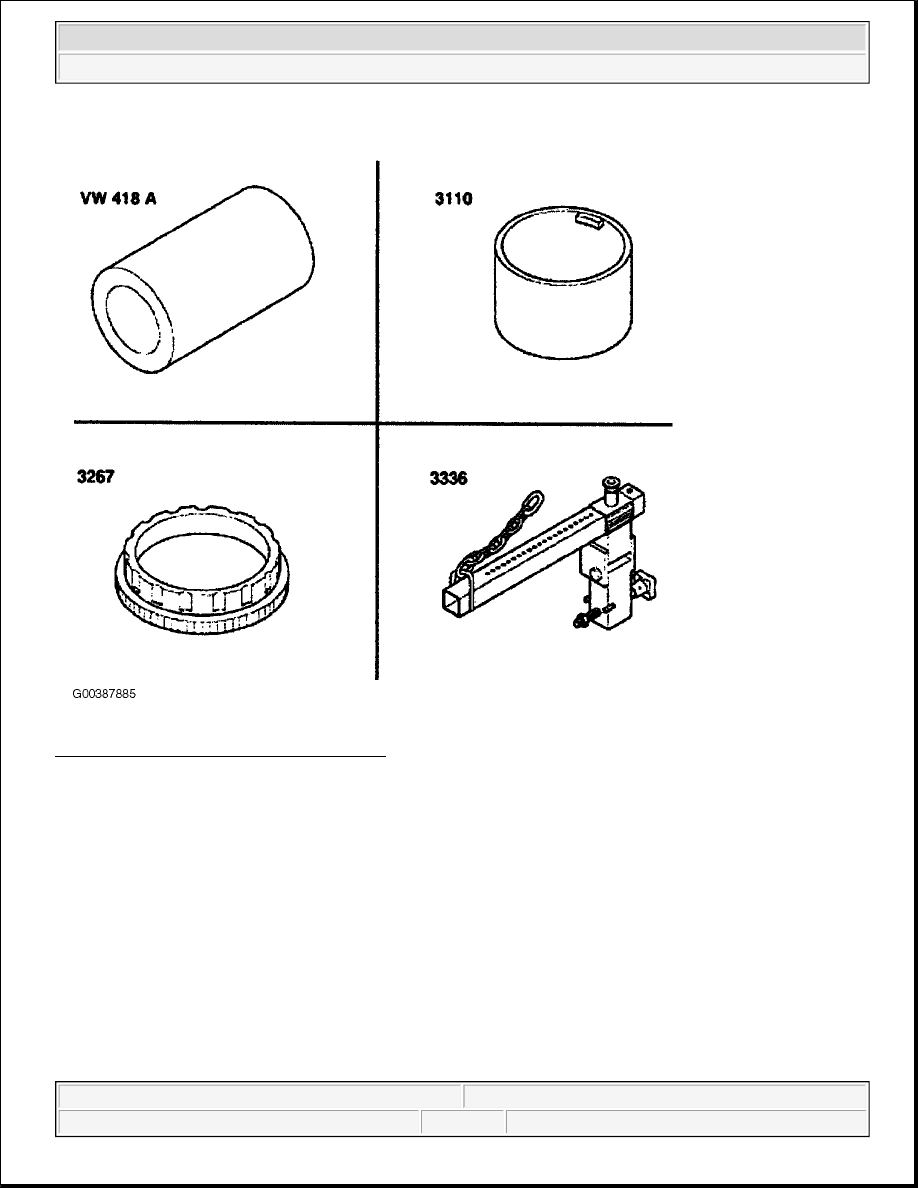

Driving-out oil seal. See Driving oil seal out of guide sleeve
z
Driving-in oil seal. See Drive oil seal into guide sleeve onto stop
z
Remove guide sleeve to change oil seal
z
If damaged replace guide sleeve and O-ring together
14. Socket head bolt, 20 N.m
z
Self-locking
z
Always replace
15. Oil seal
z
Replacing with installed transmission. See FLANGE SHAFT OIL SEALS (TRANSMISSION
INSTALLED), REPLACING
16. Sleeve
z
For oil seal (Item 15)
z
Removing. See Prying sleeve out with a screwdriver
z
Installing. See Pulling sleeve in
17. One piece oil seal and sleeve
z
With damaged oil seal, replace both oil seal and sleeve
z
Removing. See Pulling out sleeve and oil seal
z
Installing. See Driving in sleeve and oil seal
18. Speedometer drive
z
For aluminum tighten to 30 N.m
z
For synthetic material tighten to 10 N.m
19. Oil drain plug, 30 N.m
z
Without magnet
20. Outer race/tapered roller bearing
z
For differential
z
Pressing in and out. See Differential, disassembling and assembling
z
If replaced: Adjust differential. See Differential, adjusting
21. Magnet
z
Held in place by housing joint surface
22. Outer race/tapered roller bearing
z
For differential
