Fig. 152: Identifying Special Tools And Workshop (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

It is necessary to readjust the output shaft when the following components are replaced:

z

Transmission housing

z

Clutch housing

z

Output shaft for 5th, 6th and reverse gears

or

z

Tapered roller bearing

Adjustment overview. See Adjustment overview .

Requirements

z

Sealing surfaces of clutch and transmission housings must be free of sealant.

z

When taking measurements, install only the shaft to be measured.

z

Press tapered roller bearing outer race with a 1.70 mm thick shim into transmission housing, supporting
housing directly under bearing support with thrust piece 2050.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



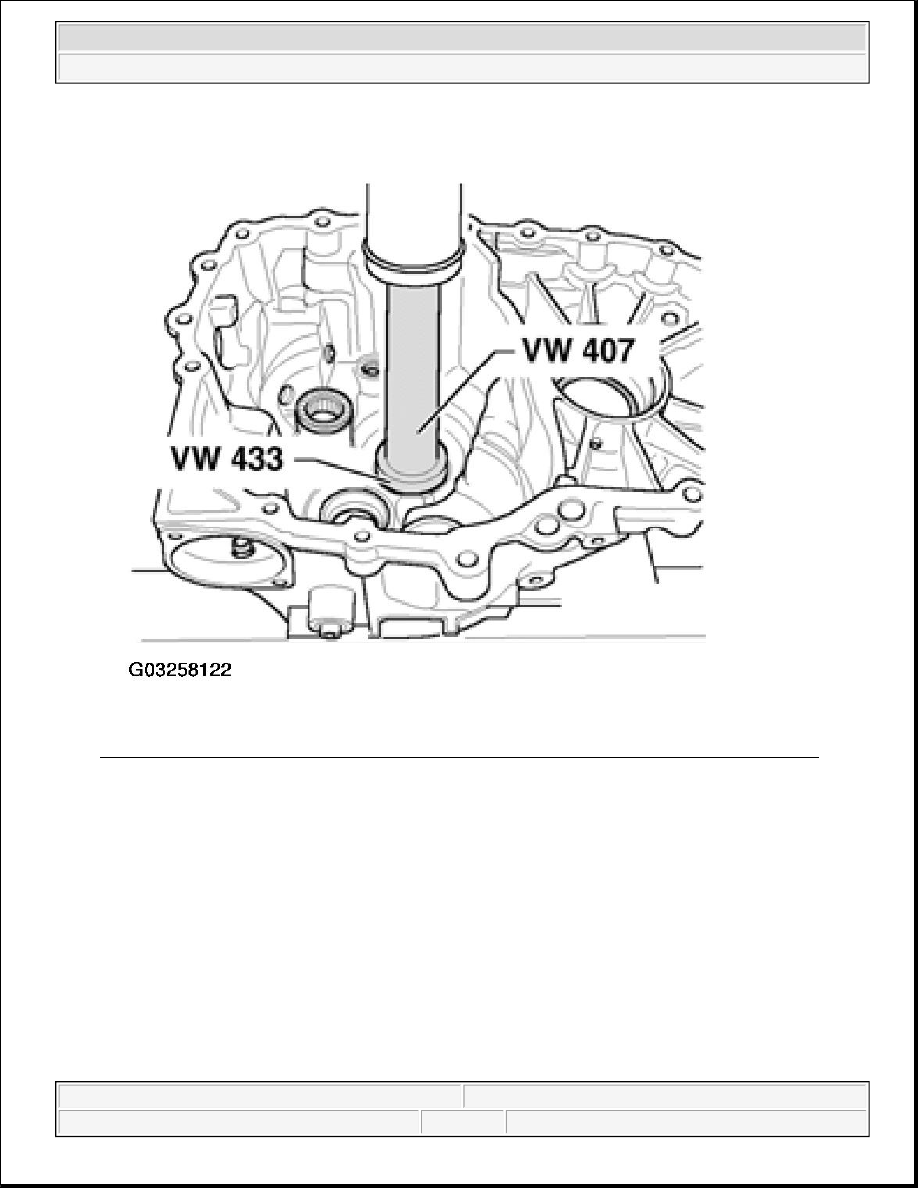

Fig. 153: Pressing Tapered Roller Bearing Outer Race With Shim Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Set complete 5th, 6th and reverse gear output shaft in clutch housing.

z

Fit transmission housing and tighten bolts -A- and -B- diagonally to correct torque.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



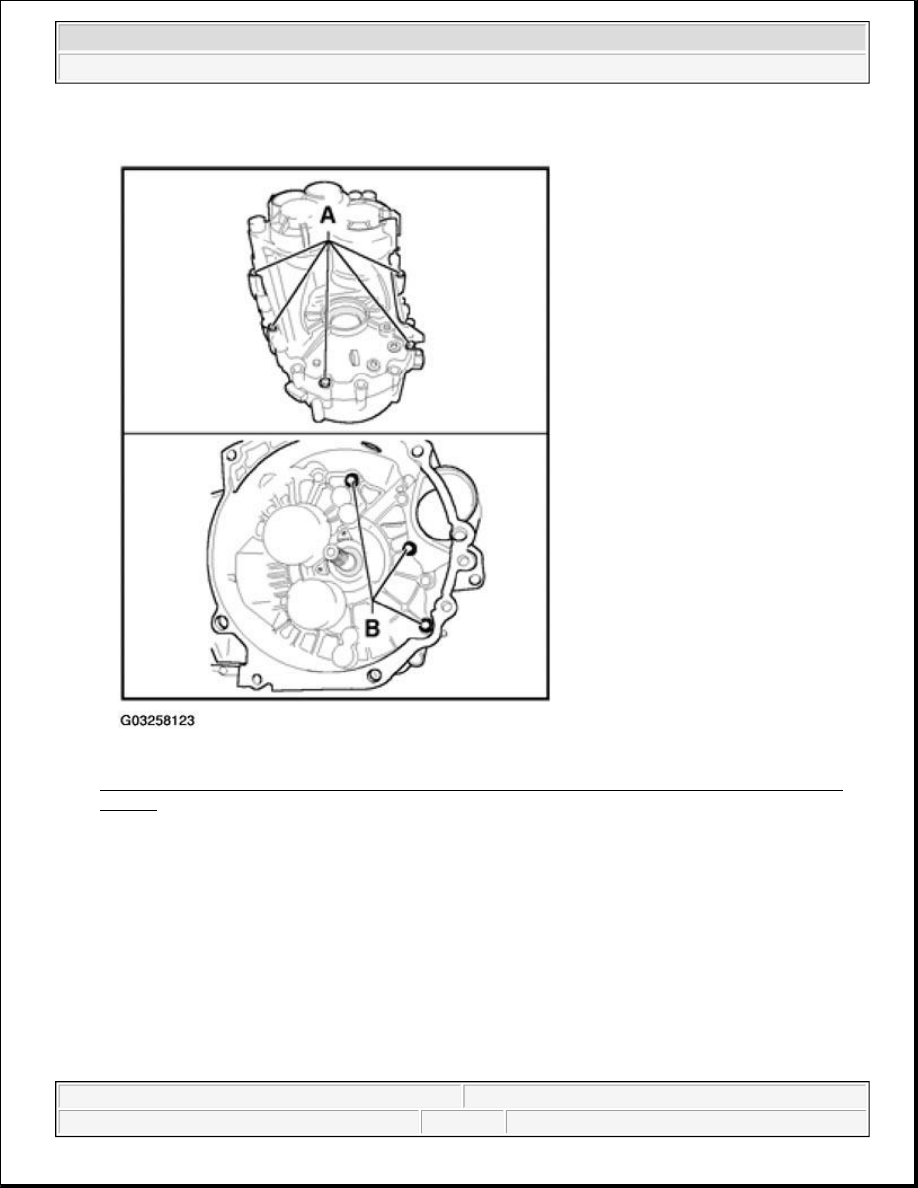

Fig. 154: Fitting Transmission Housing And Tightening Bolts -A- And -B- Diagonally To Correct
Torque
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install measuring tools. Put washers with a total thickness of 8 mm on bolt -arrow- securing installation
tool VW 792 to clutch housing.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



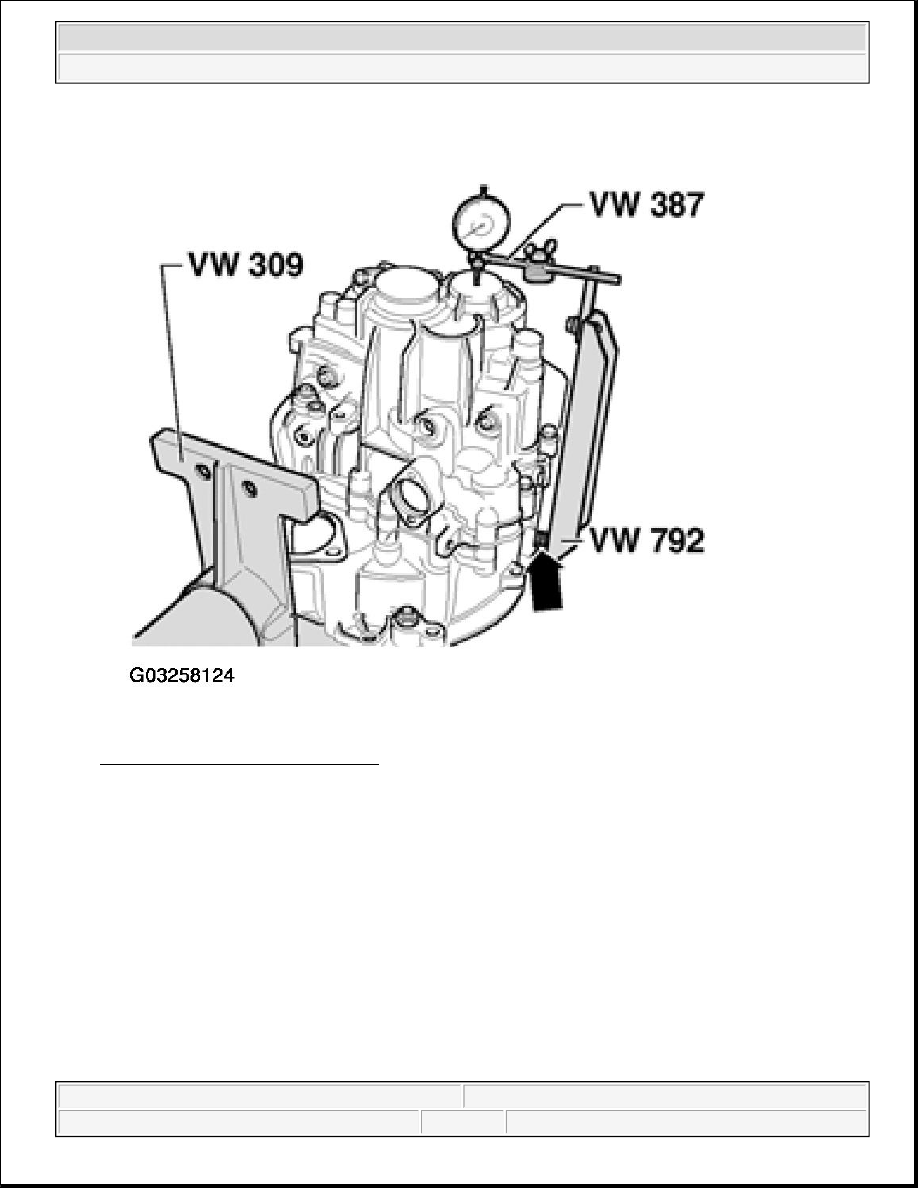

Fig. 155: Installing Measuring Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Set dial gauge (3 mm measuring range) to zero with 1 mm preload.

z

Loosen clutch housing/transmission housing securing bolts diagonally until output shaft moves freely in
transmission housing.

z

Read play on gauge and note reading (Example: 0.27 mm)

Determining thickness of shim

The specified bearing pretension will be attained by subtracting the measured value (0.27 mm) from the inserted

NOTE:

If dial gauge indicates no value when clutch housing/transmission housing
securing bolts are loosened, install shim 1.95 mm (Part No. 084 409 383 AS) or,
if necessary, shim 2.20 mm (Part No. 084 409 383 BD).
