Volkswagen New Beetle. Manual - part 2420

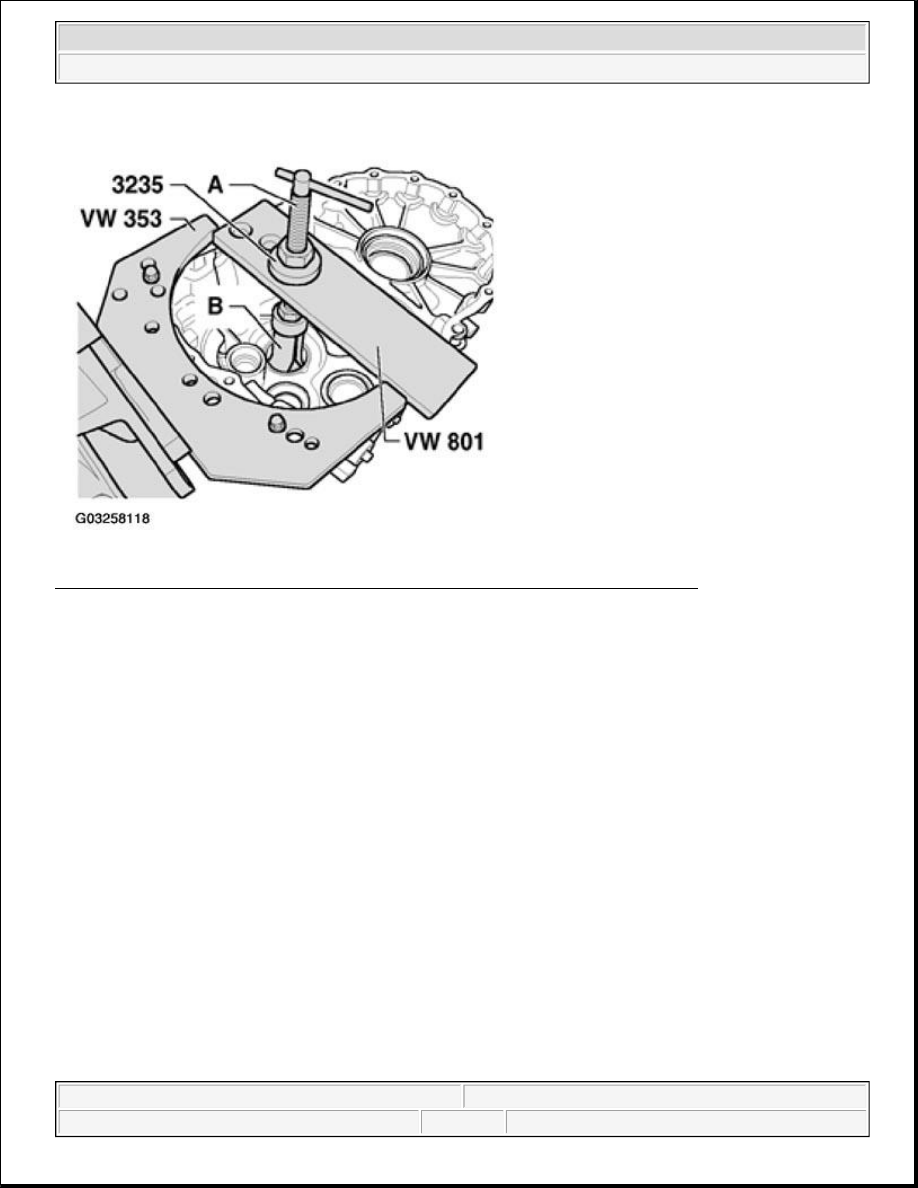

Fig. 149: Pulling Tapered Roller Bearing Outer Race Out Of Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Counter support, e.g. Kukko 22/2

B. Internal puller 46 to 58 mm, e.g. Kukko 21/7

Pressing tapered roller bearing outer race into transmission housing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

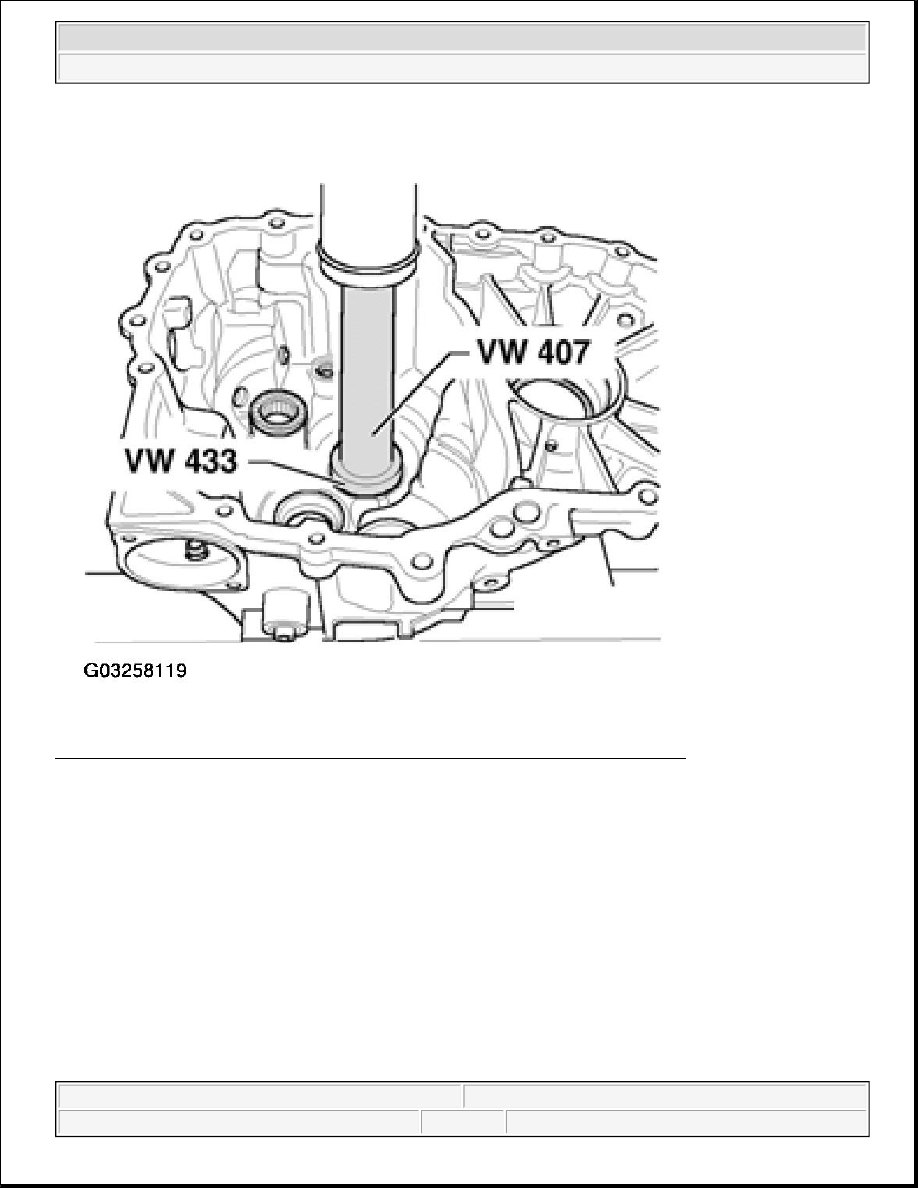

Fig. 150: Pressing Tapered Roller Bearing Outer Race Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Support transmission housing with press piece 2050 directly below bearing support.

OUTPUT SHAFT FOR 5TH, 6TH AND REVERSE GEAR, ADJUSTING

(Determining shim for output shaft)

Special tools and workshop

z

VW 353 Transmission support

z

VW 387 Universal dial gauge bracket

z

VW 407 Press tool

z

VW 433 Press piece



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

VW 792 Installation tool

z

VW 801 Holding plate

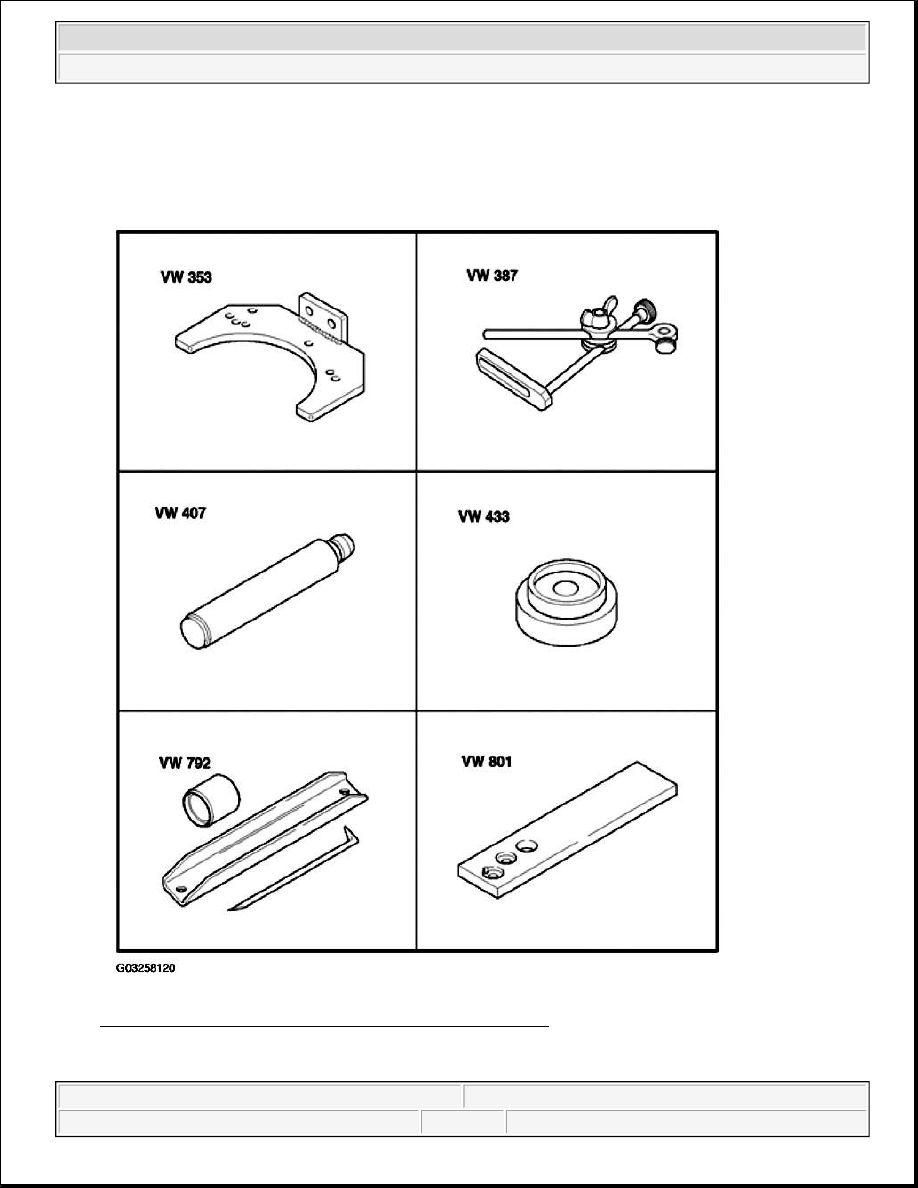

Fig. 151: Identifying Special Tools And Workshop (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

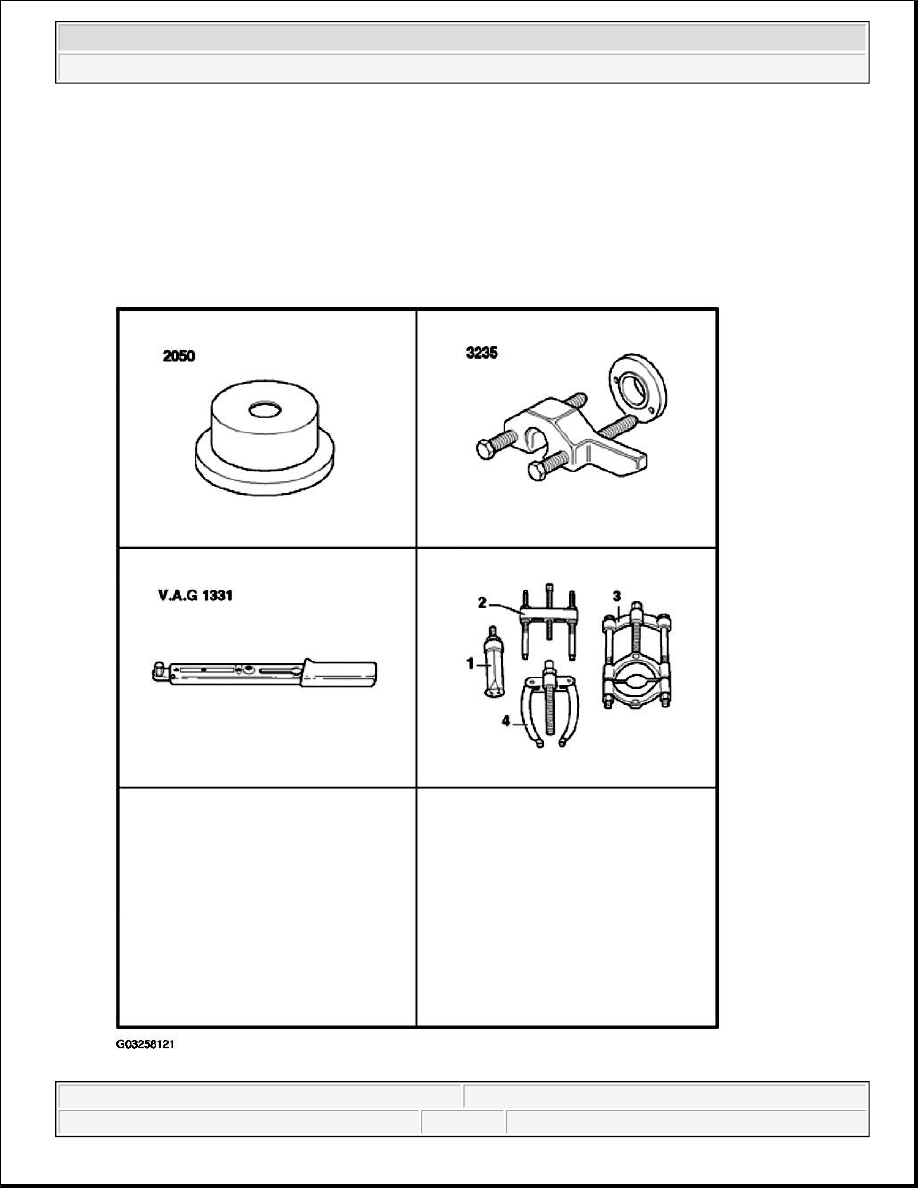

z

2050 Thrust piece

z

3235 Press

z

V.A.G 1331 Torque wrench

z

1 - Kukko 21/7 Internal puller

z

4 - Kukko 22/2 Counter support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
