Installation position of reverse gear synchro-hub

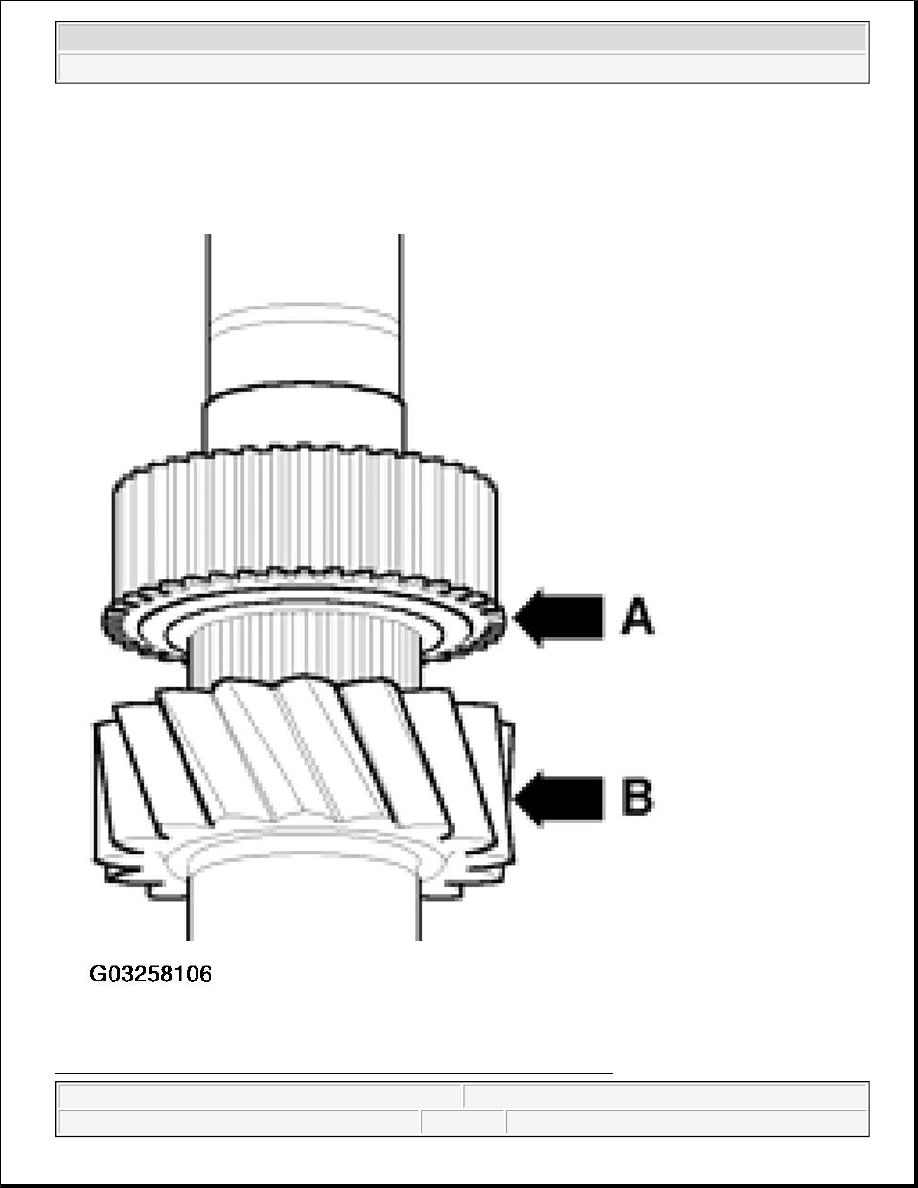

Fig. 137: Identifying Installation Position Of Reverse Gear Synchro-Hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Reverse gear locking collar stop (arrow -A-) faces toward toothing of output shaft (arrow -B-).

Pressing on reverse gear synchro-hub

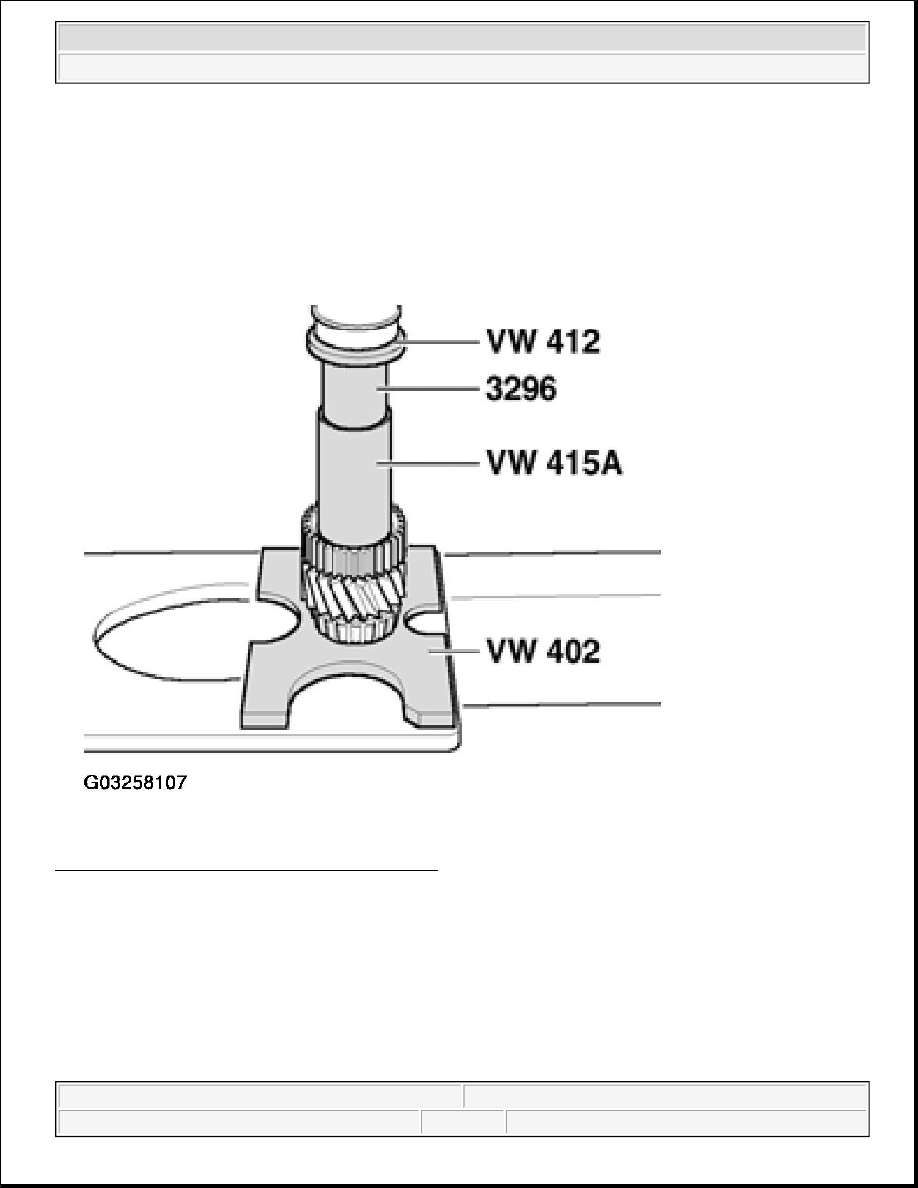

Fig. 138: Pressing On Reverse Gear Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing on sleeve -A-



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

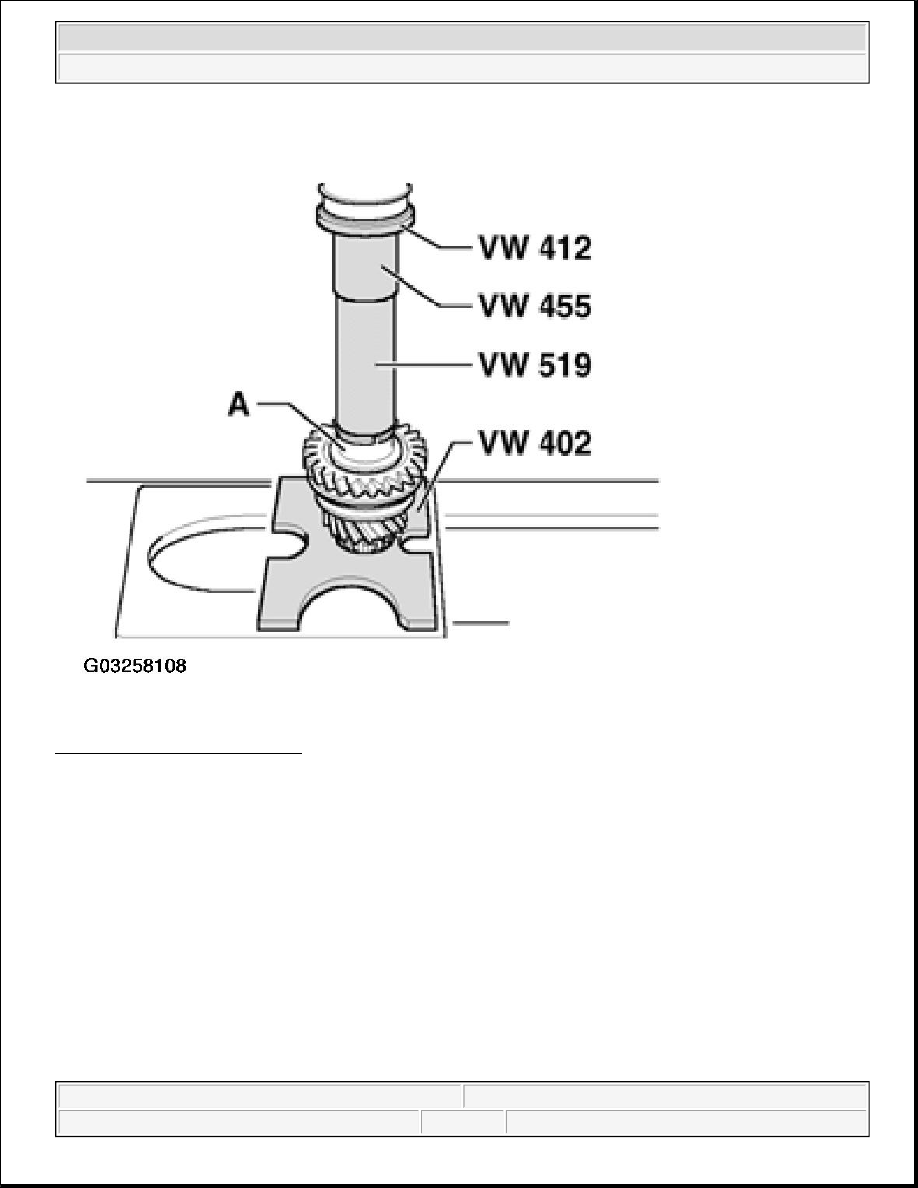

Fig. 139: Pressing On Sleeve -A-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installation position: Wide collar faces toward reverse gear.

Checking synchro-ring for wear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



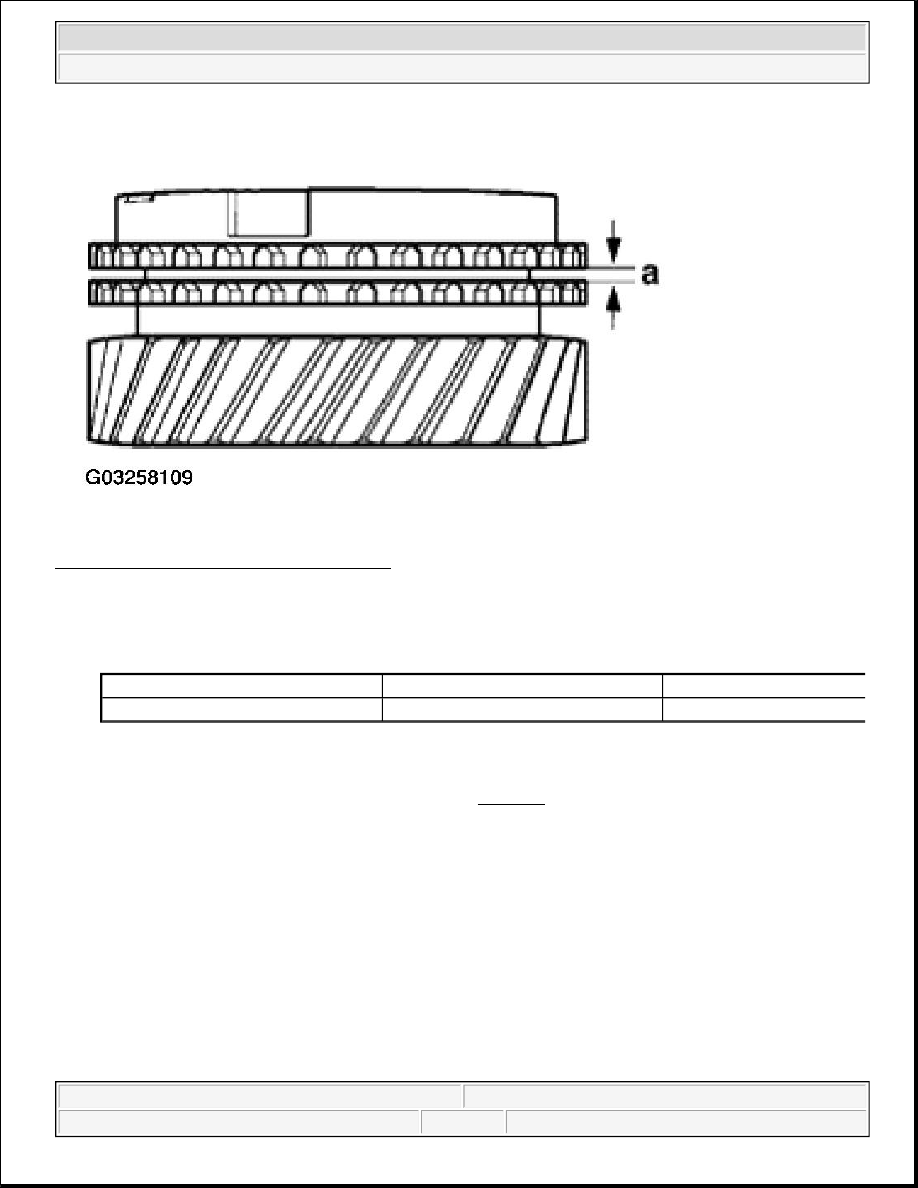

Fig. 140: Checking Synchro-Ring For Wear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press synchro-ring onto gear cone and measure gap "a" with feeler gauge.

WEAR LIMIT (OUTPUT SHAFT FOR 5TH, 6TH AND REVERSE GEAR)

Disassembling and assembling 5th and 6th gear locking collar and synchro-hub

1. Spring

2. Locking piece

3. Locking collar

4. Synchro-hub

{

Slide locking collar over synchro-hub.

The recesses for locking pieces in synchro-hub and locking collar must align.

Gap "a"

New dimension

Wear limit

5th and 6th gear

1.0 ... 1.7 mm

0.5 mm

NOTE:

The following list refers to items in Fig. 141 .
