Volkswagen New Beetle. Manual - part 2415

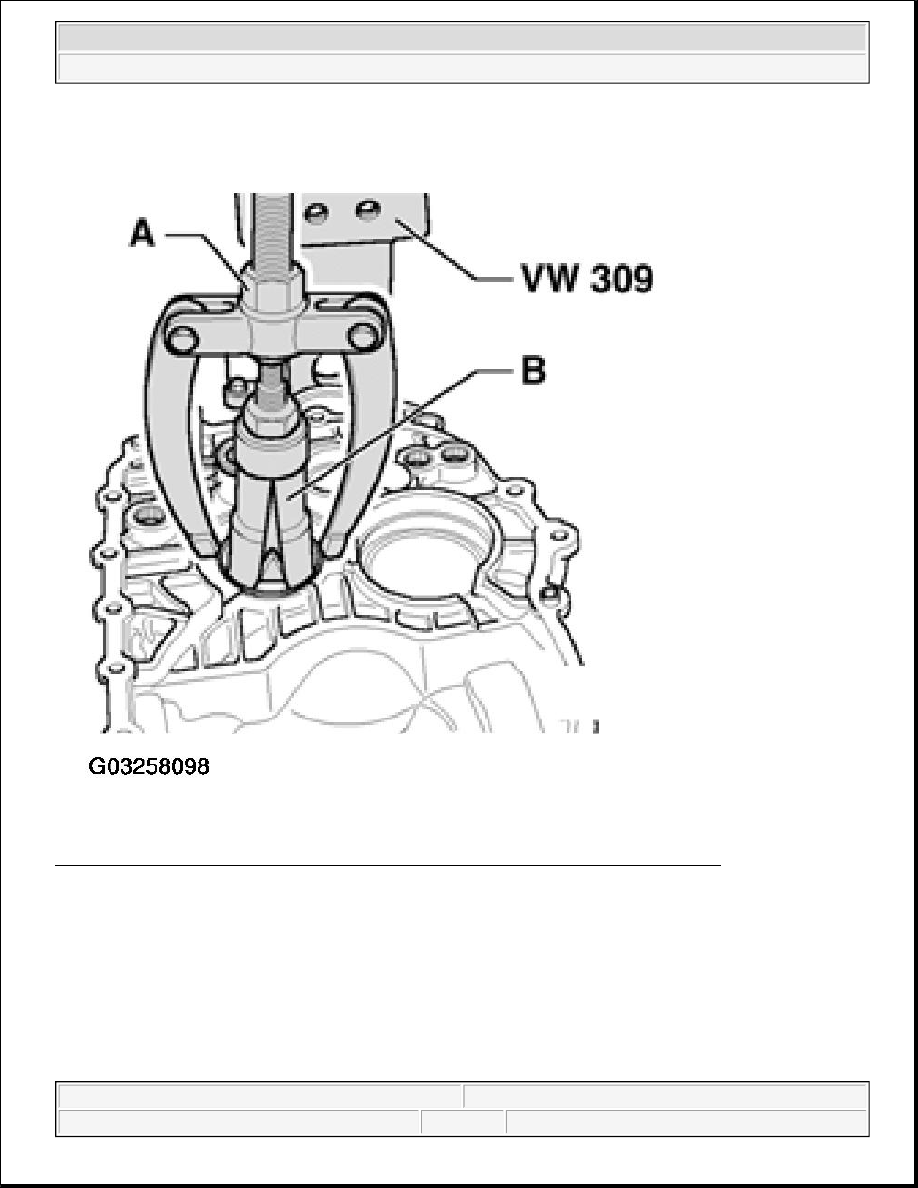

Fig. 129: Pulling Tapered Roller Bearing Outer Race Out From Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Counter support, e.g. Kukko 22/2

B. Internal puller 46 to 58 mm, e.g. Kukko 21/7

Pressing tapered roller bearing outer race into transmission housing

NOTE:

After pressing out, check washer for damage and replace if necessary.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

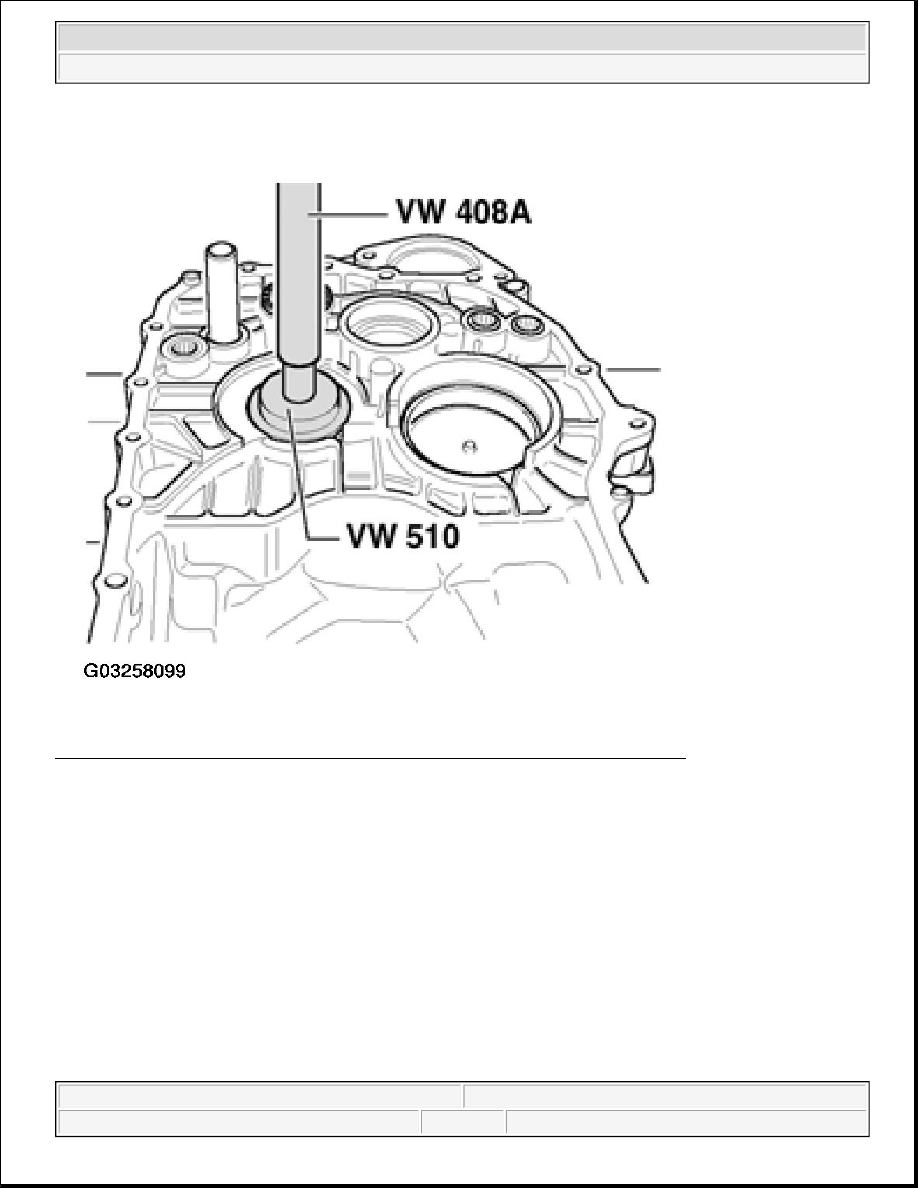

Fig. 130: Pressing Tapered Roller Bearing Outer Race Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install washer under outer race.

z

Support transmission housing with press tool 40-20 directly below bearing mounting.

Pulling off tapered roller bearing inner race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

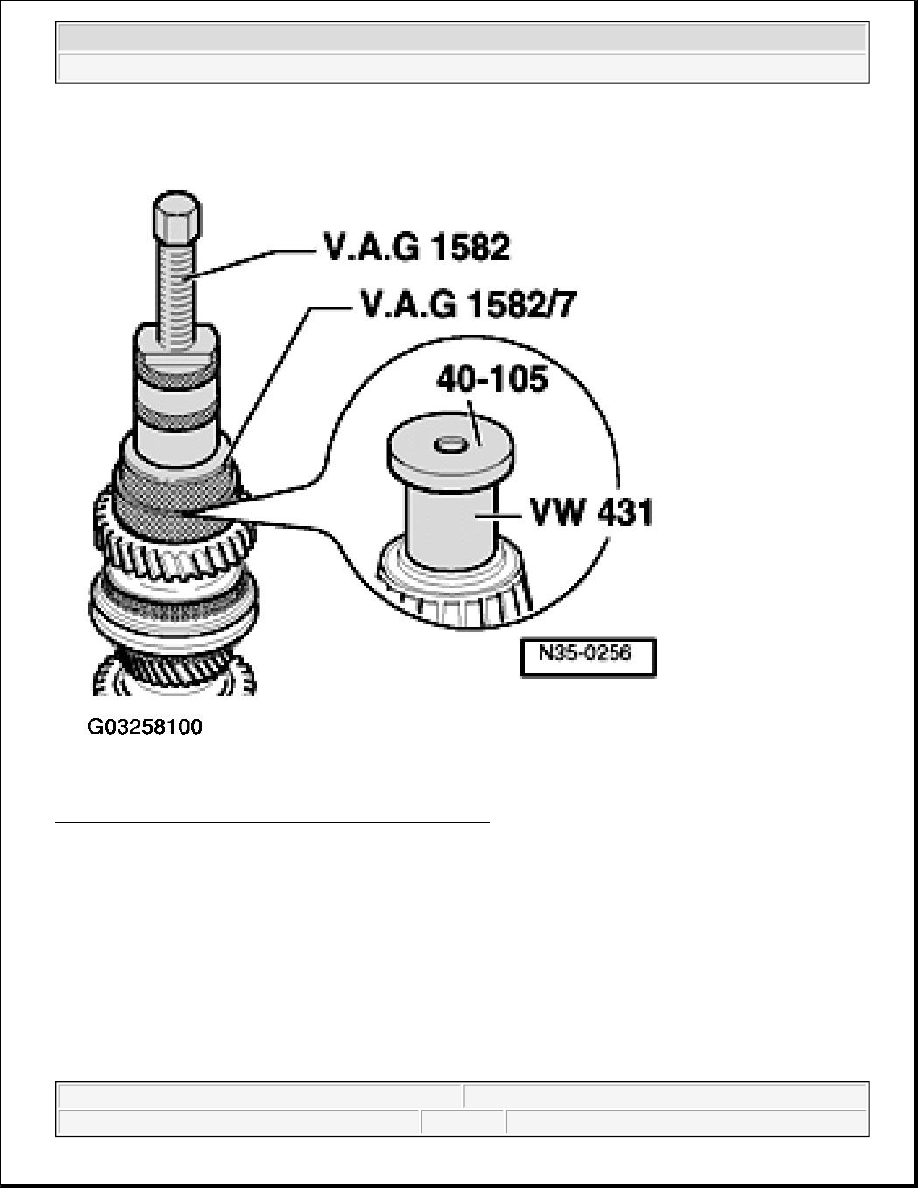

Fig. 131: Pulling Off Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Before mounting extractor, position press piece VW 431 and thrust plate 40-105 on output shaft.

Pressing off 5th and 6th gear synchro-hub/locking collar with 6th gear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

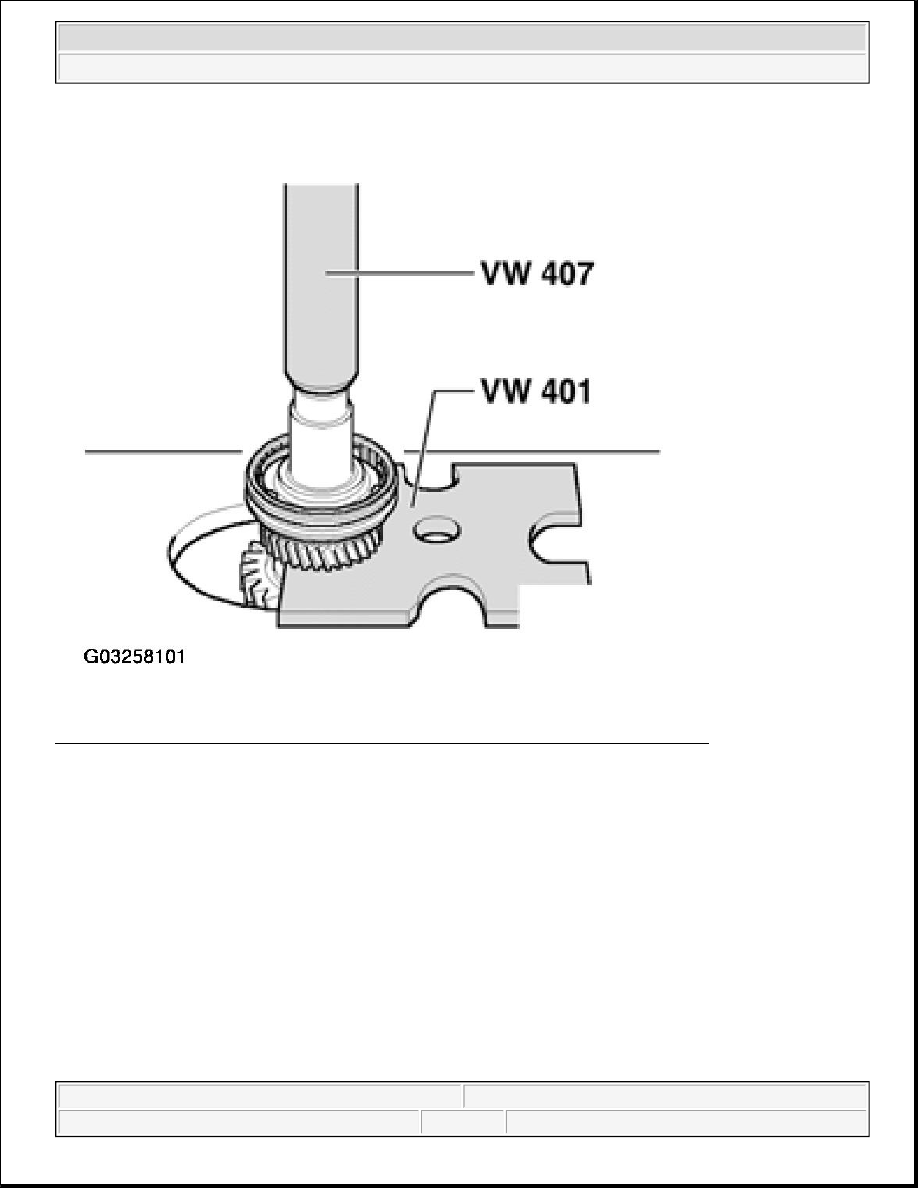

Fig. 132: Pressing Off 5th And 6th Gear Synchro-Hub/Locking Collar With 6th Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing off 5th gear synchro-hub/locking collar with spacer sleeve



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
