Angled lugs (arrow -1-) point toward outer ring -B-.

z

Fit outer ring -B-.

Lugs (arrow -2-) engage in gear wheel recesses (arrow 3).

z

Fit synchro-ring -C-.

The recesses (arrow -4-) engage in lugs (arrow -1-) of inner ring -A-.

Disassembling And Assembling 1st And 2nd Gear Locking Collar And Synchro-Hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

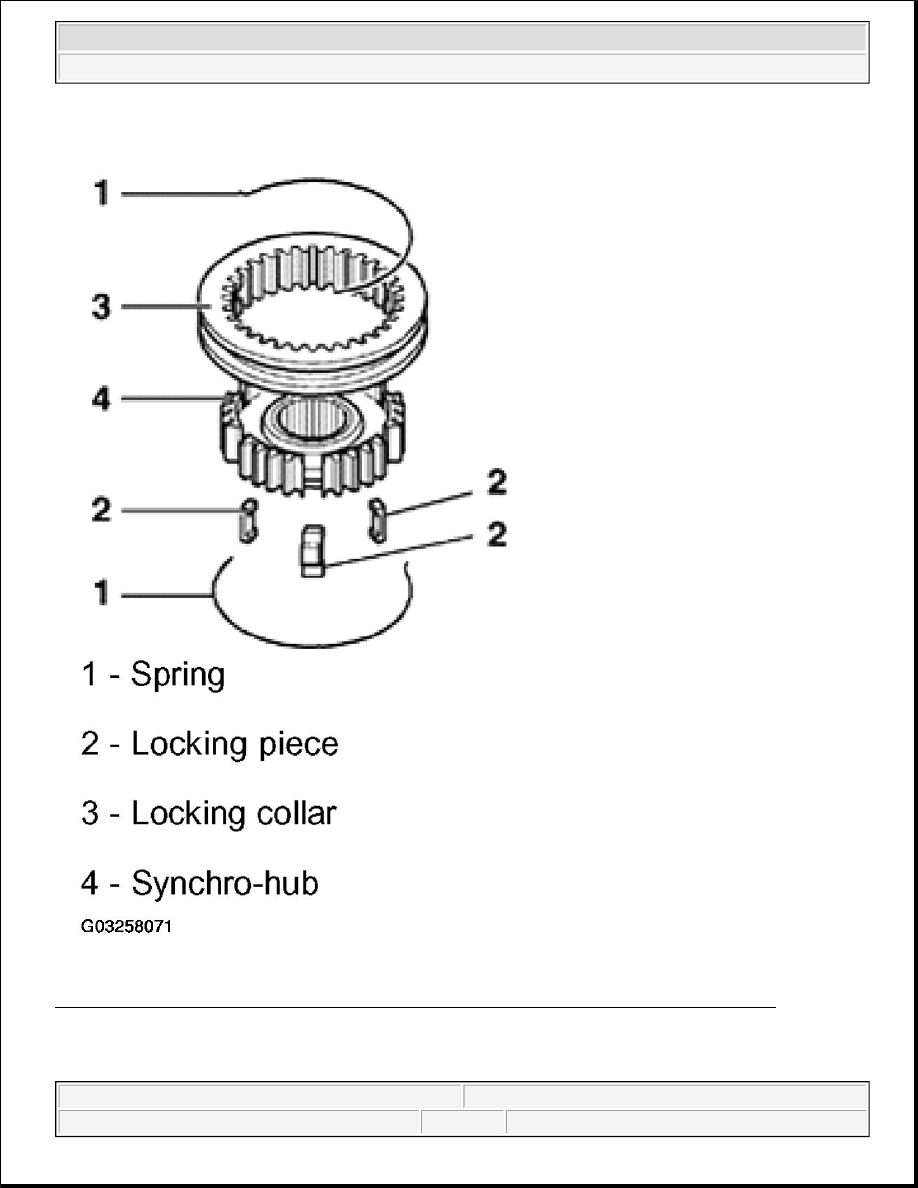

Fig. 102: Disassembling And Assembling 1st And 2nd Gear Locking Collar And Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Spring



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



2. Locking piece

3. Locking collar

4. Synchro-hub

z

Slide locking collar over synchro-hub.

The recesses for locking pieces in synchro-hub and locking collar must align.

Assembling 1st And 2nd Gear Locking Collar/Synchro-Hub

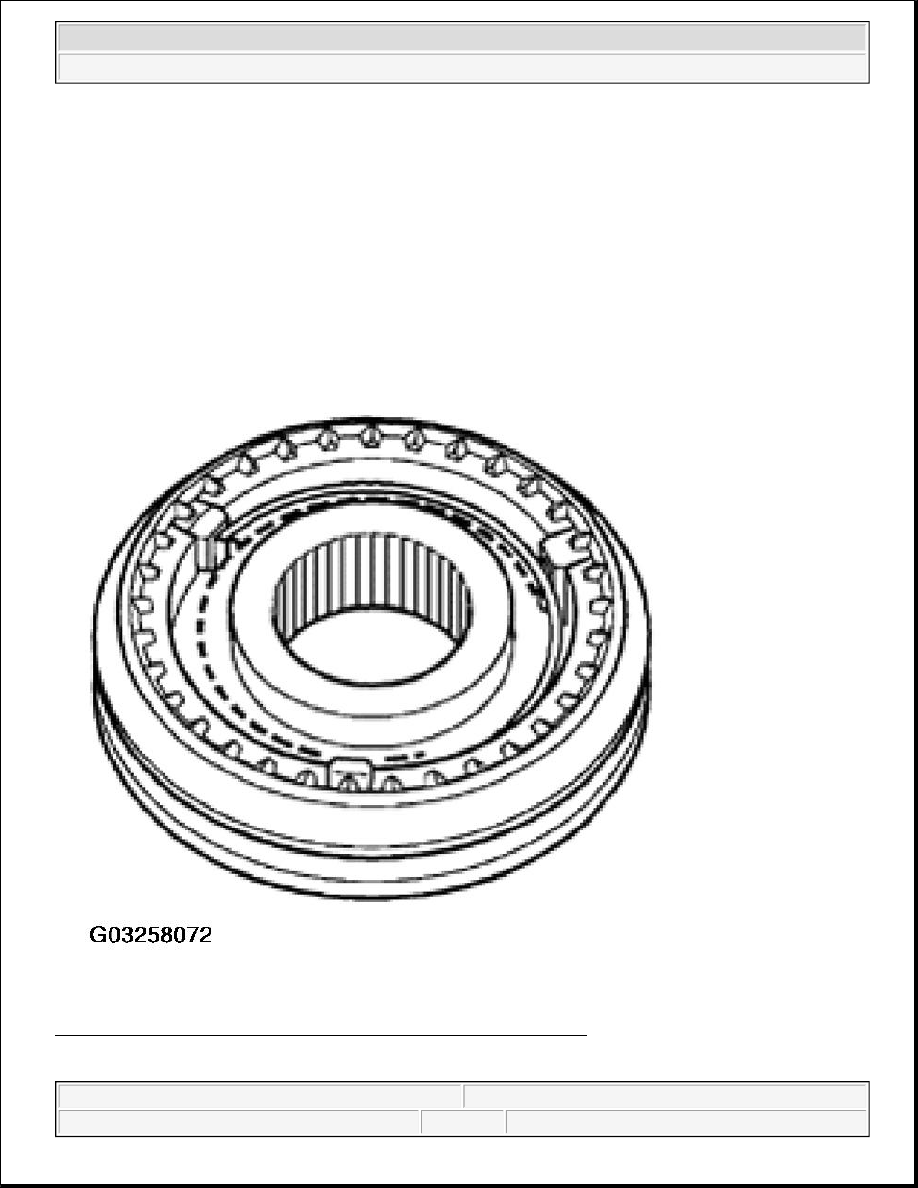

Fig. 103: Assembling 1st And 2nd Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



The locking collar has been pushed over the synchro-hub.

z

Insert locking pieces and install springs 120° offset. Angled end of spring must locate in hollow locking
piece.

Installation Position Of 1st And 2nd gear Locking Collar/Synchro-Hub

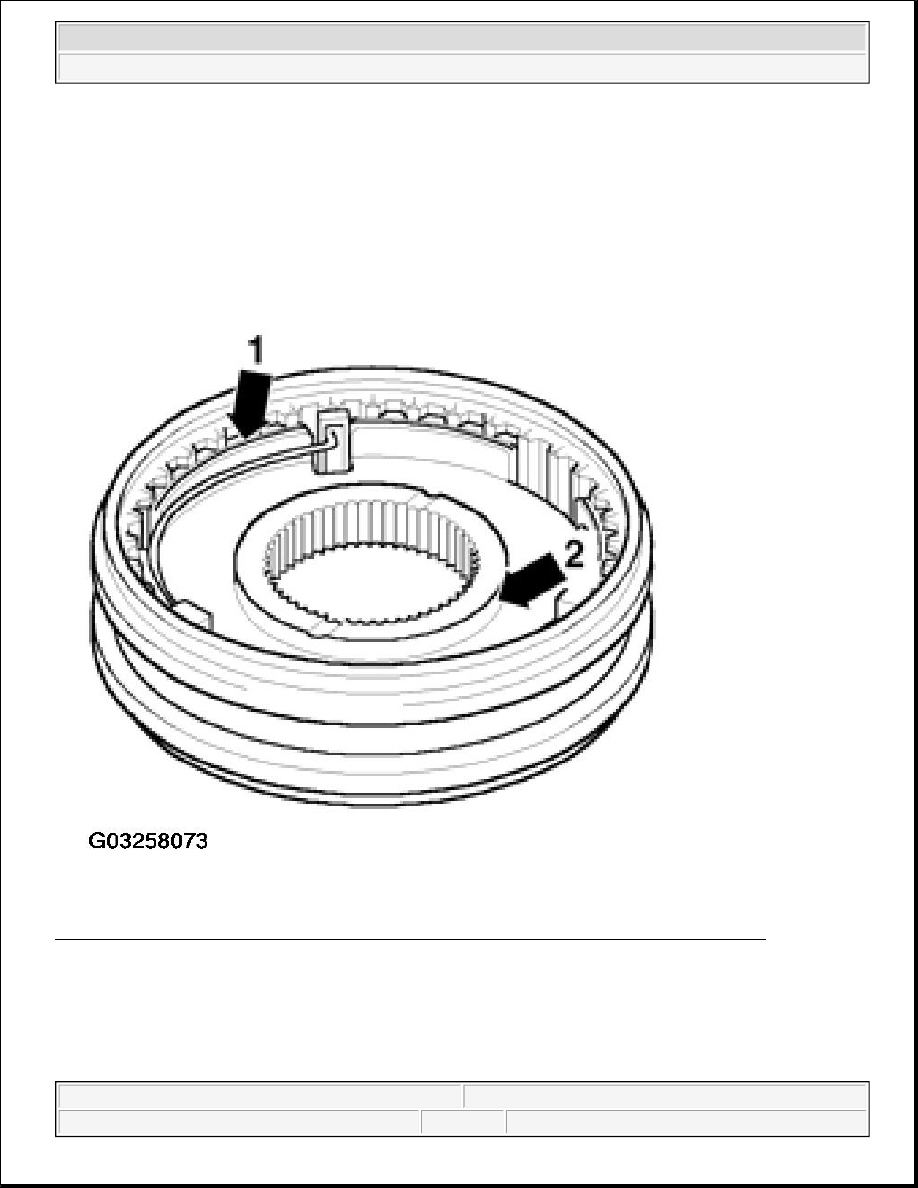

Fig. 104: Identifying Installation Position Of 1st And 2nd Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Identification groove (arrow -1-) and narrow collar (arrow -2-) of synchro-hub point toward 1st gear.

Pressing On 1st and 2nd Gear Locking Collar/Synchro-Hub
