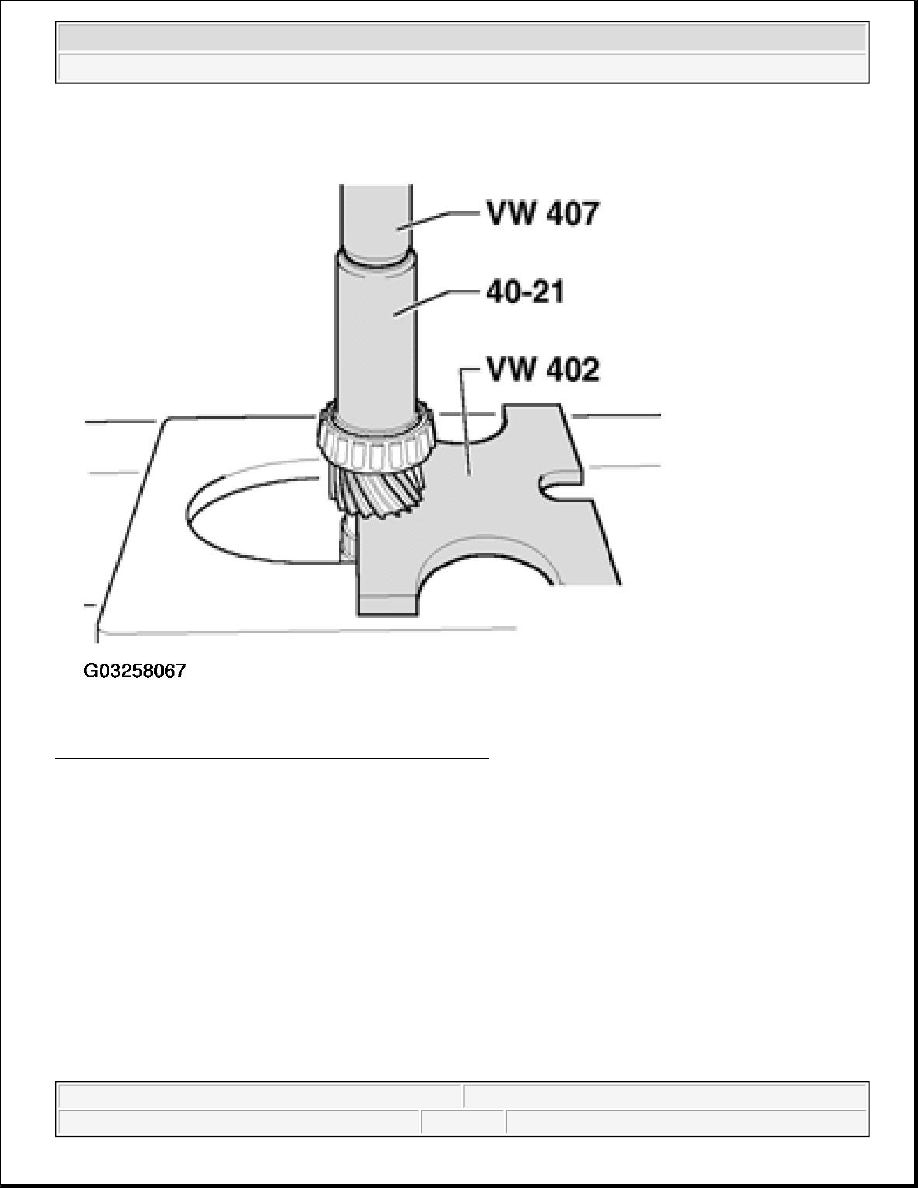

Fig. 98: Pressing On Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Checking Inner Ring For 1st, 2nd And 3 Gear For Wear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



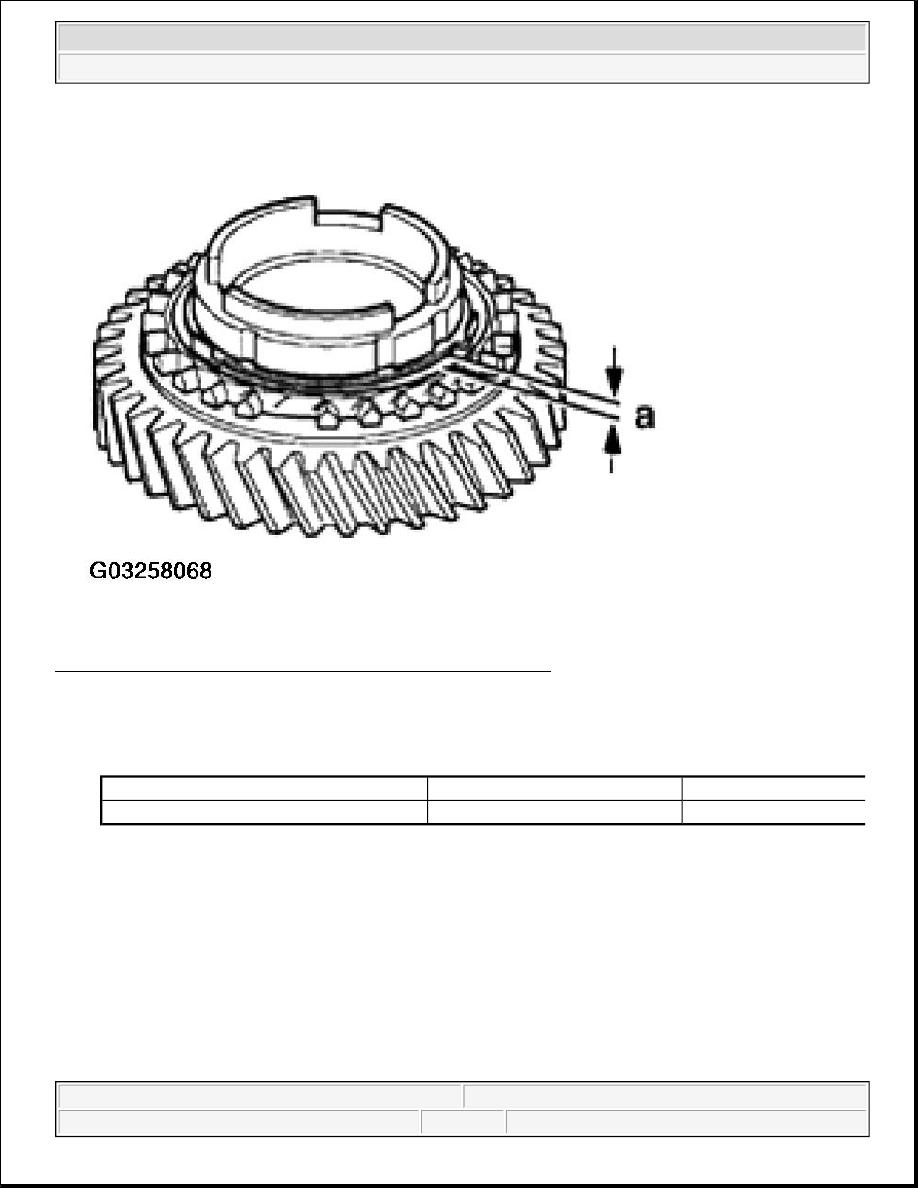

Fig. 99: Checking Inner Ring For 1st, 2nd And 3 Gear For Wear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press inner ring onto gear wheel cone and measure gap "a" with a feeler gauge.

WEAR LIMIT (INNER RING FOR 1ST, 2ND AND 3 GEAR)

Checking 1st, 2nd And 3rd Gear Synchro-Rings For Wear

Gap "a"

New dimension

Wear limit

1st, 2nd and 3rd gear

0.75 ... 1.25 mm

0.3 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



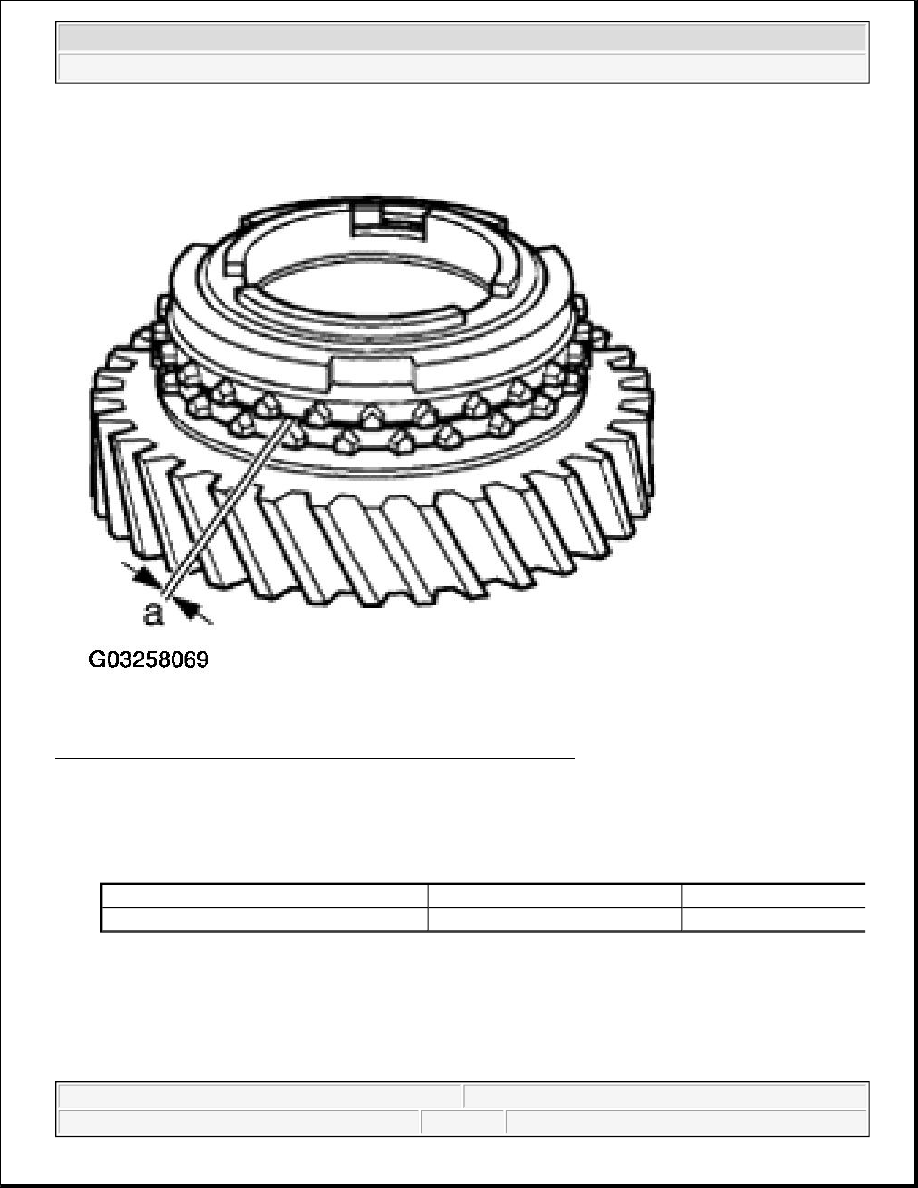

Fig. 100: Checking 1st, 2nd And 3rd Gear Synchro-Rings For Wear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press synchro-ring, outer-ring and inner-ring onto selector gear cone and measure gap "a" with feeler
gauge.

WEAR LIMIT (1ST, 2ND AND 3RD GEAR SYNCHRO-RINGS)

Installation Position Of Outer Ring, Inner Ring And 2nd Gear Synchro Ring

Gap "a"

New dimension

Wear limit

1st, 2nd and 3rd gear

1.2 ... 1.8 mm

0.5 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

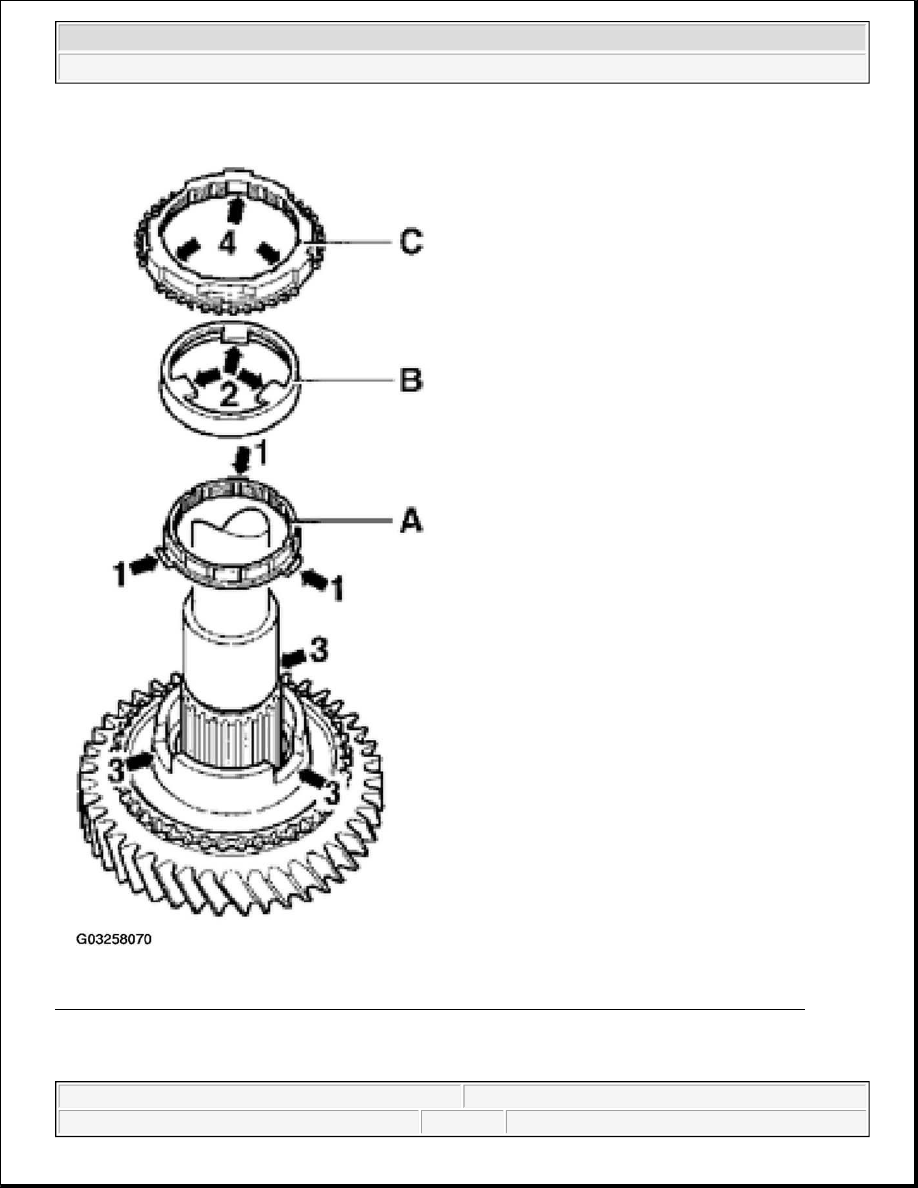

Fig. 101: Identifying Installation Position Of Outer Ring, Inner Ring And 2nd Gear Synchro Ring
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Place inner ring -A- on 2nd gear wheel.
