Volkswagen New Beetle. Manual - part 2386

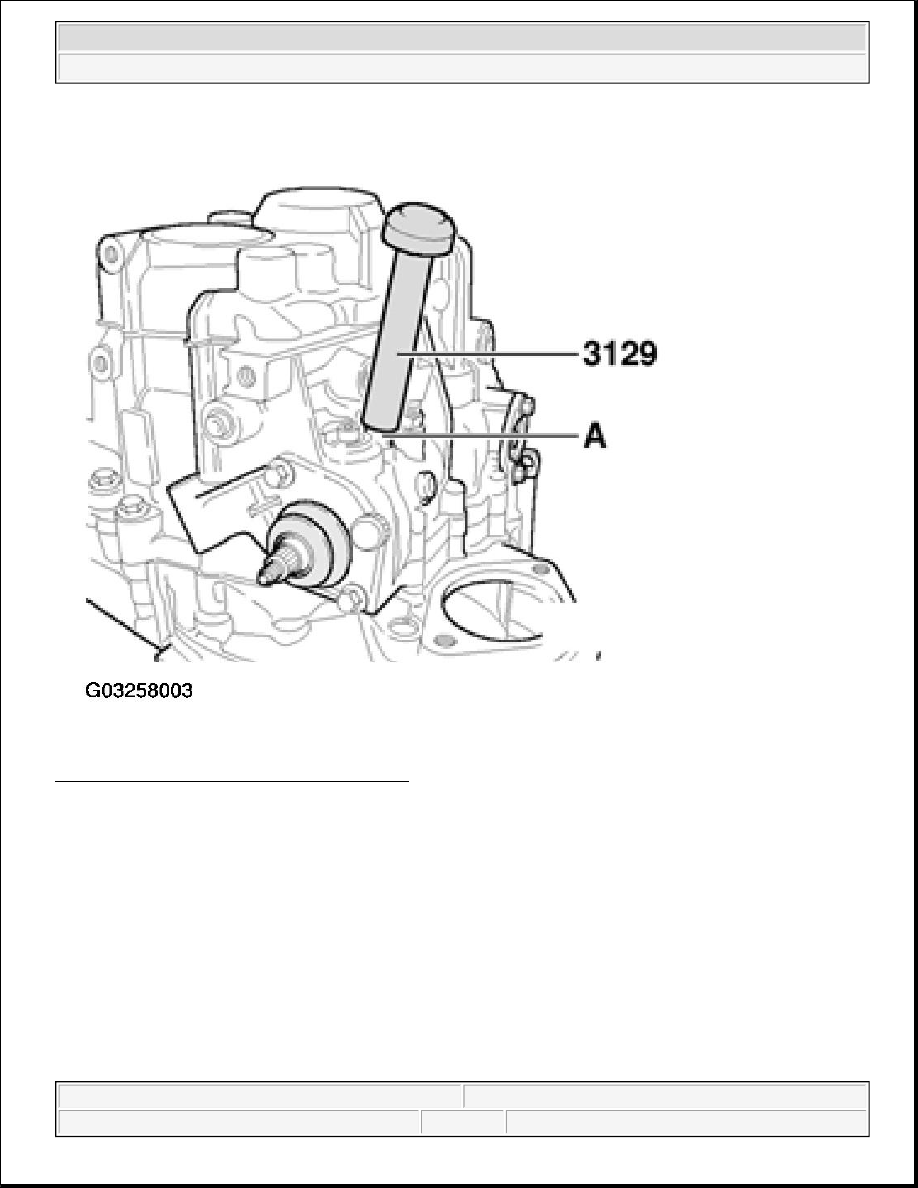

Fig. 34: Driving In Locking Pin -A- Onto Stop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pulling out mounting bushing for selector rod

A. Internal extractor 14.5 to 18.5 mm, e.g. Kukko 21/2



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 35: Pulling Out Mounting Bushing For Selector Rod
Courtesy of VOLKSWAGEN OF AMERICA, INC.

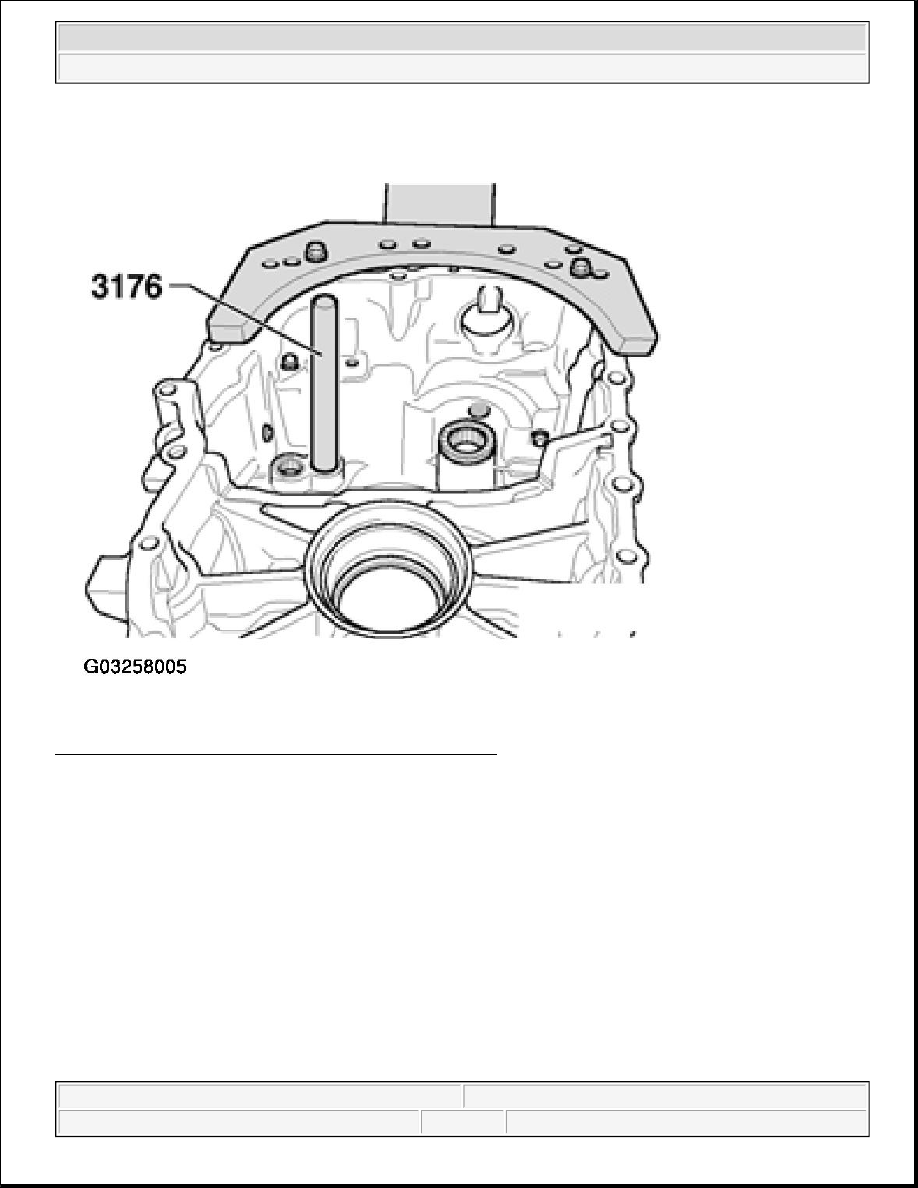

Driving selector rod mounting bushing in flush



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 36: Driving Selector Rod Mounting Bushing In Flush
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pulling reverse shaft needle bearing out of transmission housing

A. Internal extractor 23.5 to 30.0 mm, e.g. Kukko 21/4



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 37: Pulling Reverse Shaft Needle Bearing Out Of Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing needle bearing into transmission housing

z

Before pressing in, lay reverse shaft thrust washer -B- on needle bearing.

NOTE:

The needle bearing is destroyed during removal and must be replaced.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
