Volkswagen New Beetle. Manual - part 2385

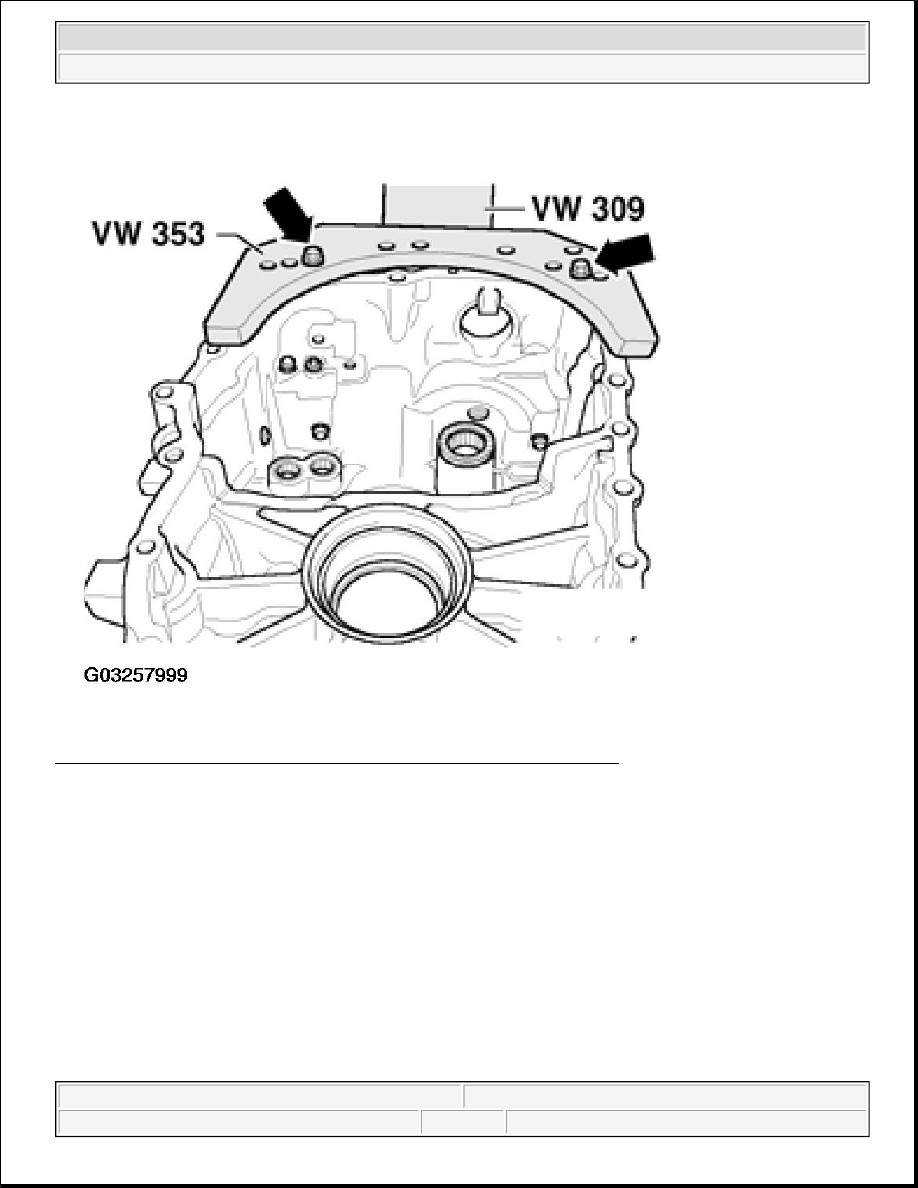

Fig. 30: Securing Transmission Housing To Assembly Bracket With Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Driving out stop sleeve



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

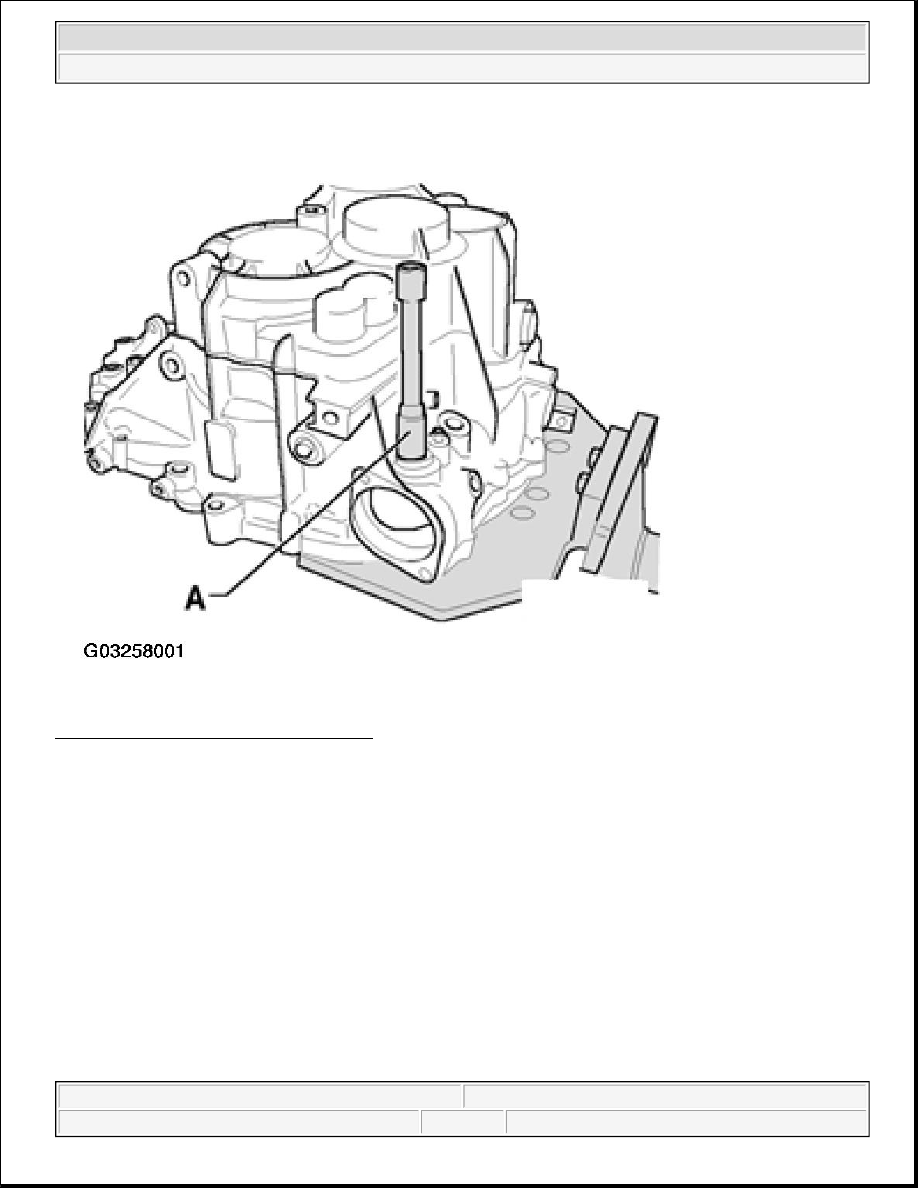

Fig. 31: Driving Out Stop Sleeve
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Driving stop sleeve in onto stop

z

Drive stop sleeve in onto stop with 13 mm socket -A- and plastic head hammer.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

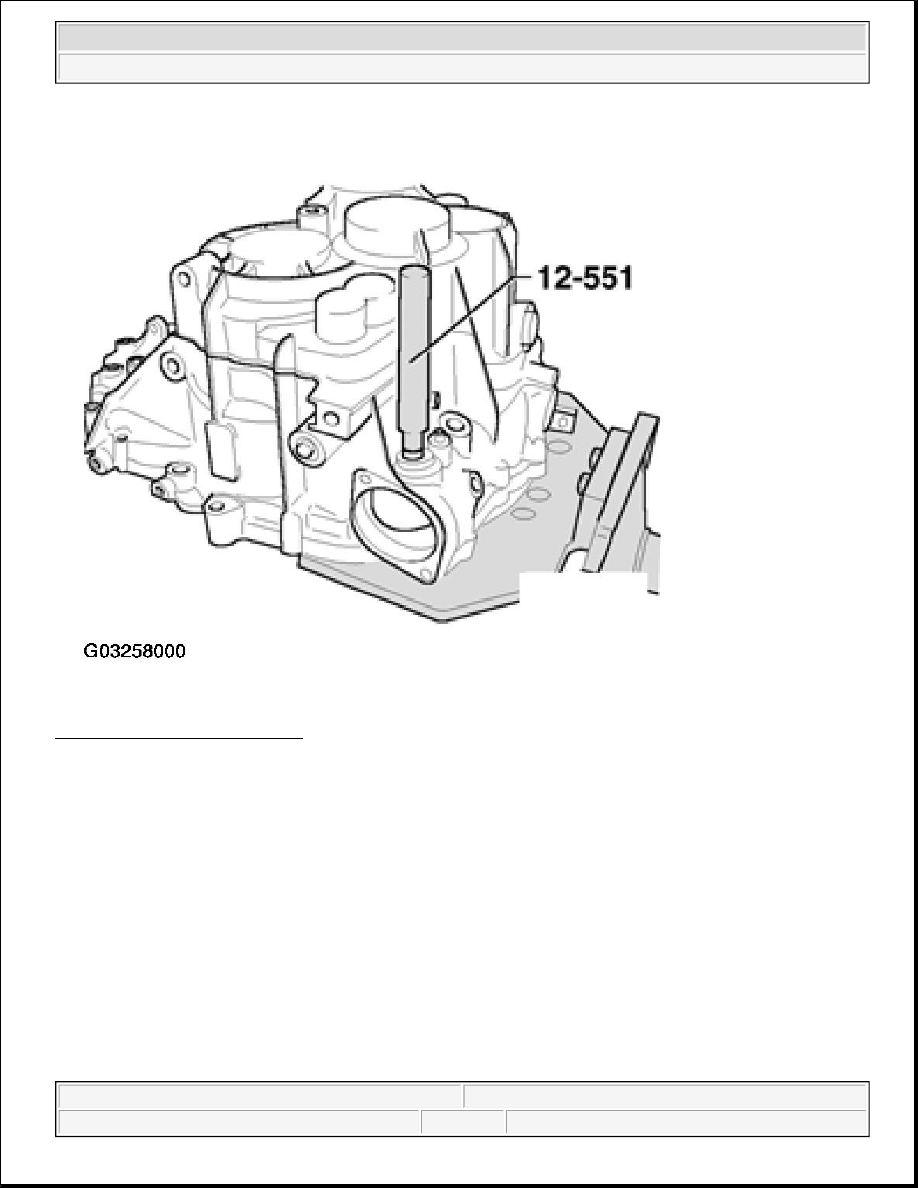

Fig. 32: Driving Stop Sleeve In Onto Stop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

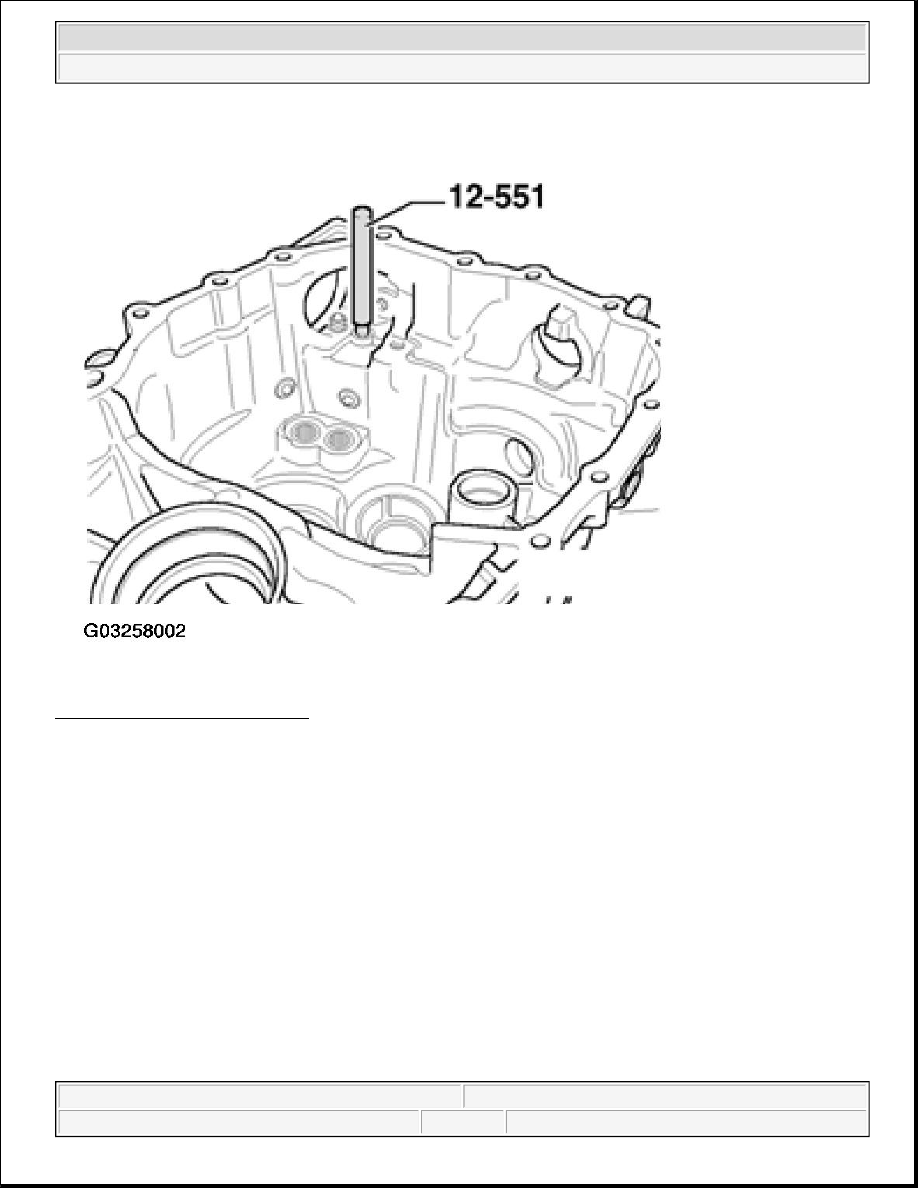

Driving out locking pin



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 33: Driving Out Locking Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Driving in locking pin onto stop



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
