Volkswagen New Beetle. Manual - part 2373

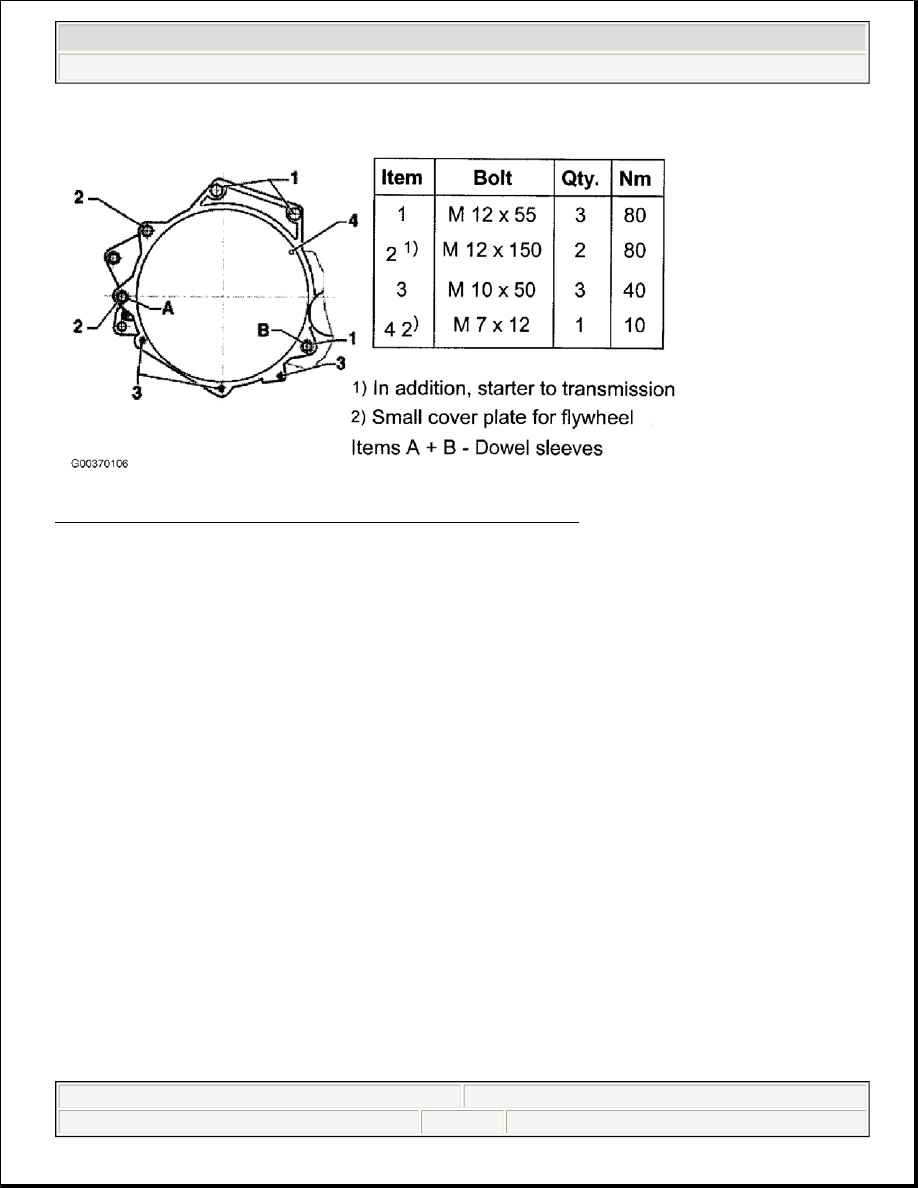

Fig. 72: Identifying Transmission-To-Body Bolt Torque Specifications
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Transmission-To-Engine Bolt

(5)

Wheel Lug Bolt

89 (120)

(1)

Always replace with NEW fastener. Always replace self-locking nuts.

(2)

See Fig. 73 .

(3)

Loosen or tighten bolts gradually, in a crosswise pattern.

(4)

See Fig. 72 .

(5)

See Fig. 74 .



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 81

© 2004 Mitchell Repair Information Company, LLC.

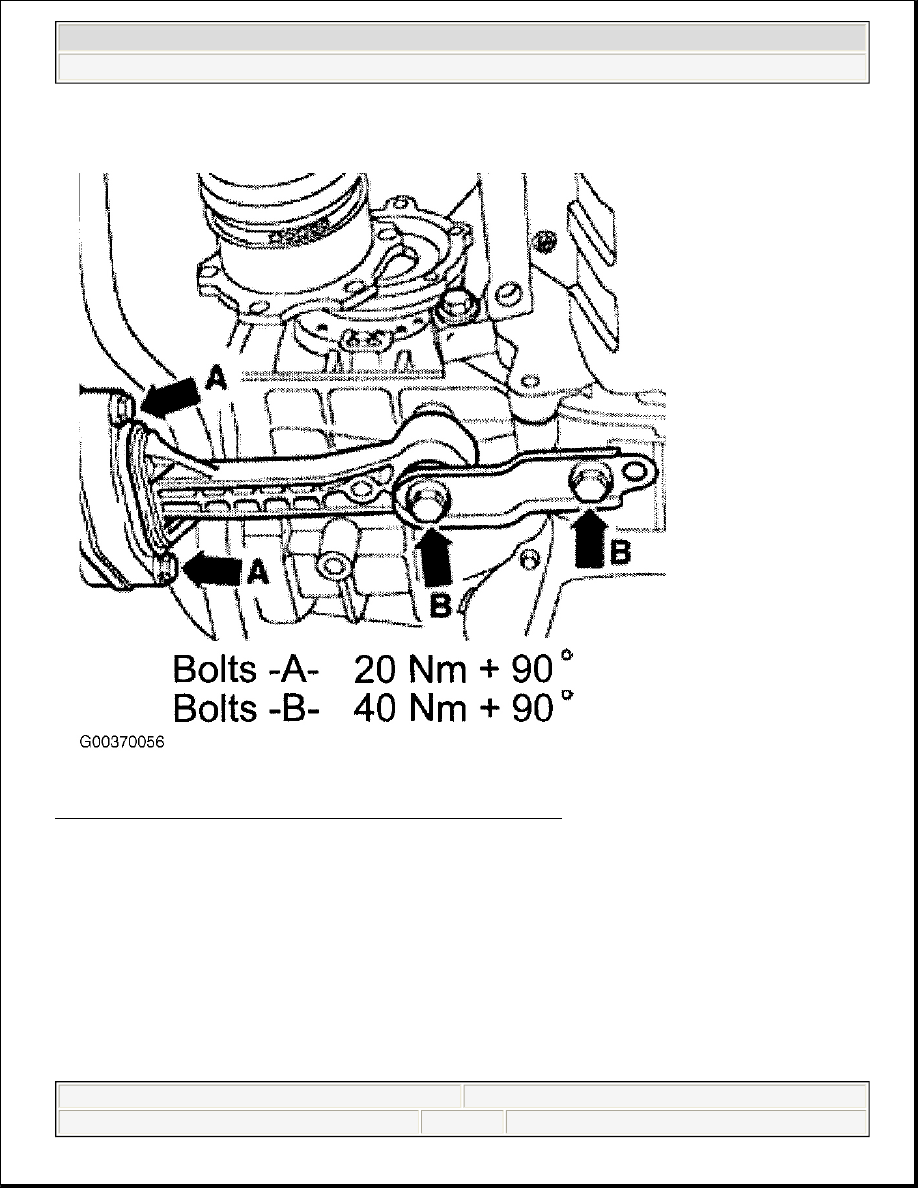

Fig. 73: Identifying Pendulum Support Bolt Torque Specifications
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 82

© 2004 Mitchell Repair Information Company, LLC.

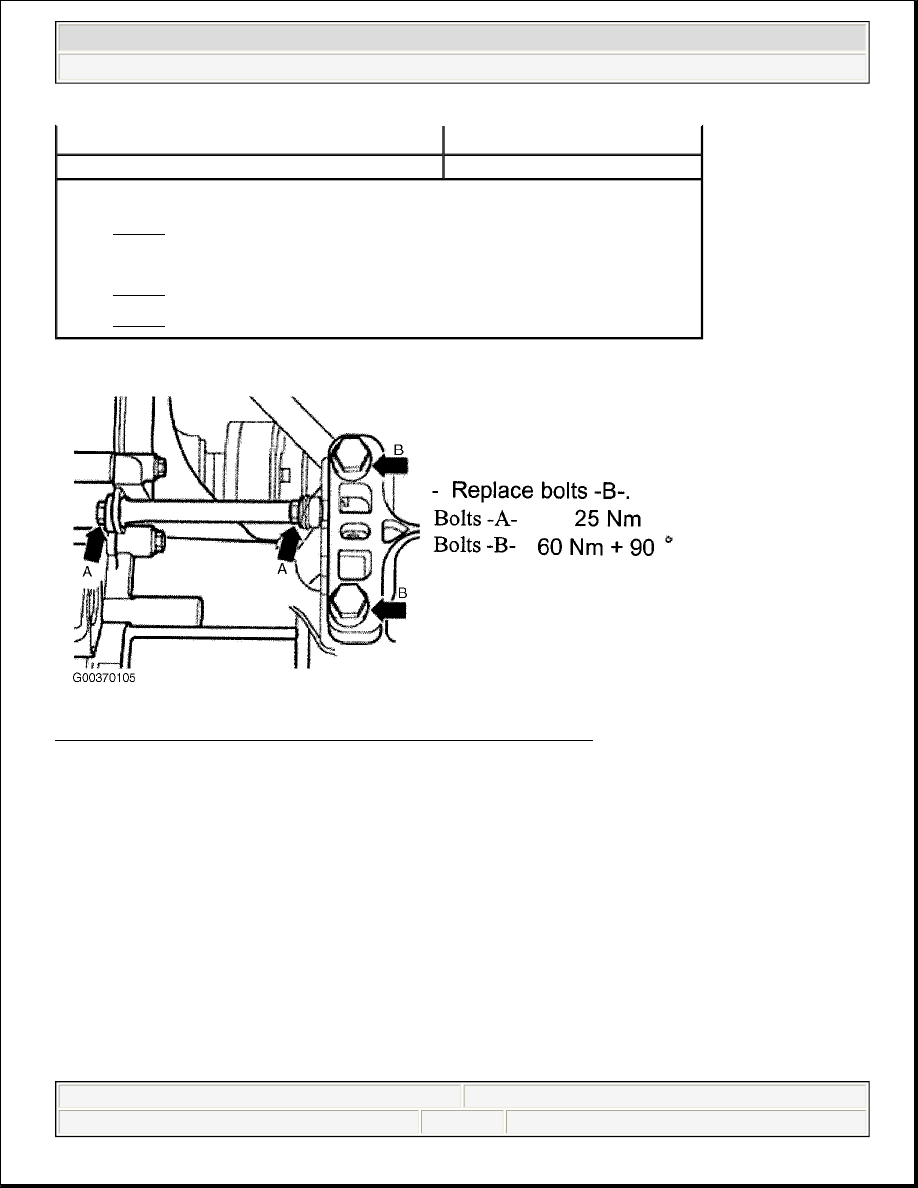

Fig. 74: Identifying Engine/Transmission Bolt Torque Specifications
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 83

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 TRANSMISSION

5 & 6 Spd. Manual Transmission 02M - New Beetle

GENERAL, TECHNICAL DATA

TRANSMISSION IDENTIFICATION

The 02M manual transmission is installed as a 5- or 6-speed transmission in conjunction with a 4-cylinder
engine in the New Beetle From 1998 and on.

Application. See CODE LETTERS, APPLICATION, RATIOS, CAPACITIES .

Location on transmission

Code letters and date of manufacture (arrow)
