DISCHARGE (HID) LAMP, REMOVING AND INSTALLING .

z

Remove sealing cap. See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, REPLACING BULBS .

z

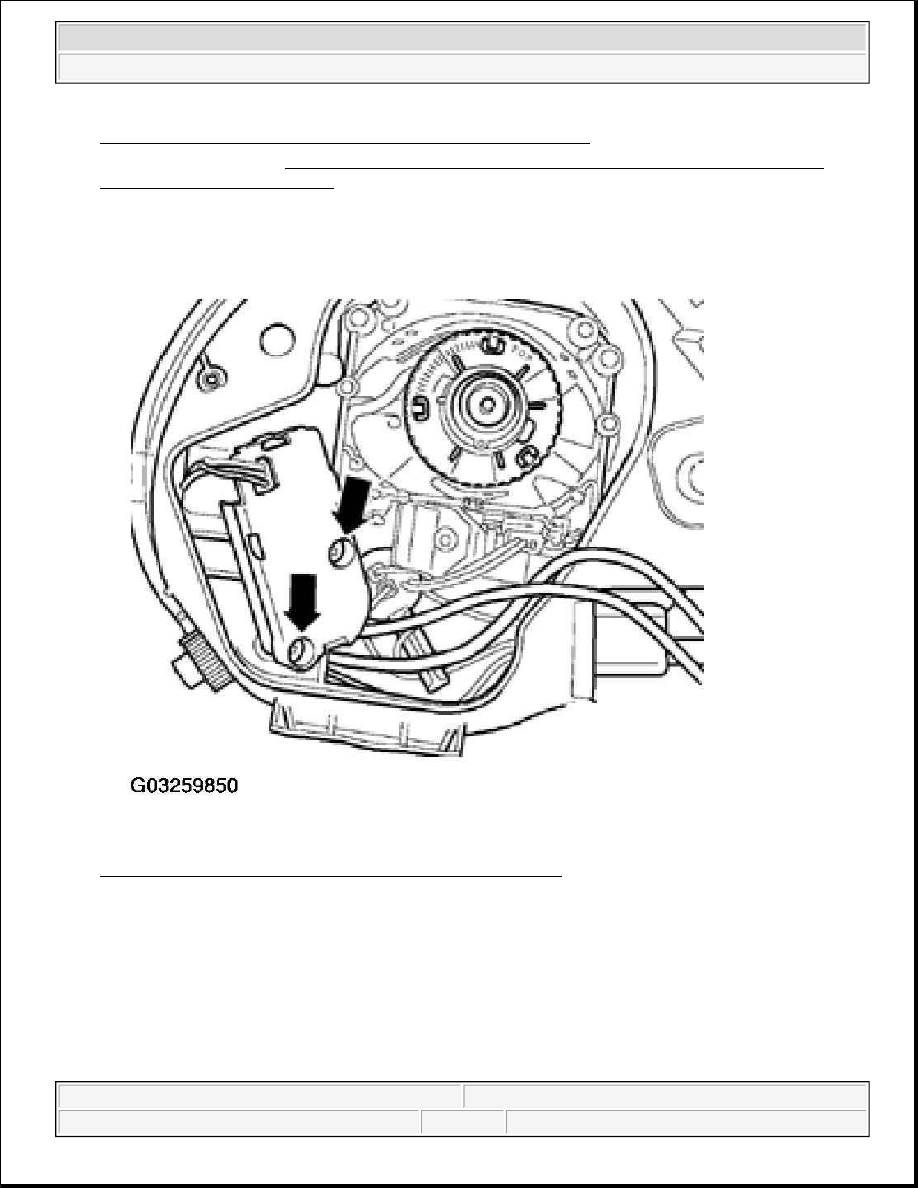

Remove screws -arrows- on motor.

Fig. 64: Removing Headlight Beam Adjusting Motor Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull positioning rod ball head out from locking device on reflector.

z

Disconnect electrical connection.

Installing

Installation in reverse sequence or removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check headlight function.

z

Perform headlight basic setting (function 04) using On Board Diagnostic program, See ON BOARD
DIAGNOSTIC (OBD), FUNCTION .

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS, REMOVING AND INSTALLING

Removing

z

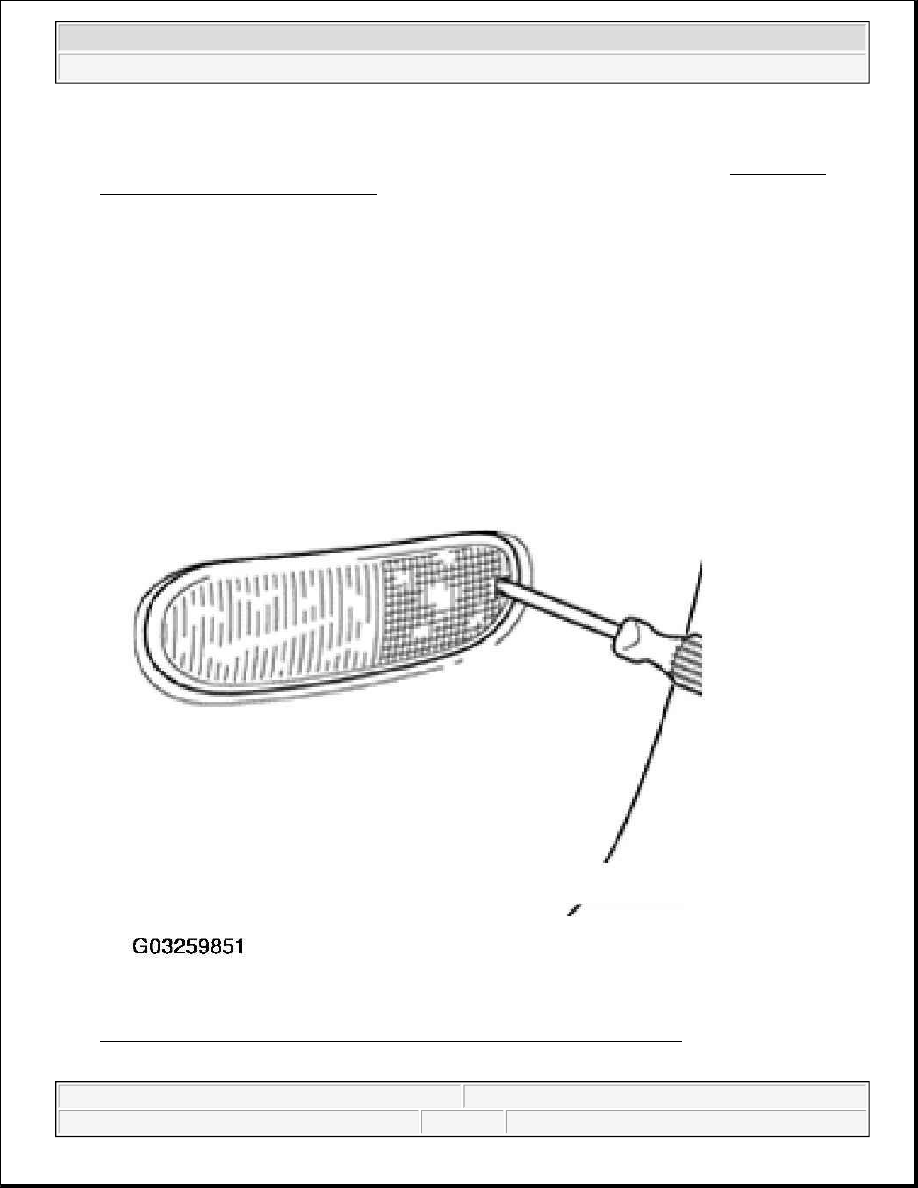

Remove screw cover.

Fig. 65: Removing Front Turn Signal And Side Marker Lights Screw Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Remove securing screw.

z

Pull turn signal out forwards.

z

Disconnect electrical connector.

Installing

z

Connect electrical connector.

z

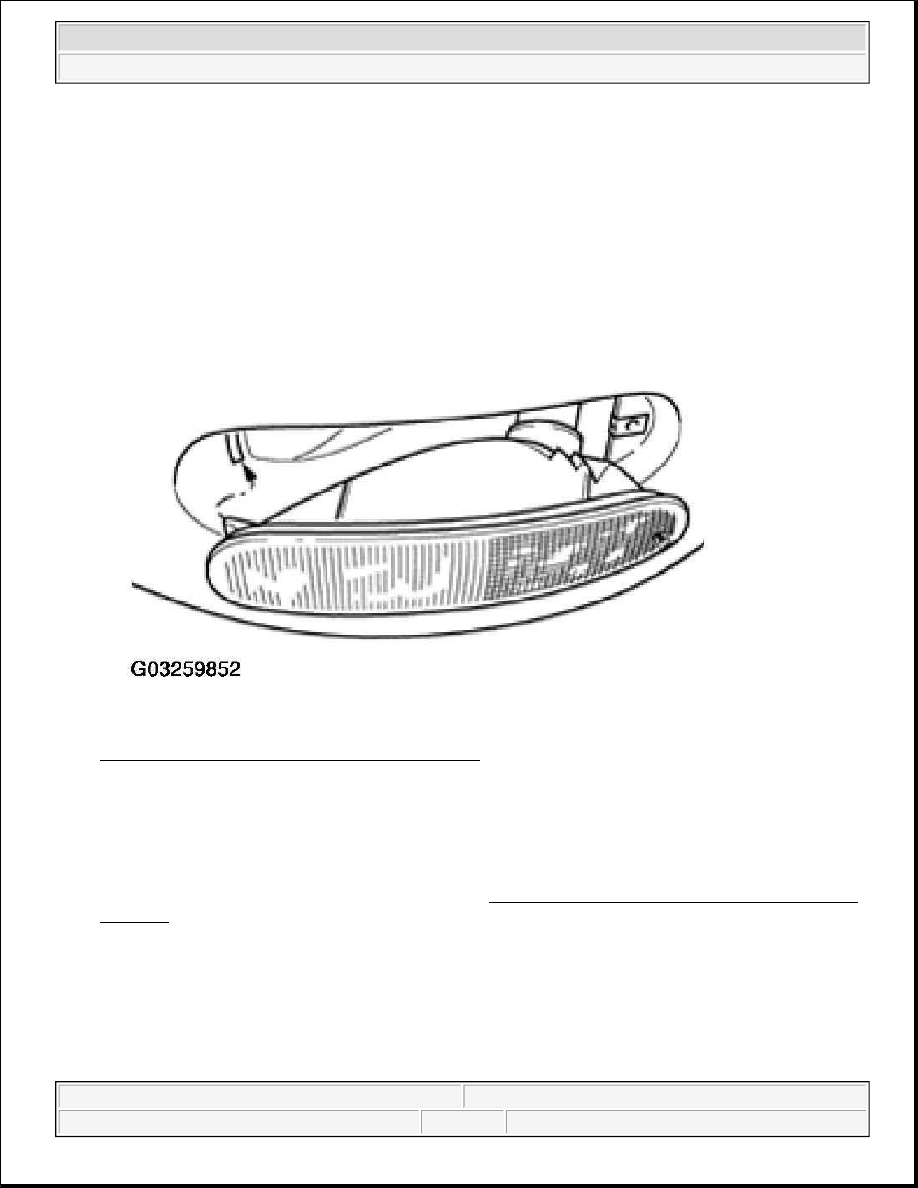

Slide turn signal into fender opening.

Fig. 66: Sliding Turn Signal Into Fender Opening
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FRONT TURN SIGNAL AND SIDE MARKER LIGHT BULB, REPLACING

Removing

z

Remove turn signal lights and side marker lights. See FRONT TURN SIGNAL AND SIDE MARKER
LIGHTS .

z

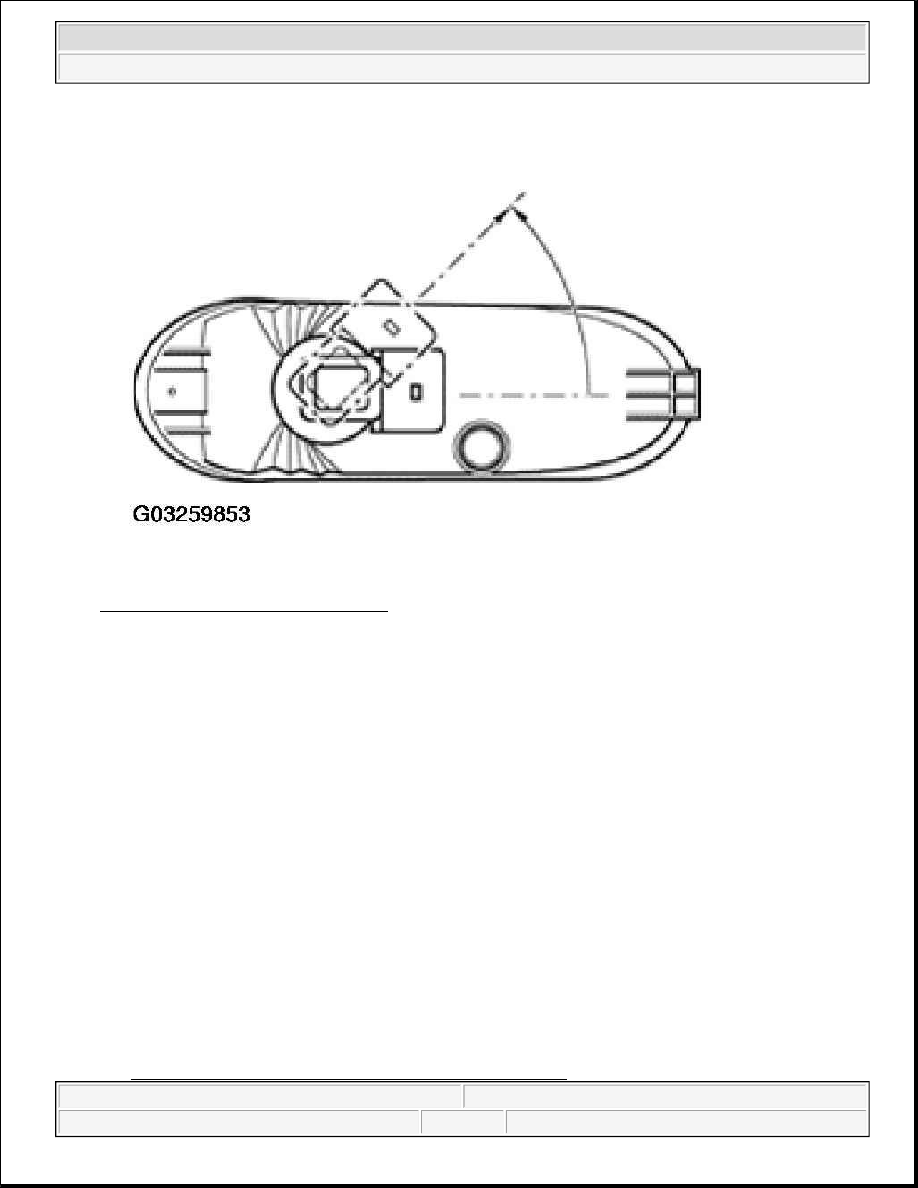

Turn bulb holder in direction shown -arrow- and pull out from housing.

z

Remove bulb from holder.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 67: Removing Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Install in reverse order of removal.

z

When installing, make sure bulb holder engages in housing by turning in opposite direction to direction
shown -arrow-.

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS (TURBO S MODELS
ONLY)

FRONT TURN SIGNAL LIGHTS, REMOVING AND INSTALLING

Removing

z

Bring lock carrier into service position

See LOCK CARRIER, MOVING TO SERVICE POSITION .

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS
