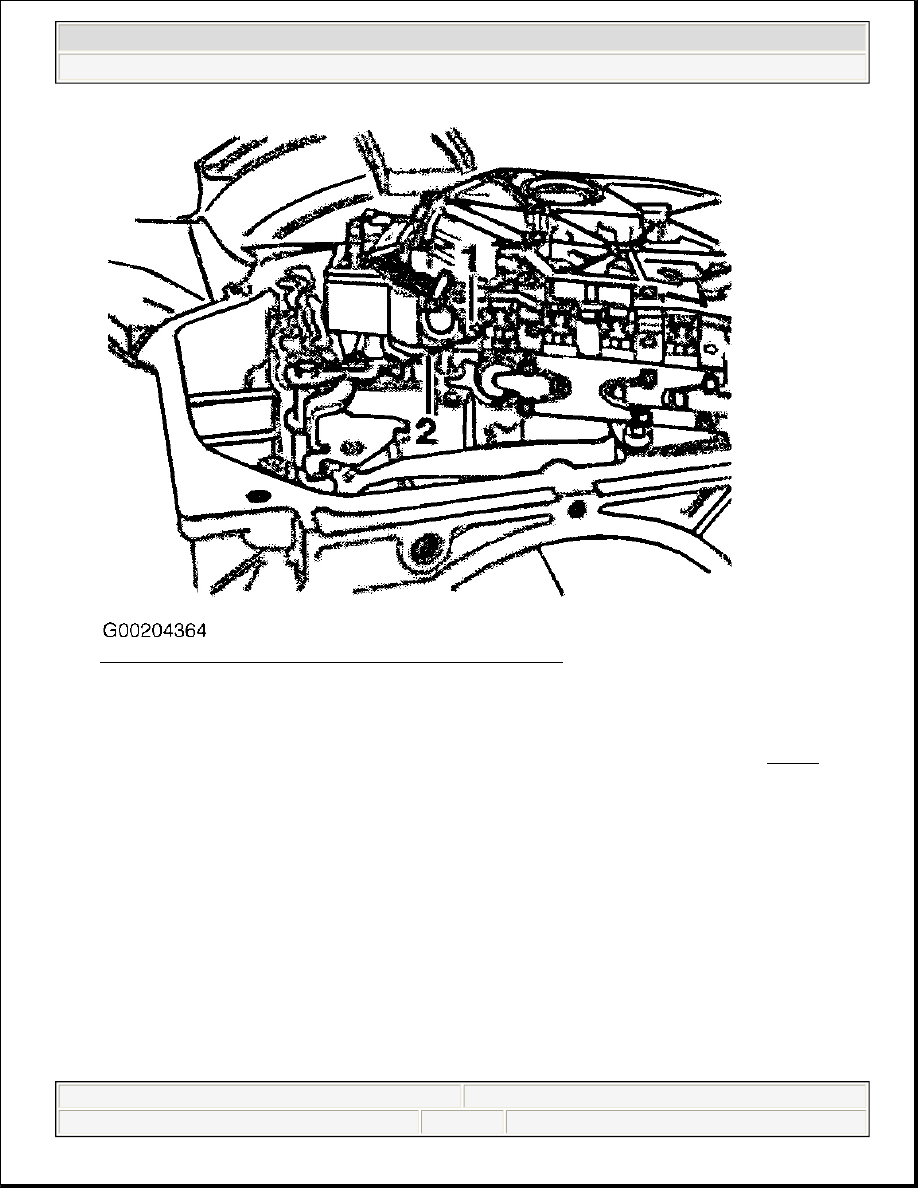

Fig. 57: Removing Valve Body & Unhooking Operating Rod
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Note installation direction of sealing plug. Pull sealing plug out of housing before removing and installing

free wheel, otherwise the sealing plug and the "O" ring will be damaged. Moisten 2 new "O" rings with
ATF and install to sealing plug. Insert sealing plug in hole in transaxle housing (arrow). See Fig. 58 .



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 66

© 2004 Mitchell Repair Information Company, LLC.

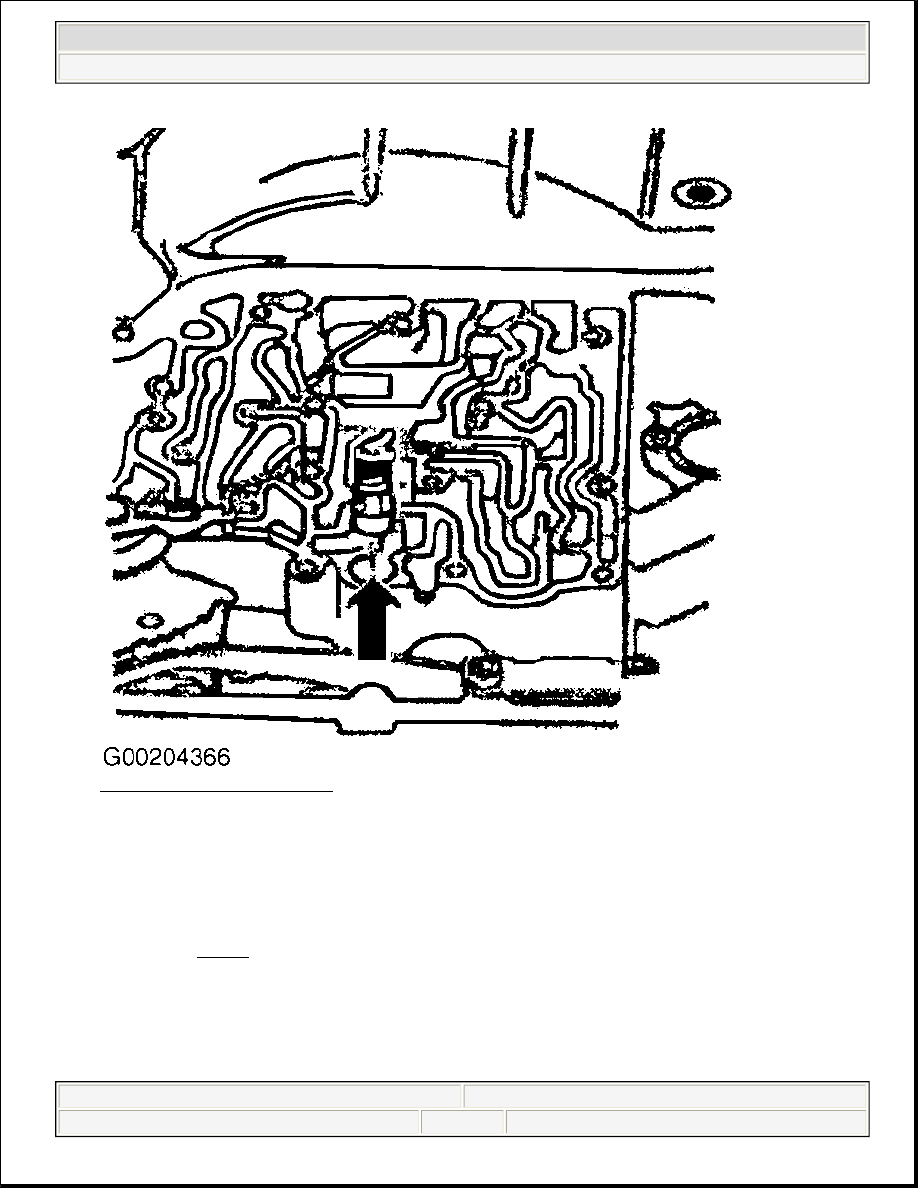

Fig. 58: Inserting Sealing Plug
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Secure operating rod onto manual selector valve by shifting selector lever/shaft into "1" position. Turn

manual selector valve so that shoulder faces operating rod. Guide operating rod with manual selector
valve into valve body.

6. To adjust operating rod for manual selector valve, move selector shaft to "P" position. Push operating rod

with manual selector valve into valve body onto stop (direction of arrow) and tighten bolt to 35 INCH lbs.
(4 N.m). See Fig. 59 . Ensure selector valve is resting against the stop. Counter-hold when tightening
bolt. Always replace bolt and manual selector valve retaining clip.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 67

© 2004 Mitchell Repair Information Company, LLC.

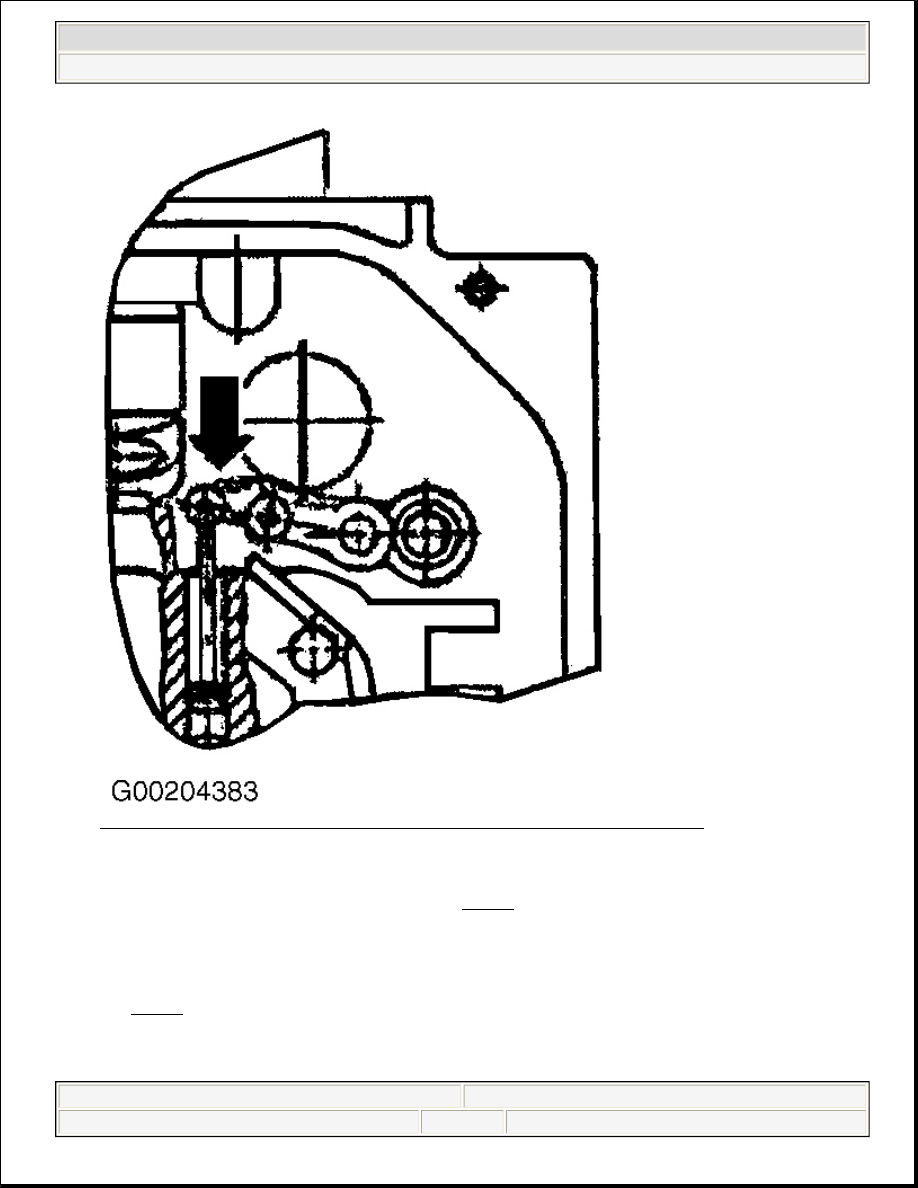

Fig. 59: Adjusting Operating Rod For Manual Selector Valve (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Install valve body and bolts. Tighten bolts to 44 INCH lbs. (5 N.m). When installing conductor strip,

route conductor strip as shown in illustration. See Fig. 60 . Ensure conductor strip is not kinked or
twisted.

8. Before installing the ATF screen, insert seal in valve body. Firmly press ATF screen onto valve body.

Secure clip with bolt for conductor strip connector by connecting conductor strip connector to lower
retainer. Install upper retainer with recess (arrow) onto connector tab. Tighten bolt to 15 ft. lbs. (20 N.m).
See Fig. 61 . Install oil pan, gasket and bolts. Tighten bolts to 106 INCH lbs. (12 N.m).



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 68

© 2004 Mitchell Repair Information Company, LLC.

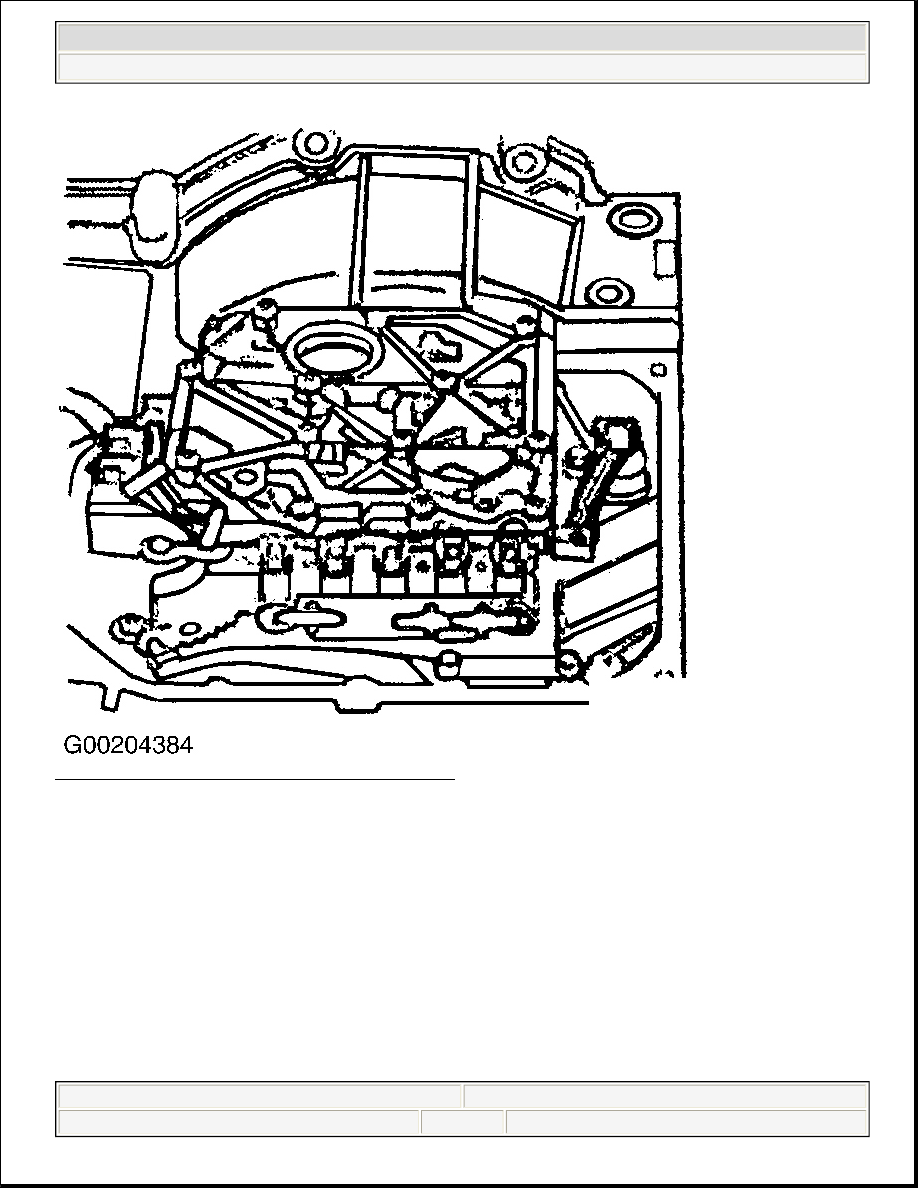

Fig. 60: Installing Conductor Strip (01M Transaxle)
