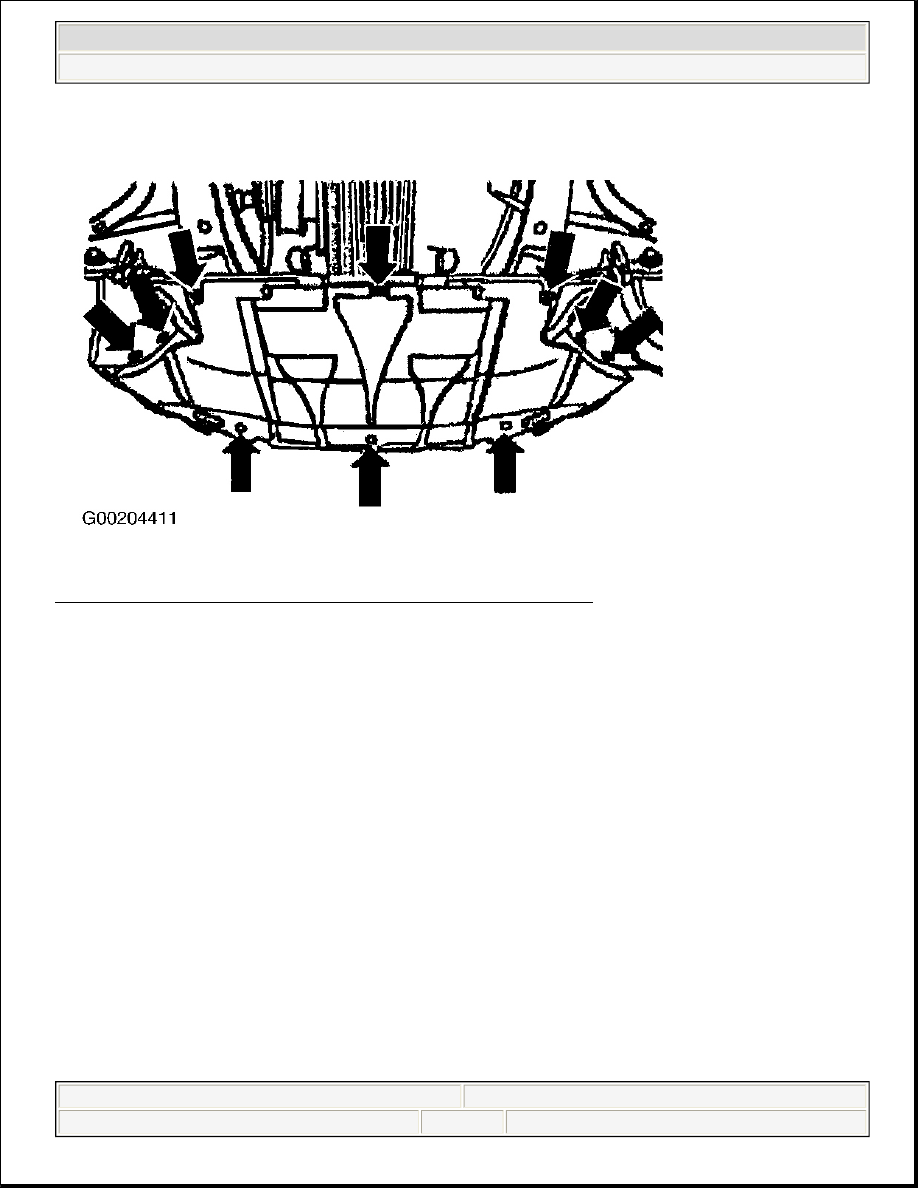

Fig. 25: Removing & Installing Noise Insulation Tray (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

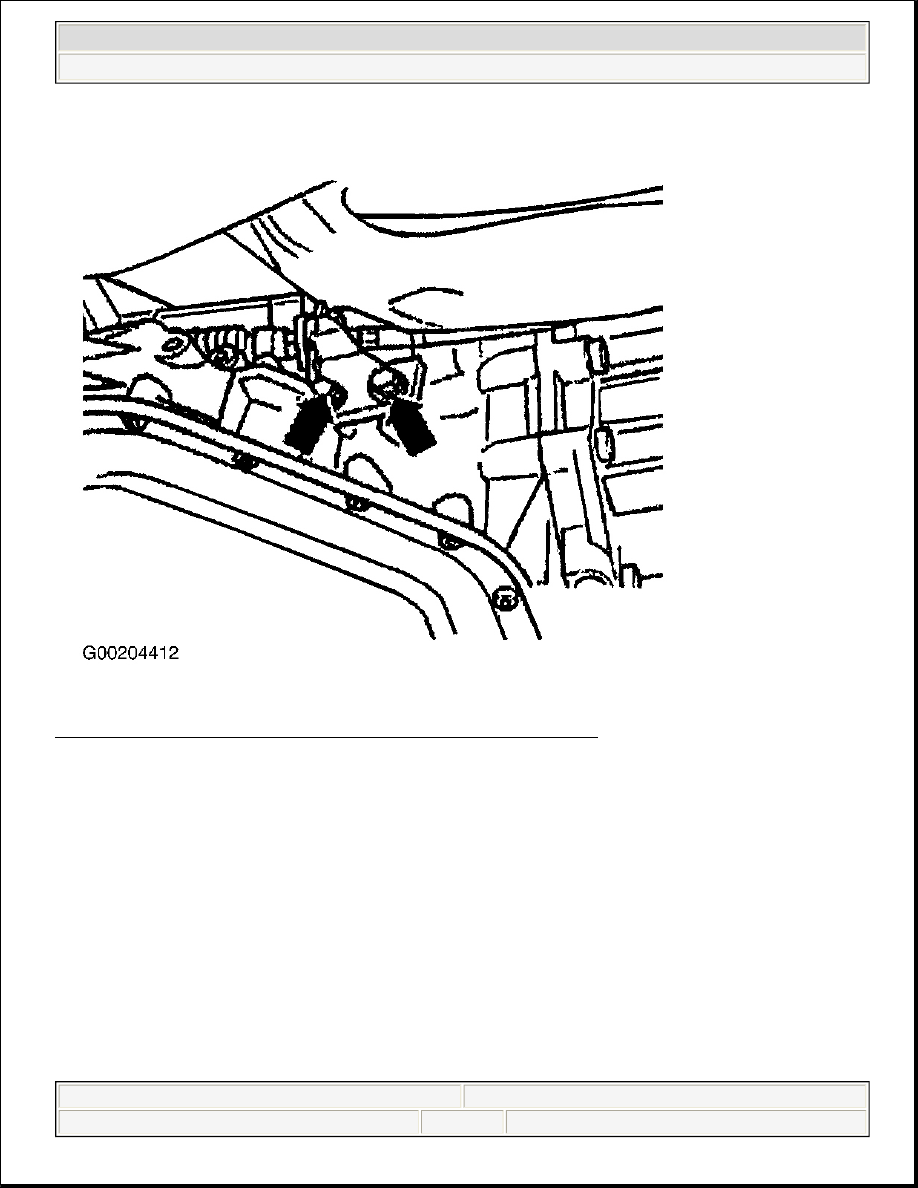

Fig. 26: Removing & Installing Support Bracket Bolts (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

REMOVAL & INSTALLATION

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.
When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations
throughout interior and exterior of vehicle, depending on application. Do
not use electrical test equipment on or near these circuits. If necessary,
deactivate SIR system before servicing components. See appropriate AIR
BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 31

© 2004 Mitchell Repair Information Company, LLC.

INTERNAL OIL LINE

Removal & Installation (01V Transaxle)

1. Faulty "O" rings on the internal oil line allow ATF to enter the differential. Differential then becomes

overfilled and oil will seep out of the breather holes of the differential. If an oil line is removed, it should
generally be replaced. The oil line should only be inserted using Fitting Tool (3381). Otherwise there is a
danger of the oil line becoming bent, which will cause leaks to occur.

2. Remove valve body. See REMOVAL & INSTALLATION (01V TRANSAXLE) under VALVE

BODY ASSEMBLY. Pry internal oil line off transaxle housing using a screwdriver. See Fig. 27 .
Replace "O" rings. Insert internal oil line into fitting tool. Open side of fitting tool faces toward outside of
transaxle. See Fig. 28 .

3. Using a plastic hammer, drive the oil line into the transaxle housing until the fitting tool makes contact.

Ensure oil line is kept straight. Drive both oil line ends in evenly. Install valve body. Fill with ATF, check
ATF level and top off as necessary. See CHECKING FLUID LEVELS under LUBRICATION.

battery.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

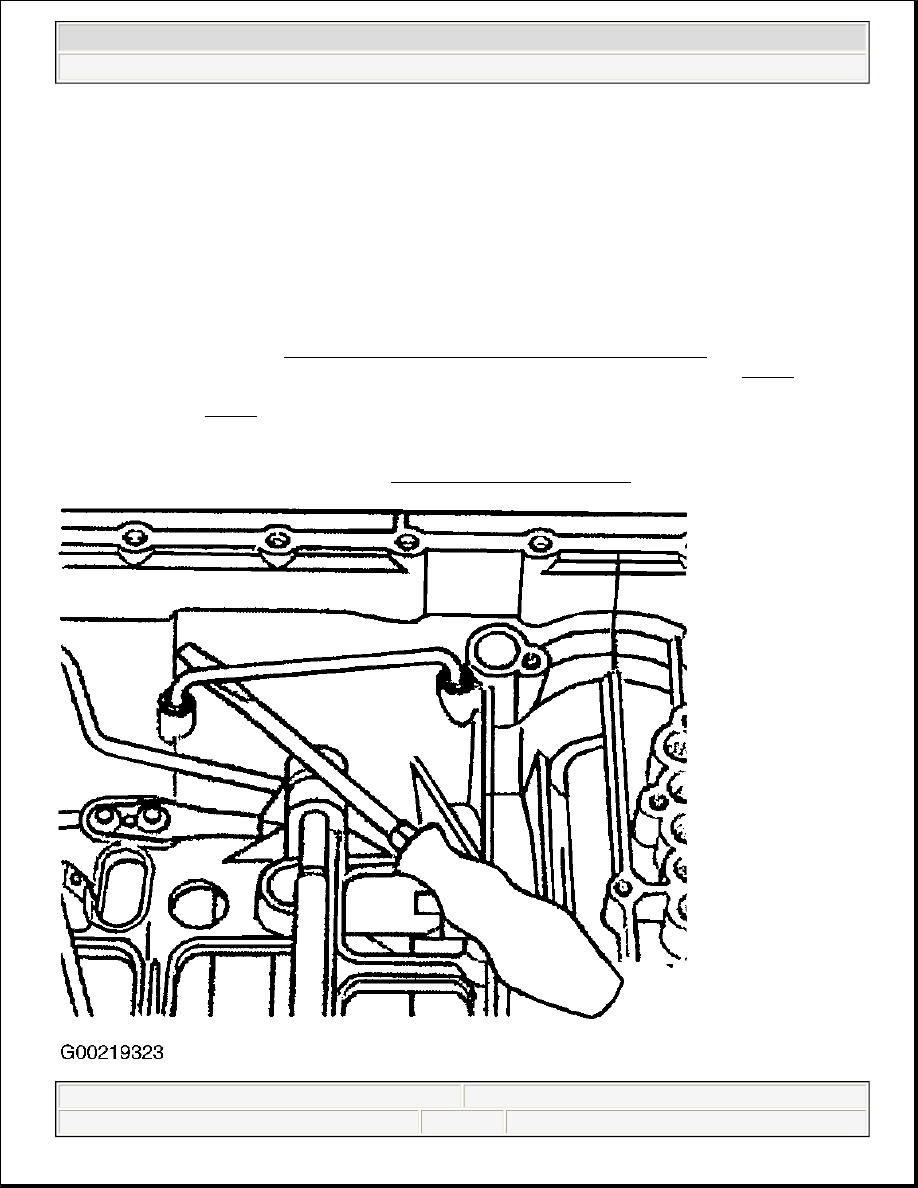

Fig. 27: Removing Internal Oil Line (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

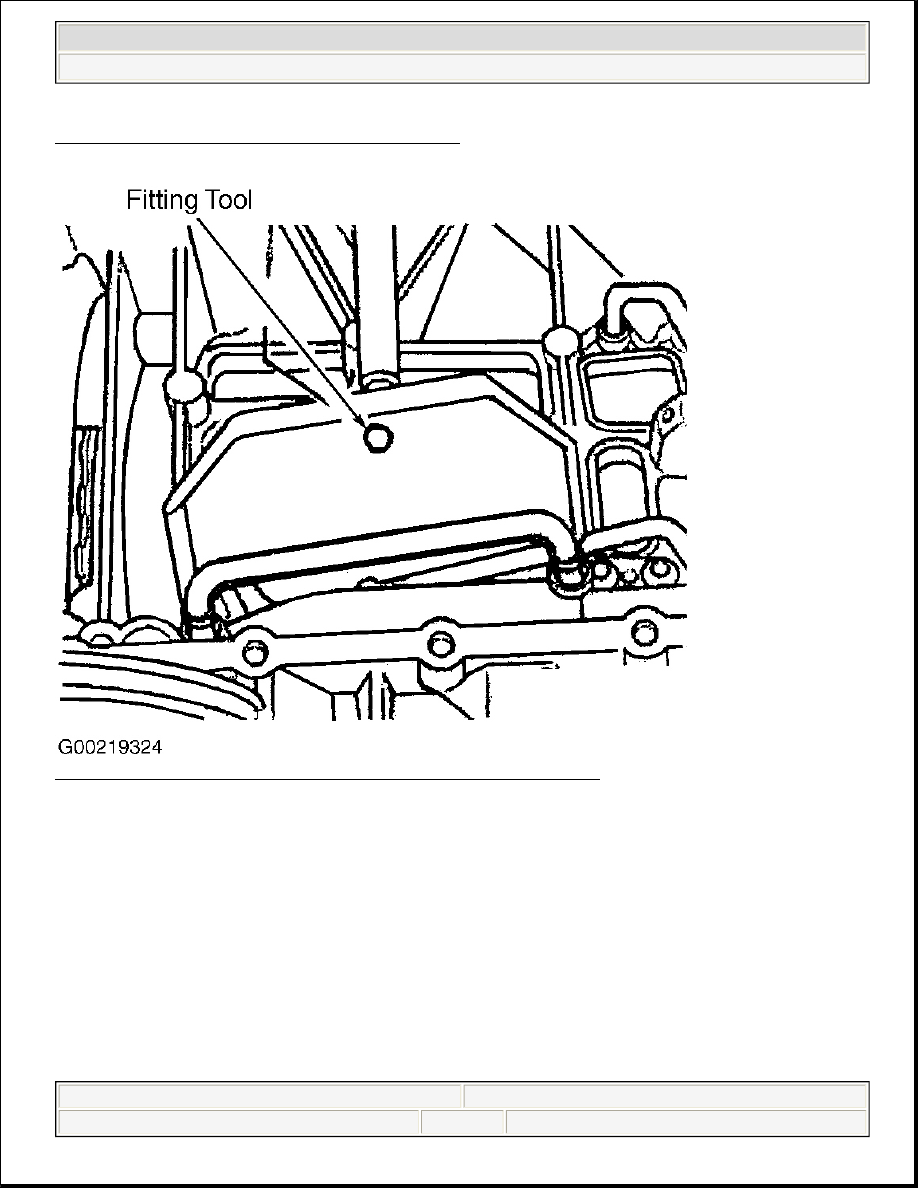

Fig. 28: Installing Internal Oil Line Using Fitting Tool (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LOCKING CABLE

Removal & Installation (01M Transaxle - Cabrio)

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.
When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations
throughout interior and exterior of vehicle, depending on application. Do
not use electrical test equipment on or near these circuits. If necessary,
deactivate SIR system before servicing components. See appropriate AIR
BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
