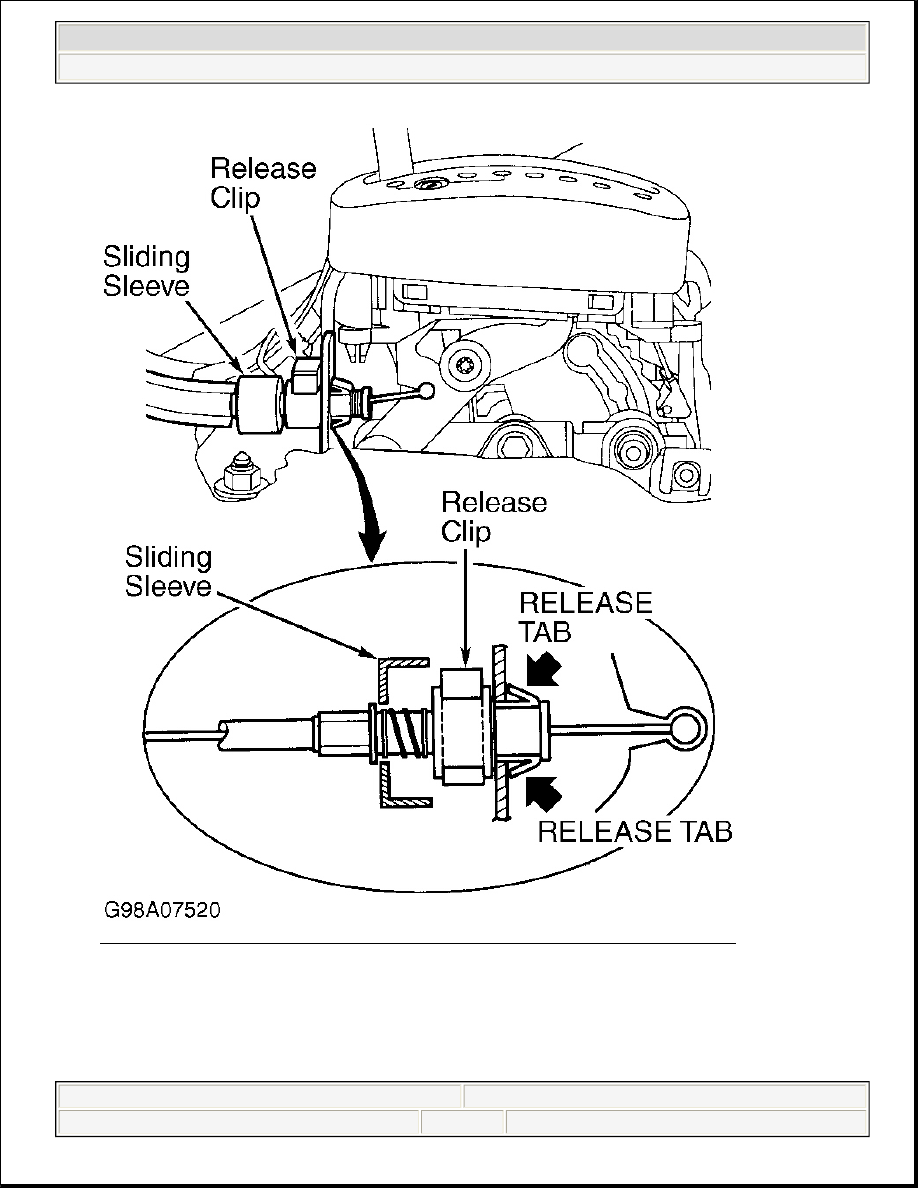

Fig. 19: Adjusting Locking Cable (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V

Helpmelearn Repair Manuals

Wednesday, December 14, 2005 8:59:36 AM

Page 22

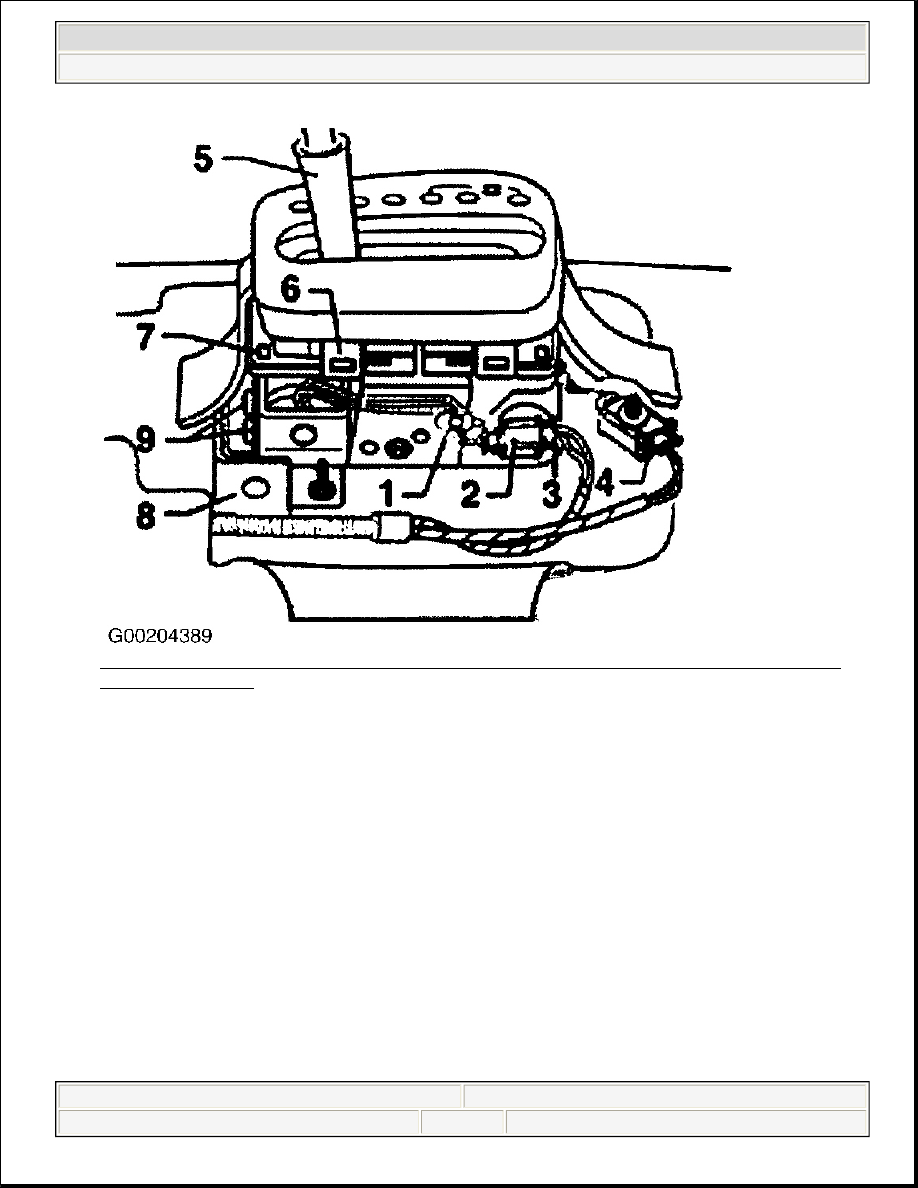

Fig. 20: Releasing Selector Lever Housing Cover At Retaining Tabs (01M Transaxle - Golf, GTI,
Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V

Helpmelearn Repair Manuals

Wednesday, December 14, 2005 8:59:36 AM

Page 23

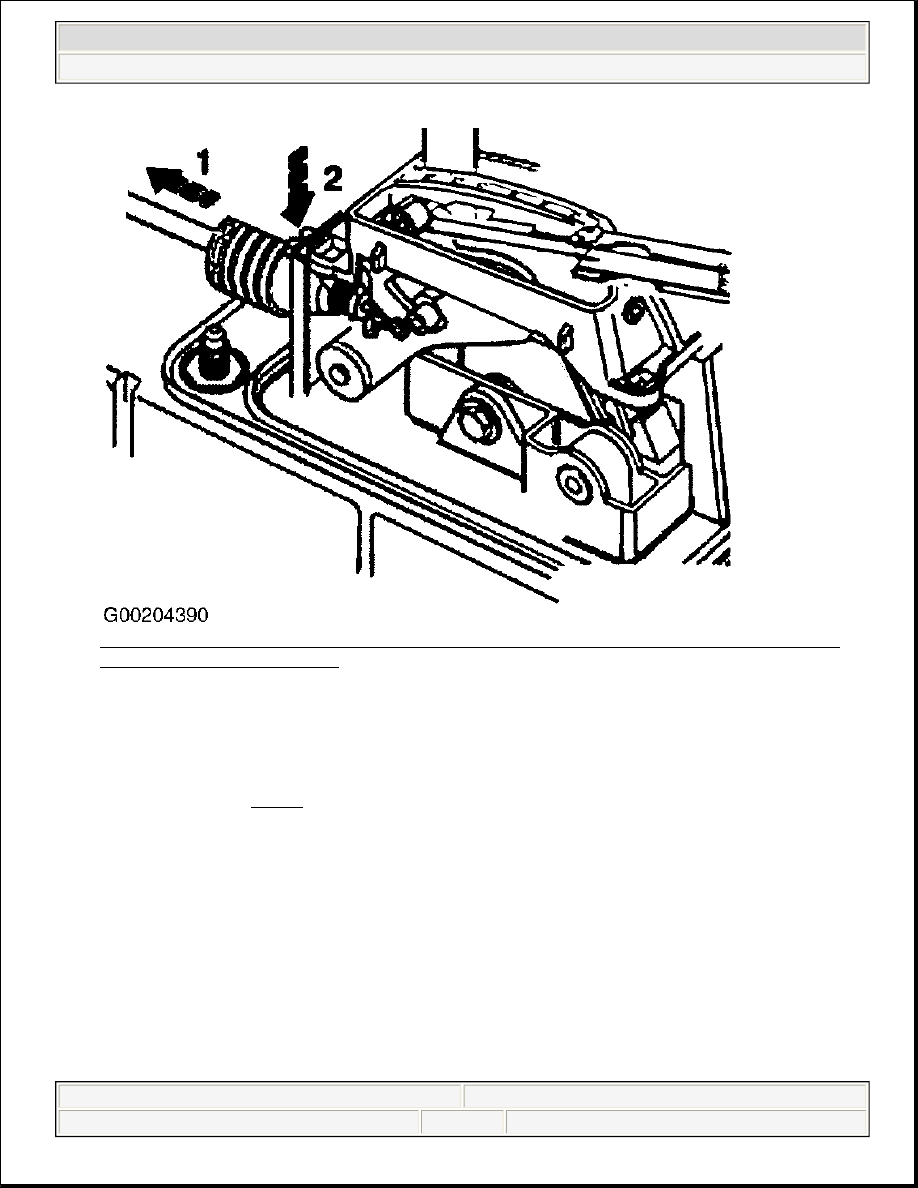

Fig. 21: Measuring Clearance Between Locking Lever & Selector Lever Roller (01M Transaxle -
Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

01V Transaxle

Remove steering column trim. Remove center console. Place gear selector lever in "P" position. Loosen locking
cable support bracket bolt. Move steering column down and to rear. Position Setting Bar (3352) between lever
and locking cable eye. See Fig. 22 . Pull locking cable away from gear shift lever (toward front of vehicle) and
tighten locking cable support bracket bolt to 89 INCH lbs. (10 N.m). Remove setting bar. Ensure ignition lock
key can be easily removed after each adjustment of locking cable.

2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V

Helpmelearn Repair Manuals

Wednesday, December 14, 2005 8:59:36 AM

Page 24

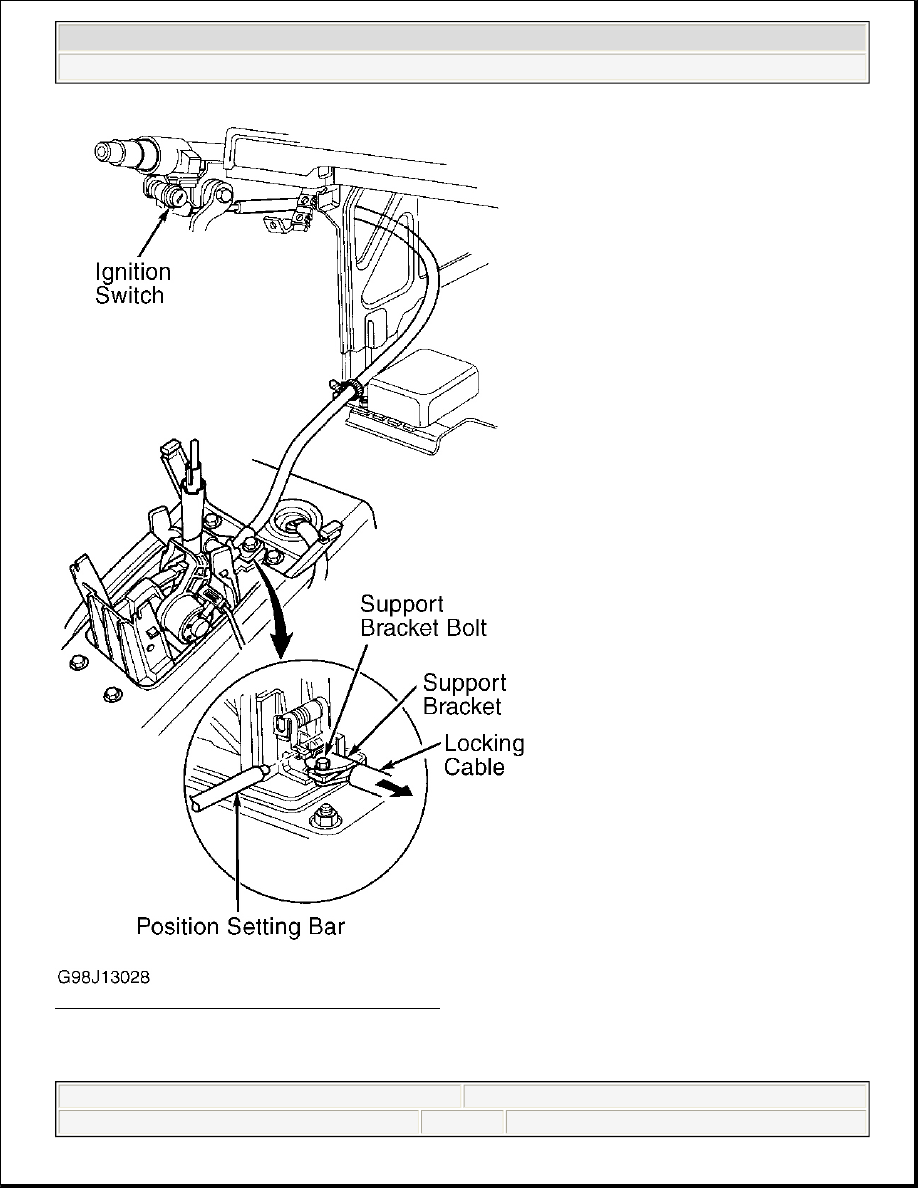

Fig. 22: Adjusting Locking Cable (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR LEVER CABLE

2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V

Helpmelearn Repair Manuals

Wednesday, December 14, 2005 8:59:36 AM

Page 25
