Volkswagen New Beetle. Manual - part 2279

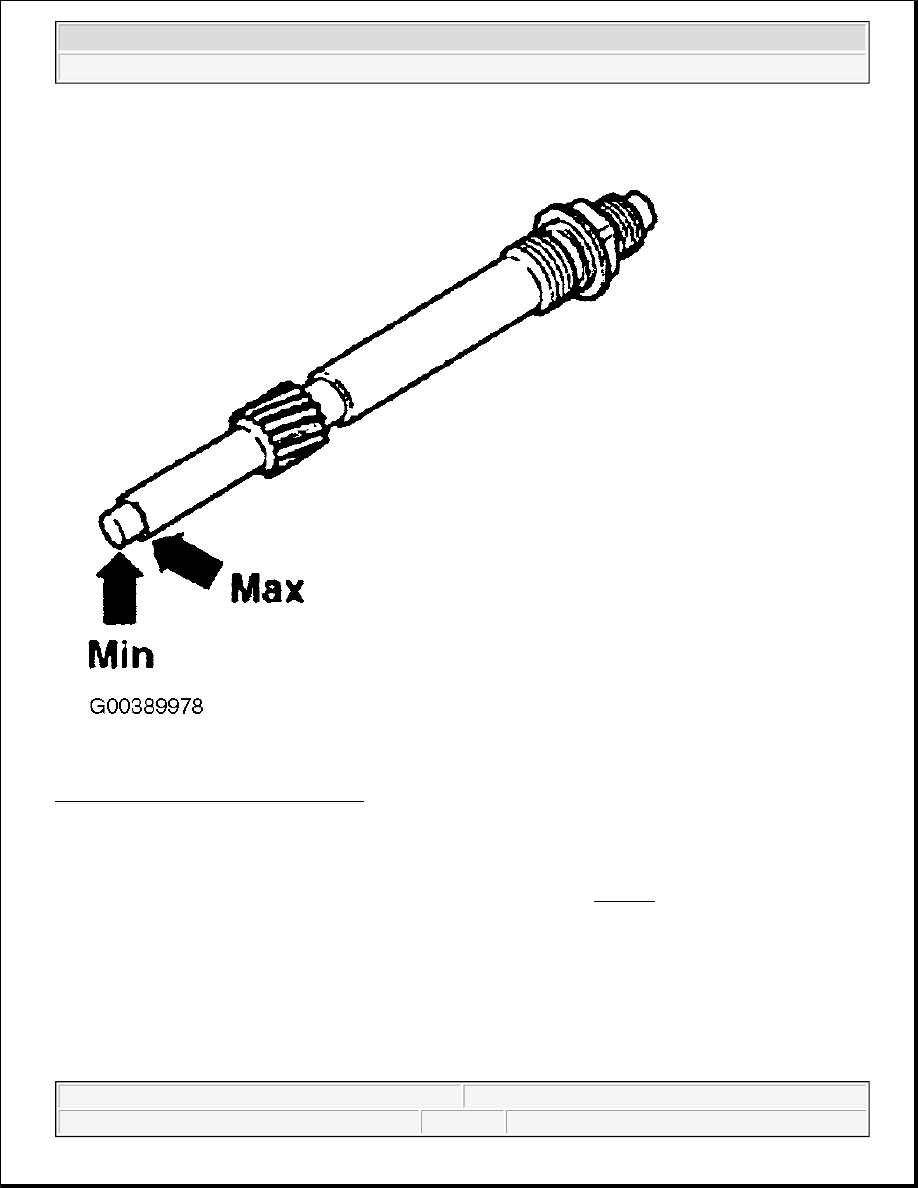

Fig. 186: Identifying Speedometer Drive
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Inserting Differential

Insert differential and screw in bearing body as far as stop to 150 Nm. See Fig. 187 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

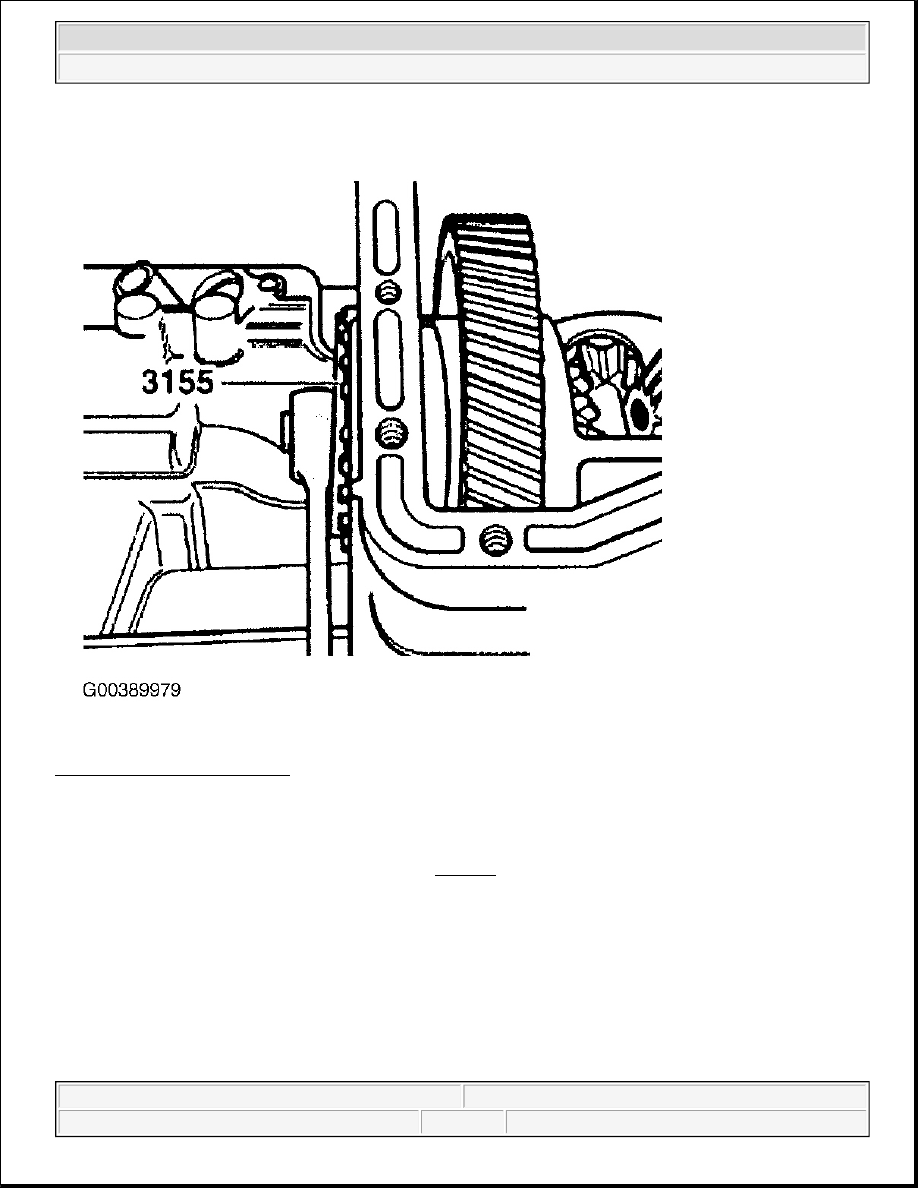

Fig. 187: Inserting Differential
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Inserting Circlip

Remove circlip (arrows) with two screwdrivers. See Fig. 188 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



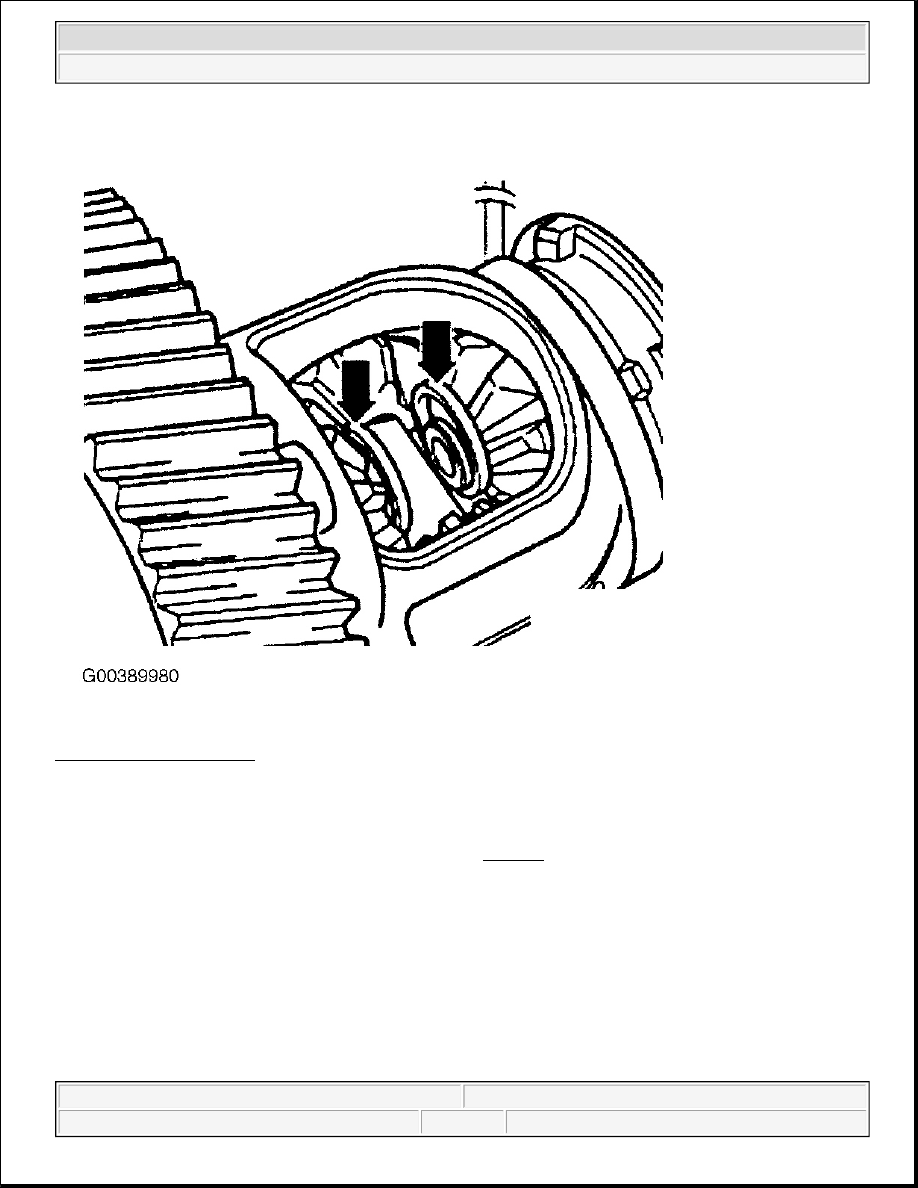

Fig. 188: Inserting Circlip
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing And Installing Securing Ring For Drive Flange

Screw spindle out of bridge -A- on puller Kukko 18-0. See Fig. 189 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

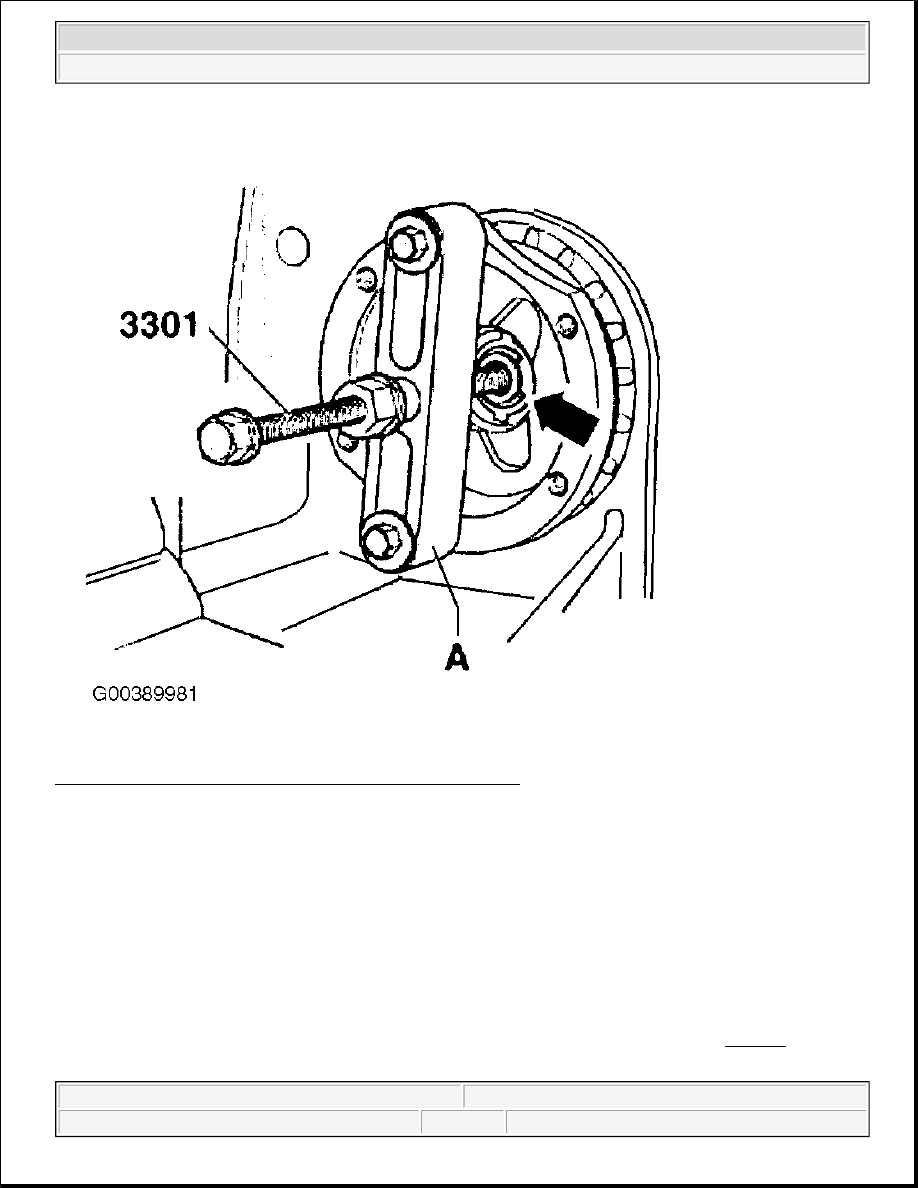

Fig. 189: Removing & Installing Drive Flange Securing Ring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert spindle with nut from assembly tool 3301 instead.

Bolt puller Kukko 18-0 to flange using two 8x35 mm bolts and 8 mm diameter washers.

Remove securing ring -arrow- for drive flange

Removing And Installing Drive Flange

Removing

Bolt puller Kukko 18-0 to flange using two 8x35 mm bolts and 8 mm diameter washers. See Fig. 190 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
