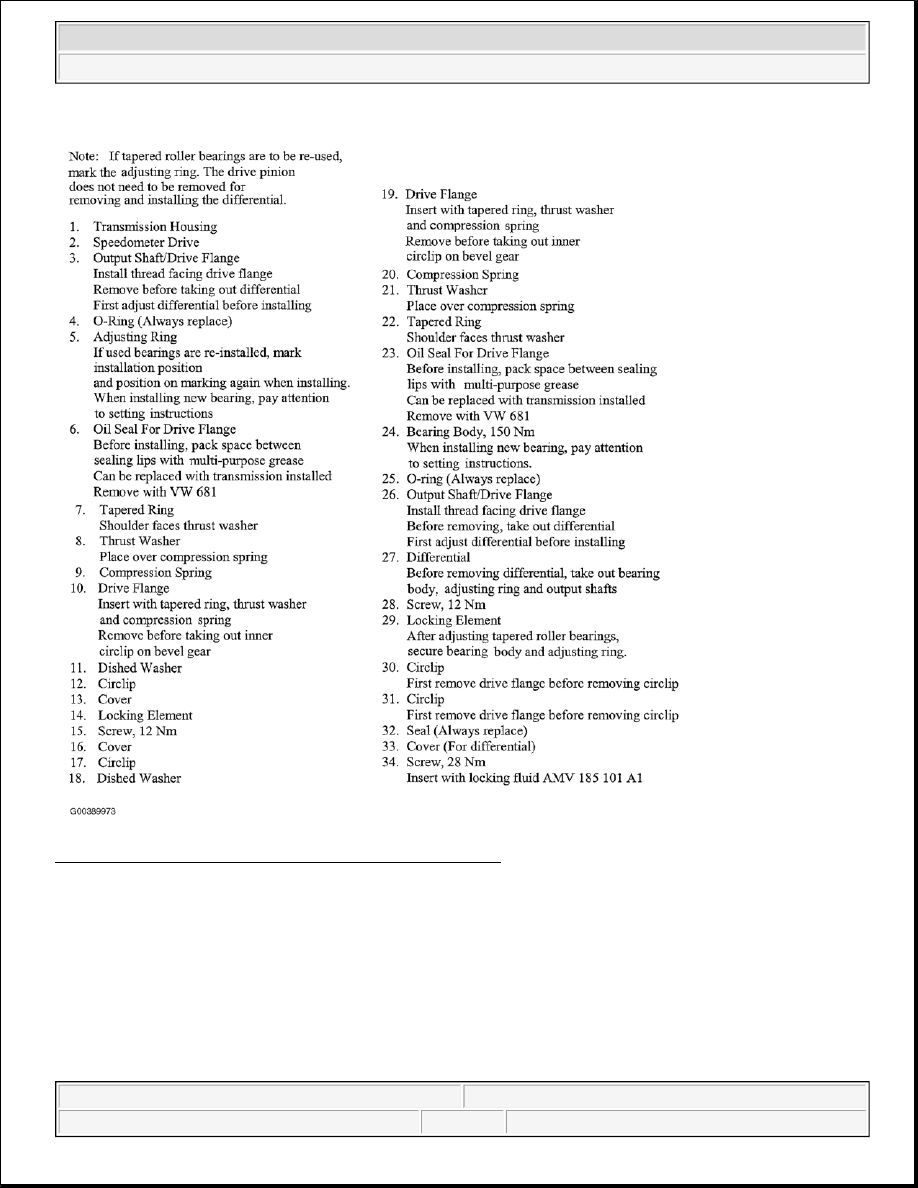

Fig. 182: Exploded View Of Differential Assembly Legend
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driving In Drive Flange Oil Seal Up To Stop



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

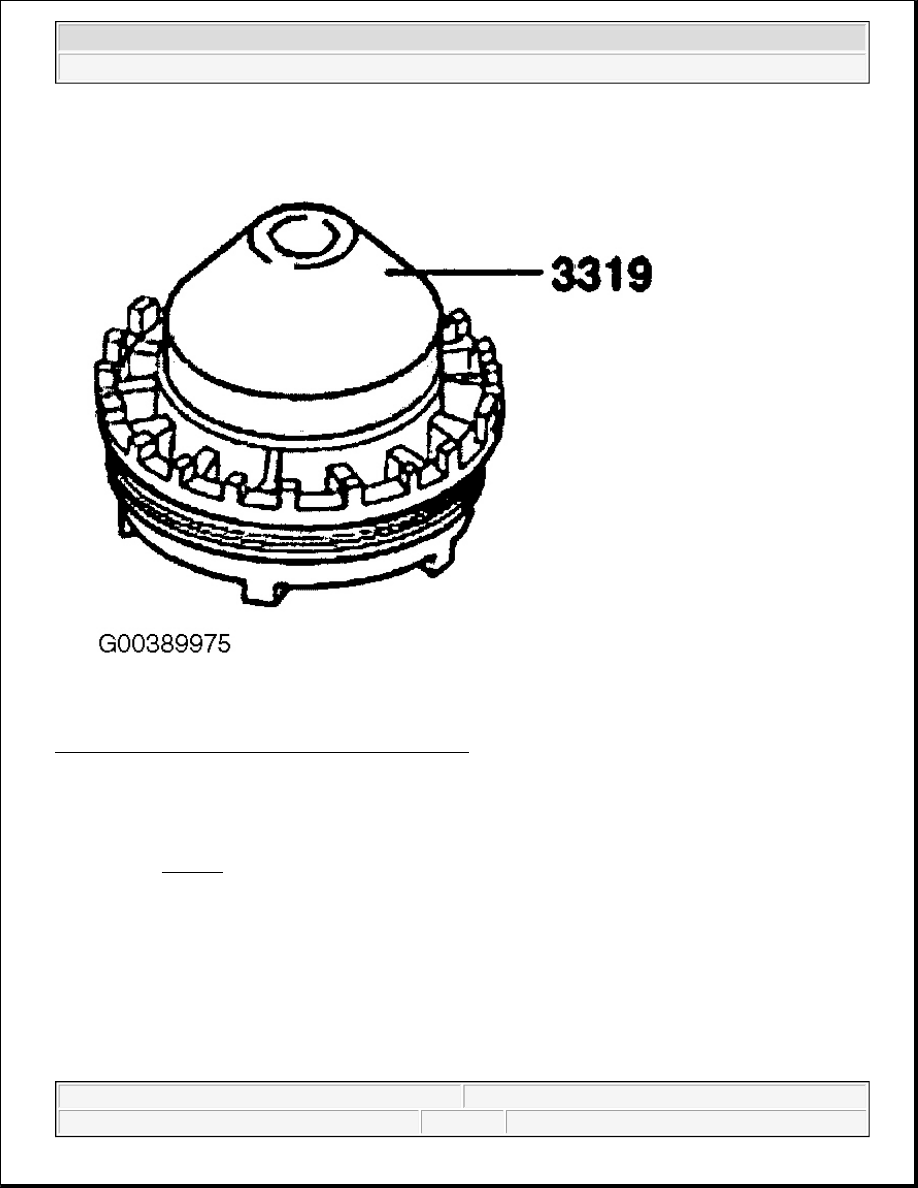

Fig. 183: Driving In Drive Flange Oil Seal Up To Stop
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Marking Adjusting Ring

If used bearings are re-installed, mark installation position (arrow) and again position on marking when
installing. See Fig. 184 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

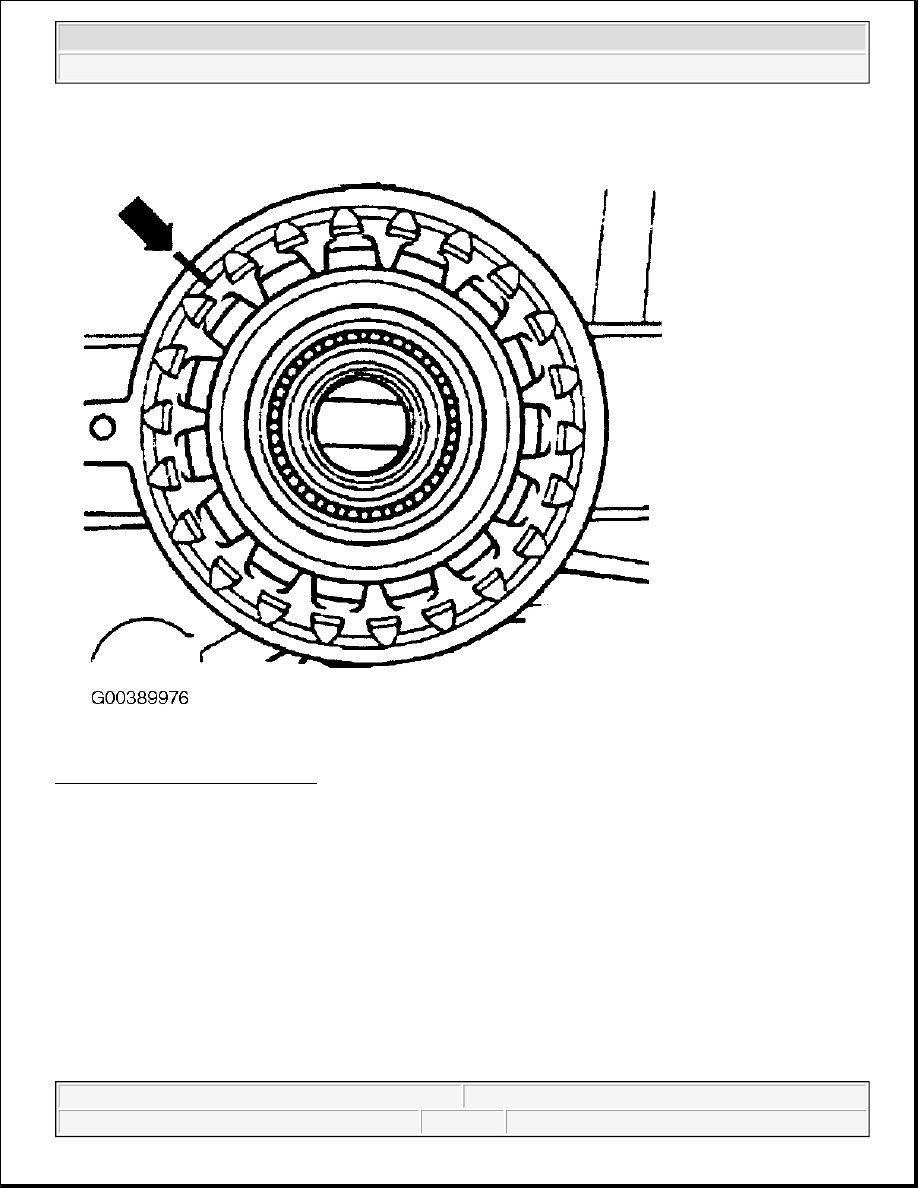

Fig. 184: Marking Adjusting Ring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing Adjusting Ring



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

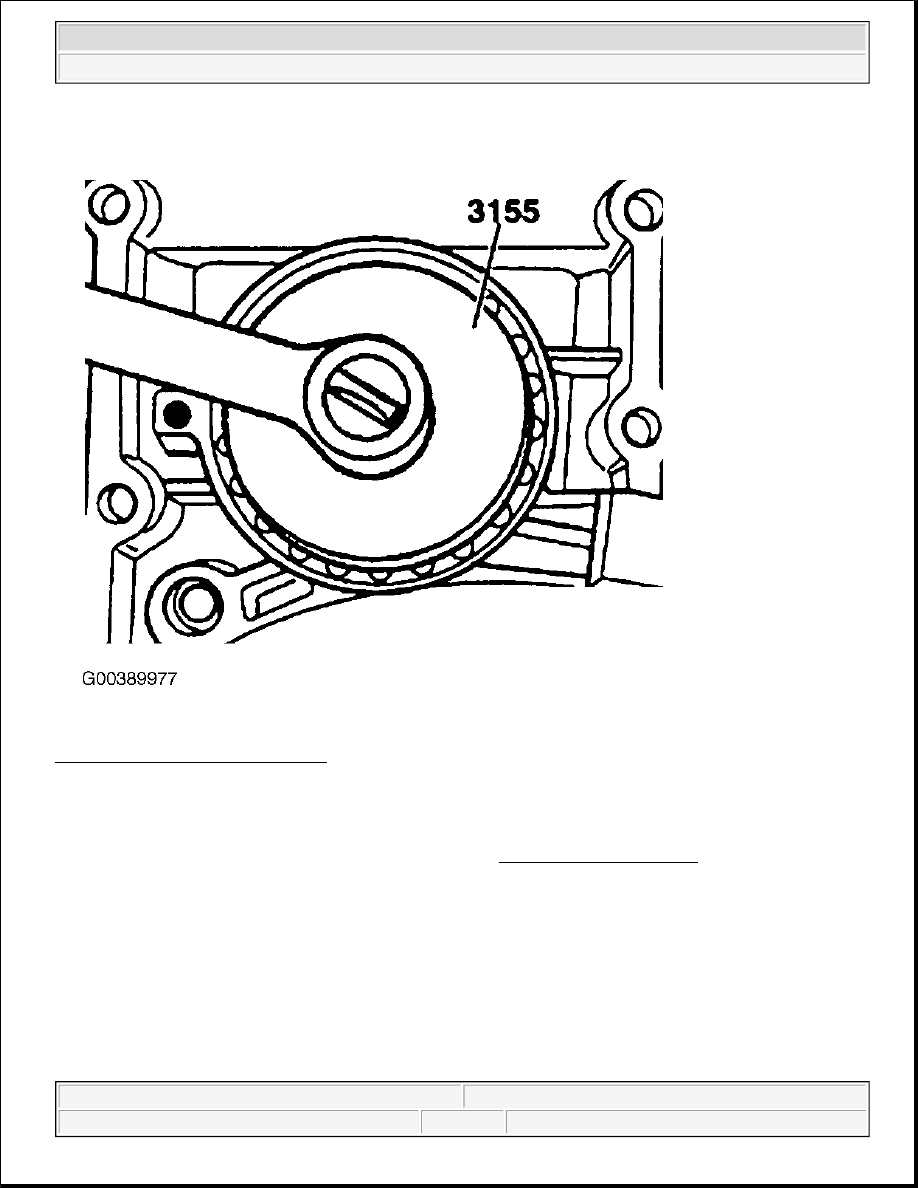

Fig. 185: Removing Adjusting Ring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Speedometer Drive

With transmission installed, check gear oil in final drive. See SERVICING - A/T (01M) article.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
