Volkswagen New Beetle. Manual - part 2187

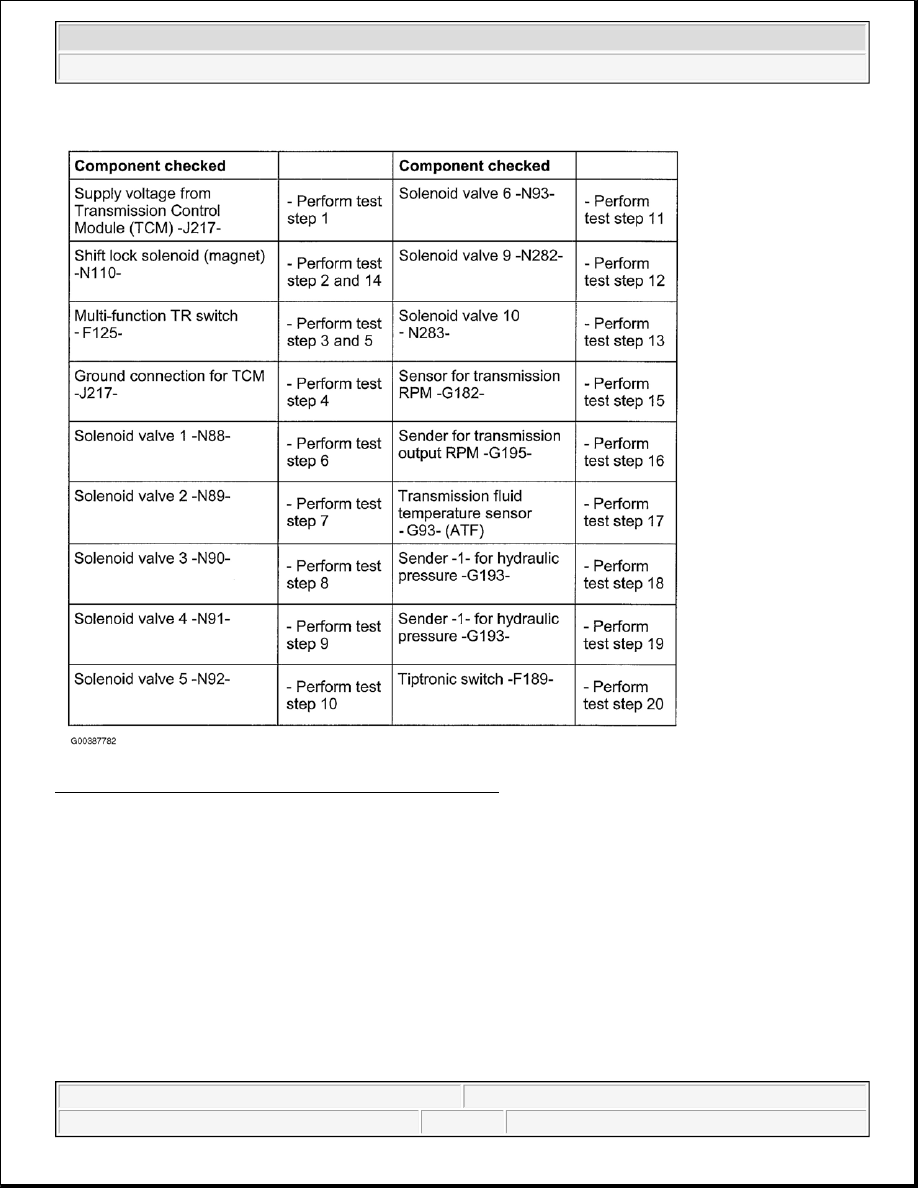

Fig. 115: List Of Test Steps (Multi-Pin Connector, 52 Pin)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TEST TABLE

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

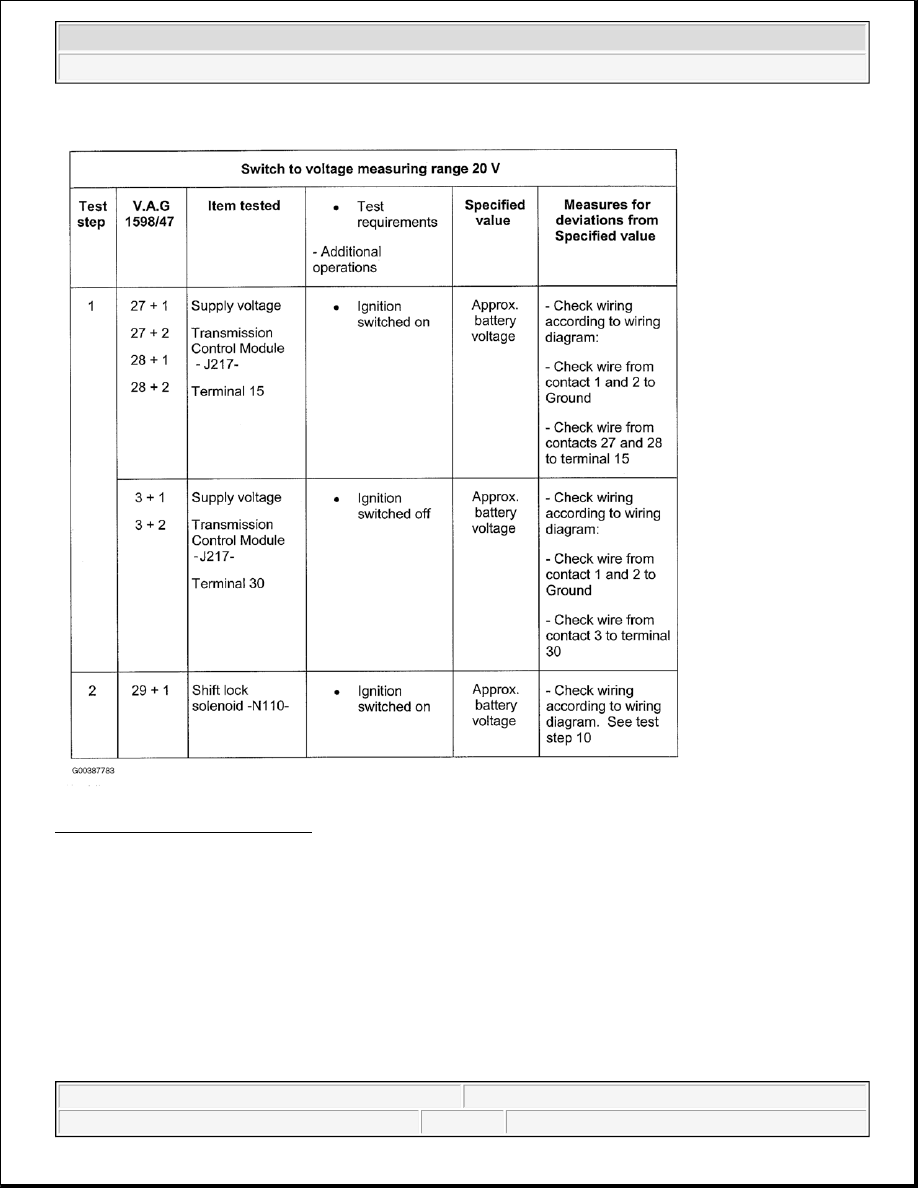

Fig. 116: Test Table (Steps 1 & 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

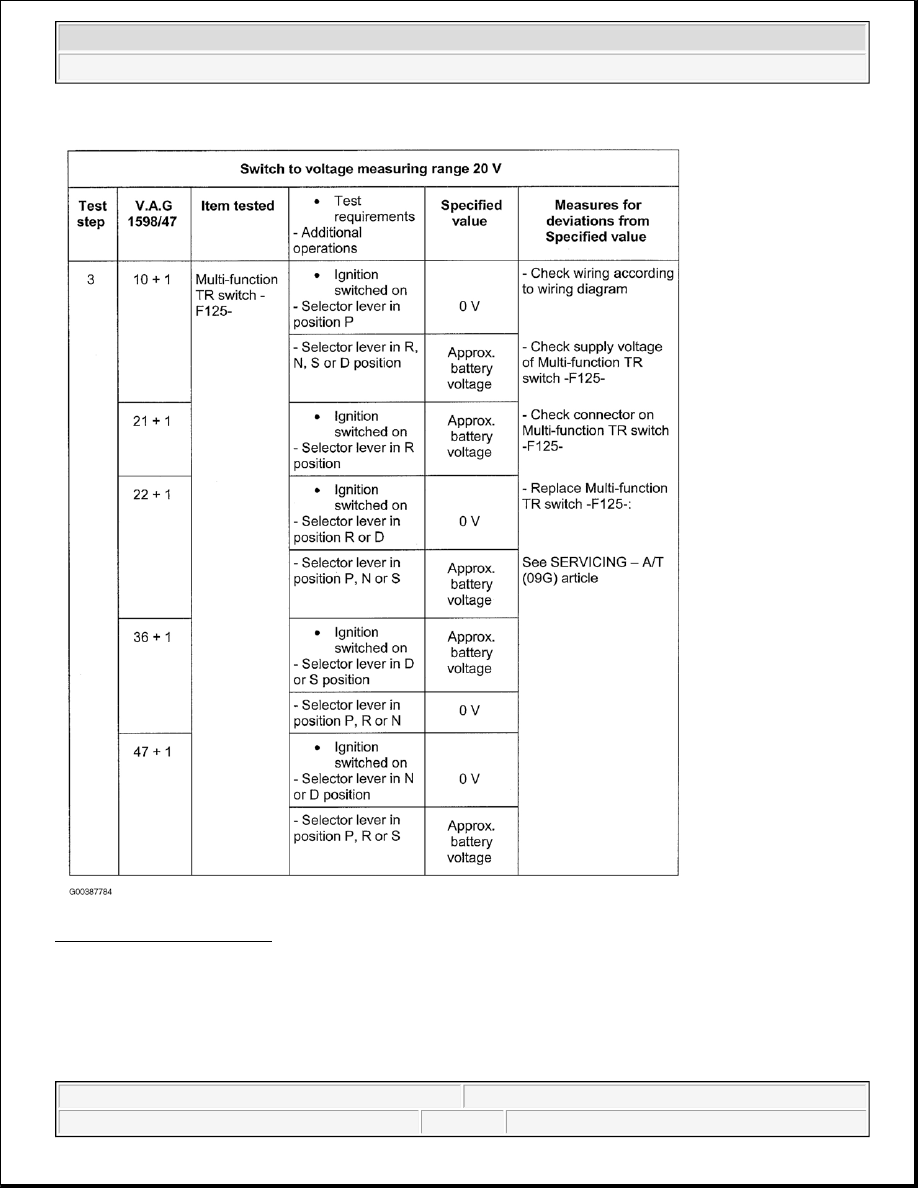

Fig. 117: Test Table (Step 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

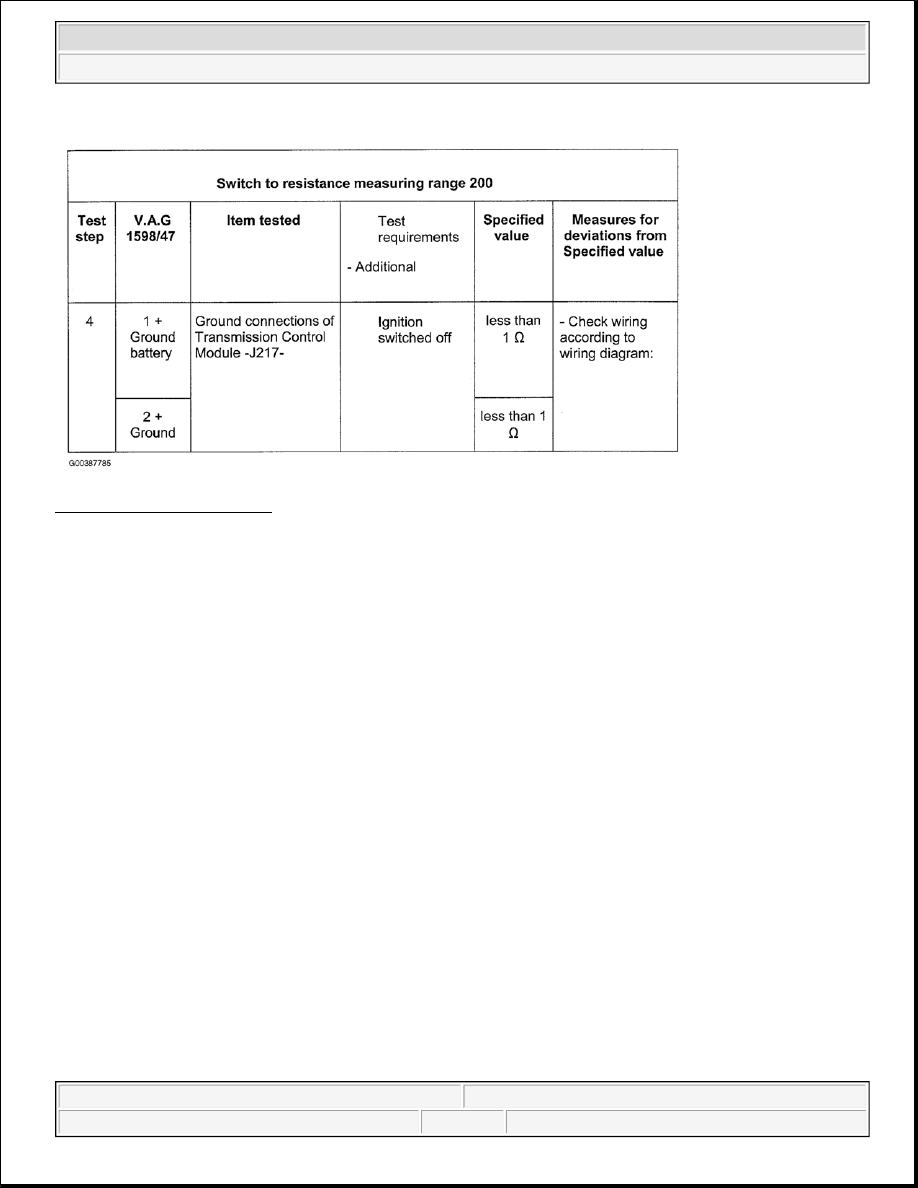

Fig. 118: Test Table (Step 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
