Fig. 111: Test Table (Group 14, Zones 1, 3 & 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

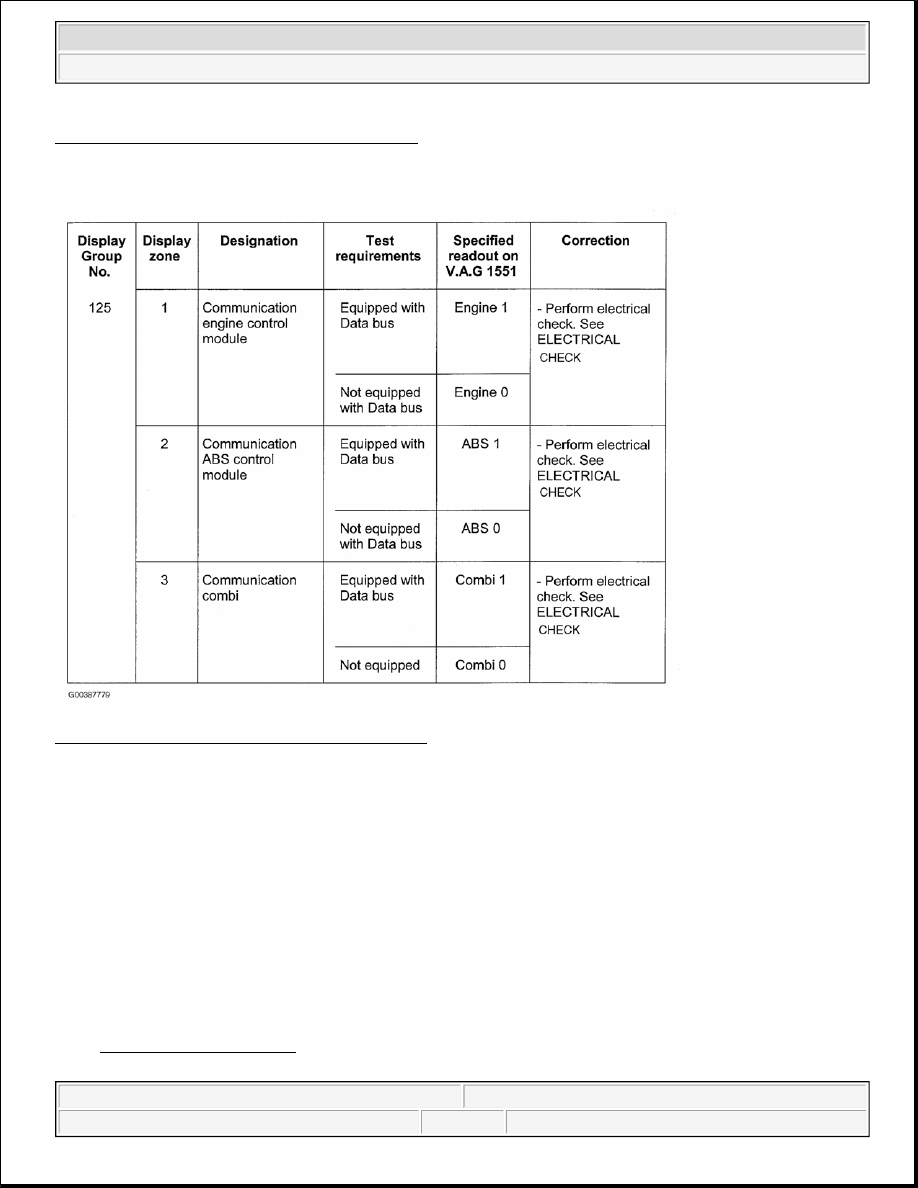

Fig. 112: Test Table (Group 125, Zones 1, 2 & 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ELECTRICAL CHECK

SPECIAL TOOLS AND EQUIPMENT

z

V.A.G 1526 A or Fluke 83 multimeter or equivalent

z

V.A.G 1594 A Adapter set

z

V.A.G 1598/14 Test box (basic equipment)

z

V.A.G 1598/47 Test box

SUPPLEMENTARY INFORMATION

z

SERVICING - A/T (09G) article

z

Electrical Wiring Diagrams



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



CHECK REQUIREMENTS

z

Battery voltage OK

z

Fuses OK

z

Ground connections OK

NOTES

z

The socket assignments of test box V.A.G 1598/47 are identical to Transmission Control Module (TCM)
-J217- contact assignment in the wiring diagram.

z

The specified values are valid for an ambient temperature from 0° C to 40° C.

z

If the readings obtained differ from the specified values, determine fault according to wiring diagram.

z

If the readings obtained differ only slightly from the specified values, clean the sockets and connectors of
the testers and test leads and repeat the test. Before replacing the particular components, test the wiring
and connections and, particularly if specified values are below 10 ohms, repeat resistance measurements
on the component.

TCM -J217- MULTI-PIN CONNECTOR (52 PIN) ASSIGNMENT (SOCKETS ON V.A.G 1598/47)



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

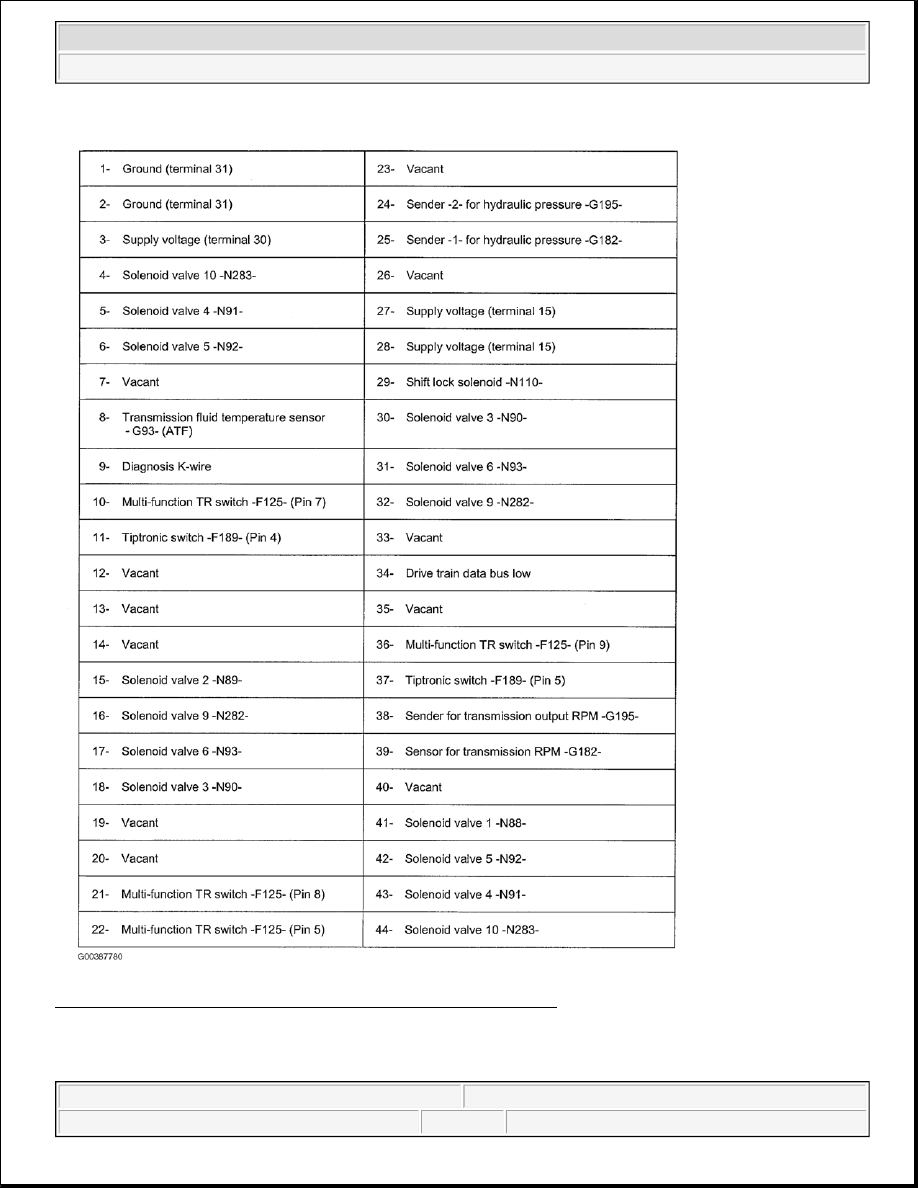

Fig. 113: TCM Multi-Pin Connector (52 Pin) Assignment (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

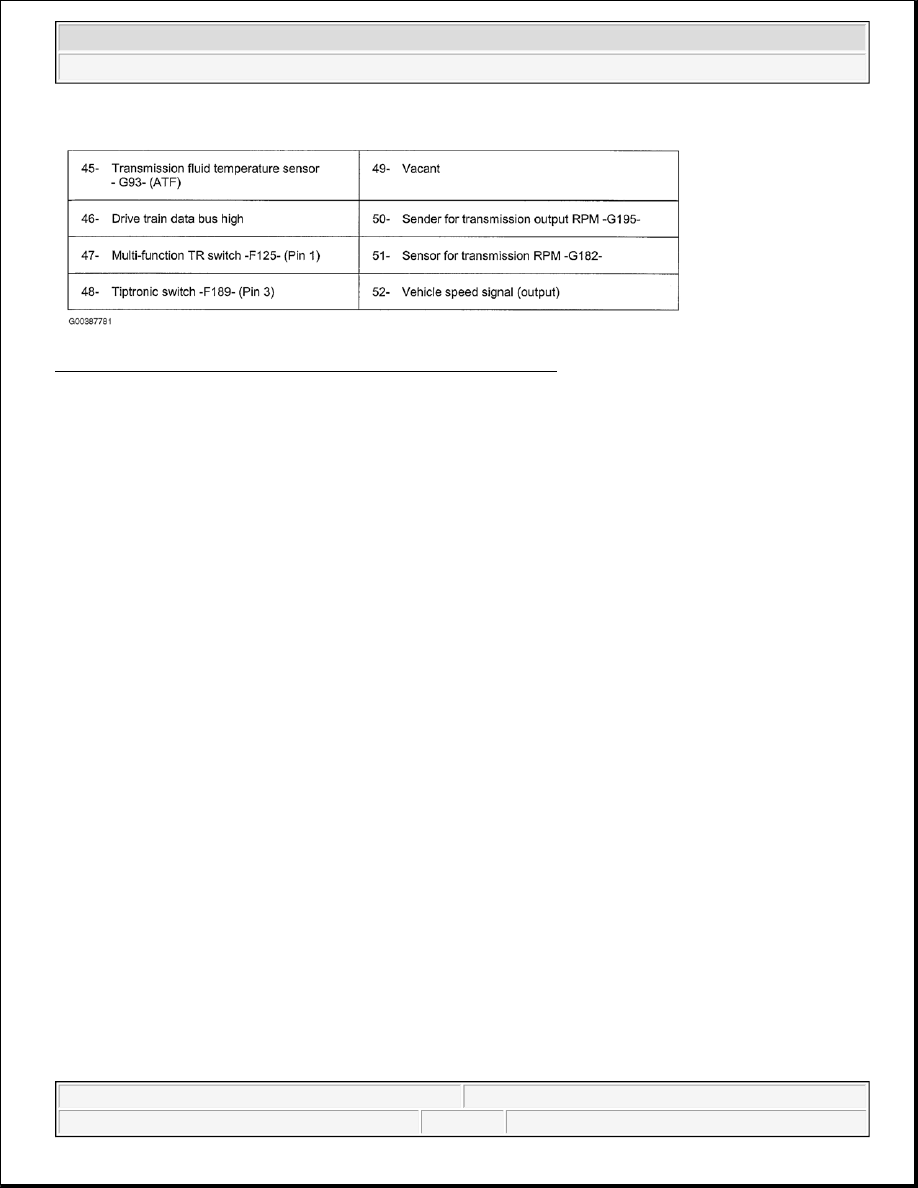

Fig. 114: TCM Multi-Pin Connector (52 Pin) Assignment (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LIST OF TEST STEPS (MULTI-PIN CONNECTOR, 52 PIN)

Only perform test steps for the relevant component as listed in DTC table and measured value block.
